Rotational Viscosimeter 1

Coatings & Industry > Physical properties > Viscosity & Consistency
Specialising for over 50 years in the measurement of viscosity, rheology and texture analysis, Lamy Rheology has seen the scope of its business gradually expand over the years.
Initially, the exclusive distributor of the Contraves brand until 1991, then of Mettler-Toledo and Rheometric Scientific, Lamy then started to design its own instruments to complement those already offered by these firms.
The entire range of Lamy Rheology rotating viscosimeters and rheometers has been developed and is manufactured in
The entire range of Lamy Rheology rotating viscosimeters and rheometers has been developed and is manufactured in France, in our premises located near Lyon.
“Our application laboratory is at your disposal to provide you with efficient advice when next choosing measurement instruments.”

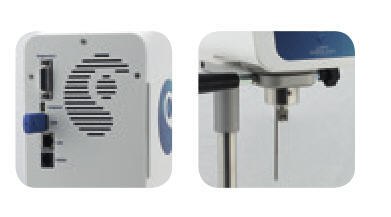

Bayonet coupling
Because simplicity and strength are two essential qualities for a measurement apparatus, all our instruments have been fitted with bayonet couplings for the past 20 years.
State-of-the-art electronics combined with a springless measurement principle,  ensures a wide measurement range and excellent reliability, reduces maintenance, and does not require support levelling.
No graduated spring, but a principle of compensation of absorbed power, and a wide torque range make that you only need one instrument for all your products : ‘First’ 0->10 mNm  compare to LV =0.0673 mNm, RV =0.7187 mNm,  HB =5.7496 mNm.

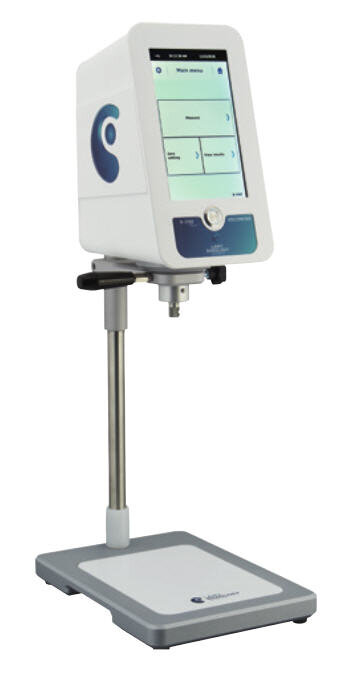

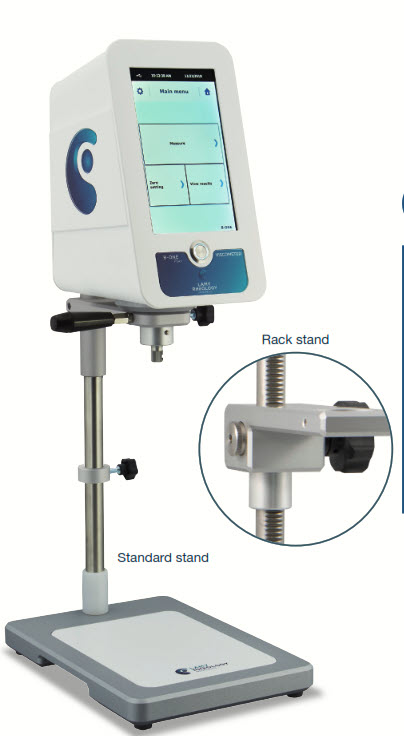

B-ONE PLUS

The economical solution for your viscosity measurements

Intuitive and powerful, the new B-ONE PLUS will surprise you with its extended measuring range in LR version or with its optional temperature sensor.

B-ONE PLUS has the same enhanced programming capabilities as the most complete instruments to maximize the repeatability of your measurements.
FEATURES AND BENEFITS

  • Direct measure with time to stop.
  • User and locked mode.
  • Data recording and USB transfer.
  • Torque gage on display.
  • External temperature probe (option).
  • Display of viscosity limits according to mobile and speed.
  • Speed or shear rate control.

COMPATIBLES  TEMPERATURE CONTROLS
  • EVA LR
  • EVA MS DIN
  • RT-1 PLUS
B-ONE PLUS SPECIFICATIONS 1

Type of instrument    Rotating springless viscometer with 7’’ Touch screen

Rotation speeds  Unlimited number of speeds between 0.3 and  250 rpm

Torque range
Standard Version : 0.05 to 13 mNm
LR Version : 0.005 to 0.8 mNm

Temperature     The FIRST PLUS has a PT100 sensor which indicates temperatures between -50 °C to + 300 °C.

Accuracy  +/- 1 % of the full scale

Repeatability  +/- 0,2 %

Display Viscosity – Speed – Torque (%mNm) – Shear stress – Time – Temperature in option
Choice of viscosity units: cP/Poises or mPa.s / Pa.s

Norms
Norms
ASTM : D115 ; D789 ; D1076 ; D1084 ; D1337 ; D1338 ; D1417; D1439 ; D1824 ; D2196 ; D2243 ; D2364 ; D2556 ; D3288 ; D3468 ; D3716 ; D3730 ; D3794 ; D4016 ; D4143 ; D4878 ; D4889 ; D5324 ; D5400 ; D6279 ; D6577 ; D7394 ; D8020 ; E2975 ; F1607 ; BS 5350 ; DIN 2555 ; 3219 ; 52007-1 ; 53019-1; 54453 ; EN 302-7 ; 2555 ; 3219 ; 10301 ; 12092 ; 12802 ; 15425 ; 15564 ; ISO 1652 ; 2555 ; 2884-2 ; 3219 ; 10364-12.


SPECIFICATIONS 2

Language  French/English/Russian/Spanish/Turkish/German/Italian

Compatible measuring system    MS ASTM, MS BV, MS VANE, MS KREBS, MS SV, MS ULV

Dimensions and weight
Head: D180 x H230 x W130 mm
Aluminium stand: L280 x W200 x H30 mm
Stainless steel rod: Length 500 mm
Weight: 6.7 kg

Supply voltage   90-240 VAC 50/60 Hz

Analog output    4 – 20 mA

PC connections   RS232 Port and USB

Printer connection  USB Host Port  Compatible PCL/5

Options
Carry case (PN 111-100500)
PT100 probe (-50°C to +300°C) (PN 111-900026)

ACTIVITY DOMAINS

Paint / ink / coatings
Food Industry
Cosmetics pharmaceuticals
Chemical / petroleum products
Car industry
Building materials
Teaching

AVAILABLE INSTRUMENTS :

Part Number          Designation Instrument                                                                                                                      Viscosity range
Instrument                                                                                                                                                                                                 ( mPa.s)
N111-600000                B-ONE PLUS VISCOMETER with R-2 to R-7 spindles set (Standard stand)           200 to 240M
N111-600200                B-ONE PLUS VISCOMETER with KU 1 to 10 spindle (Standard stand)                     40 to 140KU
N111-600009                B-ONE PLUS VISCOMETER with RV-2 to RV-7 spindles set (Rack stand)                       200 to 240M
N111-600300                B-ONE PLUS LR VISCOMETER with LV-1 to LV-4 spindles set (Standard stand)       15 to 22M
N111-600309                B-ONE PLUS LR VISCOMETER with LV-1 to LV-4 spindles set (Rack stand)                   15 to 22M

M for Millions, K for thousand
* With MS ULV and MS ASTM (L1 to L4). Not included
** With MS SV and MS ASTM (R2 to R7). Not included
Portable

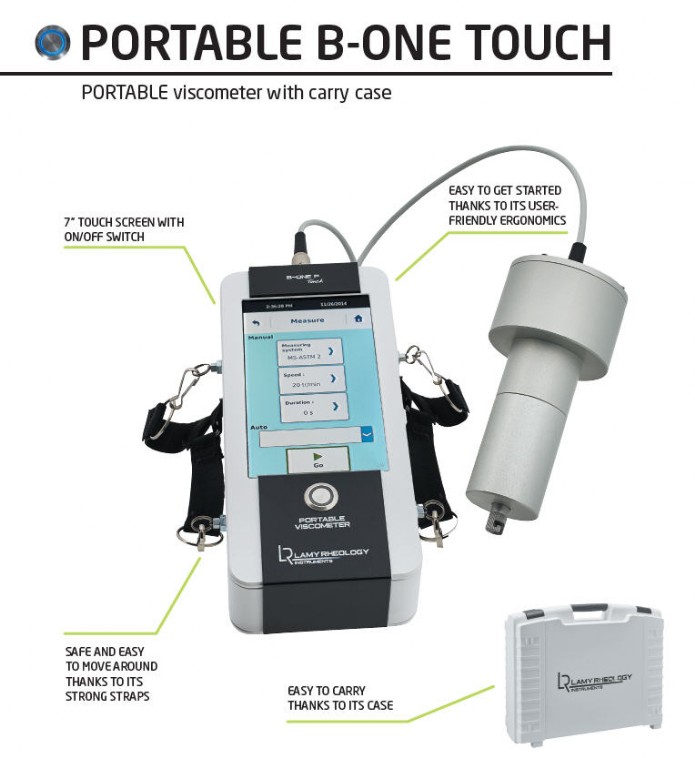

B-One Touch

PORTABLE viscometer with carry case

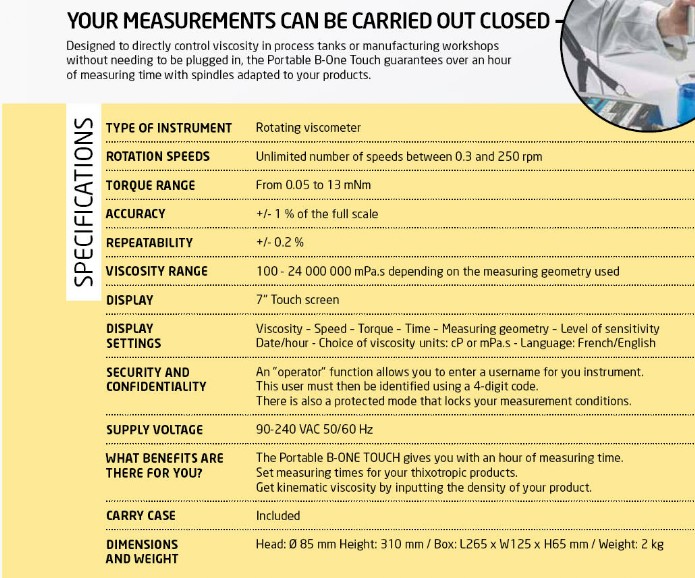

Your measurements can be carried out closed

Designed to directly control viscosity in process tanks or manufacturing workshops without needing to be plugged in, the Portable B-One Touch guarantees over an hour of measuring time with spindles adapted to your products.

OPTIONAL MEASURING GEOMETRIES

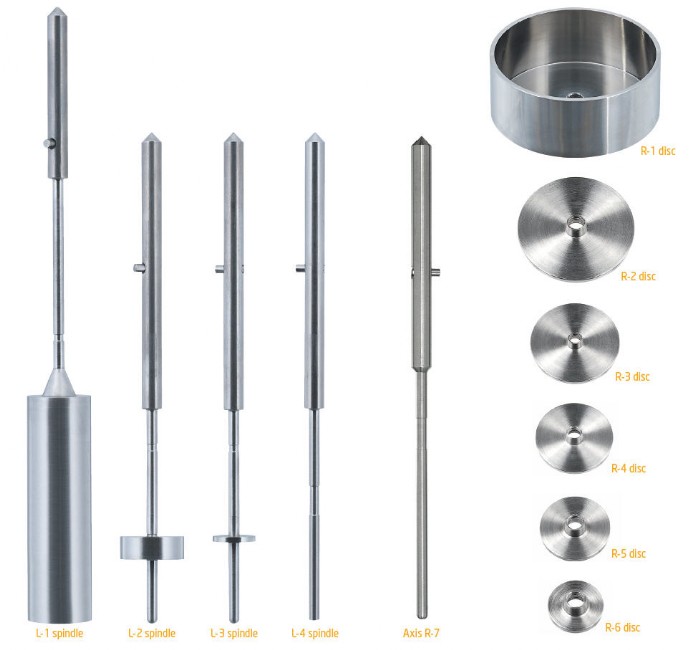

• Spindles L 1 - 4
• Spindles R 2 - 7
• Spindles MK DIN 1 - 3

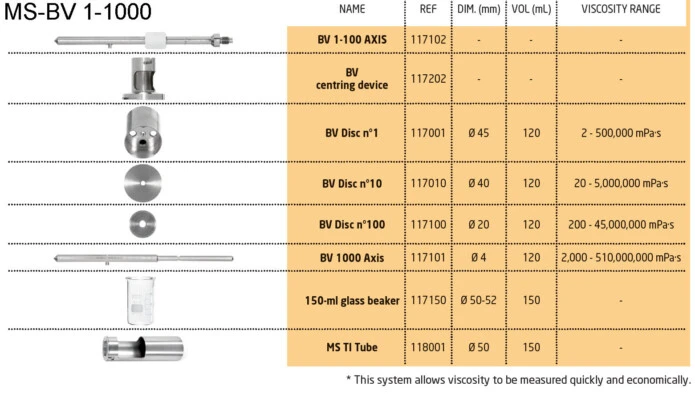

• Spindles BV 1 - 1000

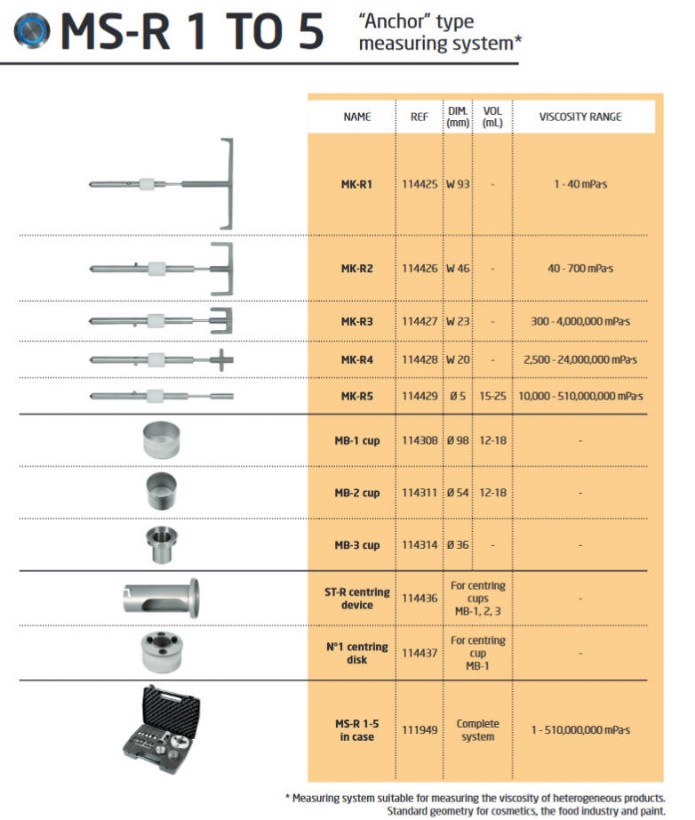

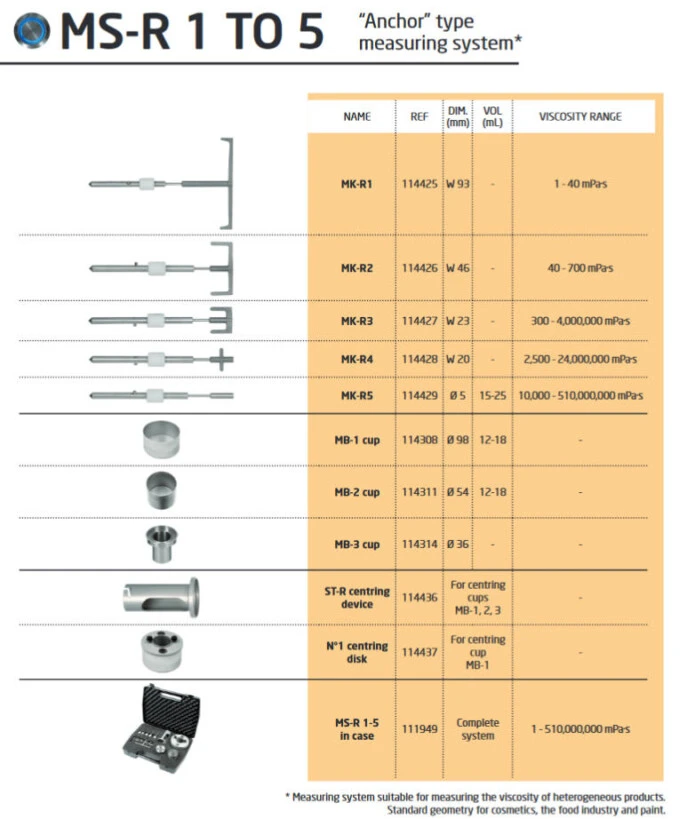

• Spindles MK-R2 to R5

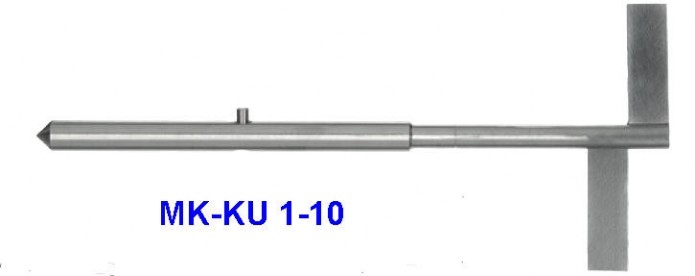

• Spindles MK Krebs KU 1-10
• Spindles MS-RV
• Spindles MS-LV

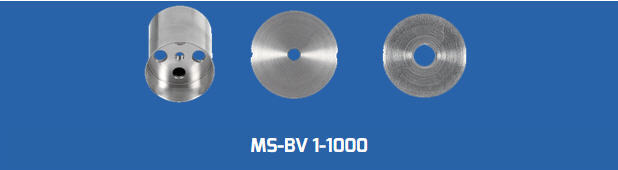

• Spindles MS-BV
• Spindles MS-Vanes
• Spindles MS-SV
• Spindles MS-ULV

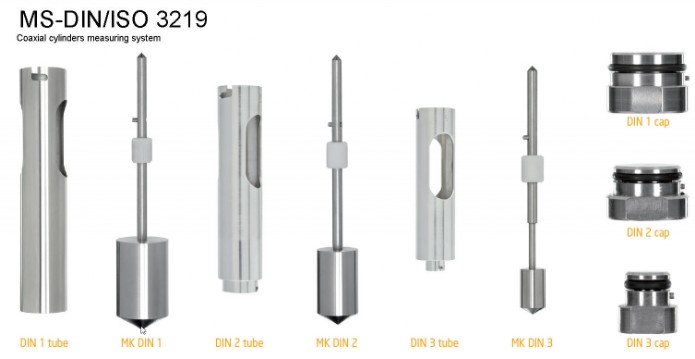

• Spindles MS-DIN

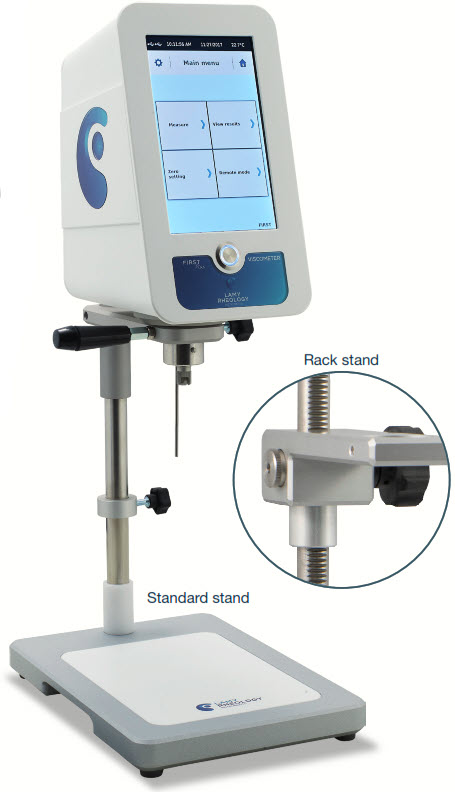

FIRST  PLUS
More than just a simple viscosity measurement
With its expanded programming possibilities and increased modularity, the FIRST PLUS will be the ideal tool for your application whether you use it alone or
with its software.
Viscometer with temperature sensor


The first Plus is available in LR version
For your ultra-sensitive measurements, the First Plus features a  torque range of 0.005 to 0.8 mNm.
With this innovation you can take  advantage of this resolution without the burdens of using spring  technology.
FEATURES AND BENEFITS

  • Direct measure with time to stop.
  • User and locked mode.
  • Data recording and USB transfer.
  • Torque gage on display.
  • Integrated temperature probe.
  • Printer connection.
  • Compatible with RheoTex software.
  • Display of viscosity limits according to mobile and speed.
  • Speed or shear rate control.
  • LIMS function.
OPTIONAL MEASURING GEOMETRIES
  • Spindles L 1 - 4
  • Spindles R 2 - 7
  • Spindles MK DIN 1 - 3
  • Spindles BV 1 - 1000
  • Spindles MK-R2 to R5
  • Spindles MK Krebs KU 1-10
  • Spindles MS-RV
  • Spindles MS-LV
  • Spindles MS-BV
  • Spindles MS-Vanes
  • Spindles MS-SV
  • Spindles MS-ULV
  • Spindles MS-DIN
FIRST PLUS  SPECIFICATIONS 1

Type of instrument    Rotating springless viscometer with 7’’ Touch screen

Rotation speeds  Unlimited number of speeds between 0.3 and  250 rpm

Torque range
Standard Version : 0.05 to 13 mNm
LR Version : 0.005 to 0.8 mNm

Temperature     The FIRST PLUS has a PT100 sensor which indicates temperatures between -50 °C to + 300 °C.

Accuracy  +/- 1 % of the full scale

Repeatability  +/- 0,2 %

Display Viscosity – Speed – Torque – Shear stress – Time – Temperature
Choice of viscosity units: cP/Poises or mPa.s / Pa.s – Shear rate

Norms
ASTM : D115 ; D789 ; D1076 ; D1084 ; D1337 ; D1338 ; D1417; D1439 ; D1824 ; D2196 ; D2243 ; D2364 ; D2556 ; D3288 ; D3468 ; D3716 ; D3730 ; D3794 ; D4016 ; D4143 ; D4878 ; D4889 ; D5324 ; D5400 ;  D6279 ; D6577 ; D7394 ; D8020 ; E2975 ; F1607 ; BS 5350 ; DIN 2555 ; 3219 ; 52007-1 ; 53019-1; 54453 ; EN 302-7 ; 2555 ; 3219 ; 10301 ; 12092 ; 12802 ; 15425 ; 15564 ; ISO 1652 ; 2555 ; 2884-2 ; 3219 ; 10364-12.


SPECIFICATIONS 2

Language  French/English/Russian/Spanish/Turkish/Italian/German

Compatible measuring system    MS DIN, MS RV, MS ASTM, MS BV, MS VANES, MS LV, MS ULV, MS SV,  MS Krebs

Dimensions and weight
Head: L180 x W130 x H230 mm
Aluminium stand: L280 x W200 x H30 mm
Stainless steel rod: Length 500 mm
Weight: 6.7 kg

Supply voltage   90-240 VAC 50/60 Hz

Analog output    4 – 20 mA

PC connections   RS232 Port and USB

Printer connection  USB Host Port  Compatible PCL/5

Options
Carry case (PN 111-100500)
Software RheoTex (PN 111-N311000 + license PN N311700)

OPTIONS & ACCESSORIES
  • Carrying case
  • External temperature probe
  • HELIPRO stand
  • Barcode reader
  • Bayonet spindle rack
  • Touch screen protector
  • Viscosity standards oil
  • Dymo printer
  • THERMOCELL package
  • Small volume package
  • RheoTex software

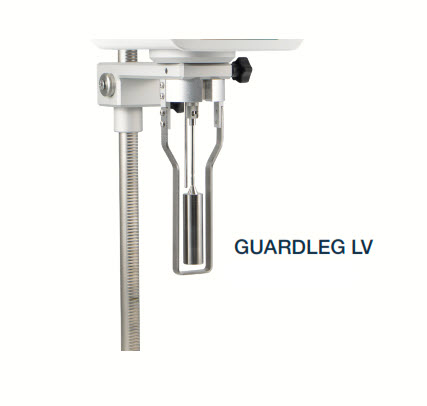

  • GuardLeg

COMPATIBLES  TEMPERATURE CONTROLS
  • EVA LR
  • EVA MS DIN
  • RT-1 PLUS
ACTIVITY DOMAINS

Paint / ink / coatings
Food Industry
Cosmetics pharmaceuticals
Chemical / petroleum products
Car industry
Building materials
Teaching

AVAILABLE INSTRUMENTS :

Part Number          Designation Instrument                                                                                                                      Viscosity range
Instrument                                                                                                                                                                                                 ( mPa.s)
N700700                   FIRST PLUS VISCOMETER with RV-2 to RV-7 spindles  set  (Standard stand)        200 to 240M
N700709                   FIRST PLUS VISCOMETER with RV-2 to R-7 spindles  set (Rack stand)                      200 to 240M
N700300                   FIRST PLUS LR VISCOMETER with LV-1 to LV-4 spindles  set  (Standard stand)    15 (1*)to 22M
N700009                   FIRST PLUS LR VISCOMETER WITH SPINDLE LV-1 TO LV-4 (with rack stand)      15(1*) to 22M
M for million / (*) Can reach 1 mPa.s with MS ULV. Not included.


WHAT’S INCLUDED WITH DEVICE ? (according to part number)
  • 4 Spindles LV or 6 spindles RV
  • 1 Integrated temperature probe

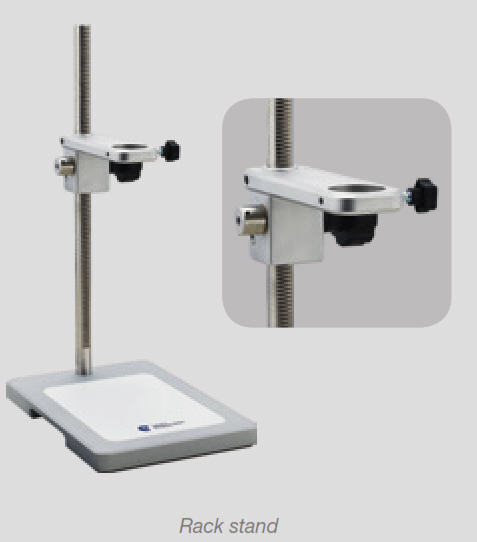

  • 1 Standard stand or rack stand
  • 1 Touch screen stylus
  • 1 User manual
  • 1 Calibration and checking certificate
  • 1 Microfiber cloth.

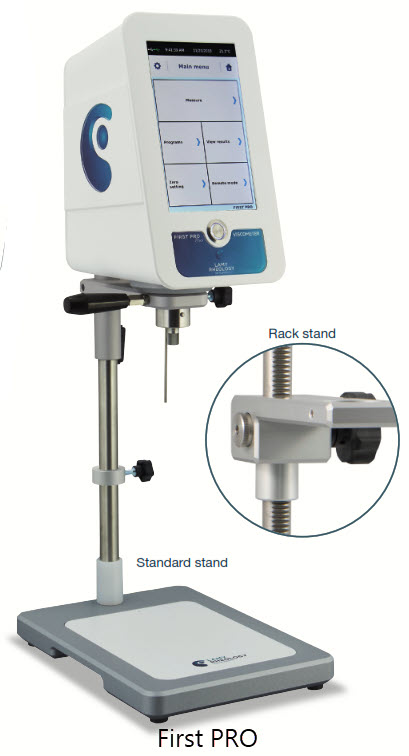

FIRST PRO
Programmed for your measurements

FIRSTPRO has the same enhanced programming capabilities as the most complete instruments to maximize the repeatability of your measurements.



ACTIVITY DOMAINS

Paint / ink / coatings
Food Industry
Cosmetics pharmaceuticals
Chemical / petroleum products
Car industry
Building materials
Teaching
FEATURES AND BENEFITS

  • Programming and recording method
  • Direct measure with time to stop.
  • User and locked mode.
  • Data recording and USB transfer.
  • Torque gage on display.
  • Integrated temperature probe.
  • Printer connection.
SPECIFICATIONS 1

Type of instrument    Rotating springless viscometer with 7’’ Touch screen

Rotation speeds  Unlimited number of speeds between 0.3 and  250 rpm

Torque range
Standard Version : 0.05 to 13 mNm
LR Version : 0.005 to 0.8 mNm

Temperature     The FIRST PLUS has a PT100 sensor which indicates temperatures between -50 °C to + 300 °C.

Accuracy  +/- 1 % of the full scale

Repeatability  +/- 0,2 %

Display Viscosity – Speed – Torque – Shear stress – Time – Temperature
Choice of viscosity units: cP/Poises or mPa.s / Pa.s – Shear rate

Norms
ASTM : D115 ; D789 ; D1076 ; D1084 ; D1337 ; D1338 ; D1417; D1439 ; D1824 ; D2196 ; D2243 ; D2364 ; D2556 ; D3288 ; D3468 ; D3716 ; D3730 ; D3794 ; D4016 ; D4143 ; D4878 ; D4889 ; D5324 ; D5400 ;  D6279 ; D6577 ; D7394 ; D8020 ; E2975 ; F1607 ; BS 5350 ; DIN 2555 ; 3219 ; 52007-1 ; 53019-1; 54453 ; EN 302-7 ; 2555 ; 3219 ; 10301 ; 12092 ; 12802 ; 15425 ; 15564 ; ISO 1652 ; 2555 ; 2884-2 ; 3219 ; 10364-12.


SPECIFICATIONS 2

Language  French/English/Russian/Spanish/Turkish/German/Italian

Compatible measuring system    MS-RV, MS-LV , MS-BV, MS-VANES, MS-KREBS, MS-SV, MS-ULV, MS-DIN.

Compatible temperature control
EVA MS DIN, EVA LR-BV, RT1 PLUS

Dimensions and weight
Head: L180 x W130 x H230 mm
Aluminium stand: L280 x W200 x H30 mm
Stainless steel rod: Length 500 mm
Weight: 6.7 kg

Supply voltage   90-240 VAC 50/60 Hz

Analog output    4 – 20 mA

PC connections   RS232 Port and USB

Printer connection  USB Host Port  Compatible PCL/5


OPTIONS & ACCESSORIES
  • Carrying case
  • External temperature probe
  • HELIPRO stand
  • Barcode reader
  • Bayonet spindle rack
  • Touch screen protector
  • Viscosity standards oil
  • Dymo printer
  • THERMOCELL package
  • Small volume package
  • RheoTex software
  • GuardLeg

COMPATIBLES  TEMPERATURE CONTROLS
  • EVA LR
  • EVA MS DIN
  • RT-1 PLUS
AVAILABLE INSTRUMENTS :

Part Number          Designation Instrument                                                                                                                      Viscosity range
Instrument                                                                                                                                                                                                 ( mPa.s)

N702700           FIRST PRO PLUS VISCOMETER with RV-2 to RV-7 spindles set  (Standard stand)           200 to 240M
N702709           FIRST PRO PLUS VISCOMETER with RV-2 to RV-7 spindles set (Rack stand)                      200 to 240M
N702300           FIRST PRO PLUS LR VISCOMETER with LV-1 to LV-4 spindles set  (Standard stand)     15 (1*)to 22M
N702309           FIRST PRO PLUS LR VISCOMETER with LV-1 to LV-4 spindles set (Rack stand)                15 (1*)to 22M
M for million / (*) Can reach 1 mPa.s with MS ULV. Not included.

WHAT’S INCLUDED WITH DEVICE ? (according to part number)
  • 4 Spindles LV or 6 spindles RV
  • 1 Integrated temperature probe
  • 1 Standard stand or rack stand
  • 1 Touch screen stylus
  • 1 User manual
  • 1 Calibration and checking certificate
  • 1 Microfiber cloth.

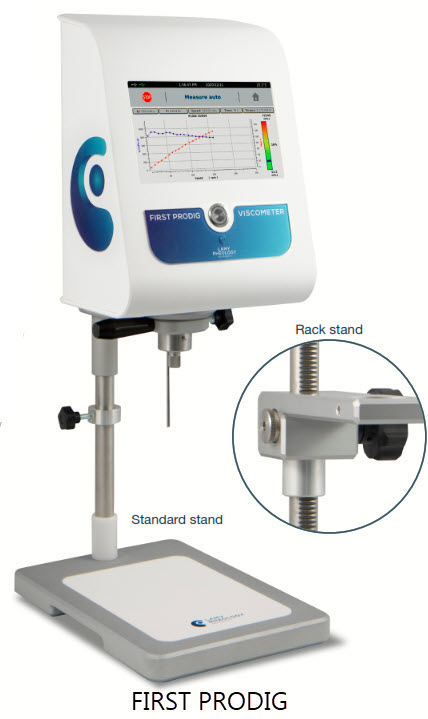

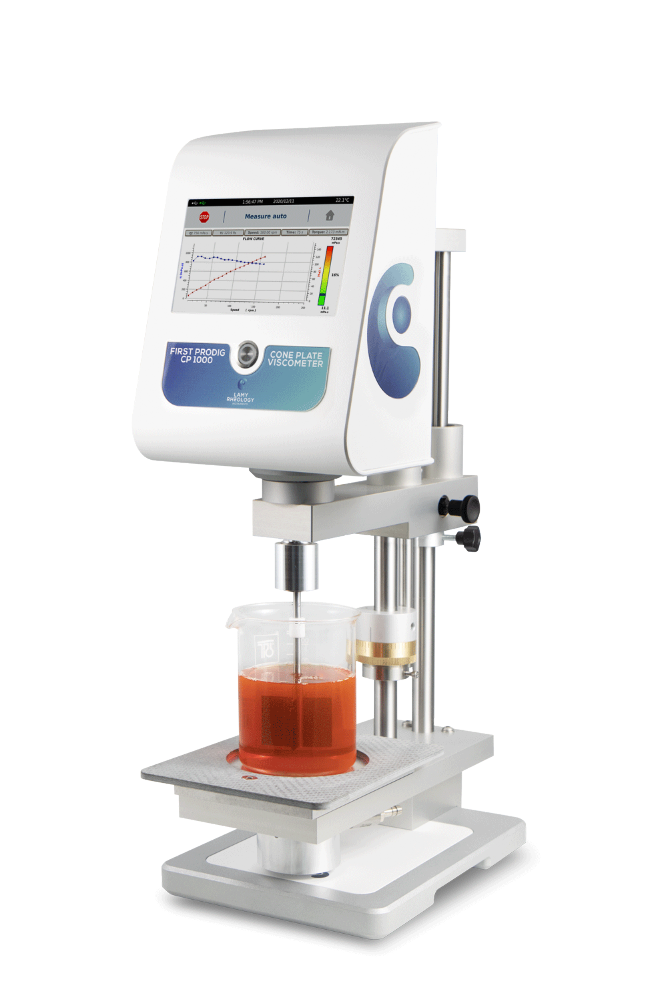

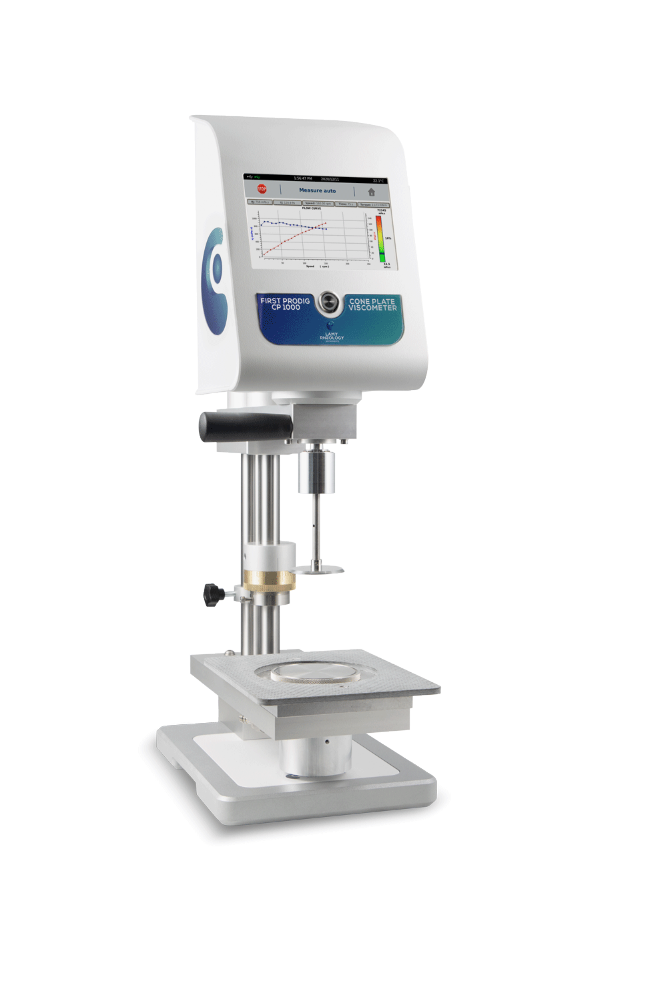

FIRST PRODIG
The solution to your most exacting methods.


ACTIVITY DOMAINS

Paint / ink / coatings
Food Industry
Cosmetics pharmaceuticals
Chemical / petroleum products
Car industry
Building materials
Teaching
FEATURES AND BENEFITS

  • Speed or shear rate control.
  • Inbuilt software for programming.
  • Constant, Multistep or ramp method.
  • Direct curve on display.
  • Direct analysis with regression.
  • Direct report editing.
  • Direct measure with time to stop.• User and locked mode.
  • Data recording and USB transfer• Torque gage on display.
  • Integrated temperature probe.
  • Printer connection.
  • Compatible with RheoTex softwar• Display of viscosity limits according tomobile and speed.
  • Direct control of temperature unit.
  • LIMS function.
  • QC limits function.
SPECIFICATIONS 1

Type of instrument    Rotating springless viscometer with 7’’ Touch screen

Rotation speeds  Unlimited number of speeds between 0.3 and  250 rpm

Torque range
Standard Version : 0.05 to 13 mNm
LR Version : 0.005 to 0.8 mNm

Temperature    Equipped with a PT100 sensor which  indicates temperatures between -50°C to +300°C

Accuracy  +/- 1 % of the full scale

Repeatability  +/- 0,2 %

Display Viscosity – Speed – Torque – Shear stress – Time – Temperature
Choice of viscosity units: cP/Poises or mPa.s / Pa.s – Shear rate

Norms
ASTM : D115 ; D789 ; D1076 ; D1084 ; D1337 ; D1338 ; D1417; D1439 ; D1824 ; D2196 ; D2243 ; D2364 ; D2556 ; D3288 ; D3468 ; D3716 ; D3730 ; D3794 ; D4016 ; D4143 ; D4878 ; D4889 ; D5324 ; D5400 ;  D6279 ; D6577 ; D7394 ; D8020 ; E2975 ; F1607 ; BS 5350 ; DIN 2555 ; 3219 ; 52007-1 ; 53019-1; 54453 ; EN 302-7 ; 2555 ; 3219 ; 10301 ; 12092 ; 12802 ; 15425 ; 15564 ; ISO 1652 ; 2555 ; 2884-2 ; 3219 ; 10364-12.


SPECIFICATIONS 2

Language  French/English/Russian/Spanish/Turkish/German/Italian

Compatible measuring system    MS-RV, MS-LV , MS-BV, MS-VANES, MS-KREBS, MS-SV, MS-ULV, MS-DIN.

Compatible temperature control
EVA MS DIN, EVA LR-BV, RT1 PLUS

Dimensions and weight
Head: L180 x W130 x H230 mm
Aluminium stand: L280 x W200 x H30 mm
Stainless steel rod: Length 500 mm
Weight: 6.7 kg

Supply voltage   90-240 VAC 50/60 Hz

Analog output    4 – 20 mA

PC connections   RS232 Port and USB

Printer connection  USB Host Port  Compatible PCL/5


OPTIONS & ACCESSORIES
  • Carrying case
  • External temperature probe
  • HELIPRO stand
  • Barcode reader
  • Bayonet spindle rack
  • Touch screen protector
  • Viscosity standards oil
  • Dymo printer
  • THERMOCELL package
  • Small volume package
  • RheoTex software
  • GuardLeg

COMPATIBLES  TEMPERATURE CONTROLS
  • EVA LR
  • EVA MS DIN
  • RT-1 PLUS
AVAILABLE INSTRUMENTS :

Part Number          Designation Instrument                                                                                                                      Viscosity range
Instrument                                                                                                                                                                                                 ( mPa.s)
N707700    FIRST PRODIG VISCOMETER WITH SPINDLES RV-2 TO RV-7 (with standard stand)      200 to 240M
N707709    FIRST PRODIG VISCOMETER WITH SPINDLES RV-2 TO RV-7 (with rack stand)                 200 to 240M
N707300    FIRST PRODIG LR VISCOMETER WITH SPINDLES LV-1 TO LV-4 (with standard stand)   15(1*) to 22M
N707309    FIRST PRODIG LR VISCOMETER WITH SPINDLES LV-1 TO LV-4 (with rack stand)              15(1*) to 22M
M for million / (*) Can reach 1 mPa.s with MS ULV. Not included.

WHAT’S INCLUDED WITH DEVICE ? (according to part number)
  • 4 Spindles LV or 6 spindles RV
  • 1 Integrated temperature probe
  • 1 Standard stand or rack stand
  • 1 Touch screen stylus
  • 1 User manual
  • 1 Calibration and checking certificate
  • 1 Microfiber cloth.


FIRST PRODIG CP-1000

A revolution for measurements on low volumes.


AVAILABLE INSTRUMENT

Reference      Designation                                                                                                          Viscosity range (mPa.s)
N707500       FIRST PRODIG CP-1000 VISCOMETER (+5°C to +65°C)*     3 to 80M **
M for million / * Maximum temperature range with circulating bath (not included). / ** According to cone-plate MS CP. Not included.


WHAT’S INCLUDED WITH DEVICE ?  (according to part number)

  • 1 Stand with 70mm bottom plate
  • 1 Double rod with stop ring and adjusting gap
  • 2 Silicon pipe (1m)
  • 1 Integrated temperature probe
  • 1 Touch screen stylus
  • 1 User manual
  • 1 Calibration and checking certificate
  • 1 Microfiber cloth.
  • 1 Adaptor bayonet-AC265 (Ref. 800146).
FEATURES AND BENEFITS

  • CP-1000 stand for cone-plate measurement.
  • Quick attachment with AC265 coupling.
  • Manual lift for gap adjustment.
  • Speed or shear rate control.
  • Inbuilt software for programming.
  • Constant, Multistep or ramp method.
  • Direct curve on display.
  • Direct analysis with regression.
  • Direct report editing.
  • Direct measure with time to stop.
  • User and locked mode.
  • Data recording and USB transfer.
  • Torque gage on display.
  • Integrated temperature probe.
  • Printer connection.
  • Compatible with RheoTex software.
  • Display of viscosity limits according tomobile and speed.
  • LIMS function.
  • QC limits function.
SPECIFICATIONS 1

Type of instrument    Rotating springless viscometer with 7’’ Touch screen

Rotation speeds  Unlimited number of speeds between 0.3 and  250 rpm

Torque range
From 0.05 to 13 mNm

Temperature     Equipped with a PT100 sensor which indicates temperatures between -50°C to +300°C

Accuracy  +/- 1 % of the full scale

Repeatability  +/- 0,2 %

Display Viscosity – Speed – Torque – Shear stress – Time – Temperature
Choice of viscosity units: cP/Poises or mPa.s / Pa.s



SPECIFICATIONS 2

Language  French/English/Russian/Spanish/Turkish/German/Italian

Supply voltage       90-240 VAC 50/60 Hz

Analog output :        4 – 20 mA

PC connections :     RS232, USB and  Ethernet

Printer connection :  USB Host Port
                                               Compatible PCL/5

Dimensions and weight :  D320 x H550 x W200 mm

Weight:                                      14 kg
OPTIONS & ACCESSORIES
  • Barcode reader
  • Touch screen protector
  • Viscosity standards oil
  • Dymo printer
  • RheoTex software
  • Protection cover (Ref. 121019).

COMPATIBLES  MEASURING SYSTEMS
  • MS-CP
  • MS-PP*
  • MS-RV,
  • MS-VANES
  • MS-KREBS
(*with accessory 100047)
ACTIVITY DOMAINS

Paint / ink / coatings
Food Industry
Cosmetics pharmaceuticals
Chemical / petroleum products
Car industry
Building materials
Teaching

Back to content
