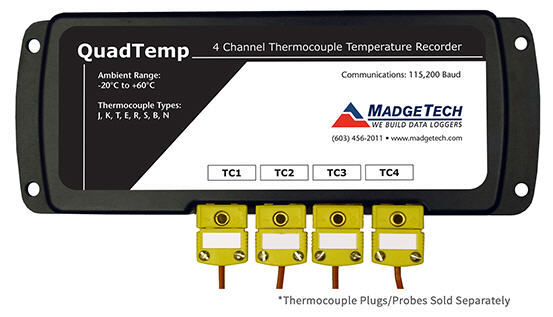

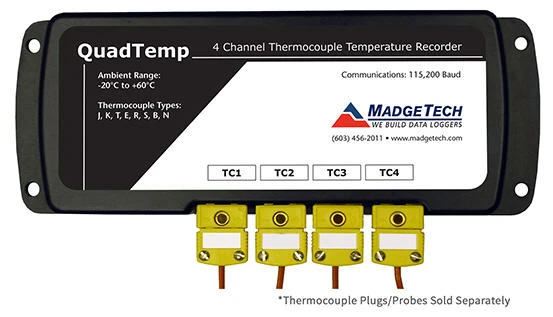

QuadTemp Data Logger
4-channel, thermocouple based temperature data logger with mini plug connectors and wall mounted power adapter.
Includes NIST traceable calibration certificate.
The QuadTemp is a four channel thermocouple temperature data logger with a reading rate of up to 4 Hz. It can measure and record data for up to 500,000 readings per channel. To maximize memory capacity, users can disable unused channels to add additional memory onto enabled channels. For easy identification, each channel can be named with up to a ten digit title. In addition, the QuadTemp features individual cold junction compensation for each channel providing increased accuracy and response time, and if a probe is removed or severed during logging, the software automatically annotates the data.
The QuadTemp is ideal for a variety of applications, whether it is remote temperature monitoring, or multiple points in a central location. Data from all channels is simultaneously logged. After the monitoring cycle is complete, data can be downloaded for analysis.
Note: the QuadTemp-EU model includes a wall mounted 230 VAC@50 Hz/9 VDC power adapter.
Thermocouple Plugs/Probes Sold Separately.
TEMPERATURE
Internal Channel Temperature Sensor : Semiconductor
Internal Channel Temperature Resolution : 0.05 °C
Internal Channel Temperature Calibrated Accuracy : ±0.5 °C
Remote Channel Temperature Sensor : Thermocouple Types J, K, T, E, R, S, B ,N
Remote Channel Temperature Range : Thermocouple Dependent
Remote Channel Temperature Resolution : Thermocouple Dependent
Remote Channel Temperature Calibrated Accuracy : Thermocouple Dependent
GENERAL
Memory : 500,000 readings per channel
Reading Rate : 4 readings every second up to 1 reading every 24 hours
Baud Rate : 115,200
Cold Junction Compensation : Automatic
Channels : 4 Internal & 4 Remote
Battery Life : 18 months typical
Material : Anodized aluminum
Dimensions : 183 mm x 68 mm x 26 mm
Operating Environment : -20 °C to +60 °C, 0 %RH to 95 %RH, non-condensing
Required Interface Package : IFC200
Approvals : CE
IFC200 Data Logger Interface
USB Interface Cable Package for Standard Series Data Loggers.
U9VL-J Lithium Battery
9.0 Volt, Lithium Battery, 1200 mAH
MadgeTech 4 Secure Validation Software Package
IQ/OQ/PQ Secure Software Validation Workbook and Software Package.
WaterboxOB3K
Customized weatherproof enclosure for use with the QuadTemp, OctTemp, QuadTemp2000 and OctTemp2000 Data Loggers.

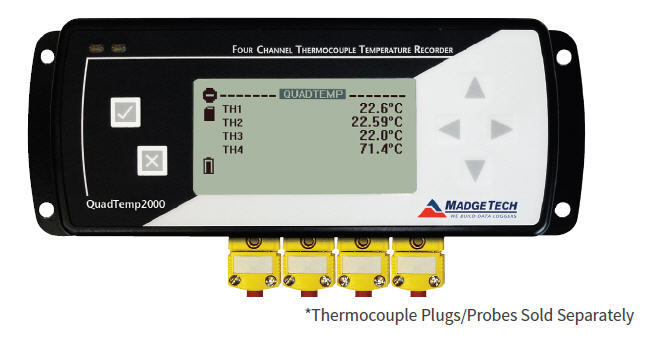

QuadTemp2000 Data Logger
4-channel thermocouple temperature data logger with LCD and wall mounted power adapter.
Includes NIST traceable calibration certificate.
The QuadTemp2000 is a four channel thermocouple temperature data logger with an LCD. The device features onscreen minimum, maximum and average statistics, as well as a user configurable graphics screen that allows for any combination of channels to be displayed. The device accepts J, K, T, E, R, S, B and N type thermocouples. The QuadTemp2000 is ideal for a variety of applications, whether it is remote temperature monitoring, or multiple points in a central location.
Data from all channels is simultaneously logged and displayed onscreen for real time monitoring. It can then be downloaded to a PC for further analysis. The QuadTemp also has enhanced memory capacity, allowing the data logger to measure and record data up to 500,000 readings per channel. The QuadTemp2000 comes with a wall mounted universal power adapter.
Data from all channels is simultaneously logged and displayed onscreen for real time monitoring. It can then be downloaded to a PC for further analysis. The QuadTemp also has enhanced memory capacity, allowing the data logger to measure and record data up to 500,000 readings per channel. The QuadTemp2000 comes with a wall mounted universal power adapter.
Thermocouple Plugs/Probes Sold Separately..
TEMPERATURE
Internal Channel Temperature Sensor : Semiconductor
Internal Channel Temperature Resolution : 0.05 °C
Internal Channel Temperature Calibrated Accuracy : ±0.5 °C
Remote Channel Temperature Sensor : Thermocouple Types J, K, T, E, R, S, B ,N
Remote Channel Temperature Range : Thermocouple Dependent
Remote Channel Temperature Resolution : Thermocouple Dependent
Remote Channel Temperature Calibrated Accuracy : Thermocouple Dependent
GENERAL
Memory : 500,000 readings per channel
Reading Rate : 4 readings every second up to 1 reading every 24 hours
Baud Rate : 115,200
Cold Junction Compensation : Automatic
Channels : 4 Internal & 4 Remote
Battery Life : 18 month battery life with display off. 3 months typical with continuous display use.
Material : Anodized aluminum
Dimensions : 183 mm x 68 mm x 26 mm
Operating Environment : -20 °C to +60 °C, 0 %RH to 95 %RH, non-condensing
Required Interface Package : IFC200
Approvals : CE
IFC200 Data Logger Interface
USB Interface Cable Package for Standard Series Data Loggers.
U9VL-J Lithium Battery
9.0 Volt, Lithium Battery, 1200 mAH
MadgeTech 4 Secure Validation Software Package
IQ/OQ/PQ Secure Software Validation Workbook and Software Package.
WaterboxOB3K
Customized weatherproof enclosure for use with the QuadTemp, OctTemp, QuadTemp2000 and OctTemp2000 Data Loggers.

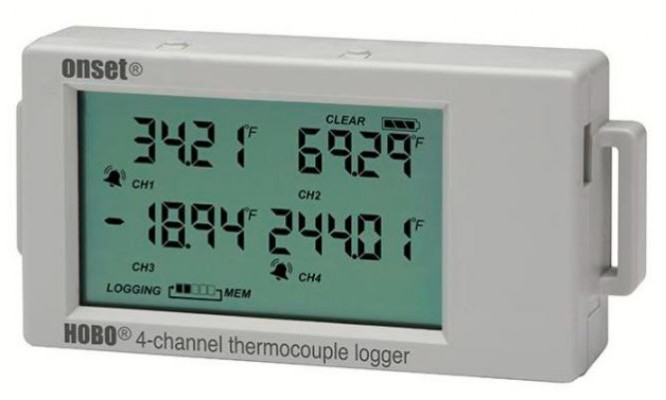

HOBO 4-Channel Thermocouple Data Logger
A four-channel thermocouple LCD display data logger to measure and record temperature in a broad range of monitoring applications. Records temperatures from -260 to 1820⁰ C and accepts up to four J, K, T, E, R, S, B, or N type probes. This logger also features an internal temperature sensor for logging ambient temperatures, further extending the range of application possibilities.
IMPORTANT INFORMATION
External sensors sold separately.
Requires HOBOware software and a USB cable.
(Note: A USB-A to USB-B mini cable is included w/HOBOware Pro USB Drive software purchase).
What's In The Box
- HOBO UX120-014M 4-Channel Thermocouple Data Logger
- Command™ strip
- Double-sided tape
- Hook & loop strap
- Two AAA 1.5 V alkaline batteries
- The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)
Features
- Easy-to-view LCD display confirms logger operation and battery status
- Near real-time readout of current temperatures, as well as minimum, maximum, average, and standard deviation statistics
- On-screen alarms notify you if temperatures exceed high or low thresholds
- Large memory capacity capable of storing 1.6 million measurements
- Start, stop, and restart pushbuttons
- User-upgradeable firmware
- Optional protective case enables logger use in outdoor environments
- Compatible with HOBOware and HOBOware Pro software for logger setup and graphing & analysis
Specifications
Thermocouple
Type Range Accuracy Resolution
J - 210° to 760°C ±0.6°C ± thermocouple probe accuracy 0.03°C
K -260° to 1,370°C ±0.7°C ± thermocouple probe accuracy 0.04°C
T -260° to 400°C ±0.6°C ± thermocouple probe accuracy 0.02°C
E -260° to 950°C ±0.6°C ± thermocouple probe accuracy 0.03°C
R -50° to 1,550°C ±2.2°C ± thermocouple probe accuracy 0.08°C
S -50° to 1,720°C ±2.2°C ± thermocouple probe accuracy 0.08°C
B 550° to 1,820°C ±2.5°C ± thermocouple probe accuracy 0.1°C
N -260° to 1,300°C ±1.0°C ± thermocouple probe accuracy 0.06°C
LCD: LCD is visible from: 0° to 50°C ; the LCD may react slowly or go blank in temperatures outside this range
Size: 10.8 x 5.41 x 2.54 cm
Weight: 107.5 g
Environmental rating: IP50

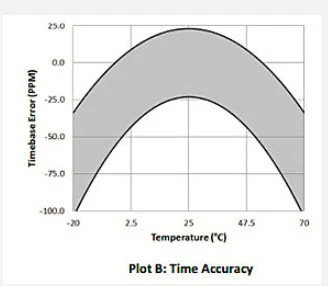

Time accuracy: ±1 minute per month at 25°C, see Plot B
Battery life: 1 year, typical with logging rate of 1 minute and sampling interval of 15 seconds or greater
Battery type: Two AAA 1.5V alkaline batteries, user replaceable
Memory: 4 MB (1.6 million measurements, maximum)
Download type: USB 2.0 interface
Full memory download time: Approximately 1.5 minutes
Internal 10K Thermistor (Temperature):
Range: Logging: -20° to 70°C
Acuracy: ±0.21°C from 0° to 50°C, see Plot A
Resolution: 0.024°C at 25°C, see Plot A
Drift: <0.1°C per year
Acuracy: ±0.21°C from 0° to 50°C, see Plot A
Resolution: 0.024°C at 25°C, see Plot A
Drift: <0.1°C per year
Logger
Logger Operating Range
Logging: -20° to 70°C ; 0 to 95% RH (non-condensing); logger accuracy from 0° to 50°C
Launch/readout: 0° to 50°C per USB specification
Logging rate: 1 second to 18 hours, 12 minutes, 15 seconds
Logging modes: Normal, Burst or Statistics
Memory modes: Wrap when Full or Stop when Full
Start modes: Immediately, Push Button, Date & Time or Next Interval
Stop modes: When Memory Full, Push Button, or Date & Time
Restart mode: Push Button
Logging: -20° to 70°C ; 0 to 95% RH (non-condensing); logger accuracy from 0° to 50°C
Launch/readout: 0° to 50°C per USB specification
Logging rate: 1 second to 18 hours, 12 minutes, 15 seconds
Logging modes: Normal, Burst or Statistics
Memory modes: Wrap when Full or Stop when Full
Start modes: Immediately, Push Button, Date & Time or Next Interval
Stop modes: When Memory Full, Push Button, or Date & Time
Restart mode: Push Button

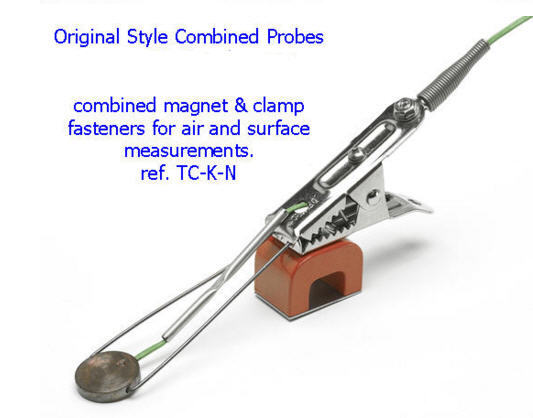

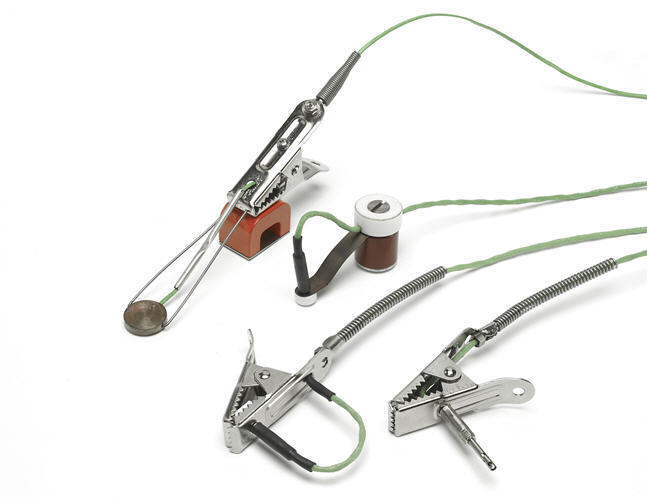

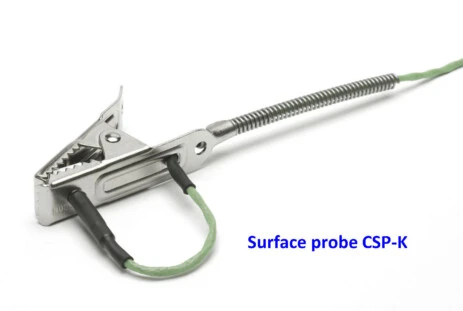

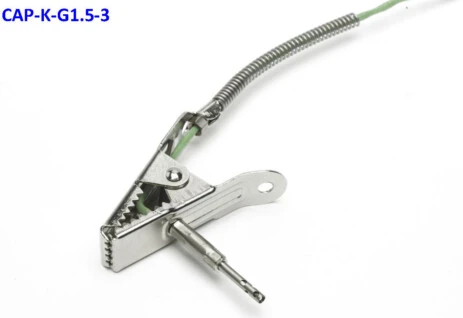

Probes for use with the QuadTemp Oven Logger and HOBO 4 Channel
A wide range of K-Type temperature probes is available with a choice of 1.5m, 3m or 6m cable lengths.
The QuadTemp can be used with a combination of up to 4 probes simultaneously.
The QuadTemp can be used with a combination of up to 4 probes simultaneously.
- Perfect contact between probe and surface
- Low mass and optimised shape to avoid influence on temperature of the sample
- Extremely strong, highly flexible and easy to clean Teflon® coated cables
All probes have a continuous maximum temperature of 250ºC.
