pH Monitoring
Laboratory Product > Water Quality

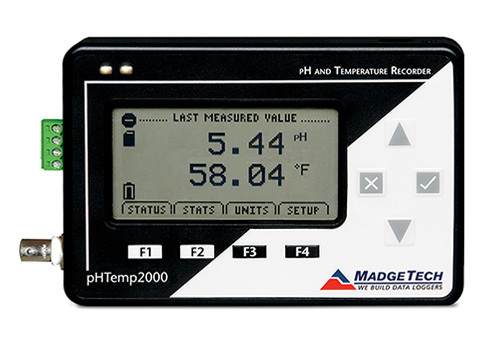

pHTemp2000
The pHTemp2000 is a battery powered, stand alone pH and temperature data logger with an LCD.
This all-in-one compact, portable, easy to use device will measure and record data up to 131,071 readings per channel.
The pHTemp2000 will directly connect to many commonly used pH and ORP electrodes through a female BNC connector mounted on its side.
Temperature is measured by directly connecting an RTD to the pHTemp2000. Temperature compensation is automatically done internally to the unit.
The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The device can be started and stopped directly from your computer.
The pHTemp2000 makes data retrieval quick and easy. Simply plug it into an empty USB port and our user-friendly software does the rest.
Applications :
- Surface and ground water quality monitoring
- Environmental and wetlands monitoring
- Industrial influent and effluent
- Water districts and municipal water systems
- Process water quality
- Recreation and park management
- Pulp and paper industry
- Wastewater monitoring
Temperature**
Measurement Range: -40 ºC to +110 ºC (80Ω to +145 Ω)
Resolution: 0.01 ºC (0.001 Ω)
Calibrated Accuracy: ±0.15 ºC @ 25 ºC ambient (±0.015Ω)***
Input Connection: Removable screw terminal; 2, 3 or 4-wire interface****
pH/ORP/ISE
Input Connection: Female BNC
Measurement Range: -2.00 to 16.00
Resolution: 0.01/0.001 pH
pH Accuracy: ±0.01 pH
pH EMI Susceptibility: <0.2 pH@3 V/M, 80 MHz to 1 GHz
ORP/ISE Accuracy: ±0.1 mV
ORP/ISE EMI Susceptibility: <10 mV@3 V/M, 80 MHz to 1 GHz
Input Impedance: 1012 Ω typical
ORP/ISE Measurement Range: ±1.25 V
**Temperature specifications based on ideal 100 Ω Pt RTD compliant with IEC 751 (1983) and ITS-90, 5000 Ω FSR (accuracy based on 36” lead wire RTD with 4 wire configuration)
***Calibrated accuracies based on standard MadgeTech calibrations for 0 Ω to 200 Ω range.
****100 Ω , 2 or 4 wire RTD probes are recommended for the most accurate performance. Most 100 Ω , 3 wire RTD probes will work, but MadgeTech cannot guarantee the accuracy. To determine whether or not the 3-wire RTD probe will work, the resistance between the two same colored wires should be less than 1 Ω.
For use in harsh environments, this device must be well protected from weather, steam and harsh chemicals
DOT-MATRIX LCD
Dimensions: 63 mm x 35 mm
Text: Configurable channel text size
Indicators: Power, status, memory
Backlight: Configurable w/auto shut-off and contrast adjustment
Memory: 131,071 readings per channel
Reading Rate: 1 reading every 2 seconds up to 1 reading every 24 hours
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Battery Type: 9V lithium or alkaline battery included; user replaceable
Battery Life: 1 year battery life at 1 minute reading rate with display off. 30 days typical with continuous display use. Optional AC adapter available.
Data Format: Date and time stamped ºC, ºF, ºK, ºR, Ω ; pH, V, mV, engineering units specified through software
Time Accuracy: ±1 minute/month (at +25 ºC; RS232 cable not in use)
Computer Interface:
USB (interface cable required); 115,200 baud
Software: XP SP3/Vista/Windows 7/Windows 8
Operating Environment: -5 ºC to +50 ºC, 0 %RH to 95 %RH (non-condensing)
Dimensions: 122 mm x 84 mm x 32 mm
Weight: 440 g
Approvals: CE
PHTEMP2000 pH and Temperature Recorder with LCD Display

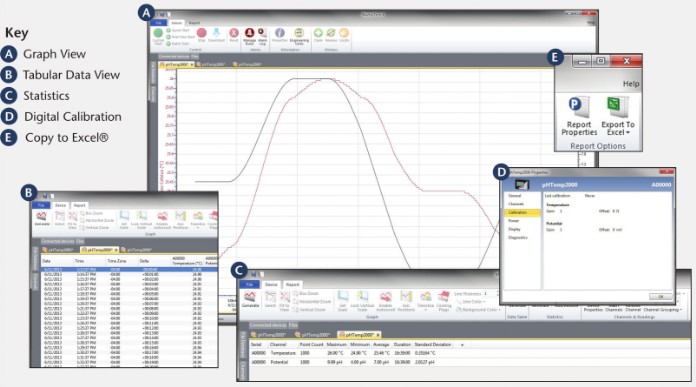

IFC200 Software, manual and USB interface cable
Calibration Certificate Calibration Certificate available for data logger
U9VL-J Replacement battery for pHTemp2000

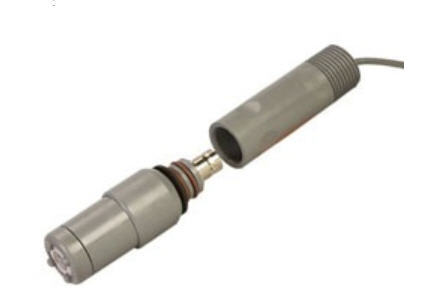

pH Rugged Electrode
A submersible CPVC pH Electrode that is suited for use in outdoor applications such as monitoring drums, tanks or streams. To interface with a MadgeTech pH data logger, a cable assembly is required and must be purchased separately.
The pH-Rugged Electrode is a submersible CPVC pH electrode that is suited for use in outdoor applications such as monitoring drums, tanks or streams. The electrode has a quick latch mechanism which allows it to be inserted into a BNC connector by simply rotating it a quarter turn. For use with the MadgeTech pH loggers, a cable assembly and an RTD temperature reference is required.

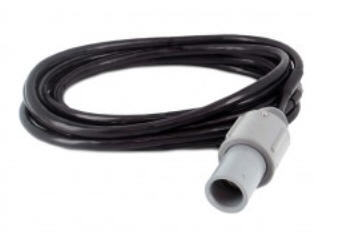

Two mounting assembly options are available. The pH-Rugged ATC Cable mounting assembly connects directly to the pH-Rugged Electrode and has a built in RTD probe, providing automatic temperature compensation (ATC). The pH-Rugged Probe cable assembly connects to the pH-Rugged Electrode and can be used with an external RTD probe or may be used with one of the resistor kits included with the MadgeTech pH loggers. Automatic Temperature Compensation is preferred, as it provides the best accuracy. When the precision and accuracy of ATC is not necessary, use the included resistor kit to simulate the temperature of the application to minimize error.
Compatible with the MadgeTech pHTemp2000 data logger.
Resistor Kit: Reference the table included with the resistor kit to calibrate the resistor to simulate the temperature of the application.
Life expectancy: The pH-Rugged Electrode has a life expectancy of 6-12 months depending on use.
TEMPERATURE
Temperature Range 65 °C (150 °F)
pH
pH Range 0 pH to 14 pH (±1000 mV)
GENERAL
Dimensions pH-Rugged Electrode: 76 mm x 23 mm
pH-Rugged Cable: 3048 mm x 21 mm
pH-Rugged ATC Cable: 3048 mm x 33 mm

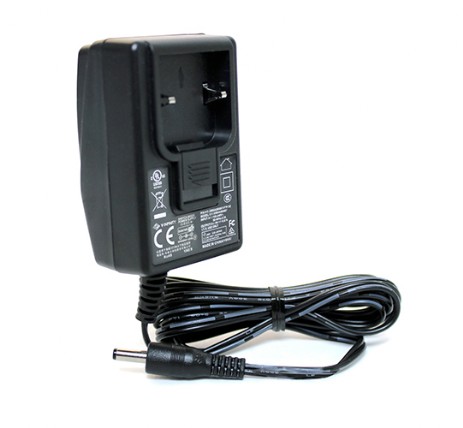

DC9V

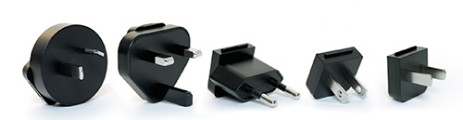

Universal power adapter for the 2000 series (LCD Display) data loggers:
Wall mounted universal power adapter for the 2000 series data loggers.
• PRHTemp2000 Data Logger
• RHTemp2000 Data Logger
• TCTemp2000 Data Logger
• RTDTemp2000 Data Logger
• PR2000 Data Logger
• pHTemp2000 Data Logger
• QuadTemp2000 Data Logger
• OctTemp2000 Data Logger
