Long Range Automatic
Metrology > Optical measuring system
Video Measuring Machine-Automatic
VMM-C
- Features
- Tailored Development: Meets diverse measurement needs.
- Efficient Inspection: Rapid auto focus, edge detection, and advanced programming.
- Precision: Sub-pixel technology for enhanced boundary resolution.
- Flexible Operation: Control handle and software options.
- Batch Processing: SPC capabilities reduce time and labor costs.
- High Accuracy: servo control.
- Stable Control: Embedded module for improved stability.
- Adaptive Lighting: Eight-zone cold light source for complex workpieces.
- Quick Positioning: Laser indicator for efficient location.
- Customizable: Supports zoom lenses, coaxial lights, and laser sensors.
- Easy Installation: Linear guide rails eliminate air supply needs.
- Robust Design: Glass worktable and granite base for stability and capacity.
- High-Speed Measurement: Boosts overall efficiency.
Description
Video Measuring Machine: Advantages of the Large Stroke Fully Automatic Video Measuring Machine
The large stroke fully automatic video measuring machine (linear rail type) is an advanced device designed for high-precision measurement, widely applicable across various industries, especially in the mechanical and electronics sectors.
This instrument integrates automation technology, effectively enhancing measurement efficiency and accuracy.
1. Autofocus function, Joystick contrai, (Optional: probe)2. Powerful controller used for Auto-focus to perform high repeatability;3. Fast servo motor controlling;4. High resolution 1/2" color CCD camera and zoom lens;5. Linear guide design for X and Y-axis and table structure of granite ensures geometric accuracy and vibration resistance.6. Surface cold-light source is used to enhance the performance of illumination.
Applying range:
* electronic part, precision mold, precision tool,* spring, screw processing, plastic, rubber, oil seal valve,* conductive rubber and PCB processing, and more.
Product Applications

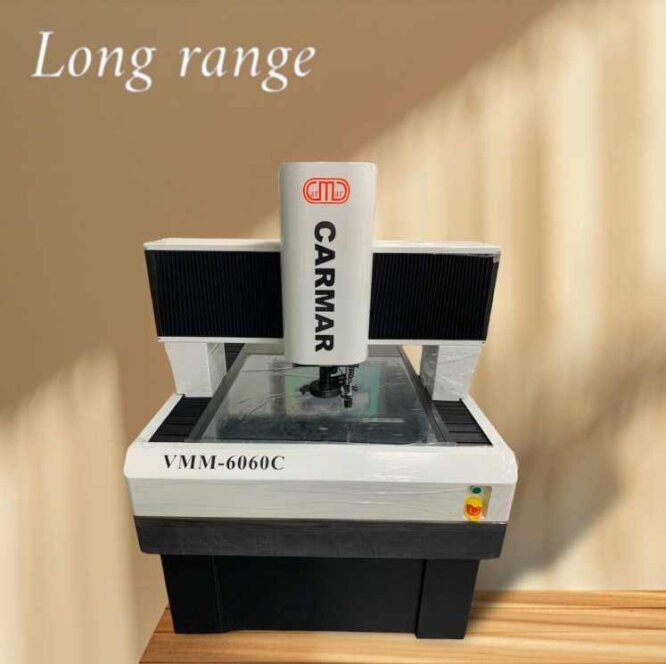

The VMM-6060C/8010C is a fully automatic video measuring machine with a large working range, primarily designed for two-dimensional measurement, but also capable of three-dimensional auxiliary measurement. It is widely used in mechanical processing, electronic component testing, and other industrial fields.
Conclusion
In summary, the large stroke fully automatic video measuring machine serves as an essential tool for precise measurement across various industries with its outstanding performance and flexible application range.
Whether in quality control or product development, it provides stable and reliable measurement solutions to help businesses enhance product quality and productivity.
