HOBO 4 Features Specification 1 Specifications 2 Internal 10K Thermistor Logger

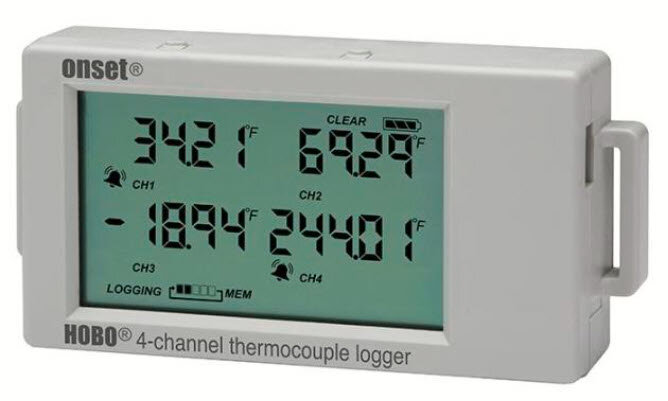

HOBO 4-Channel Thermocouple Data Logger

A four-channel thermocouple LCD display data logger to measure and record temperature in a broad range of monitoring applications. Records temperatures from -260 to 1820⁰ C and accepts up to four J, K, T, E, R, S, B, or N type probes. This logger also features an internal temperature sensor for logging ambient temperatures, further extending the range of application possibilities.
IMPORTANT INFORMATION
External sensors sold separately.
Requires HOBOware software and a USB cable.
(Note: A USB-A to USB-B mini cable is included w/HOBOware Pro USB Drive software purchase).

What's In The Box
  • HOBO UX120-014M 4-Channel Thermocouple Data Logger
  • Command™ strip
  • Double-sided tape
  • Hook & loop strap
  • Two AAA 1.5 V alkaline batteries

- The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)
Features
  • Easy-to-view LCD display confirms logger operation and battery status
  • Near real-time readout of current temperatures, as well as minimum, maximum, average, and standard deviation statistics
  • On-screen alarms notify you if temperatures exceed high or low thresholds
  • Large memory capacity capable of storing 1.6 million measurements
  • Start, stop, and restart pushbuttons
  • User-upgradeable firmware
  • Optional protective case enables logger use in outdoor environments
  • Compatible with HOBOware and HOBOware Pro software for logger setup and graphing & analysis
Specifications

Thermocouple
Type                 Range                               Accuracy                                                                             Resolution
J             - 210° to 760°C                      ±0.6°C ± thermocouple probe accuracy            0.03°C
K             -260° to 1,370°C                 ±0.7°C ± thermocouple probe accuracy            0.04°C
T              -260° to 400°C                     ±0.6°C ± thermocouple probe accuracy           0.02°C
E              -260° to 950°C                     ±0.6°C  ± thermocouple probe accuracy          0.03°C
R                -50° to 1,550°C                  ±2.2°C  ± thermocouple probe accuracy         0.08°C
S                -50° to 1,720°C                   ±2.2°C  ± thermocouple probe accuracy        0.08°C
B              550° to 1,820°C                   ±2.5°C  ± thermocouple probe accuracy        0.1°C
N            -260° to 1,300°C                   ±1.0°C  ± thermocouple probe accuracy       0.06°C



LCD: LCD is visible from: 0° to 50°C ; the LCD may react slowly or go blank in temperatures outside this range
Size: 10.8 x 5.41 x 2.54 cm
Weight: 107.5 g
Environmental rating: IP50

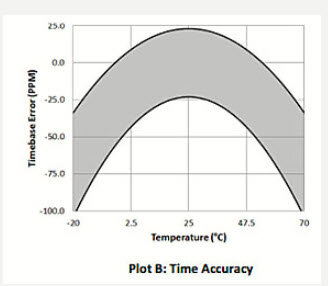

Time accuracy: ±1 minute per month at 25°C, see Plot B

Battery life: 1 year, typical with logging rate of 1 minute and sampling interval of 15 seconds or greater
Battery type: Two AAA 1.5V alkaline batteries, user replaceable
Memory: 4 MB (1.6 million measurements, maximum)
Download type: USB 2.0 interface
Full memory download time: Approximately 1.5 minutes

Internal 10K Thermistor (Temperature):

Range: Logging: -20° to 70°C

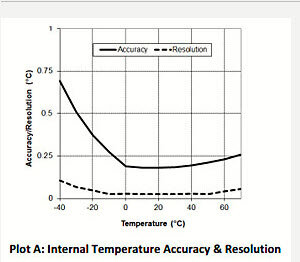

Acuracy: ±0.21°C from 0° to 50°C, see Plot A
Resolution: 0.024°C at 25°C, see Plot A
Drift: <0.1°C  per year
Logger
Logger Operating Range
Logging: -20° to 70°C ; 0 to 95% RH (non-condensing); logger accuracy from 0° to 50°C
Launch/readout: 0° to 50°C per USB specification

Logging rate: 1 second to 18 hours, 12 minutes, 15 seconds
Logging modes: Normal, Burst or Statistics
Memory modes: Wrap when Full or Stop when Full
Start modes: Immediately, Push Button, Date & Time or Next Interval
Stop modes: When Memory Full, Push Button, or Date & Time
Restart mode: Push Button
Improve productivity and lower cost across a wide range of NDT workflows:

• Incoming Inspection and Vendor Qualification
• Production Quality Control
• Field Installation and Flight Line
• MRO (Maintenance, Repair, and Overhaul), and Sustainment
• Research & Development
• Academia

The GelSight Max 3D surface analysis system transforms workflows by putting lab-grade surface measurements in the palm of your hand, with fully traceable, digital results in seconds.

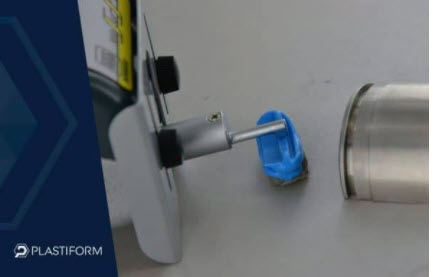

For use in hard-to-reach areas, the Replica Transformation feature enables direct, in-situ measurements of metrology-grade replica materials

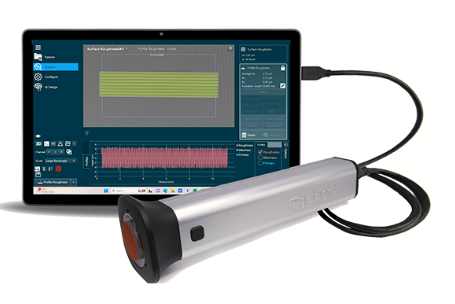

GelSight Max Nanometer scale Industry 4.0 ready 2D & 3D Software
The GelSight Max is our highest resolution handheld surface analysis solution and designed for the most demanding applications, including surface and profile  roughness from 0.2 to 20 µm.
The GelSight Max immediately quantifies the surface characteristics of any material at any workflow location, regardless of composition, reflectivity, transparency, or ambient lighting conditions. Its precise, repeatable, in-situ measurement capability can save tens of thousands and/or man-hours per year in unnecessary scrap, re-work, down-time, or poor yields by eliminating false failures and boosting productivity.
Handheld, nanometer scale surface measurements in seconds
The GelSight Max is our highest resolution handheld 3D surface analysis solution and is designed for the most demanding applications, with nanometer scale zaxis accuracy and a surface roughness range from 0.2 to 20 µm Ra.
The GelSight Max immediately quantifies the surface characteristics of any material at any workflow location, regardless of composition, reflectivity, transparency, or ambient lighting conditions.
Its precise, repeatable, in-situ measurement capability can lower the cost-per-measurement by 10x or more vs. legacy solutions while eliminating test escapes and boosting workflow productivity.
Industry 4.0 ready
Including an AI Toolbox Automated, high-speed process workflows are enabled by a streamlined ‘Operator Mode’ UI, external triggering, customizable functions with unique pass/fail criteria, batch-mode analysis, STL and CSV outputs, and immediate PDF report generation.
In addition, users can create powerful AI models to apply automated touch sensing to many tasks that had no simple path to digitization.
2D and 3D Measurement and Analysis Capabilities
Unlike manual, mechanical, or optical measurement technologies, GelSight’s patented elastomeric sensor technology conforms to the topology of any surface regardless of material, reflectivity, transparency, or ambient lighting conditions. 2D surface detail is displayed in real time, and micron-level 3D measurement and analysis of surface textures and defects are computed and displayed in seconds.
GS Mobile includes a powerful suite of 2D and 3D tools for surface characterization.

Our BASE software package has a focus on the image itself typically for use in applications where a field portable SEM-like image is desired.
GS Mobile CORE is for users looking to either export their 3D data or focused on scratch and offset measurement.
Our fully featured GS Mobile PRO software offers many tools including the ability to measure profile and surface roughness, automatically detect and characterize defects, pitting, small radii and many more.

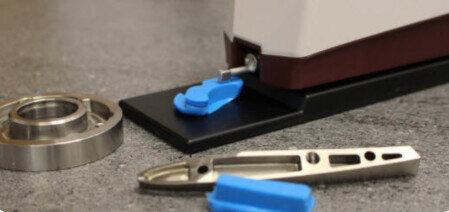

For hard-to-reach areas, the updated Replica Transformation feature enables intuitive, direct and in-situ measurement of replica material to eliminate the traditional down-time waiting for lab results with GelSight’s fast report creation options streamlining workflows.
RM319 Technical features 1 Technical features 2

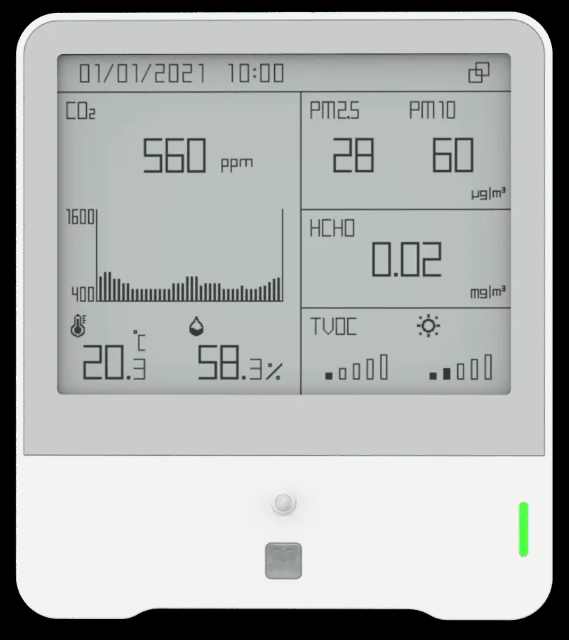

RM319 AIR QUALITY MONITORING SENSOR
RM319 is an indoor air quality sensor, and it boasts 9 sensors in 1 device, including CO2, temperature, humidity, light, HCHO/O3 level, TVOC, PM2.5&PM10, motion, and barometric pressure.

RM319 is a professional-grade wireless indoor air quality (IAQ) sensor with a range of features designed to improve energy efficiency and indoor comfort.
It is equipped with 9 sensors in one device, including
  • CO2 concentration,
  • temperature,
  • humidity,
  • light,
  • HCHO (Formaldehyde) or O3 (ozone) level,
  • TVOC, barometric pressure, PM2.5 & PM10,
  • and Motion (PIR) detection.
One of the standout features of the RM319 is its optional 4.2-inch E-ink screen, which allows for easy monitoring and provides a visual representation of indoor air quality. The device also includes a traffic light indicator and buzzer for quick and clear indication of air quality levels.
In terms of security, the RM319 offers anti-theft protection to ensure the sensor remains securely in place. Its vivid emoticon indication feature provides an intuitive and easily understandable representation of air quality levels.

Detect Pollutants with Air Quality Monitoring Systems

The RM319 is powered via USB Type-C, making it convenient to connect and operate.
Its energy efficiency is further enhanced by the smart screen mode, which automatically stops updating the screen when the sensor detects that the area is vacant for 20 minutes.
The RM319’s design prioritizes accuracy and insulation.
The placement of temperature and humidity sensors is strategically designed to isolate heat generated during chip operations, resulting in higher accuracy readings.
The sensor also features a superior design that minimizes interference, ensuring stable and reliable readings, especially in its resistance to alcohol.
With its easy configuration and installation, wireless connectivity, and integration with IoT cloud platforms, the RM319 is an ideal indoor air quality sensor for energy-efficient indoor comfort systems.
By combining with LoRaWAN® gateway (NI63, NI65) and IoT Cloud solution, you can conveniently access the data remotely and make necessary adjustments for optimal air quality.
  • Technology: LoRaWAN®
  • Frequency: CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4
  • Tx Power: 16dBm(868MHz)/22dBm(915MHz)/19dBm(470MHz)
  • Sensitivity: -137dBm @300bps
  • Work Mode: OTAA/ABP Class C
  • Temp. Operating Principle: Digital CMOSens® technology (MEMS)
  • Temp. Range: -20°C – 60°C
  • Temp. Accuracy1: ± 0.2°C
  • Temp. Resolution: 0.1°C
  • Humid. Operating Principle: Digital CMOSens® technology (MEMS)
  • Humid. Range: 0% – 100% RH
  • Humid. Accuracy1: ± 2% RH
  • Humid. Resolution: 0.5% RH
  • Motion Operating Principle: Passive infrared (PIR)
  • Motion Detection Range: 80 ° Horizontal, 55 ° Vertical, 5m
  • Motion Status: Vacant/Occupied
  • Light Operating Principle: Photodiode
  • Light Range: 0-60000 Lux (Determine as 6 levels, 0-5)
  • TVOC. Operating Principle: MOX (MEMS)
  • TVOC. Range2: 1.00~5.00 (IAQ Rating)
  • TVOC. Accuracy: ±1
  • TVOC. Resolution: 0.01
  • Bar. P. Operating Principle: Piezoresistive absolute pressure sensor (MEMS)
  • Bar. P. Range: 260 – 1260 hPa
  • Bar. P. Accuracy: ±0.5 hPa
  • Bar. P. Resolution: 0.1 hPa
  • CO2 Operating Principle: Photoacoustic
  • CO2 Range: 400 – 2000 ppm
  • CO2 Accuracy: ± (50 ppm + 5 % of reading) (-10°C to +60°C)
  • CO2 Resolution: 1 ppm
  • PM2.5 & PM10
  • PM2.5 & 10 Operating Principle: Laser Scattering
  • PM2.5 & 10 Range: 0 – 1000 μg/m3
  • PM2.5 & 10 Accuracy: 0-100(±10μg/m3), 100-1000(±10 %) (-10°C to +60°C)
  • PM2.5 & 10 Resolution: 1 μg/m3
  • Formaldehyde (HCHO) Operating Principle: Electrochemical
  • Formaldehyde (HCHO) Range: 0 – 1.25 mg/m3
  • Formaldehyde (HCHO) Accuracy: ±10 %
  • Formaldehyde (HCHO) Resolution: 0.01 mg/m3
  • Formaldehyde (HCHO) Working Life: 6 Years
  • Ozone (O3) Operating Principle: Electrochemical
  • Ozone (O3) Range: 0 – 10 ppm
  • Ozone (O3) Accuracy: ±5 % FS
  • Ozone (O3) Resolution: 0.01 ppm
  • Ozone (O3) Working Life: 2 Years
  • HCHO or O3 sensor is alternative option and both support replacement
  • Display: 4.2-inch Black & White E-Ink Screen
  • Button: 1 × Power Button + 1 × Reset Button
  • LED & Buzzer: 1 × Traffic Light Status Indicator + 1 × Buzzer
  • Configuration: 1. Mobile App via NFC 2. PC software via NFC or USB Type-C port
  • Power Supply: 5V/1A by Type-C Port
  • Operating Temperature: -20°C – 60°C (E-Ink Screen: 0°C – 40°C)
  • Relative Humidity: 10% – 90% (non-condensing)
  • Ingress Protection: IP30
  • Dimension: 100.8 × 114 × 22 mm (3.97 × 4.49 × 0.87 in)
  • Installation: 3M Tape Mounting, Wall Screw Mounting, 86 Box Mounting
  • Regulatory: CE, RoHS
ColorRanger 580 Purpose Production easy control Specifications 1 Specifications 2

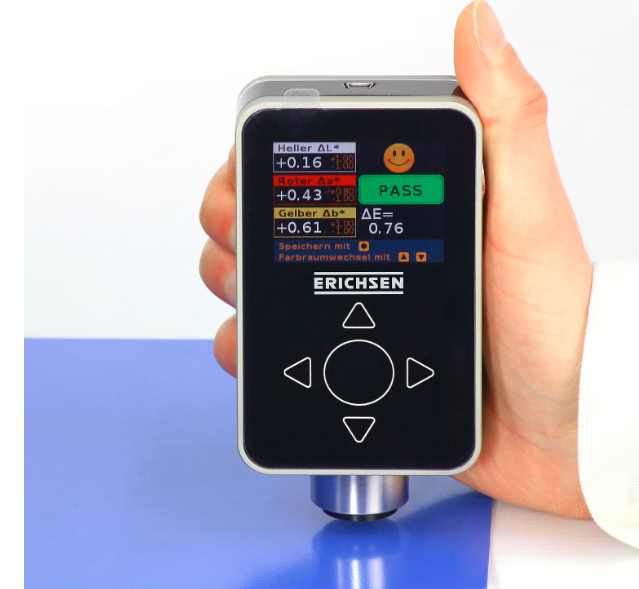

ColorRanger 580
Erichsen Color Unit ColorRanger 580-C
Color and Gloss Unit ColorRanger 580-CG

for simultaneous measurement of color (geometry 45/0, aperture 3.5 mm)  according to DIN 5033 and gloss (geometry 60°, aperture 3.5 mm) in accordance with DIN EN ISO 2813

Advantages
• 45°/0° color measurement or combined version with 45°/0° color measurement and 60° gloss measurement
• High-performance LED light source for a long service life
• Very easy to use thanks to intuitive user interface
• Memory for 1000 standards and 350 sample photos

45°/0° For measurements due to the allusion to a visually valued impression.
Also for a lot of Automotive relevant applications as well as oftentimes for measurements within the final inspection.


Purpose and Application

The overall appearance of a product is influenced by color and gloss.
A sample of the same color but higher gloss level is visually perceived darker and more saturated than a low gloss sample.
In order to get a uniform appearance, both attributes need to be controlled.
With the new ColorRanger 580 you can measure any color: dark - brilliant - steep reflectance curves.
The 3.5 nm steps spectral resolution not only ensures highly precise color results, but also an excellent agreement with competitive color instruments - even bench-top units.
The Spectrometers of the very most other suppliers are only able to measure the color value.
In comparison with this, the ColorRanger 580 is able to measure color and gloss both simultaneously!
Thus, the cause of a mismatch can be clearly defined in any situation.

  • Color and 60° gloss are displayed at the same time
  • In compliance with international specifications
  • Tolerances for color and gloss allow quick pass/fail decisions in production
ColorRanger 580 makes it easy to control your production.

The following system parameters can be adjusted:
• Language – Date - Time
• Trigger
• User Mode
• Ext. power supply
• Use working standard
• Calibration warning
• Metamerism warning
• Standard deviation warning
• Autosave
• Communikation USB
• Best Match

The measurements can be started by pressing the probe head downwards onto the sample or standard.
In the trigger setting this function can be switched off.
Also a control function can be used to check that the probe head has not been moved during the scan
Specifications 1

Measuring geometry :      45°/0° according to DIN 5033
Standard illuminant :         D65, D55, D50, A, C, F11
Measuring spot :                   3.5 mm
Color spaces :                          XYZ, Yxy, ΔE CIE L*a*b*, L*u*v*, L*C*h, Hunter Lab
                                                        Remission curve with cursor/display in nm and %
                                                        CIE L*a*b* diagram incl. tolerance limits.
Quality control :                     ΔE CIELab; ΔL, Δa, Δb; ΔL, Δu, Δv; ΔL, ΔC, Δh;ΔE CIELab; ΔL, Δa, Δb; ΔL, Δu, Δv; ΔL, ΔC, Δh;
Tolerance limits :                    Min/Max, PASS/FAIL, ΔECMC (1:1 and 1:2), CIE ΔE94,ΔE2000.
of color differences:             Metamerism index for D65/A and D65/F11 according to DIN 6172
Further color values :          Contrast: LRV - BS 8493:2008 differ. Whiteness values, differ. Yellow values, grey index
Spectral Light source measurement  :  Measurement of color coordinates and spectrum of light sources, e.g. LEDs - Optional
Rehearsal photos :                 350 color photos to define the measuring point / Resolution: 160 x 120 pixels
Spectral range/wavelength : 400 nm to 700 nm
Spectral resolution :           Holographic grating spectrometer FWHM** @ 500 nm < 10 nm
                                                       Measurement in 3.5 nm steps // 115 x 16-bit values per measurement
Display :                                     High-resolution O-LED color display: High contrast and energy-saving 1/4 VGA, 320 x 240 pixels
Gloss measurement / Mod. 580-CG  :  60° according to DIN EN ISO 2813 (formerly DIN 67530)
Repeatability :                        < 0.03 ΔE CIELab
Light source :                            White and blue LEDs Service life > 20 years
Measuring time :                     Complete measuring cycle with calculation and readout time: < 1 s
Multiple measurements :   Average value calculation from 1 to 20 individual measurements are displayed statistically with color values and standard deviation
Specifications 2

Memory :                     Memory for 1000 standard colors
                                          Memory for 1000 color values
                                          Memory for 300 spectra (400-700nm / 3.5nm)
                                          Memory for 350 sample photos (160 x 120 pixels)
Upload Standards from PC : Yes
Calibration :                With white standard, certified by the PTB (Physikalisch-Technische Bundesanstalt)
                                           Optional 2-stage calibration with working standard
Power supply :            Lithium polymer battery
                                            Operating time > 15 hours
                                             Charging time 1.5 hours
Standard color management :  Load standards
                                                                           - with the Best-Match Tool
                                                                           - load by entering the index no.
                                                                            - load by entering names
PC interfaces :                  USB 2.0 / 3.0
Dimensions :                      Device with battery:
                                                  120mm x 70mm x 32mm
                                                   Weight 270g
Measuring conditions :  Ambient temperature:15 °C to 45 °C
Relative humidity:             max. 85% non-condensing


GENVIRO PLUS Standard
GENVIRO Large Thermostatic and Climatic Chamber

Thermostatic and Climatic Chambers for environmental simulation tests.

Temperature range : -40,0°C / -70,0°C to +180°C
Humidity range : 10% … 98%

Suitable for :
  • pharmaceutical industry,
  • biological,
  • aeronautical,
  • electronic,
  • optical,
  • semiconductor,
  • automotive,
  • and  chemical.

Ideal for environmental simulation testing, Genviro Climatic and Thermostatic Chambers provide the solution to your need to meet increasingly stringent International and Automotive standards.

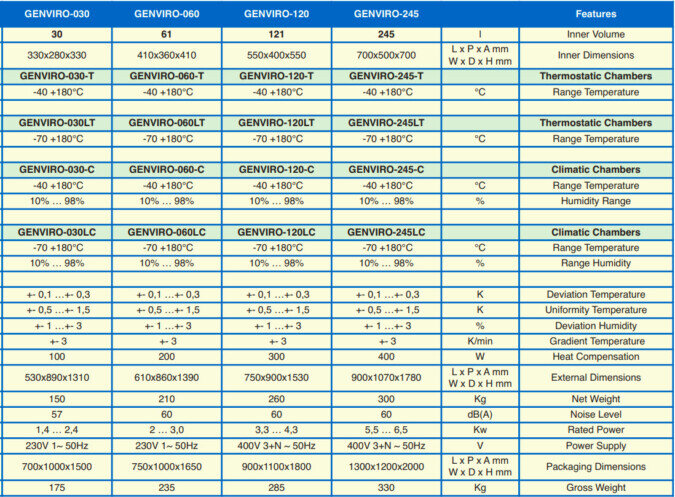

You can choose a Genviro Climatic or a Thermostatic Chamber from various sizes, from compact 30L, 60L, 120 and 245L to larger 3300L volumes.
PLUS
• AG-System TALENT: Control PID Digital Microprocessor, Multi-Loop, with alarms and autotuning functions
• TOUCH SCREEN graphic, 7” color widescreen
• Multi-programs with ramps, soaks and repetition
• Thermostat Safety Device, selectable and independent, with protection of min. and max. temperature
• Thermodynamic Registration on-line
• Ethernet and USB
• Range Temperature: From -40,0°C / -70,0°C to +180°C
• Climatic version with humidity control from 10% to 98%
• 4 standard sizes + customized volumes
Standard Equipments

• N° 01 Shelf in stainless steel, removable and adjustable height
• N° 01 Through hole diam. 50mm
• N° 01 CE Certificate of Conformity
• N° 01 Instruction Manual
• N° 01 Warranty Certificate
• N° 01 Supply Cable
Wireless Alert TP User friendly OTHER MODELS

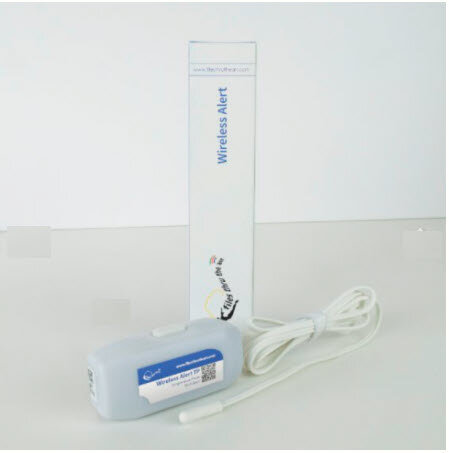

Wireless Alert TP Temperature Alert System

Wireless Alert TP is a battery-powered temperature sensor that sends a warning email if a user-set level is reached.
Simply select your temperature limits, add an email address and connect to any Wi-Fi network using the Wireless Alert mobile app.
  • -40°C to 125°C temperature probe with 1.5m cable
  • User-configurable high and low temperature limits
  • Sends email alerts and scheduled status reports
  • Flashing alert indicator
  • Wi-Fi connected
  • Simple to set up using the free mobile app
  • Two years' battery life (dependent upon usage scenario)
  • Batteries included
  • No ongoing subscription fees
  • Includes sticky pad for wall mounting
  • The sensor overall cable width Is 3.65mm, height is 1.65mm

To control in a very economical way your fridges, freezers, warehouses, stores, offices, labs, buildings ...
The Wireless Alert TP can be set up to monitor temperature  limits in a variety of applications.

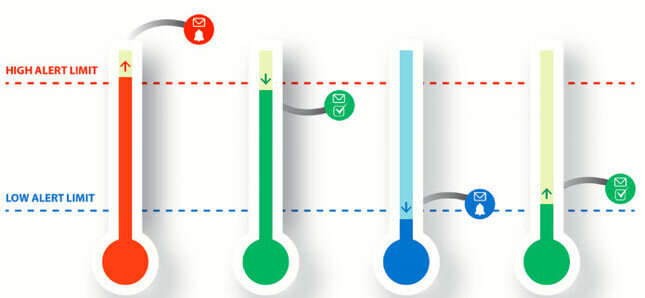

High and low temperature  limits are user-configurable between -40 and 125 °C.

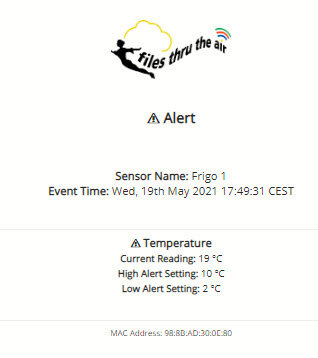

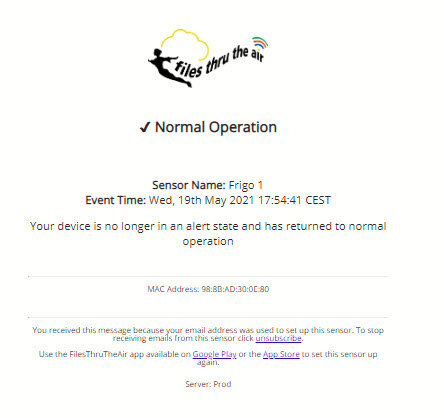

The device will trigger a notification email, sent to a  user-selected address, if the temperature limits are breached  and when the temperature returns to normal. I

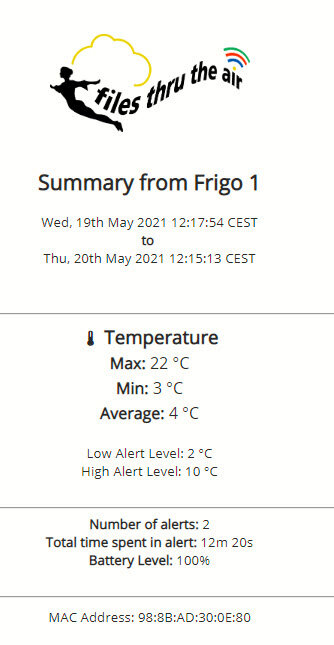

In addition to  this, the device can send a scheduled summary email detailing  minimum, maximum and average temperature, as well as  battery level, number of alerts, and total time spent in alert.

OTHER MODELS AVAILABLE :

  • Temperature & Humidity
  • Door Contact
  • Leak Detection (monitors a surface for liquid)
  • Pipe Temperature Sensor
  • Contact Monitor

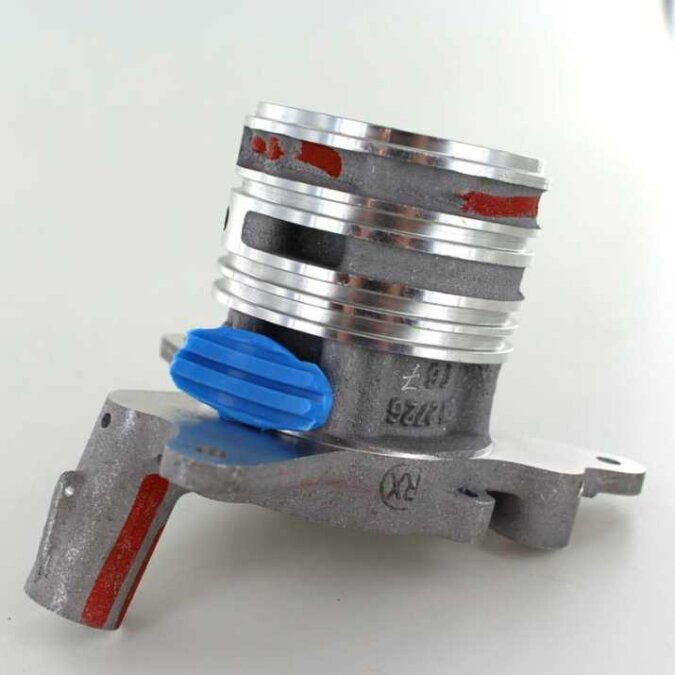

P80 Ra is a non-flowing (pasty) product that can be applied to hard-to-reach surfaces (vertical, overhanging, etc.).
It creates Semi-Rigid replicas (hardness 80 Shore A), which cannot be deformed when demoulded.
Replicas made in P80 Ra do not accept any Extraction Constraint (0%).
The P80 Ra has been specially developed for Roughness Control.
The surface roughness is perfectly restored, and can be measured directly on the impression using a skidless roughness meter or optical inspection device.
This plastiform is specially designed to restore the roughness of a surface and is a good indicator of Ra.
If you are looking for values related to Rt or Rz, use a non-contact measuring device instead.
The P80 can also be used to create partial impressions on simple external shapes.
The impression is very precise but cannot be subjected to an extraction stress.
Back to content
