Digital Height Gauge
Metrology > Height measurement

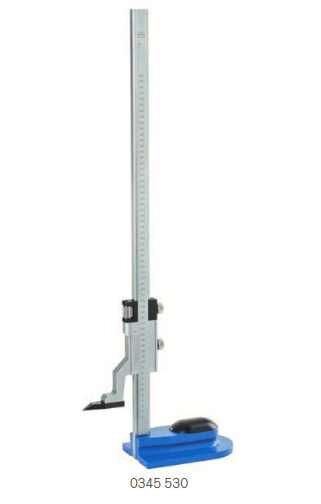

0345 Analogue height and scribing gauges
• Measuring beam is made from stainless steel• Vernier and scale are satin chrome finished• Parallax-free reading• Setting screw• Fine adjustment• Steel base with dirt grooves• Scribing possible from base plate level• Factory standard• with exchangeable scriber, carbide tipped, 75 mm
Measuring range Reading Base dimensions Rail cross-section Order no.
mm mm mm mm
0 - 300 0.02 145 x 90 x 44 30 x 12 229.0345 522
0 - 600 0.02 165 x 110 x 44 30 x 12 229.0345 530

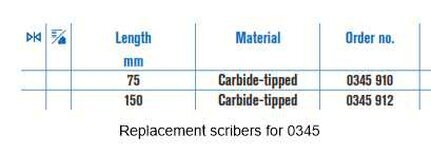

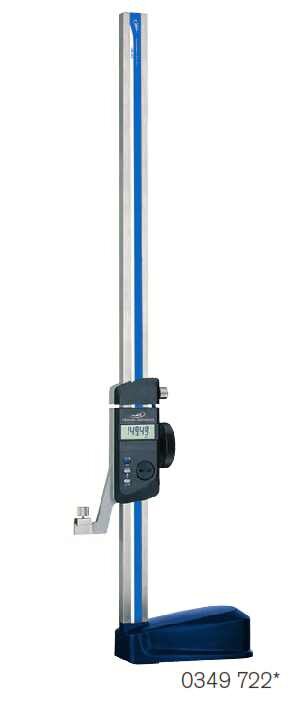

0349 DIGI-MET® Height gauges with sliding scriber
• Measuring beam and slide is made from stainless steel and is hardened• LCD-display 12 mm• Handwheel for positioning and measuring• Fine adjustment and rack• Setting screw• Steel base with dirt grooves• Scribing possible from base plate level
Functions
• ON / OFF
• Set to zero at any point
• mm / inch switching
• PRESET-Function (setting a numerical value)
• Hold
• ABS (display can be set to zero without losing the Preset value)
• Reversal of counting direction
• Factor input
• Data output Proximity USB + RS232
Measuring range Reading Base dimensions Rail cross-section Order no.
mm mm mm mm
0 - 350 0.01 180 x 98 x 50 35 x 12 229.0352 722
0 - 600 0.01 180 x 98 x 50 35 x 12 229.0352 730
0 - 980 0.01 220 x 120 x 50 35 x 12 229.0352 734

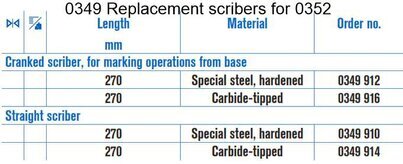

Data cable Proximity to USB 229.1998 760

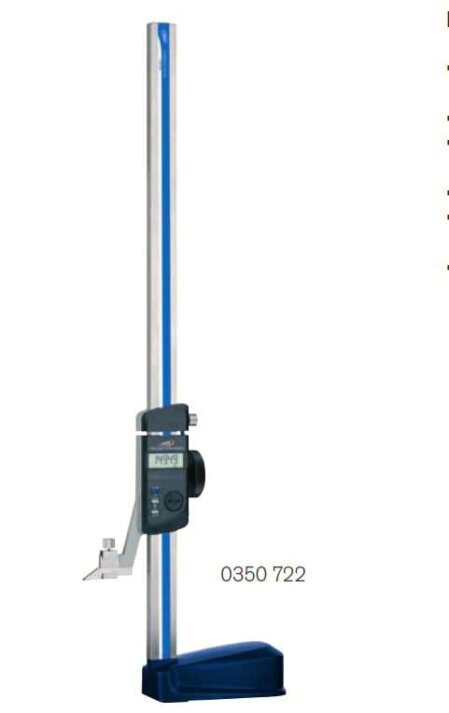

0350 Digital height and scribing gauges
• Slider and rail stainless and hardened• LCD display 12 mm• Handwheel for positioning and measuring• Steel base• Fine adjustment and toothed rack• Factory standard
Functions
• ON / OFF
• Set to zero at any point
• mm / inch switching
• PRESET-Function (presetting of measured value)
• ABS (display can be set to zero without losing the Preset value)
• Data output Proximity USB + RS232
Delivery
• With interchangeable scribing aws, carbide tipped, 65 mm

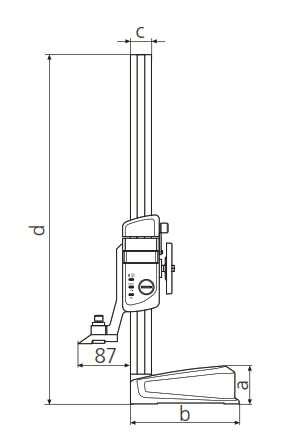

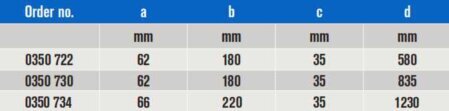

Measuring range Reading Order no.
mm mm
0 - 350 0.01 229.0350 722
0 - 600 0.01 229.0350 730
0 - 980 0.01 229.0350 734
Data cable Proximity to USB 229.1998 760
0350 Replacement scribers for 0350
Length Material Order no.
mm
75 Carbide-tipped 229.0350 910
