DIAMOND INDENTERS & STANDARD TEST BLOCKS

Hardness Testers > ACCESSORIES
Rockwell Hardness Test Blocks (also known as Rockwell Test Coupons) are manufactured and calibrated to current ASTM E-18 and/or ISO 6508 specifications within an ISO 17025 accredited laboratory.
Grid patterns can be added to our Rockwell test blocks to insure spacing requirements per ASTM E-18.

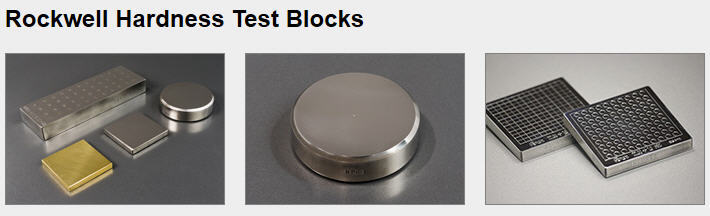

Rockwell Test Blocks - Regular Scale
Hardness:
Nominal Ranges Available:
Penetrator:
Load:
  HRA Scale
  HRA-20 To   HRA-84
  C Diamond
  60 Kg
  HRB Scale   HRB-10 To   HRB-95   1/16"   Ball
  100 Kg
  HRC Scale
  HRC-25 To   HRC-65
  C Diamond
  150 Kg
  HRD Scale
  HRD-44 To   HRD-73
  C Diamond
  100 Kg
  HRE Scale
  HRE-75 To   HRE-96
  1/8"   Ball
  100 Kg
  HRF Scale
  HRF-70 To   HRF-97
  1/16"   Ball
     60 Kg
  HRG Scale
  HRG-2.5 To   HRG-64
  1/16"   Ball
  150 Kg
  HRH Scale
  HRH-87 To   HRH-90
  1/8"   Ball
  60 Kg
  HRK Scale
  HRK-50 To   HRK-95
  1/8"   Ball
  150 Kg
  HRL Scale
  HRL-113 To   HRL125
  1/4"   Ball
  60 Kg
  HRM Scale
  HRM-101 To   HRM-122
  1/4"   Ball
  100 Kg
  HRP Scale
  HRP-86 To   HRP-115
  1/4"   Ball
  150 Kg
  HRR Scale
  HRR-14
  1/2"   Ball
  60 Kg
  HRS Scale
  HRS-105   1/2"   Ball
  100 Kg
Rockwell Test Blocks – Superficial Scale

Hardness :
Nominal Ranges Available :
Penetrator:
Load:
HR15N Scale
HR15N-72 To HR15N-92
N Diamond
15 Kg
HR30N Scale
HR30N-46 To HR30N-80
N Diamond
30 Kg
HR45N Scale
HR45N-25 To HR45N-70
N Diamond
45 Kg
HR15T Scale
HR15T-72 To HR15T-91
1/16" Ball
15 Kg
HR30T Scale
HR30T-40 To HR30T-79
1/16" Ball
30 Kg
HR45T Scale
HR45T-12.5 To HR45T-67
1/16" Ball
45 Kg
HR15W Scale
HR15W-84 To HR15W-95
1/8" Ball
15 Kg
HR30W Scale
HR30W-67 To HR30W-90
1/8" Ball
30 Kg
HR45W Scale
HR45W-50 To HR45W-84
1/8" Ball
45 Kg
HR15X Scale
HR15X-97
1/4" Ball
15 Kg
HR30X Scale
HR30X-80 To HR30X-96
1/4" Ball
30 Kg
HR45X ScaleHR45X-88
1/4" Ball
45 Kg
Brinell Hardness Testing Products
Our Brinell Hardness Testing Ball Indenters are availalble in a variety of diameters including 2.5 mm, 5 mm, and 10 mm.
We also offer Brinell Hardness Test Blocks at loads ranging from 187.5 kg to 3000 kg.
Hardness test blocks are  calibrated to ASTM E-10 specifications available in all load and ball diameter  combinations in an ISO 17025 accredited laboratory.

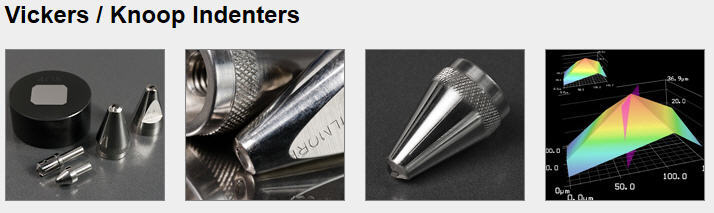

Vickers or Knoop Test Blocks
When ordering, please specify  Vickers or Knoop Scale, along with calibration load or force and desired  hardness value.
Microhardness Test  Blocks can be calibrated and certified at more than one load or scale.
All Vickers Test Blocks and Knoop Test Blocks are certified to ASTM  E-92 and or ISO 6507 or ISO 4545 specifications with Laboratory  accreditations to ISO 17025 certifications.



Vickers Scale, 1 gram-1 kilo
Vickers Macro Scale,1 kilo-50 kilos
Knoop Scale, 1 gram-1 kilo
Rockwell Anvils & Accessories
We offer a wide range of  Rockwell hardness testing accessories.
These include anvils, testing tables,  and indenter extensions.
Our  anvils and accessories are manufactured to the  same demanding quality  standards as our indenters and test blocks.
