Process & Quality Control

Infrared

Temperature > T° Metering
Back to the TEMPERATURE MENU
IR MED NON-CONTACT INFRARED THERMOMETER
The IR Med non-contact infrared thermometer can be used to take the temperature of humans, without the need for physical contact with them, minimising the risk of cross-contamination.
Designed by the specialist team at Eurolec and manufactured in the UK, this thermometer is incredibly accurate and reliable whilst being simple to use.
Its ergonomic design makes it easy to handle and its built-in infrared sensor makes it non-intrusive.

Ideal for:
  • Non-contact human temperature measurement
  • Human protection by detection of  Covid 19
Specifications

Temperature calibration certificates are traceable to UKAS (United Kingdom Accreditation Service)

Skin temperature measurement range 25°C...40°C - indicated oral equivalent values 35°C...42.5°C
Accuracy                                              0,3°C from 25 to 40°C
Resolution                                          0,1°C
Measuring range                            1% +/- 1°C
Global measurement range     -20°C to +200°C
Taking a measurement

Prior to taking a measurement, the IR Med and person must be at the same stable ambient (room) temperature for 15 minutes before operating.

Step 1: Aim the sensor at the person’s forehead, keeping a distance of 3cm. Do not make contact with the forehead. This will affect the readings and may contaminate the instrument.
Step 2: Gently press and release the ON (left) button. Keep aiming at the person’s forehead for approximately 2.5 seconds.
Step 3: Take a reading - once the IR Med has taken a reading it will hold that value until another reading is taken or it is turned off.

To take another reading repeat steps 1-3.
To turn the IR Med off, press the OFF (right) button.
The IR Med will turn off automatically after approximately 90 seconds of inactivity.
Protect your staff from Covid 19

Monitoring people's temperature in the workplace is now commonplace and will continue to be best practice for the foreseeable future.
Having a reliable and simple-to-use non-contact thermometer is essential to keep your workplaces safe and secure.
The IR Med is incredibly easy to use - simply point the infrared sensor at the person's forehead, press a button and record their temperature.
It's as simple as that!
The IR Med's infrared sensor means you can keep as safe a distance as possible from your team when checking their temperature, ensuring you reduce the risk of cross-contamination.

Welcome to the IR Med non-contact infrared thermometer.

This instrument has been designed for quick response, non-contact human temperature measurement.

The infrared sensor is located at the top of the instrument and is used for skin surface temperature measurement.

We have provided a quick reference guide to help you understand different temperature indications:
  • >35.7 – 37.4 Acceptable
  • >37.4 – 38.5 Elevated
  • >38.5 – 42.2 Possible high fever

Accessories:

  • System calibration certificates traceable to UKAS;

  • THCC executive style carrying case;

  • THCCS carrying pouch with belt clip;

  • Probe wipes.


On request a calibration certicate is available.  (see sample here under)

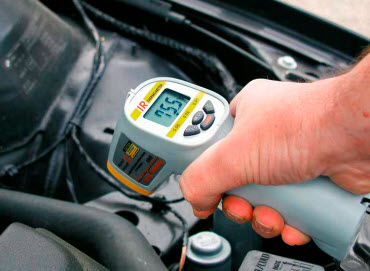

temp-gun
Contactless measurings with the infrared-thermometer; the optimal solution for a fast temperature measuring at very difficult approachable or movable places.
Delivered completely with robust case.

Laser-Bearing
Max/Min
°C ↔ °F
Display Lights connectible
Max/Min Alarm for Limit Value
Average Temperature
Difference Temperature
Probe
Infrared-Sensor with  connectible laser-bearing, emission factor adjusting.
Response Time T90= 0,5 sec.
Spectral Response 7 - 18 pm
Emissivity  : 0,30 - 1,00
Rate of Distance : meas. object 8 / target 1
Range : -20...+420°C
Resolution : 1°C
Accuracy*  : ±2°C  or 2% of  range
Battery single-block battery :  9V 6F22
Battery Life : c.  40 h
Casing c.  :137 x 41 x 196 mm
Operation Temp. :  0...+50°C

* the bigger value applies each time

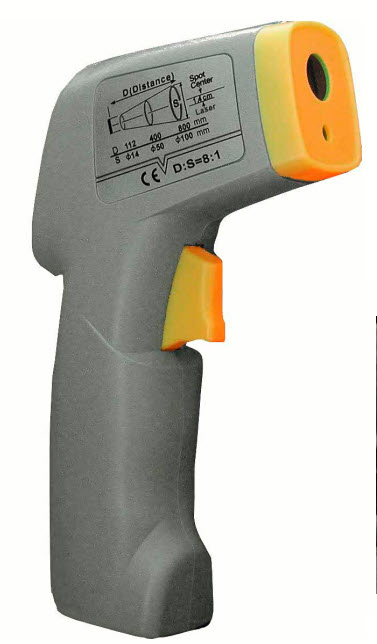

Infrared Thermometer TEMP-HIT

Favourable infrared gun for fast determination of high surface temperatures.

Auto Data Hold
laser bearing!
°C & °F
Display backligh
Range                               -40...+500°C
Resolution                        0,1°C → -40...+110°C
Accuracy*                         ±2°C  or 2% of  range
Battery                              single-block battery  9V 6F22
Battery Life                       max. 30 h
Casing                                 160 x 45 x 80 mm
Operation Temp.             0...+40°C
Probe :
Infrared-Sensor with  connectible laser-bearing, emission factor adjusting.I
Response Time                T90= 0,5 sec.
Emissivity                            0,85  -  0,95
Rate of Distance            meas.object                    target
                                                  10                  :             1

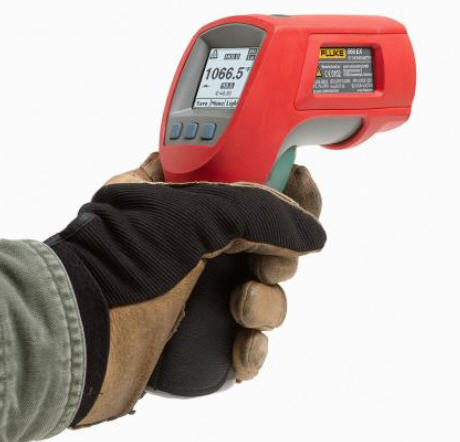

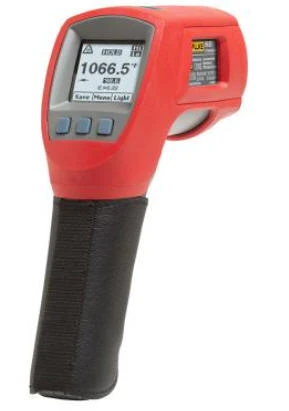

568 Ex Intrinsically Safe Mini Infrared Thermometer


Key features
  • Intrinsically safe infrared and contact thermometer
  • Meets intrinsically safe certifications in Class I Div. 1 and Div. 2 or Zone 1 and 2 hazardous environments
  • Measures temperatures from -40°C to 800°C (-40°F to 1472°F)
  • Comes with a conductive case to safely carry the IR thermometer into hazardous areas
  • Offers a distance-to-spot ratio of 50:1
Use the Fluke 568 Ex for intrinsically safe temperature measurements anywhere in the world
The Fluke 568 Ex Intrinsically Safe Infrared Thermometer is certified by major rating bodies for use in Class I Div. 1 and Div. 2 or Zone 1 and 2 hazardous environments anywhere in the world.
Whether you work in petroleum, chemical, oil and gas, or pharmaceutical environments, the 568 Ex allows you to carry the most trusted name in test tools into most Ex-rated areas around the globe.
The simple, three-button on-screen menu interface is quick to use and makes even complex measurements easy.
It takes just a few pushes of a button to adjust emissivity, record data, or turn on and off alarms.
The 50:1 distance-to-spot ratio allows you to measure smaller objects from further away. And it also is compatible with K-type probes for contact measurements.
Either way, you can count on the rugged, ergonomic design to stand up to tough conditions.
Other useful features:
  • Instantly alerts you to measurements outside of set limits with audible and visual alarms
  • Provides with 1% measurement accuracy
  • Comes with thermocouple K bead probe and two-year warranty -30-
  • Features a rugged, easy-to-use, ergonomic design that stands up to tough industrial, electrical, and mechanical environments
  • Works with mini-connector K-type thermocouples
  • Allows easy access to advanced features with soft-key buttons and graphical display
  • Captures up to 99 points of data for quick downloading to a PC through the USB connection
  • Powered by two AA batteries
  • Allows you to confidently measure a wide variety of surfaces with adjustable emissivity and built-in materials table
  • Easily adapts to lighting conditions with a two-level backlight
Specifications
Infrared temperature range                    -40°C to 800°C
Infrared accuracy                                            < 0°C : ±1.0°C + 0.1°/1°C ;
                                                                                   > 0°C : ±1% or ±1.0°C, whichever is greater
Display resolution                                          0.1°C
Infrared spectral response                       8 µm to 14 µm
Infrared response time                             < 500 ms
Thermocouple type-k input temperature range       -270°C to 1372°C
Thermocouple type-k input accuracy  < -40°C: ±(1°C + 0.2°/1°C)
                                                                                    ≥ -40°C: ±1% or 1°C, whichever is greater
D:S (distance to measurement spot size)        50:1
Laser sighting                                                    Single-point laser
Minimum spot size                                         19 mm
Emissivity adjustment                                  By built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01
Data storage                                                      99 points
Hi/Low alarms                                                  Audible and two-color visual
Min/Max/Avg/Dif                                           Yes
Display                                                                  Dot matrix with function menus
Backlight                                                             Two levels, normal and extra bright for darker environments
Trigger lock                                                        Yes
Switchable celsius and fahrenheit        Yes
Power                                                                    2 AAA/LR03 type-approved batteries (For a list of type-approved batteries, refer to Product Safety Instructions.)
Battery life                                                          4 hours with laser and backlight on; 100 hours with laser and backlight off, at 100% duty cycle
Operating temperature                               0°C to 50°C
Storage temperature                                    -20°C to 60°C
Bead thermocouple type-k range         -40°C to 260°C
Bead thermocouple type-k accuracy    ±1.1°C (2.0°F) from 0°C to 260°C, typically within 1.1°C from -40°C to 0°C
EMISSIVITY VALUES

EMISSIVITY VALUES

Typical Emissivity Values-Metal

SURFACE EMISSIVITY
Iron and Steel
Cast iron (polished)
Cast iron (turned at 100°C)
Cast iron (turned at 1000°C)
Steel (ground sheet)
Mild steel
Steel plate (oxidized)
Iron plate (rusted)
Cast iron (rough)rusted
Rough ingot iron
Molten cast iron
Molten mide steel
Stainless steel (polished)
Stainless steel (Various)
Aluminum - Polished aluminum
Aluminum (heavily oxidized)
Aluminum oxide at 260°C
Aluminum oxide at 800°C
Aluminum Alloys, various
Brass - Brass (polished)
Brass (roughened surface)
Brass (oxide)
Copper- Copper (polished)
Copper (oxide)
Molten copper
Lead - Leadr (polished)
Lead (oxide at 25°C)
Lead (oxide)
Nickel & its alloys-Nickel (pure)
Nickel plate (oxide)
Nichrome- Nichrome (oxide)
Zinc (oxidized)
Galvanized iron
Tin-plated steel
Gold (polished)
Silver (polished)
Chromium (Polished)



'Emissivity varies with purity



0.2
0.45
0.6 to 0.7
0.6
0.3 to 0.5
0.9
0.7 to 0.85
0.95
0.9
0.3
0.3 to 0.4
0.1
0.2 to 0.6
0.1*
0.25
0.6
0.3
0.1 to 0.25
0.1*
0.2
0.6
0.05*
0.8
0.15
0.1*
0.3
0.6
0.1*
0.4 to 0.5
0.7
0.95
0.1*
0.3
0.1*
0.1*
0.1*
0.1*













Emissivity Values-Non-Metals
Refractory & Building Materials

Red brick (rough)
Fire clay
Asbestos
Concrete
Marble
Carborundum
Plaster
Alumina (fine grain)
Alumina (coarse grain)
Silica (fine grain)
Silica (coarse grain)
Zirconium silicate up to 500°C
Zirconium silicate at 850°C
Quartz(rough)
Carbon (graphite)
Carbon (soot)
Timber (various)

Miscellaneous
Enamel (any color)
Oil paint (any color)
Lacquer
Matte black paint
Aluminum lacquer
Water
Rubber (smooth)
Rubber (rough)
Plastics(varous,solid)
Plastics films(.05 mm thick)
Polythene film(.03 mm thick)
Rubber (smooth)
Rubber (rough)
Plastics(varous,solid)
Plastics films(.05 mm thick)
Polythene film(.03 mm thick)
Paper and cardboard
Silicone polish











0.75 to 0.9
0.75
0.95
0.7
0.9
0.85
0.9
0.25
0.45
0.4
0.55
0.85
0.6
0.9
0.75
0.95
0.8 to 0.9


0.9
0.95
0.9
0.95 to 0.98
0.5
0.98
0.9
0.98
0.8 to 0.95
0.5 to 0.95
0.2 to 0.3
0.9
0.98
0.8 to 0.95
0.5 to 0.95
0.2 to 0.3
0.9
0.7
