HiTemp140 Family

Single Channel Data Logger for High Temperatures

The HiTemp140 and HiTemp140-PT series data loggers are MadgeTech’s solution for precise high temperature monitoring. These data loggers can indefinitely withstand temperatures of up to 140 °C and have an accuracy of ±0.1 °C. The HiTemp140 features a rigid external RTD probe capable of measuring extended temperatures, up to 260 °C. Varied probe lengths are available up to 178 mm.
The HiTemp140-PT features a 610 mm flexible steel RTD probe capable of measuring extended temperatures, up to 350 °C.
The HiTemp140X2 series of dual probe high temperature data loggers offer extreme flexibility for high temperature monitoring
applications. This product is ideal for applications such as autoclave validation, sterilization processes and much more.
The HiTemp140-FR is a high temperature data logger with an ultra-fast response time, to record temperature during rapidly changing thermal processes. This high temperature data logger is capable of recording as fast as 4 Hz.
The HiTemp140-FP probe design is narrow and lightweight making it ideal for placement within small vials, test tubes and other small diameter or delicate applications. The flexible lightweight probe minimizes the risks of breakage (both vial and probe) and makes placement of the probe is easy to manipulate.
The HiTemp140-M12 is a high temperature data logger designed with a built in M12 probe connecter. This logger is compatible with dozens of M12 RTD probes and capable of measuring up to 850 °C (probe dependent).
HiTemp140 Data Logger

Built for use in autoclaves and harsh environments.

The HiTemp140 is a rugged, high precision, temperature data logger that is built for use in harsh environments.
This stainless steel device is submersible, can withstand temperatures up to 140°C and has an accuracy of +/-0.1°C.

The HiTemp140 can store up to 32,700 readings, and features a rigid external probe capable of measuring extended temperatures, up to 260°C.
Custom probe lengths up to 178 mm are available.
The device records date and time stamped readings, and has non-volatile solid state memory that will retain data even if the battery becomes discharged.

Using the MadgeTech Software, starting, stopping and downloading the HiTemp140 is simple and easy.

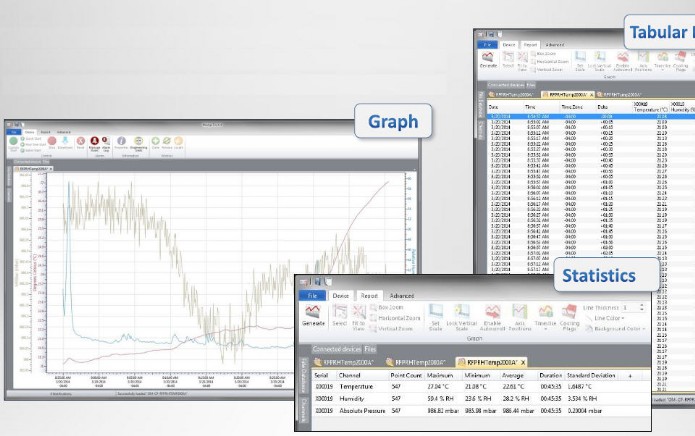

Graphical, tabular and summary data is provided for analysis and data can be viewed in °C, °F, K or °R.
The data can also be automatically exported to Excel® for further calculations.


HiTemp140 Series
High Temperature Data Loggers
***Probe lengths up to 178 mm available upon request.

HiTemp140-PT Series
High Temperature Data Loggers with 610 mm Flexible Stainless Steel Probes
Flexible probes are fragile, to use with care in production.
HiTemp140 Series
High Temperature Data Loggers
Probe Selection Chart

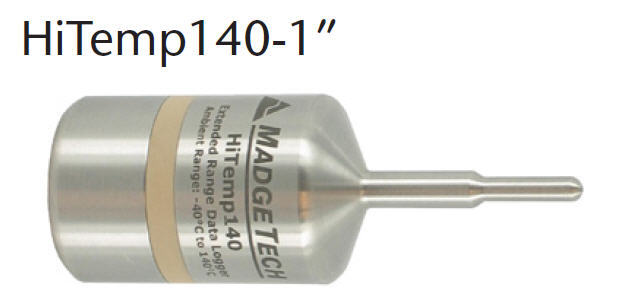

HiTemp 140-1"

Body: 40mm x 25mm dia.
Probe: 25mm x 3.2mm dia.
(4.8mm transitional dia.)
• Autoclave Monitoring
• Refrigerator and Freezer Monitoring/Mapping
• Pasteurization
• Incubator Monitoring
• Oven Monitoring

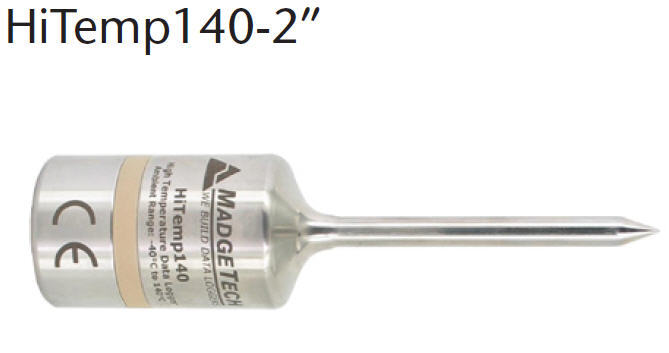

HiTemp 140-2"

Body : 45mm x 25mm dia.
HiTemp140-2 : 51mm x 4.8mm)
HiTemp140-2-TD: 51mm x 3.2mm dia.
(4.8 mm transitional dia.)
• Meat Processing
• Complying with USDA Regulations
• Dishwasher/Dryer Studies
• Conveyor Cooking/Cooling Cycles
• Food Process Monitoring
• Nut Roasting
• Smoke Houses
• Canning
• Meat Storage
• HACCP Compliance
• Retort Packaging
HiTemp 140-5,25"

Body : 45mm x 25mm dia.
HiTemp140-5.25: 134mm x 4.8mm
• Meat Processing - Internal temperature monitoring
• Complying with USDA Regulations
• Conveyor Cooking/Cooling Cycles
• Food Process Monitoring
• Canning
• Smoke Houses
• Meat Storage
• HACCP Compliance
• Retort Packaging

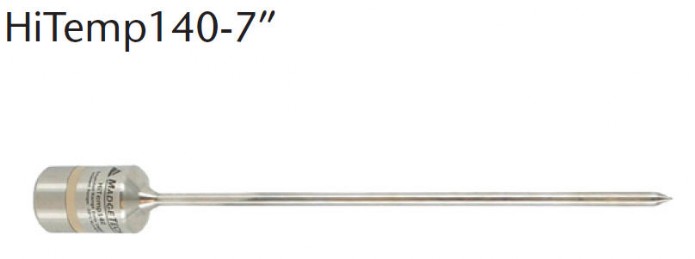

HiTemp 140-7"

Body : 45mm x 25mm dia.
HiTemp140-7: 178mm x 4.8mm dia.
• Meat Processing – Internal temperature monitoring
• Complying with USDA Regulations
• Conveyor Cooking/Cooling Cycles
• Food Process Monitoring
• Canning
• Smoke Houses
• Meat Storage
• HACCP Compliance
• Retort Packaging
HiTemp 140 PT

Body: 45mm x 25mm dia.

HiTemp140-PT-1:
Probe tip is 42mm x 3.2mm dia.)
Bendable portion is 559mm x 1.6mm dia.

HiTemp140-PT-5:
Probe tip is 121mm x 3.2mm dia. with 25mm x 4.8mm dia. handle)
Bendable portion is 559mm x 1.6mm dia.)


• Autoclave Monitoring
• Conveyor Cooking/Cooling Cycles
• Refrigerator and Freezer Monitoring/Mapping
• Oven Monitoring
• Open Air Applications

Flexible probes are fragile, to use with care in production.
HiTemp140-FR Data Logger
High Temperature Data Logger with 44.5 mm Fast Response Probe. Includes ISO17025 accredited calibration certificate.

The HiTemp140-FR is a high temperature data logger with an ultra-fast  response time, to record temperature during rapidly changing thermal  processes. This high temperature data logger features a 44.5 mm x 1.59 mm diameter probe and is capable of recording up to 4Hz, which is 4 times  faster than other data loggers in this series. This allows the  temperature sensor to quickly adapt and accurately record temperature  variations in changing environments. Applications include oven  profiling, steam sterilization, chamber mapping, seafood processing,  flash freezing and more.

MadgeTech’s entire HiTemp140 data logger series is designed with food  grade stainless steel. The device can be placed in environments up to  140 °C and the probe is capable of measuring from -200 °C to +260 °C.

The Trigger Settings feature of the HiTemp140-FR allows users to  configure high and low temperature thresholds that when met or exceeded,  will automatically start or stop recording data to memory.  This data  logger is capable of storing up to 32,700 date and time stamped readings  and features a nonvolatile solid state memory which retains data even  if the battery becomes discharged.

Compatible with the latest MadgeTech Data Logger Software, starting,  stopping, and downloading data is simple and reporting capabilities are  abundant. The device connects to a PC with the IFC400 interface or the  IFC406 docking station (sold separately). Downloaded data can be viewed  in graphical, tabular, and summary data form in the MadgeTech software,  and all data can be exported to Excel® for further analysis and  calculations.

HiTemp140-M12

High Temperature Data Logger with an M12 Probe Connector

The HiTemp140-M12 features the same rugged stainless steel body as the other HiTemp140 data loggers in the series, but offers interchangeable probe options using an M12 type connector.
The M12 connectivity makes this versatile data logger compatible with the large variety of M12 RTD probes available today.

The HiTemp140-M12 is capable of measuring and recording temperatures from -200 °C to +850 °C  (probe dependent).

All of MadgeTech’s HiTemp140  data loggers have a water tight body enclosure made of food grade  stainless steel and can be placed in environments with temperatures as  high as 140 °C. The operating range of the data logger body can  be extended to higher temperatures when used with MadgeTech’s thermal  barrier options and suitable probe.

The HiTemp140-M12 records and  stores up to 43,690 time stamped readings and is equipped with  non-volatile solid state memory which retains data even if the battery  becomes discharged.

A wide selection of compatible M12 probes  are available on the market to choose from, making the HiTemp140-M12 the  most dynamic data logger of its kind. With the ability to change probes  as needed, this device satisfies a multitude of application needs with  one powerful data logger versus the need for multiple loggers.

Note: Calibration Certificate standard calibration is two points at 50 Ω and 150 Ω and is verified at 100 Ω.
HiTemp140-M12
M12 PROBES :

M 12 Flexible Probe
High Temperature, Flexible Probe with M12 connector.

Probe Type : Flexible RTD Probe
Temperature Range : -60 °C to 260 °C
Material : Stainless Steel, PFA, Polyamide 6-6 GF
Probe Length : 76.2 mm
Probe Diameter : 2.18 mm
Weight : 26 g
IP Rating : IP67
HiTemp140-FP Flexible Probe Temperature Data Logger
High Temperature Data Logger with Flexible RTD Probe

The HiTemp140-FP is a durable, user friendly high temperature data logger featuring a long, flexible RTD probe with a narrow diameter, making it ideal for use in steam sterilization and lyophilization processes.

Commonly used for mapping, validation and monitoring of high temperature surfaces and environments, this stainless steel data logger is available in several flexible probe lengths. The flexible probe is coated with PFA insulation and can withstand temperatures up to 260 °C  with an accuracy of ±0.1 °C.

The HiTemp140-FP probe design is narrow and lightweight making it ideal for placement within small vials, tubing, test tube and other small diameter or delicate applications. Because of the flexible probe, the risks of breakage (both vial and probe) generally associated with stainless steel probe loggers are diminished and the location and placement of the probe is easy to manipulate. The device records and stores up to 32,700 time stamped readings and is equipped with non-volatile solid state memory.

The HiTemp140-FP can be configured for delayed start and is capable of reading rates as often as four readings per second, up to once every 24 hours.

Compatible with the latest MadgeTech Data Logger Software, starting, stopping, and downloading data is simple and reporting capabilities are abundant. The device connects to a PC with the IFC400 interface or the IFC406 docking station (sold separately). Downloaded data can be viewed in graphical, tabular, and summary data form in the MadgeTech software, and all data can be exported to Excel® for further analysis and calculations.

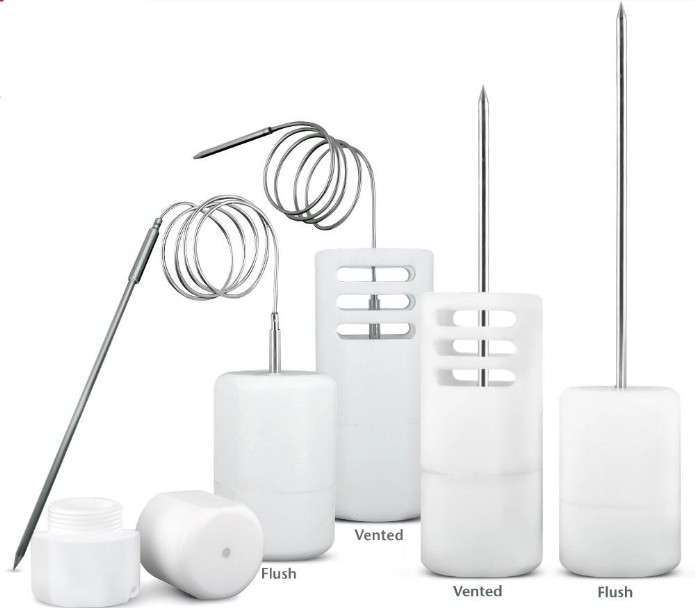

Thermal Shield
For Extended High Temperature Monitoring
For applications above 140 °C, a thermal shield is available for most models of the HiTemp140 and HiTemp140-PT series data loggers. The thermal shield extends the operating temperature of the data logger, allowing it to be exposed to higher temperatures for a longer amount of time.
Flush and vented models are available to help provide probe protection.

ThermoVault Max Extreme Temperature Thermal Barrier
Submersible, Stainless Steel, Extreme Temperature Thermal Barrier for HiTemp140 Data Loggers.

The ThermoVault Max is an extreme, high temperature thermal barrier  designed for use with MadgeTech’s HiTemp140-M12, HiTemp140-FP and  HiTemp140-PT data logger models. This durable enclosure is made from  stainless steel with PTFE insulation. The ThermoVault Max barrier can  withstand temperatures up to +400 °C in dry heat applications and +250  °C for wet applications when used with the TMAX Wet Seal Kit (sold separately).

With unparalleled time versus temperature performance, the ThermoVault  Max provides a best-in-class solution for the harshest of applications.  Designed to endure extreme temperature monitoring environments such as  furnace profiling, geothermal down-hole recording, dry heat  sterilization and oven data logging.

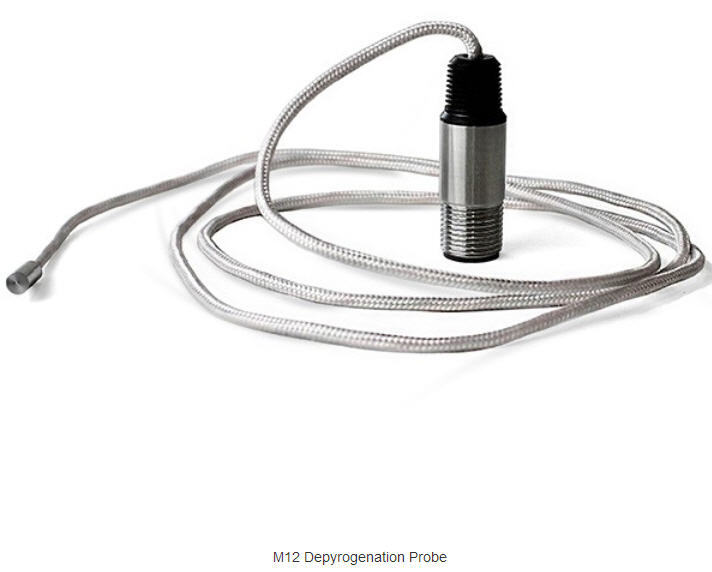

MadgeTech also offers a turnkey Dry Heat Sterilization System including the ThermoVault Max barrier, HiTemp140-M12 Data Logger and M12 Depyrogenation probe.

The ThermoVault Max is built for use in harsh applications that require  extreme temperature monitoring, such as depyrogenation, food processing,  oven monitoring, geothermal down-hole recording, and furnace profiling.

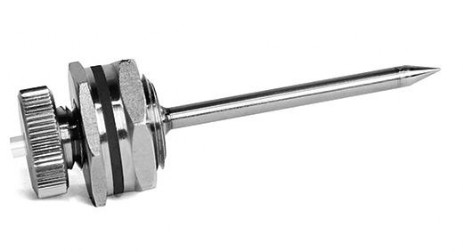

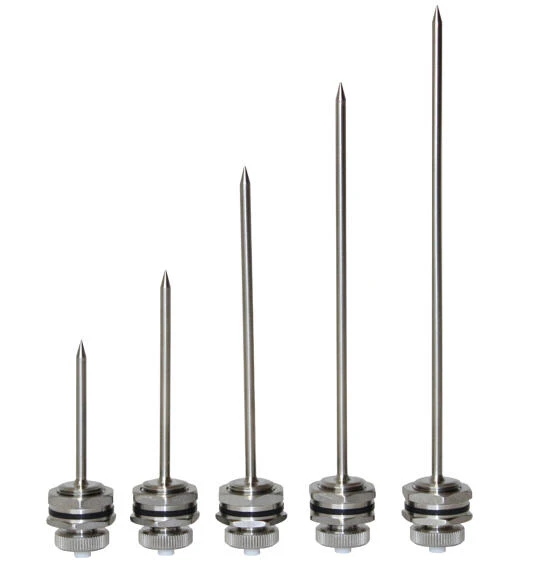

ThermaLock Pro

CANNING FITTING FOR THE HITEMP140-FP and HITEMP140X2-FP  DATA LOGGER
The ThermaLock Pro Canning Fitting securely attaches to cans, jars or other rigid containers used in food processing applications. Compatible with the MadgeTech HiTemp140-FP and HiTemp140X2-FP data loggers, the ThermaLock Pro probe sheath extends into the container to allow users to monitor internal temperatures.
The ThermaLock Pro Canning Fitting is comprised of Silicone, PTFE, and food grade stainless steel. Various sheath lengths are available as part of this series to accommodate different size containers. 9/16 hole punch is required for use.
Specifications :
Weight: 85 g (1.3 oz)
Materials: Food Grade Stainless Steel, Silicone and PTFE
 ER1425S-HT Lithium Battery   150 °C 3.6V Lithium Battery, ½ AA Pressure Contact.

MagMount-1: Magnetic Holder for use with the PR140, HiTemp140 Series and 1000 Series Data Loggers.


LUER-FITTING-F  316 stainless steel, 1/8 in NPT to Female luer lock adapter.
The LUER-FITTING-F is a 1/8 in NPT to female luer lock adapter. It can be used with the PR140 data logger with NPT Port.
The LUER-FITTING-F can easily be screwed into the 1/8 in NPT female port on the data logger.
This rugged adapter is made of 316 stainless steel construction and can withstand harsh environments, such as steam sterilization cycles.

MultiMount-Z Data Logger Stand
Versatile mount or stand for use with the HiTemp140 series of data loggers.
The MultiMount-Z is a versatile mount or stand for use with the HiTemp140 series of data loggers and other various loggers of the same body style. It can be used to stabilize a logger inside an autoclave, or screwed to a flat surface to create an anchored base. Made of 316 Stainless Steel, the MultiMount-Z is able to withstand temperatures up to 150 °C making it ideal for use in autoclave sterilization processes.
Dimensions: 1.75 in x 1.5 in x 1.5 in (44.5 mm x 38 mm x 38 mm)
Compatible with the following MadgeTech data loggers:
  • Hi Temp140 Series (all models)
  • RHTemp1000, RHTemp1000IS
  • PR140, PRTemp140
  • Temp1000IS
