Process & Quality Control

Hotplate Stirrers

Laboratory Product > Heating
Magnetic hotplate stirrers, VMS C4 Advanced series

Compact stirrers with a ceramic glass plate provide excellent chemical resistance.
Units feature digital error code display, a 'hot' top indicator to warn users that surface is hot, a fixed safety circuit that shuts off the heater if temperature rises above 550 °C, and three operating modes to choose from (standard, safe and adjustment protection).
Stirrers have a speed display scale and optional capability to connect directly to a PT1000 temperature sensor; when using this functionality, control accuracy in the medium is ±0,5 °C.

  • Exact temperature setting via digital potentiometer
  • Simultaneous digital display of target and actual temperatures via LCD display
  • Display of actual temperature value in medium with 0,1 °C resolution when using PT1000 temperature sensor
  • Connection for contact thermometer VT-5 (all VT-5 functions incorporated in hotplate stirrer)
  • Stirrer can be controlled using two microcontrollers

Certifications: Protection class according to DIN EN 60529: IP 21
VMS-C4 Advanced magnetic hotplate stirrer, EU-plug  ref : 168-442-0661   Supplied with PT1000 probe.
Model                                                     VMS-C4 Advanced
Max. stirring capacity H₂O (l)    5
Speed range (min-1)                      100 - 1500
Temperature range (°C)               50...500
Heat output (W)                               250
Power input/output (W)             15/1,5
Plate material                                    Glass-ceramic
Plate dimensions (mm)                100×100
W×D×H (mm)                                    150×260×105
Weight (kg)                                          3
Support rod, stainless steel, 10 mm diameter, 400 mm long, G16V
Ref.  132-442-2041
H44 Fixing nut, Bosshead for stirrer-homogeniser
Ref.  132-442-2043
Holding rod, type H38 to hold Vt-5, Ets-D5 and ETS-D6
Ref.  132-442-2888
Probe PT1000 glass coated F VMS-Advanced
Ref.  132-442-0695

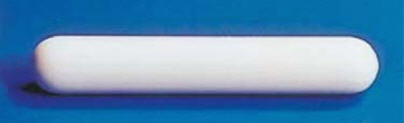

Magnetic stirring bars, cylindrical

PTFE covered, strong Alnico V magnetic core.
Rounded, smooth surface.
• Very good chemical resistance
• Temperature resistant, suitable for use at high and low temperatures (−200 to +280 °C)
Length (mm)        Ø (mm)          Pk              Cat. No.
6                                 3                        10              168-442-0259
8                                 3                        10              168-442-4520
10                              6                        10              168-442-0295
12                              4,5                    10              168-442-4521
15                              4,5                    10              168-442-4522
20                               6                       10               168-442-4523
25                               6                       10               168-442-4524
30                               6                          5               168-442-4525
35                               6                          5                168-442-4530
40                               8                          5                168-442-4527
50                               8                          5                 168-442-4528
60                               10                       5                 168-442-4529
70                               10                       5                 168-442-0260
80                               10                       5                168-442-0261

Magnetic stirring bars, plain

PTFE covered, strong AlnicoV magnetic core.
Smooth surface with rounded edges that intensify the stirring effect, even at low speeds.
• Very good chemical resistance
• Temperature resistant, suitable for high and low temperature applications (−200 to +280 °C)
Length (mm) Ø (mm)  Pk       Cat. No.
10                       6                10       168-442-0262
13                       8                 10       168-442-0263
15                       4,5             10       168-442-0264
20                       6                 10       168-442-0265
20                       7                 10       168-442-0266
25                       6                 10       168-442-0267
25                       10               10      168-442-0268
30                        7                 10       168-442-0269
35                        10              10       168-442-0270
40                         8                 5         168-442-0271
50                         10               5        168-442-0272
57                          27              5        168-442-0278
60                          7                  5        168-442-0273
65                          13               5        168-442-0274
70                          10               5        168-442-0275
75                           13              5         168-442-0276
80                           10              5         168-442-0277
108                         27              5         168-442-0279
159                         27              5         168-442-0280

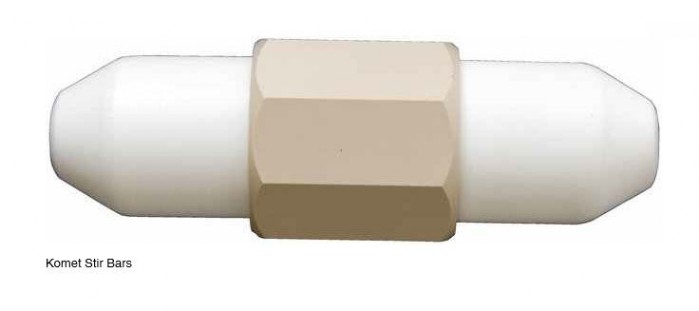

Komet Stir Bars


Generate over three times the torque of conventional stirring bars with Thermo Scientific™ Komet Stir Bars, significantly enhancing stirrer performance and applications versatility.

Features:
  • High-energy Samarium-Cobalt (SmCo) magnetic core
  • Superior mixing action at high speeds, and with viscous media
  • Evenly coated PTFE surface prevents residue deposits
  • Sterilize with steam to 121°C
  • Longlife stir bars are round with wear-resistant glide ring

  • Available in assorted sizes
Catalog   number      Length           Description                                   Shape         Diameter
168-50087902       90 mm             Komet 90                                        Round              25mm
168-50087909        50 mm            Komet 50                                        Round              21mm
168-50087924      15 mm             Komet 15                                        Round                 9mm
168-50087930       30 mm             Komet 30                                        Round               13mm
168-50093334       30 mm             Komet   Glide-Ring 30             Pivot  ring       17mm
168-50093335       50 mm             Komet   Glide-Ring 50             Pivot  ring        26mm
168-50093336       90 mm             Komet   Glide-Ring 90             Pivot ring         31mm
