OHAUS MB27

Laboratory Product > Moisture Analyser
OHAUS MB27

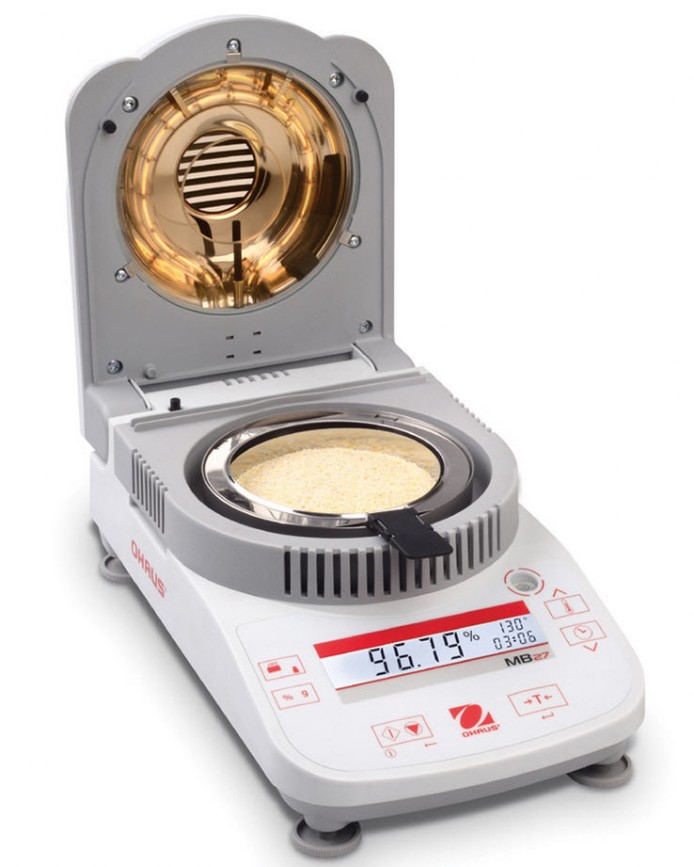

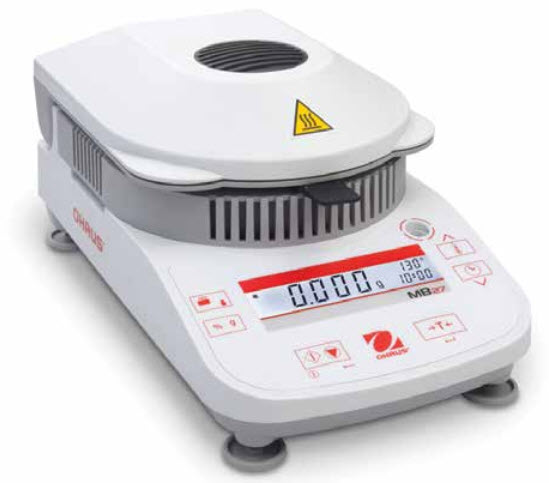

The new OHAUS MB27 Basic Moisture Analyzer combines high quality and  durable construction into a sleek, compact design.
The MB27 offers  dependable, accurate results for a wide variety of moisture analysis  applications.

Applications
Percent Moisture Determination, Percent Solid Determination, Weighing

Display
Backlit liquid crystal display (LCD)

Operation
Power cord (included)

Communication
RS232 (included)

Construction
Halogen heat source, ABS housing, metal pan support, metal pan handler, in-use cover

Design Features
3 shut off criteria (manual, timed or auto), 1  standard heating profile, 50° to 160° C heating range (5° C increments)
The MB27 provides accurate results at 0.01% 0.001g.
With a large  capacity of 90g, it is ideal for food, agriculture, chemical,  pharmaceutical and other applications that require measurements up to  0.01% 0.001g.

Set up and operation is extremely easy.
Just press and hold the  temperature or time buttons to set drying parameters.
The MB27 is ideal  for routine tasks performed by operators of all skill levels.

The compact footprint (17x14x28cm) of the OHAUS MB27 is designed to take  up less space.
The easy-to-clean heating chamber is ideal for frequent  use and inexpensive maintenance.
MB27 Moisture Analyzer

Capacity                                                 90 g
Repeatability (Std Dev ) (g)         0.2% (3 g sample)0.05% (10 g sample)
Readability                                           0.01%/0.001 g
Sample size                                           3g to 20g typical, 0.5g min.
Interface                                                 Bidirectional RS232
Timer                                                        1-99 minutes, 30-second increments to 60 minutes
Heating Technology                          Halogen
Temperature Range                          50 °C to 160 °C in 5 °C increments
Power                                                        100 to 240 VAC, 50/60 Hz
Tare Range                                              To capacity by subtraction
Operating Temperature Range   5 °C to 40 °C
Display Type                                           Backlit LCD
Displays :
  • %moisture or %solids or weight (g),
  • temperature,
  • time
Pan Size (Diameter)                           90 mm

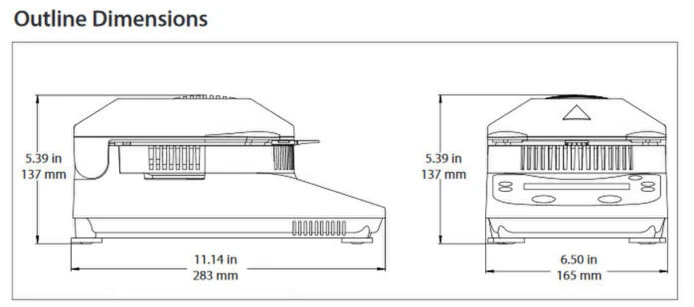

Dimensions (W × H × D)                   17 × 14 × 28 cm
Net Weight                                                2.3 kg
Shipping Weight                                     3.9 kg



Compliance

  • Product Safety: CAN/CSA C22.2 61010-1, CAN/CSA C22.2 61010-2-010, UL 61010-1
  • Electromagnetic Compatibility: FCC Part 15 Class A, ICES-003 Class A,
Accessories
Temperature Calibration Kit, MB Series ................11113857
Anti-Theft Device ............................................................80850043
Aluminum Sample Pans, 80 Pcs .................................80850086
Pads, Glass Fiber, Qty 200 Pcs ...................................80850087
In-Use-Cover ....................................................................80252475
Pan Holder, MB Series .................................................80252476
Sample Cage, MB Series .............................................80252477
Reusable Sample Pans, 3 Pcs, 7mm, MB Series.....80252478
Reusable Sample Pans, 3 Pcs, 14mm, MB Series ..80252479
Impact Printer SF40A ..................................................30064203
Thermal Printer, STP-103, US ...................................80251992
