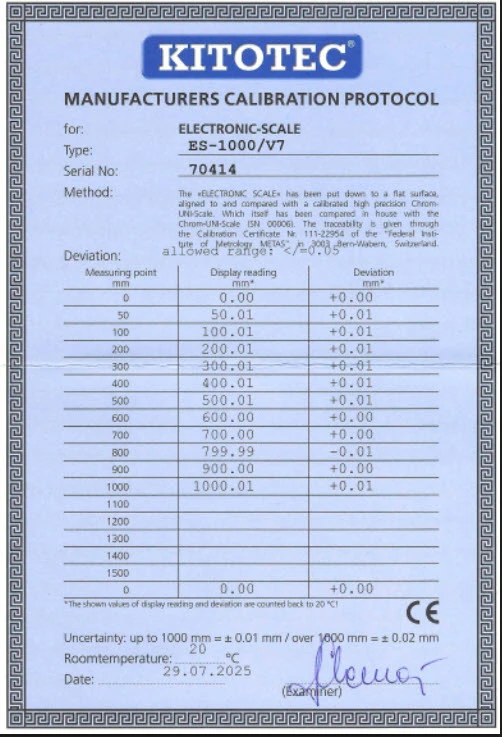

Electronic Scale
Metrology > Magnifiers & Microscopes
Use of the Electronic Scale makes length measurements simpler.
The hardened stainless steel guide has an inductive strip.
This provides the electronics with the information on the momentary position of the measuring carriage running play and wear-free on longitudinal ball bearings.
The coated, four lens optical system with 10x magnification factor makes it possible to move precisely to the measuring point.
The magnifier has a fine focus for adjustment to your specific correction.

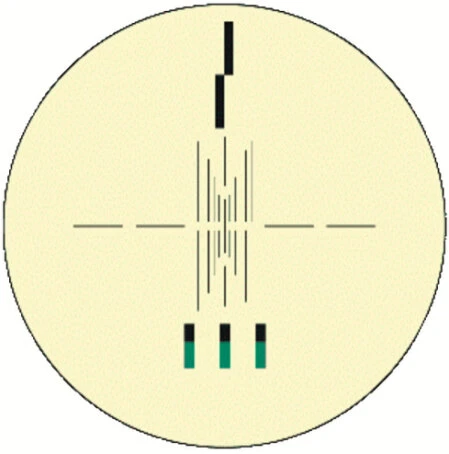

The magnifier is equipped with a reticule plate for exact positioning of the measuring carriage.
The hard chrome vapour-coated graduations on this plate ensure precise readings.
An ingenious parallax control ensures that the viewing angle is perpendicular to the lens.
This easy-to-read display with six millimetre high characters shows a maximum resolution of 0.10 millimetres or 0.0005 inches.
A fine adjustment is located immediately next to the display.
The vertical arresting screw arrests a part of the measuring carriage.
The horizontal positioning screw moves the carriage sensitively to the measuring point.
The zero point for the measurement can then be set by pressing the reset button. After moving the carriage to the second measuring point the result can be read off on the display.

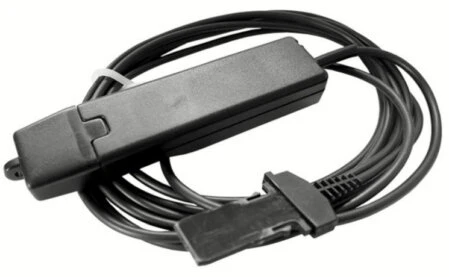

The system has an RS232 interface. This allows serial transfer of the values to the computer. An RS232-compatible interface cable with optical coupling or, as an alternative, a radio transfer system is available for data transfer.
Display of data on computer possible in Excel with software available as option.
The two lateral positioning slides facilitate quick, parallel alignment of the scale with the item to be measured.
Model variety: Seven measuring lengths available from 180 to 1500 millimetres.
Three types of reticule plates and various optical system complete the range.
In addition to the reticule plate mentioned above, the PCB scale can be used exclusively for measuring hole intervals. Use of a standard 10x magnifier (ES version) is always required for the PCB scale.
If a microscope is also to be used for particularly exact determination of the measuring point, it is possible to turn the microscope adapter so that the light beam passes through the free point in the scale. Reason: The 25x and 50x microscopes available as accessories, have their own scale with graduations and cross-hairs, which intersect the PCB scale. If it is known that very fine positioning is required, the ESM version with 25x or 50x microscope should be used from the very beginning.
The electronic scale can be ordered with a video system for series measurements.
The ES version can even be retrofitted with the USB video camera.
Moving the to measuring points does not require assuming a bent posture over the microscope, relieving your back and eyes.
It is then possible to move to the measuring points using the reticule plate or the measuring software reference functions.

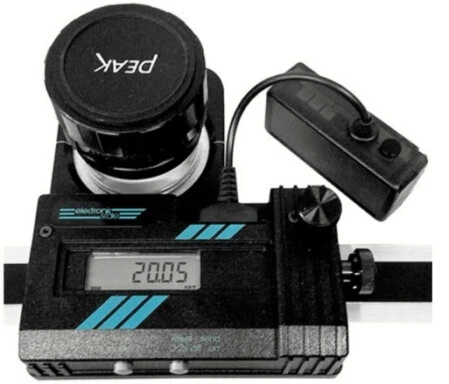

Electronic Scale ES with magnifier 10x
Length measuring system Electronic Scale with 10x magnifier and special scale for parallax control and data output in measuring lengths from 180 mm to 1.500 mm
Electronic Scale ESM with 10x microscope
Order number:
180 mm : 233-ESM-180-10
300 mm : 233-ESM-300-10
500 mm : 233-ESM-500-10
800 mm : 233-ESM-800-10
1000 mm : 233-ESM-1000-10
1300 mm : 233-ESM-1300-10
1500 mm : 233-ESM-1500-10
300 mm : 233-ESM-300-10
500 mm : 233-ESM-500-10
800 mm : 233-ESM-800-10
1000 mm : 233-ESM-1000-10
1300 mm : 233-ESM-1300-10
1500 mm : 233-ESM-1500-10

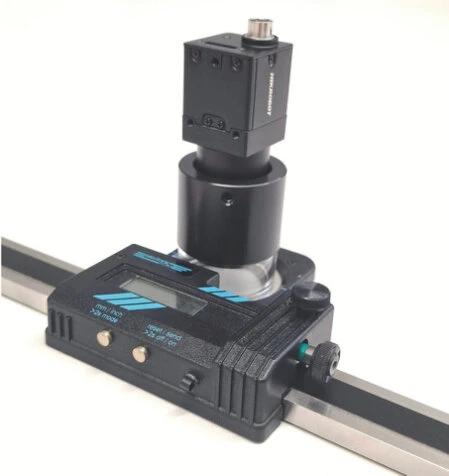

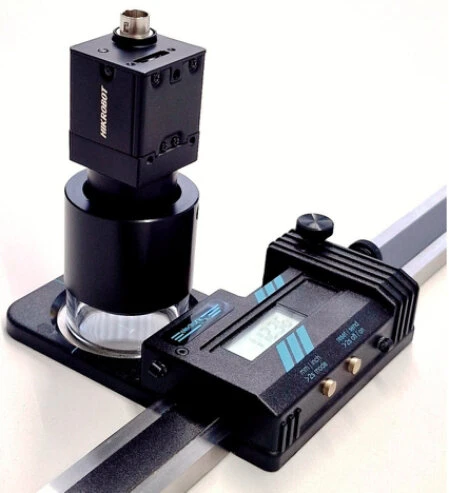

USB camera system for process-safe and ergonomic measuring
Order number: 232-ES-USB

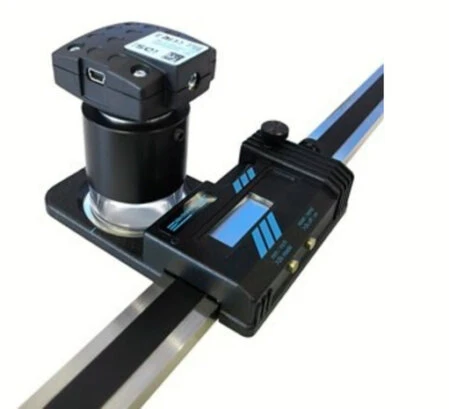

The ES version can be upgraded at any time with a USB camera and the Metric BE software. Only the 10x magnifier has to be removed and the adapter of the camera system is plugged onto the acrylic ring. Since it is a USB 3.0 camera, the user needs a PC. The BE software and the USB camera driver are installed. Then the USB camera is plugged in and the Metric BE is started.
Different types of crosshairs in different colours and line widths can be set. The use of the USB camera is particularly recommended for extremely large numbers of measurements because of the ergonomic way of working.
In combination with the data cable for transferring the measured values to Excel, a very convenient and process-safe length measuring system is created.
USB 3.0 Cable:
From a technical standpoint, conventional USB 3.0 cables leave nothing to be desired.
However, they have one major drawback: their limited flexibility, which can cause problems when mounting cameras in fixtures and devices.
To address this issue, we offer the USB 3.0 SUPER FLEX DATA CABLE for use with the Electronic Scale camera system. We supply this extremely flexible USB 3.0 cable in a length of 5 meters. Its exceptional flexibility enables effortless integration without compromising on performance or transfer speed.
To address this issue, we offer the USB 3.0 SUPER FLEX DATA CABLE for use with the Electronic Scale camera system. We supply this extremely flexible USB 3.0 cable in a length of 5 meters. Its exceptional flexibility enables effortless integration without compromising on performance or transfer speed.

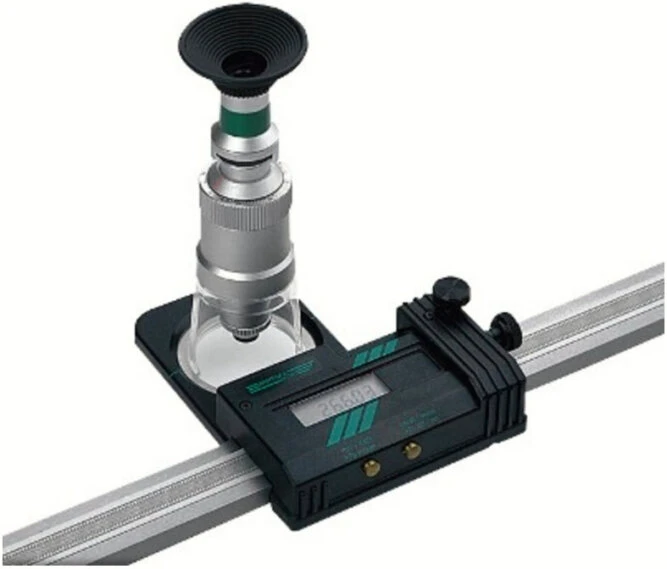

Electronic Scale ESM with 50x microscope
Order number:
- 180 mm : 233-ESM-180-50
- 300 mm : 233-ESM-300-50
- 500 mm : 233-ESM-500-50
- 800 mm : 233-ESM-800-50
- 1000 mm : 233-ESM-1000-50
- 1300 mm : 233-ESM-1300-50
- 1500 mm : 233-ESM-1500-50

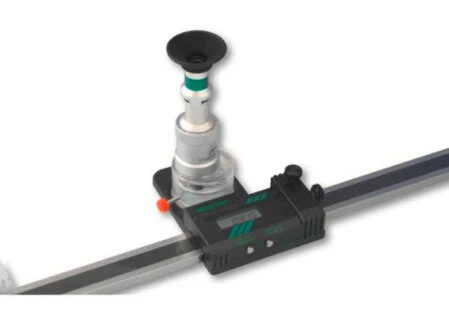

Electronic Scale ESM with 25x microscope
Order number:
- 180 mm : 233-ESM-180-25
- 300 mm : 233-ESM-300-25
- 500 mm : 233-ESM-500-25
- 800 mm : 233-ESM-800-25
- 1000 mm : 233-ESM-1000-25
- 1300 mm : 233-ESM-1300-25
- 1500 mm : 233-ESM-1500-25
