HITEMP140
The HiTemp140 is a high temperature, precision data logger. Includes ISO17025 accredited calibration certificate.
Key Features:
- Submersible
- Onboard recorder with 100 Ω Platinum RTD sensor
- Available in Various Probe Lengths & Styles
- Measures Temperatures from -40 °C to +140 °C
The HiTemp140 is a submersible, high temperature data logger built for use in harsh environments.
This device is extremely versatile and can be tailored to the application with various probe lengths and styles available.
The HiTemp140 can withstand temperatures ranging from -40 °C to +140 °C, but is capable of measuring extended temperatures up to 260 °C (probe dependent).
With a storage capacity of up to 32,256 time and date stamped readings, the HiTemp140 can be programmed for immediate start or delayed start up to 18 months in advance.
The HiTemp140 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
Body of data logger cannot exceed 140 °C, but can extend to higher temperatures when used with MadgeTech’s thermal barrier options.
Specifications 1 General
Memory : 32,256 readings
Reading Rate: 1 reading every second up to 1 reading every 24 hours
Baud Rate : 125,000
Battery Life : 2 years typical (1 minute reading rate)
Fast reading intervals and extreme temperatures will shorten the battery life substantially
User Replaceable Battery
Fast reading intervals and extreme temperatures will shorten the battery life substantially
User Replaceable Battery
Key Ring End Cap : Key ring replaces standard bottom
Thru-hole: 0.150"
IP Rating : IP68
Submersible : Yes
Operating Environment : -40 °C to +140 °C ; 0 %RH to 100 %RH ; 0.002 PSIA to 100 PSIA (Body of Logger Cannot Exceed 140 °C)
Required Interface Package : IFC400
Approvals : CE
Specifications 2 General
Material : 316 Stainless Steel, Radel
HiTemp 140 Rigid and Rigid Transitional Diameter Dimensions :
- HiTemp140-1 Body: 40 mm x 25 mm dia.
Probe: 0.188 in transitional dia.
25 mm x 3.2 mm dia. (4.8 mm transitional dia.)
Body : for 5,08 - 13,4 - 17,78 cm) :45 mm x 25 mm dia.
25 mm x 3.2 mm dia. (4.8 mm transitional dia.)
Body : for 5,08 - 13,4 - 17,78 cm) :45 mm x 25 mm dia.
- HiTemp140-2 : 51 mm x 4.8 mm
- HiTemp140-2-TD: 51 mm x 3.2 mm dia. (4.8 mm transitional dia.)
- HiTemp140-5.25: 134 mm x 4.8 mm
- HiTemp140-5.25-TD: 134 mm x 3.2 mm dia. (4.8 mm transitional dia.)
- HiTemp140-7: 178 mm x 4.8 mm dia.
HiTemp140 Fast Response Body : 48.1 mm x 24.6 mm x 24.6 mm
Probe Dimensions : Probe: 0.188 in transitional dia. (44.5 mm x 1.59 mm (4.78 mm Transitional dia.)
Probe Dimensions : Probe: 0.188 in transitional dia. (44.5 mm x 1.59 mm (4.78 mm Transitional dia.)
Temperature
Temperature Sensor 100 Ω Platinum RTD
Temperature Resolution 0.01 °C
Temperature Calibrated Accuracy ±0.1 °C/ (20 °C to +140 °C)
±0.3 °C / 20 °C to +19.99 °C
±0.4 °C/ -40 °C to -20.01 °C
±0.4 °C/ -40 °C to -20.01 °C
Probe Temperature Range -200 °C to +260 °C
Body of Logger Cannot Exceed 140 °C
PROBE STYLES
Probe Type Material Operating Environment Probe Measurement Range
Rigid Metal Temperature: -40 °C to +140 °C Temperature: -200 °C to +260 °C
Humidity: 0 %RH to 100 %RH Probe only.
Pressure: 0.002 PSIA to 100 PSIA Body must not exceed Operating Environment
Humidity: 0 %RH to 100 %RH Probe only.
Pressure: 0.002 PSIA to 100 PSIA Body must not exceed Operating Environment
Rigid Transitional Metal Temperature: -40 °C to +140 °C Temperature: -200 °C to +260 °C
Diameter (TD) Humidity: 0 %RH to 100 %RH Probe only. Body must not exceed
Pressure: 0.002 PSIA to 100 PSIA Operating EnvironmentFlexible (FP) Bendable Temperature: -40 °C to +140 °C 0 % Temperature: -200 °C to +260 °C
PTFE RH to 100 %RH, Probe only.
0.002 PSIA to 100 PSIA Body must not exceed Operating Environment
PTBendable Metal Temperature: -40 °C to +140 °C Temperature: -200 °C to +350 °C
Humidity: 0 %RH to 100 %RH Probe only.
Pressure: 0.002 PSIA to 100 PSIA Body must not exceed Operating Environment
Pressure: 0.002 PSIA to 100 PSIA Body must not exceed Operating Environment
Fast Response Metal Temperature: -40 °C to +140 °C Temperature: -200 °C to +260 °C
(FR) Humidity: 0 %RH to 100 %RH Probe only.
Pressure: 0.002 PSIA to 100 PSIA Body must not exceed Operating Environment
PART NUMBERS
HiTemp140-1 (2,54 cm rigid probe) 269-900140-00
HiTemp140-2 (5,08 cm rigid probe) 269-900153-00
HiTemp140-2-TD (5,08 cm transitional diameter probe) 269-900165-00
HiTemp140-5.25 ( 13,4cm rigid probe) 269-900173-00
HiTemp140-5.25-TD ( 13,4cm transitional diameter probe ) 269-900180-00
HiTemp140-7 ( 17,78cm rigid probe ) 269-900198-00
HiTemp140-FR (5,08 cm fast response probe) 269-900221-00
HITEMP140-PT
The HiTemp140-PT is a high temperature, precision data logger with a bendable probe.
Includes ISO17025 accredited calibration certificate.
Key Features:
- Submersible
- Available in Various Probe Lengths & Styles
- Measures Temperatures from -200 °C to +350 °C
Description
The HiTemp140-PT is a submersible, high temperature data logger with a 30,48 cm or 60,96 cm bendable probe.
This device is extremely versatile and can be tailored to the application with various probe lengths and styles available.
The HiTemp140-PT can withstand temperatures ranging from -40 °C to +140 °C, but is capable of measuring extended temperatures up to 350 °C (probe dependent).
With a storage capacity of up to 32,256 time and date stamped readings, the HiTemp140 can be programmed for immediate start or delayed start up to 18 months in advance.
The HiTemp140-PT is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy.
Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
Body of data logger cannot exceed 140 °C, but can extend to higher temperatures when used with MadgeTech’s thermal barrier options.
Bend Radius :
The flexible probe on the HiTemp140-PT can be bent to a 0.635 cm bend radius.
The probe should not be bent within 2,54 cm of either weld joint.
SPECIFICATIONS 1 General
Memory 32,256 readingsReading Rate 1 reading every second up to 1 reading every 24 hours
Baud Rate 125,000
Battery Life 2 years typical (1 minute reading rate)
Fast reading intervals and extreme temperatures will shorten the battery life substantially
User Replaceable Battery
Fast reading intervals and extreme temperatures will shorten the battery life substantially
User Replaceable Battery
Material 316 Stainless Steel, Radel
IP Rating IP68
Submersible Yes
Required Interface PackageIFC400
Approvals CE
SPECIFICATIONS 2
HiTemp140 Pig Tail Body: 45 mm x 25 mm dia.
Probe Dimensions HiTemp140-PT-1: Probe tip is 42 mm x 3.2 mm dia.
Bendable portion is 559 mm x 1.6 mm dia.HiTemp140-PT-5: Probe tip is 121 mm x 3.2 mm dia. with 25 mm x 4.8 mm dia. handle
Bendable portion is 559 mm x 1.6 mm dia.
HiTemp140-PT-12: Probe tip is 42 mm x 3.2 mm dia.
Bendable portion is 305 mm x 1.6 mm dia.
Operating Environment -40 °C to +140 °C);
0 %RH to 100 %RH;
0.002 PSIA to 100 PSIA
Body of Logger Cannot Exceed 140 °C
Temperature
Temperature Sensor 100 Ω Platinum RTDTemperature Resolution 0.01 °C
Temperature Calibrated Accuracy ±0.1 °C/ 20 °C to +140 °C/
±0.3 °C/ -20 °C to +19.99 °C
±0.4 °C/ -40 °C to -20.01 °C
±0.3 °C/ -20 °C to +19.99 °C
±0.4 °C/ -40 °C to -20.01 °C
Probe Temperature Range -200 °C to +350 °C
Body of Logger Cannot Exceed 140 °C
PROBE STYLES
Probe Type Material Operating Environment Probe Measurement Range
Rigid Metal Temperature: -40 °C to +140 °C Temperature: -200 °C to +260 °C
Humidity: 0 %RH to 100 %RH Probe only.
Pressure: 0.002 PSIA to 100 PSIA Body must not exceed Operating Environment
Humidity: 0 %RH to 100 %RH Probe only.
Pressure: 0.002 PSIA to 100 PSIA Body must not exceed Operating Environment
Rigid Transitional Metal Temperature: -40 °C to +140 °C Temperature: -200 °C to +260 °C
Diameter (TD) Humidity: 0 %RH to 100 %RH Probe only. Body must not exceed
Pressure: 0.002 PSIA to 100 PSIA Operating Environment
Flexible (FP) Bendable Temperature: -40 °C to +140 °C 0 % Temperature: -200 °C to +260 °C
PTFE RH to 100 %RH, Probe only.
0.002 PSIA to 100 PSIA Body must not exceed Operating Environment
PT Metal Temperature: -40 °C to +140 °C Temperature: -200 °C to +350 °C
Humidity: 0 %RH to 100 %RH Probe only.
Pressure: 0.002 PSIA to 100 PSIA Body must not exceed Operating Environment
Pressure: 0.002 PSIA to 100 PSIA Body must not exceed Operating Environment
Fast Response Metal Temperature: -40 °C to +140 °C Temperature: -200 °C to +260 °C
(FR) Humidity: 0 %RH to 100 %RH Probe only.
Pressure: 0.002 PSIA to 100 PSIA Body must not exceed Operating Environment
PART NUMBERS
HiTemp140-PT-1 (60,9 cm bendable probe and 2,54 cm piercing tip) 269-900230-00
HiTemp140-PT-1-KR (60,9 cm bendable probe and 2,54 cm piercing tip and key ring bottom) 269-902152-00
HiTemp140-PT-1-12 (30,48 cm bendable probe and 2,54 cm piercing tip) 269- 902306-00
HiTemp140-PT-5 (60,9 cm bendable probe and 12,7 cm piercing tip) 269- 900243-00
HiTemp140-PT-5-KR (60,9 cm bendable probe and 12,7 cm piercing tip and key ring bottom) 269-902365-00
MadgeTech 4 Software

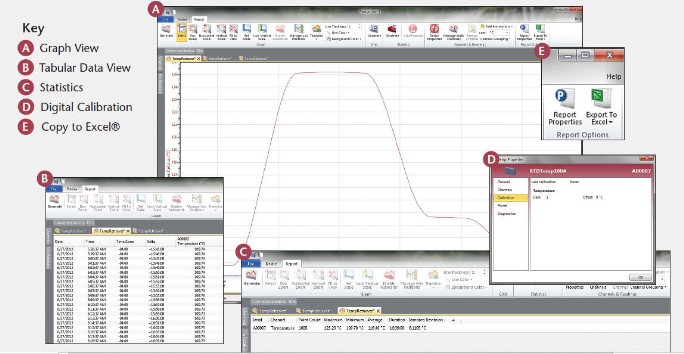

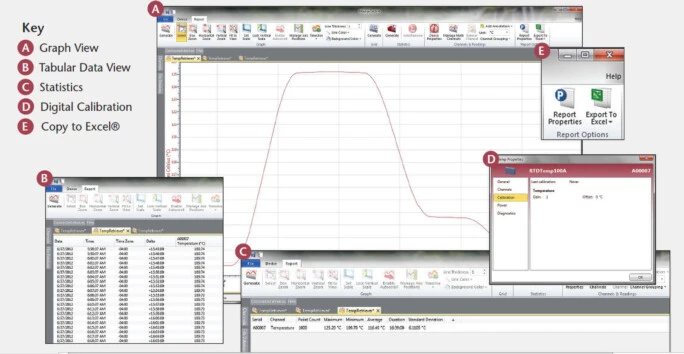

The simple, easy-to-use, Windows-based software enables the user to effortlessly collect, display and analyze data.
A variety of powerful tools can be used to examine, export, and print professional quality reports with just a click of the mouse.
This software can be downloaded for free from the MadgeTech website.

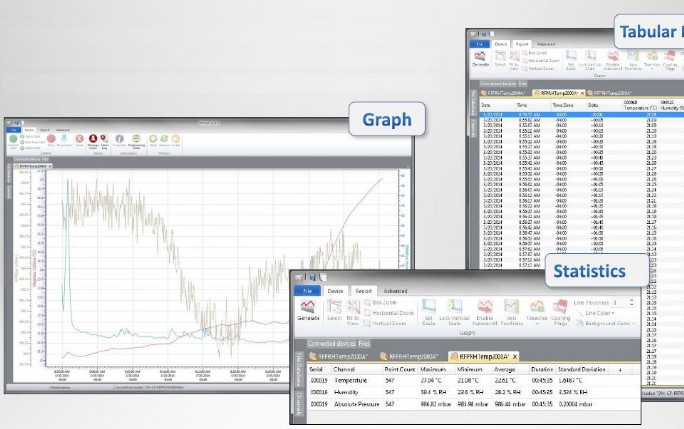

MadgeTech 4 Software Customizable Features and Options
MadgeTech 4 Software can communicate with multiple loggers through multiple interface cables.
Capable of simultaneous start, stop and download of over 100 devices, this software serves as your virtual command center for large scale facilities and small.
Display your data in graphs, with tabbed views and multi-monitor support.
Utilize the infinite graphing flexibility by combining channels and datasets as desired.
All graphing makes use of accelerated graphics hardware for real-time updating and high performance visuals.
MadgeTech 4 Software is designed with a built-in database for automatic storage of downloaded data. The look and feel is organized much like standard email programs to aid in user friendliness and ease of use. MadgeTech 4 Software also offers extensive alarming options across multiple devices, wireless and non-wireless.
Alarm output options include email, onscreen, text message and run-a-program alerts.
MadgeTech 4 Software has a powerful and comprehensive statistics system that allows the user to customize and view statistics as desired.
Another feature is customizable engineering units.
This enables users to support and program devices with many different unit types as well as the ability to display them as an alternate unit if desired.
Software Features
• Multiple Graph Overlay
• Statistics
• Digital Calibration
• Zoom In / Zoom Out
• Cooling Flags
• Lethality Equations (F0, PU)
• Mean Kinetic Temperature
• Full Time Zone Support
• Data Annotation
• User Friendly File Management
• Min. / Max. / Average Lines
• Timeslice
• Data Table View
• Automatic Report Generation
• Summary View
• Workflows / Automation
