Radio Temperature dataloggers with internal probe

Newsteo offers a range of dataloggers for temperature measurement with internal or external sensors.

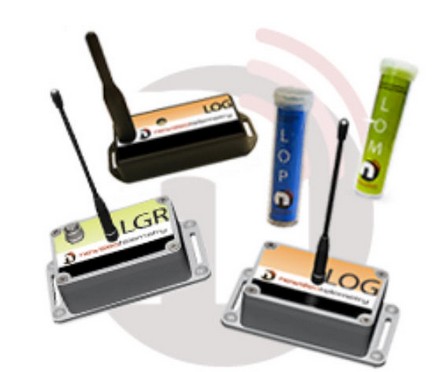

  • Newsteo LOG26, LOG36, LOM16, LOM18, LOP16 : Miniatures and easy to integrate, these recorders – radio transmitters (also called data loggers) allows oversee at distance the temperature of an environment.
  • Newsteo LGR + probe: datalogger for temperature. The sensor is placed at the end of a probe, which is itself connected to the datalogger housing.

Newsteo temperature data logger, wireless temperature measure.

Newsteo offers a range of temperature recorders (or data loggers) that allow:
  • measuring temperature,
  • recording this measurement or transmitting in real time to a supervision center,
  • displaying the measurement on a PC, tablet, smart phone …
Radio recorders offered by Newsteo are standalone recorders, battery-powered and easily movable.
Their compact design allows them to be easily used for real-time monitoring of the cold chain temperature monitoring in refrigerators, in the pharmaceutical or food industry.

Standalone recorder
up to 3 years battery-life, user-replaceable battery

Compact design
Internal sensor -40 … + 85 ° C

Radio 868MHz
Automatic measurements transfer to the receiving station

EN12830
The LOG36 & LOM16 temperature recorders are EN12830 certified


Main characteristics of the radio temperature data loggers
Product
LOG26
LOG36
LOM16
LOM18
LOP16
Measurement range
-40°C … +70°C
-40°C … +85°C
EN12830
-40°C … +70°C
EN12830
10°C … +60°C
-40°C … +70°C
Accuracy
± 0.3°C
± 0.3°C
± 0.3°C
± 0.1°C
± 0.3°C
IP Level
IP54
IP65
IP67
IP67
IP67
Radio range
Up to 800 m
Up to 900 m
200 m
200 m
200 m
Product
LGR36
LGR46
LGR33
LGR37
LGR30
Measurement range
-40°C … +70°C
-40°C … +85°C
EN12830
-40°C … +70°C
EN12830
10°C … +60°C
Logger interface
For Newsteo digital temperature probe
1 or 2 sensors per probe
For PT1000
For Thermocouple
For PT100
Range of temperature loggers with internal sensor


LOM16
  • Miniature temperature recorder
  • Plastic casing
  • EN12830 certified



LOM18
  • Miniature temperature recorder
  • Plastic casing
  • High accuracy



LOP16
  • Miniature temperature recorder
  • Plastic casing
  • Dedicated to temperature monitoring during transport, LED warning when a threshold is crossed




LOG26
  • Temperature Logger
  • Plastic casing
  • High radio range


LOG36
  • Temperature Logger
  • Aluminium casing
  • High radio range
  • EN12830 certified
Technical specifications of the temperature dataloggers

Operating Temperature
  • LOM16, LOP16, LOG26 :  -40°C … +70°C
  • LOM18 : -10°C … +60°C
  • LOG36 : -40°C … +85°C

Accuracy
LOM16, LOP16, LOG26, LOG36 :  ± 0.3°C [‐30°C…+60°C], ± 1°C beyond
LOM18 :
± 0.1°C [5°C…+45°C], ± 0.2°C beyond

Resolution
LOM16, LOP16, LOG26, LOG36 : ± 0.1°C
LOM18 : ± 0.034°C

Measures Frequency
Can be set from one measure every seconds to one every 4 hours

Memory Capacity
Up to 32 256 measurements with date and time.

Measurement securisation
Acknowledgment process between the transmitter and the receiver to ensure that no data is lost during radio transmission
Back-up of the last 32.000 measurements in Logger memory even after transmission to the receiver

Calibration
Digital sensor calibrated at the factory
COFRAC certification on order

Certifications
CE
LOG36 & LOM16 : EN12830

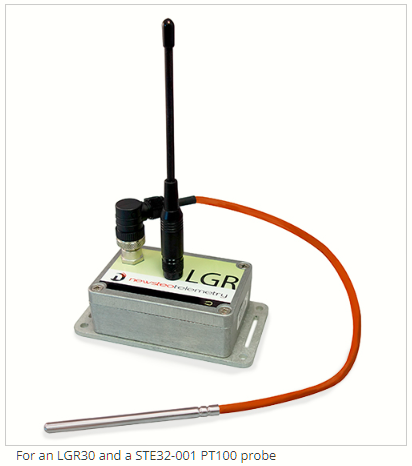

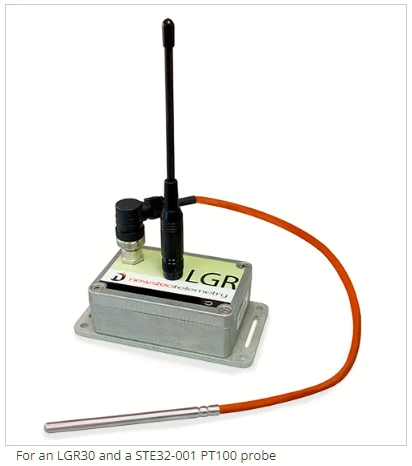

Radio Temperature dataloggers with external probe

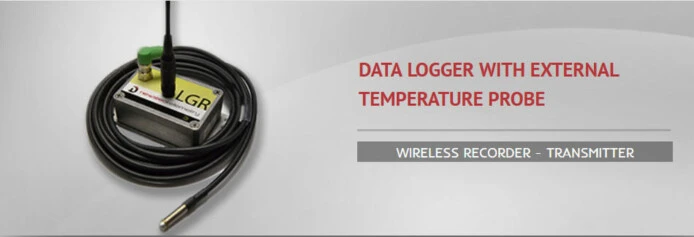

Newsteo Logger LGR, radio recorder and transmitter for digital probe – 1 or 2 sensors temperature probe

The  Newsteo temperature data logger with probe is an autonomous temperature  recorder, battery powered , which delivers real-time measurements to a  supervisory position. The temperature probes are designed with digital  sensors, enabling high accuracy (± 0.3 ° C) and very low drift over  time.

The recorder comes in 2 versions:
  • LGR36 : wireless transmission and measurement system with 1 external temperature probe – 1 sensor
  • LGR46 : wireless transmission and measurement system with 1 external temperature probe – 2 sensors
This datalogger has been specially designed for heating  engineers, sanitary and hot water networks surveillance. The probe can  be fixed on any type of pipe and monitor its temperature.


Newsteo temperature data logger, wireless temperature measure.

Newsteo offers a range of temperature recorders (or data loggers) that allow:
  •   measuring temperature,
  •   recording this measurement or transmitting in real time to a supervision center,
  •   displaying the measurement on a PC, tablet, smart phone …

Radio recorders offered by Newsteo are standalone recorders, battery-powered and easily movable.
Their compact design allows them to be easily used for real-time monitoring of the cold chain temperature monitoring in refrigerators, in the pharmaceutical or food industry.

Standalone recorder   3 years battery-life, user replaceable battery
External probe               -40 ° C … + 80 ° C
Radio 868MHz               Automatic measurements transfer to the receiving station
Easy installation            Easily removable
Technical specifications

Product : Temperature datalogger with external probe

Reference  :  PFPN-LGR36-001 : 1 sensor
                      PFPN-LGR46-001 : 2 sensors

Measuring Range : Depending on the probe (max. range: -40°C to +80°C)

Accuracy : +/- 0.3°C

Casing operating temperature : -40°C to +85°C

Internal temperature sensor : Temperature sensor inside the casing (in addition to the probe temperature sensor)

Measurement frequency : Can be set from one measure every seconds to one every 4 hours

Memory Capacity : Up to 32 768 mesures with date and time.

Measurement securisation :
  • Acknowledgment process between the transmitter and the receiver to ensure that no data is lost during radio transmission
  • Back-up of the last 32.000 measurements in Logger memory even after transmission to the receiver

Probe connection : Through connector available on the top of the logger

Certification : COFRAC calibration on order

Battery
AA Lithium Thionyle (3,6V) included, special design with plug to maintain the battery
Accessible and user replaceable battery
Optional: dual battery pack to double battery life

Autonomy
Up to 3 years (at 25°C with a frequency measure of 15 minutes)
See Battery life model

CASING :
Size : 98mm x 64mm x 34mm
Weight with battery : 250g
Casing : Aluminium
IP level : IP65

Radio
Radio frequency : ISM 868 MHz
Radio range  Up to 900 meters (with supplied antenna)
Supplied antenna 1/2 wave antenna


Probes for Newsteo Logger LGR36

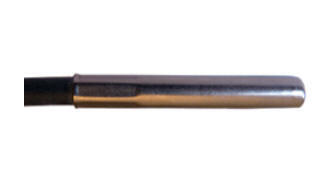

PFPN-STE51-003
  • Temperature probe with integrated digital temperature sensor inside stainless steel tip
  • Range of measure : – 40° to + 80°C, compliant with temporary temperature peaks up to 100°C in fixed installation.
  • Accuracy :
    +/- 0.3°C (-30°C … +60°C)
    +/- 1°C (-40°C … -30°C and +60°C…+80°C)
  • IP68
  • 5 meters cable, 4.8mm diameter

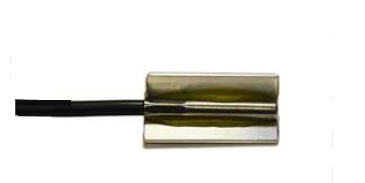

PFPN-STE51-005
  • Newsteo temperature probe with one integrated temperature sensor
  • Application: temperature monitoring of water pipe
  • Measurement range : -40°C … +80°C, compliant with temporary temperature peaks up to 100 ° C in fixed installation.
  • Accuracy :
    +/- 0.3°C (-30°C … +60°C)
    +/- 1°C (-40°C … -30°C and +60°C…+100°C)
  • Total Lenght : 5 meters, diameter : 4.8 mm.
  • Tip: cylindrical stainless steel tip, protected by an aluminum hood, for:
    – Mechanical protection
    – Homogenization of the temperature around the sensor element sheathed in stainless steel.
    – Guide for aligning it with the pipe

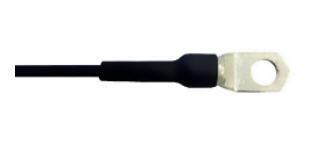

PFPN-STE51-002
  • Temperature probe with integrated temperature sensor
  • Range of measure : -40°C … +80°C
  • Accuracy :
    +/- 0.3°C (-30°C … +60°C)
    +/- 1°C (-40°C … -30°C and +60°C…+80°C)

PFPN-STE51-004
  • Newsteo temperature probe with integrated temperature sensor, specially designed for the door seal (ribbon cable on 40 cm)
  • Range of measure : -40°C … +80°C
  • Accuracy :
    +/- 0.3°C (-30°C … +60°C)
    +/- 1°C (-40°C … -30°C and +60°C…+80°C)
  • Length:
    Round cable of 2 meters (to be connected to the datalogger)
    Ribbon cable (to be put under the door seal) : length : 400 mm,  thickness : 0.5 mm (the ribbon cable is an extension of the external  cable)
    Plastic housing including temperature sensor: 35 mm x 35 mm x 20 mm

probes for Newsteo Logger LGR46

PFPN-STT51-002

   Temperature probe with 2 digital temperature sensors integrated inside stainless steel tip
   Range of measure : – 40° to + 80°C, compliant with temporary temperature peaks up to 100°C in fixed installation.
   Accuracy :
   +/- 0.3°C (-30°C … +60°C)
   +/- 1°C (-40°C … -30°C and +60°C…+80°C)
   IP68
   Total Lenght : 5 meters, diameter : 4.8 mm. The cable splits up after 20 centimeters. (Both probes are indepedent from each other upon 4.80 meters.)
   Cylindrical stainless steel tip


PFPN-STT51-003
  • Newsteo temperature probe with two integrated temperature sensors
  • Application: temperature monitoring of water pipe
  • Measure range : -40°C … +80°C, compliant with temporary temperature peaks up to 100°C in fixed installation.
    • +/- 0.3°C (-30°C … +60°C)
      +/- 1°C (-40°C … -30°C and +60°C…+80°C)
  • Total Lenght : 5 meters, diameter : 4.8 mm. The cable splits up after 20 centimeters. (Both probes are indepedent from each other upon 4.80 meters.)
  • Tip: cylindrical stainless steel tip, protected by an aluminum hood, for:
    – Mechanical protection
    – Homogenization of the temperature around the sensor element sheathed in stainless steel.
    – Guide for aligning it with the pipe

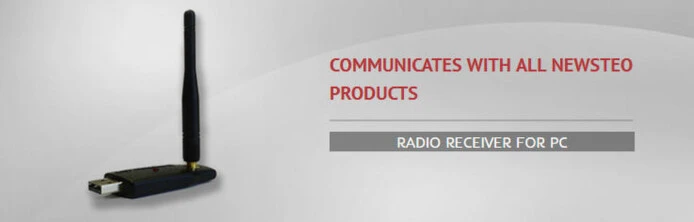

The Newsteo radio receiver for PC : RF to USB key

This USB device connects to the USB port of a PC and communicates with all Newsteo radio dataloggers.

  • RF-to-USB key is delivered with Windows drivers
  • Once driver first installed, the RF-to-USB key behaves as a plug’n’play standard removable device
  • USB 1.1 high speed (USB 2.0 host compatible)
  • The RF-to-USB key is marketed with the measurement display software: the RF Monitor software
  • Powered by PC (no internal battery)
  • 1/4 wave antenna. The 1/4 wavelength antenna of the key is screwed thanks to a SMA connector. It is very easy to connect other types of antenna to increase range: see Newsteo antennas.
  • Up to 800 m coverage in free space and up to 5 concrete walls with metallic structure penetration

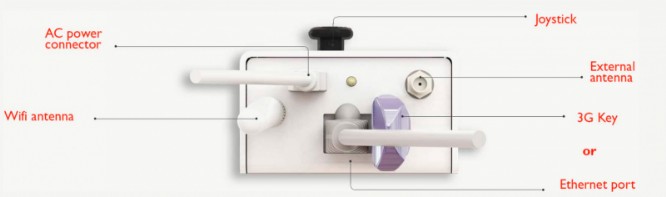

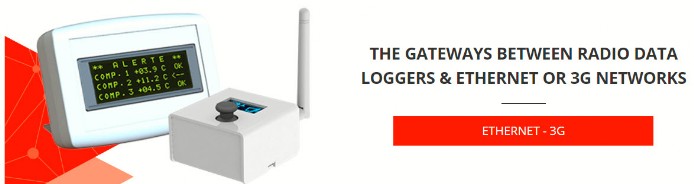

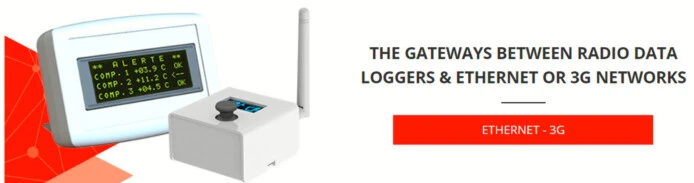

Ethernet or GPRS collector: the gateway between the radio loggers and a database on your network

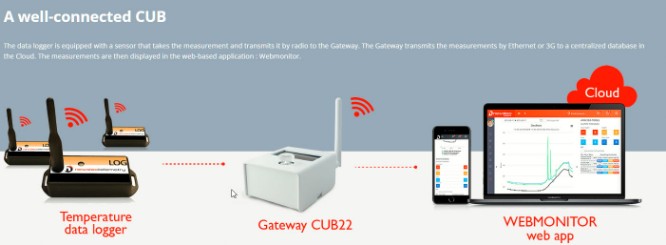

The  Newsteo Collector allows remote collection, through Ethernet (IP) or  GPRS (GSM network), of data coming from several Newsteo loggers, and  storage on a remote secured server.
The Newsteo Collector exists in several versions, for indoor or outdoor uses, with a main power supply or solar panels supply.
Remote monitoring
Avoid the coming of operator on site
Multi-sites
Several remote sites connected by several gateways

Real time alert

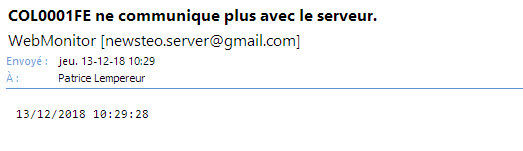

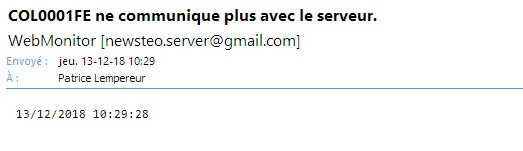

Send an email or a SMS as soon as a measurement is outside of normal thresholds

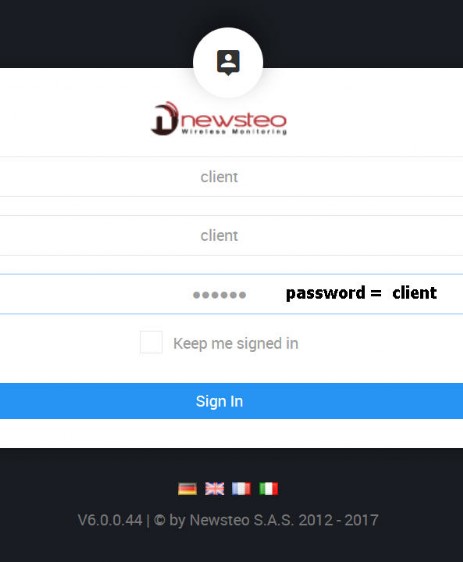

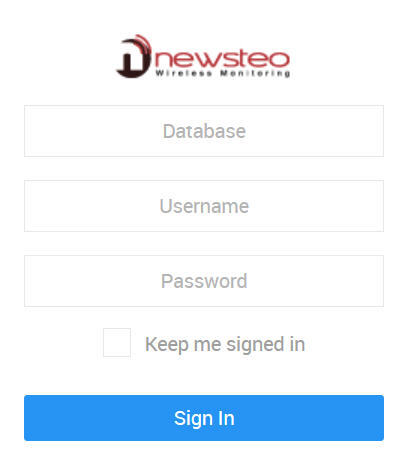

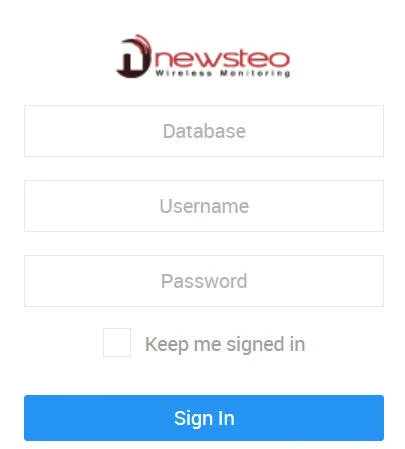

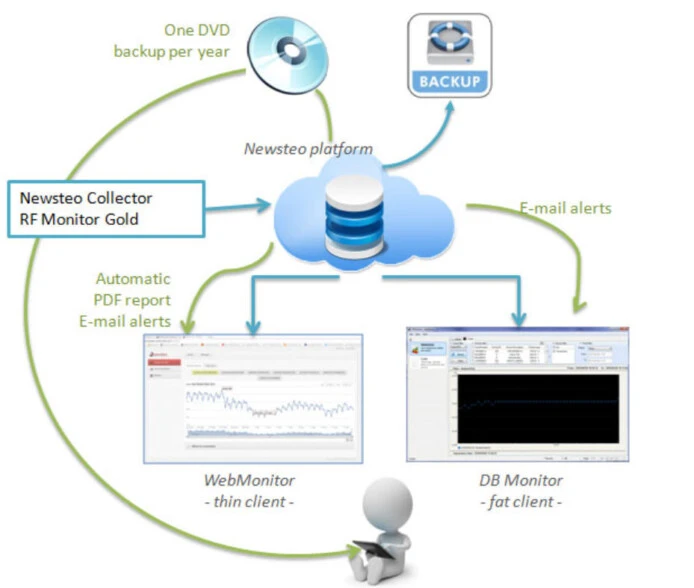

Webmonitor Application
Web application for measurements displaying

Always informed
Cloud computing give you the broader access to your data, this technology enables you a perfect follow-up of your data loggers everywhere, and at every hour over the Internet, by simply using a pc, a smartphone or a tablet.

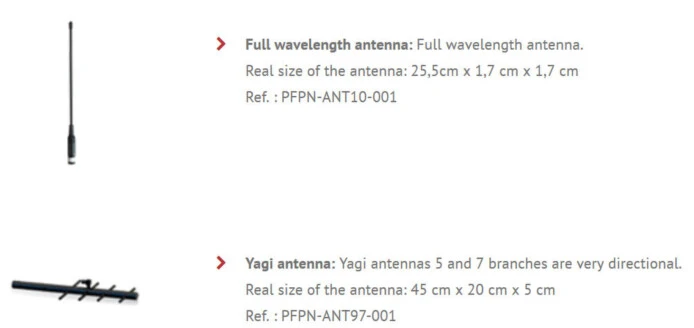

Solutions to increase the system's RF range.

Communication between Newsteo radio products and reception center (PC  with RF-to-USB key) can sometimes be perturbed by obstacle or too high  distance. ach.
To improve the transmission between loggers, pc and webmonitor, we can propose you different solutions :

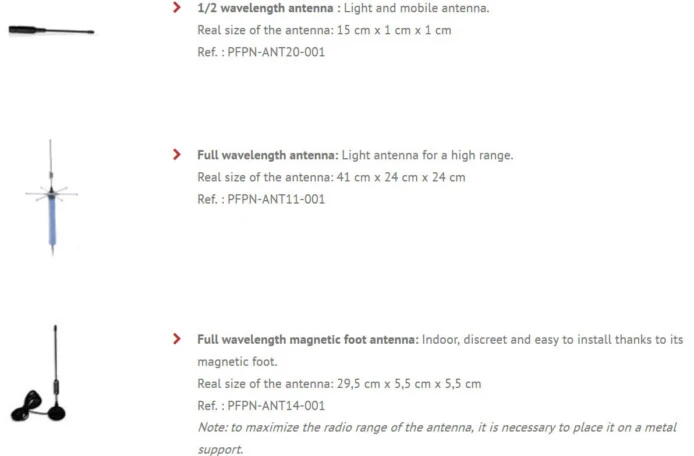

- repeater : they will be installed mid-way, acting as radio relay for all products out of radio reach ;

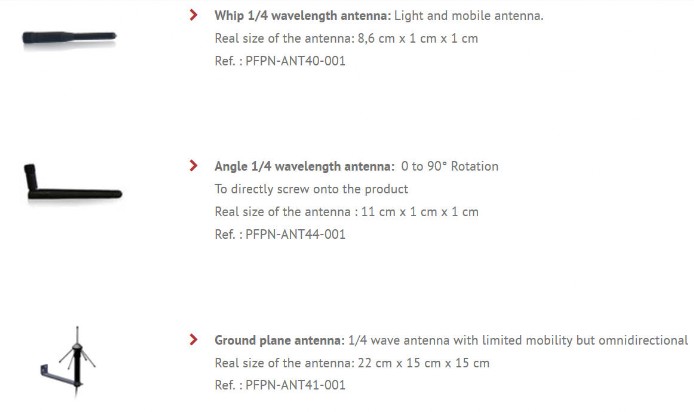

- or a  choice of antennas.
Newsteo Radio Protocol: No Lost Measurement
Your precious data are secured with our Central Monitoring System.

We are aware of the importance of your measurements.
For all the companies we are working with, this is the key need.
Temperature monitoring during blood transportation, humidity in pharmaceutical laboratories, current measurement of an engine ... we ensure in all our products the back-up of your measurements (unlike many competing solutions ... ).

• Each time a radio recorder sends its measurement, it waits for an acknowledgment of the receiver. If it does not receive the acknowledgment, it tries again 2 times to transmit its measurement.
• If the measurement could not be transmitted, the recorder stores it and tries to transmit it one minute later.
• In all cases, whether transmitted or not, the recorder keeps the last 32,000 measurements in its internal memory, thus ensuring a local backup of the data.



RF Monitor Premium : the convenient powerful MMI tool

The Newsteo RF Monitor gives the opportunity to remotely configure and control the distant wireless Newsteo products.

Software versions:

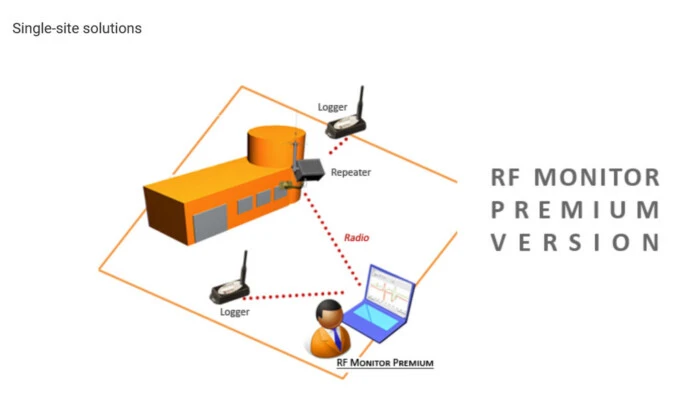

  • RF Monitor Premium: for single-site installations. The loggers communicate to a PC, the measurements are displayed only on this PC.
  • RF Monitor Gold: for multi-site installations. Several Loggers networks are created. Each system communicates to a PC that transmits the measurement to a central database. From anywhere in the world, it is possible to connect to the database to check the measurements. This consultation is possible with free software DB Monitor.
  • CFR 21 part 11 option: available either on the Premium or Gold version, the CFR option adds a module for a complete tracking of each action done on the software.

Mains characteristics of the software
RFM PremiumRFM Premium CFR21RFM Gold
RFM Gold CFR21
DM Monitor
ReferenceRFM10RFM40RFM20
RFM30

LicenseIncluded in RF-to-USB Premium KeyIncluded in RF-to-USB Premium CFR21 KeyIncluded in RF-to-USB Gold Key
Included in RF-to-USB Gold CFR21 Key
Without license
Setting of the Logger parametersXXX
X

Displaying of the measurements with features to sort them, to generate and print graphicsXXX
X

Automatic PDF report sending via e-mail
X
X
X
X

Measurement storage in a local data base
X
X
X
X

Alerts Log
X
X
X
X
X
E-mail alert in case of logger alert
X
X
X
X
X
Calibration tool
X
X
X
X

Range tester tool
X
X
X
X

CFR21 part 11 option: log of all the actions done through the software (setting, alerts…)

X

X
X
Measurement storage in a remote data base shared between several sites


X
X

Remote access to the displaying of the measurements of the remote data base


X
X
X
Management of different users with different levels of rights, access with password

X
X
X
X
Data storage on the Cloud
THE PERFECT CUSTOMER'S SOLUTION

The Newsteo offer of hosting measures in the Cloud allows immediate start up of the solution and also allows you to enjoy exclusive services, such as receiving a database backup each year.

1. The Newsteo Collector send the measurements on the Newsteo platform , where they are stored.
    • For the collector, the equipment is delivered pre-configured, there is no database installation to perform
    • No network skill required
    • 4GB Database
    • Several collectors may send their measurements to a single database. Therefore, only one subscription is necessary
    2. The user accesses when he wants to measurements:
  • Access to measurements can be performed using DB Monitor software provided by Newsteo or by using the web supervision application: Webmonitor, available on the internet.
    • Access 24 hours on 24, 7 days on 7 to the loggers measurements
    • Secured access, ID and password required
  • 3. The platform can send alerts or reports:
    • Using Webmonitor:

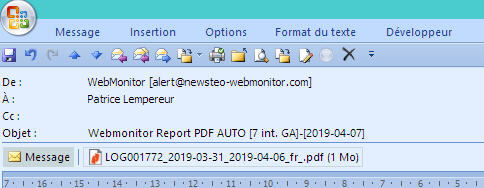

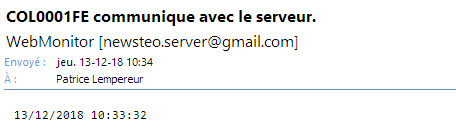

      Immediate email alerts when threshold is exceeded on a logger

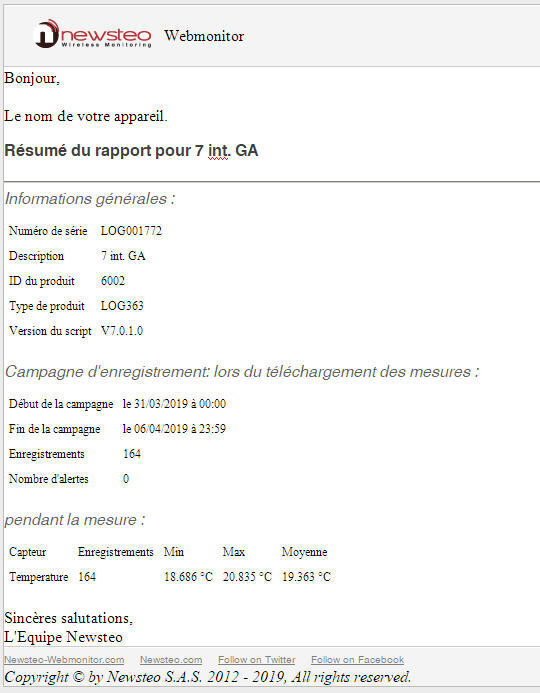

      Sending of a PDF report each week, including all measures and alerts detected by the logger
    • Using the DB Monitor software: immediate alerts by email when a threshold is exceeded in a logger
    4. Management of the platform by Newsteo:
    • Database backups made by Newsteo
    • Once a year, sending of a DVD including all measurements of the year

    Test the web monitor application :
    Connect to the website www.newsteo-webmonitor.com
    • Enter the database : client
    • Enter the username : client
    • Enter the password : client
    That is, measurements of that user’s data loggers are displayed
    Here under display of the webmonitor
    Back to content
