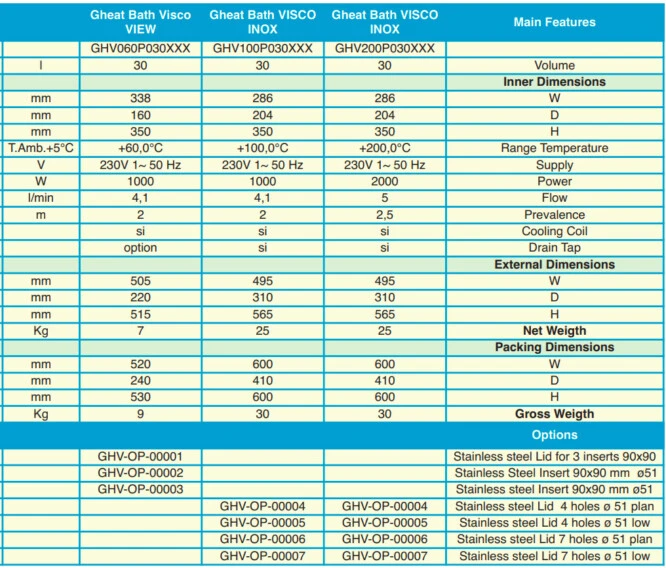

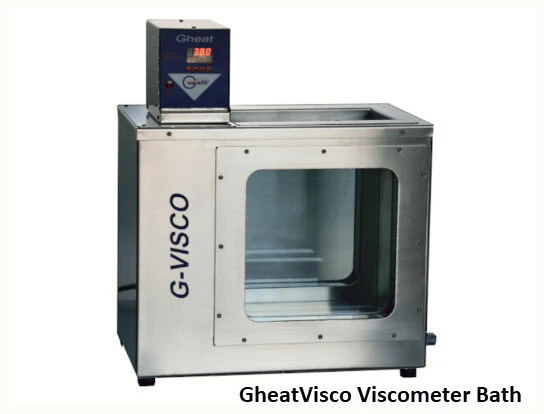

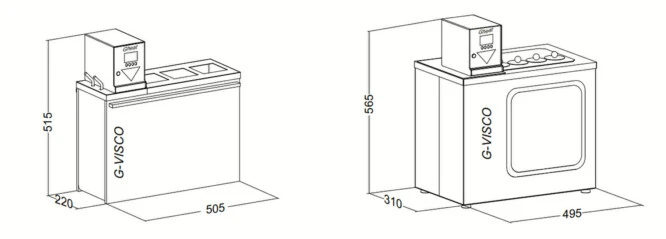

Digital Viscometry Bath GheatVisco
for the measurement of viscosity fluid samples through capillary tubes, as: Cannon-Fenske, Ubbelohde, …
Available also for chemical analysis, physical tests, crystallography, …
PLUS
• AG-System Control PRO: PID Digital Microprocessor, programmable• Double Digital Display visualize simultaneously the set point and the inner temperature. Resolution +/- 0,1°C• Platinum Probe PT100, Class A• Range Temperature: From Amb. Temp. +5,0°C up to + 60,0°C for model with transparent tank or from +5,0°C up to + 100,0°C or +200,0°C for models in stainless steel• Independent Safety Thermostat• Circulation pump• Cooling coil

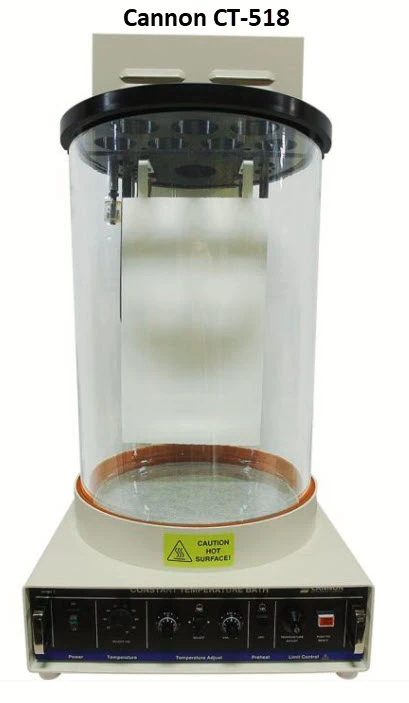

The Cannon CT-518 series constant temperature bath accommodates viscometer tubes requiring a bath depth up to 18”
and provides reliable temperature control from 20 °C to 100 °C .
The unit accommodates up to 7 simultaneous viscosity determinations.
Common Applications :
- Formulated oil analysis
- Hydraulic oil analysis
- Additive analysis
- Marine fuel testing
- Base stock analysis
- Light and heavy fuel testing
- Waxes/paraffin
- Crude oil testing
- Glycols
CT-518 Constant Temperature Bath (230 V)
Ref # 9726-A19
For Kinematic Viscosity from 20 °C to 100 °C.
he CT-518 series constant temperature bath accommodates viscometer tubes requiring a bath depth up to 18" and provides reliable temperature control from 20 °C to 100 °C .
The unit accommodates up to 7 simultaneous viscosity determinations.
Conforms to test methods ASTM D445/D446 and ISO 3104/3105.
SPECIFICATIONS
UNIT WEIGHT : 22 kg
DIMENSIONS (W X D X H) : 40.7 cm × 36.2 cm × 76.2 cm
SHIPPING DIMENSIONS (W X D X H) : 76.2 cm × 58.4 cm × 55.9 cm
SHIPPING WEIGHT (WITH ALL ITEMS) : 36.3 kg
SAMPLE CAPACITY : 7
TEMPERATURE RANGE AND ACCURACY : 20 °C to 100 °C,± 0.01 °C*,*
Test temperatures < 40 °C and high ambient temperature test environments
require an optional bath cooler
OPERATING CONDITIONS : 15 °C to 30 °C,10% to 75% relative humidity (non-condensing),Installation Category II;
Pollution Degree 2
ELECTRICAL SPECIFICATIONS : 120 Vac,50/60 Hz; 240 Vac,50/60 Hz; 1000 watts power consumption
COMPLIANCE : CE Mark; EMC directive (2004/108/EC); Low voltage directive (2006/95/EC);
HI-POT (1900 Vdc,60 sec.); ROHS
BATH VOLUME : 23.8 L (6.3 gal)
BATH HEIGHT :45,72 cm
