GL SPECTROLUX

Graphic & Printing Industry > Light measurement
GL SPECTROLUX

An affordable solution to the majority of measuring requirements in lighting industry. Based on the heritage of succesfull GL Spectis series, spares little compromise on quality, while still economy friendly. Measurement head of class B available as standard puts this handy spectrometer in a class of it’s own. If you need to easly and quickly evaluate light qualities such as: lux, CRI, CCT, color and much more, our SPECTROLUX is your best choice.

  • ƒƒ Unmatched by any mass produced spectrometer
      Class B measurement head
  • ƒƒ Completely portable device
  • ƒƒ Color LCD screen
  • ƒƒ Intuitive button operation
  • ƒƒ USB connectivity
  • ƒƒ Android based operating system
  • ƒƒ Internal storage of more than 20.000 measurements
  • ƒƒ Approx. 6 hours on battery
GL SPECTROLUX

Robust Design. Exceptional Performance. Budget-friendly.

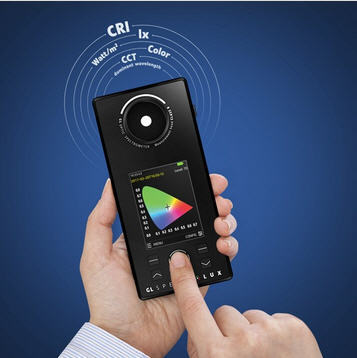

The GL Spectrolux handheld spectral lux meter sets new price standards. Based on our popular Spectis 1.0 Touch, it evaluates light quantities such as lux, CRI, CCT, color and more in a compact handheld package. The GL Spectrolux includes a laboratory Class B measurement head for superior accuracy and repeatability. Each device is individually calibrated and traceable to international reference standards.

Unique features

  • Illuminance measuring head, DIN quality class B
     GL Optic spectrometers are predominantly designed and preconfigured for light measurement. Therefore they always include a cosine corrected measurement head – the standard diffusor. The B class cosine corrected measurement head is a standard accessory allowing for the proper measurement of light from the 180° (2 Pi) hemisphere above the sensor, according to Lambert’s       Cosine Law.
  • Measurement in visual range
  • Internal storage for > 20,000 measurements
  • Chargeable via USB
  • USB connection with PC
  • Battery life: 4-6h
  • Small and solid housing
Now using GL Spectrolux you can measure following:

  • LUX - Illumination level lux [lx]
  • foot candles [fcd]
  • SPD - Spectral Power Distribution from 380 -780nm
  • CRI - Color rendering index according to CIE – and IES TM30
  • CCT - Correlated Color Temperature [K]
  • COLOR - Color coordinates according to CIE 1931
  • PAR/ PPFD - Calculations of photon flux density and photosynthetically active radiation [µmol]

Spectral range : 340-780nm
Detector : CMOS image sensor
Numer of pixels : 256
Physical resolution :  ~ 1.7nm
Wavelength reproducibility :  0.5nm
Integration time : 5ms to 10s
A/D conversion :  16 bits
Signal to noise ratio 1000:1
Stray light :  2*10E-3
Spectroradiometric accuracy*  : 4%
Measurement uncertainty of color coordinates (x.y)  : 0.0015

*Absolute measurement uncertainty after calibration. The expected uncertainty corresponds to a coverage probability of 95% and the coverage factor k=2
COMPLETE SOFTWARE SUITE ANALYZE, INTERPRET AND PRESENT YOUR RESULTS

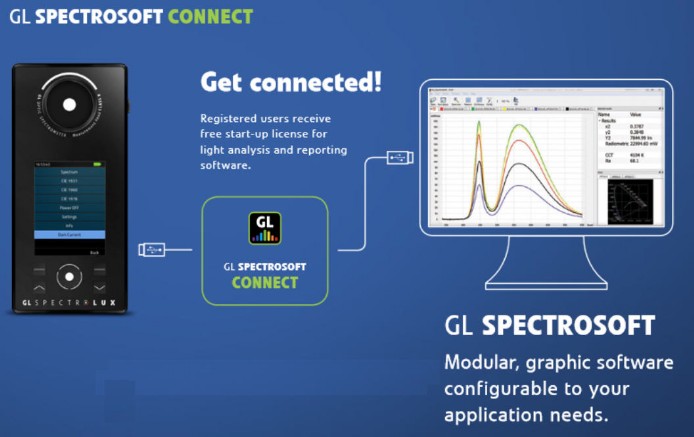

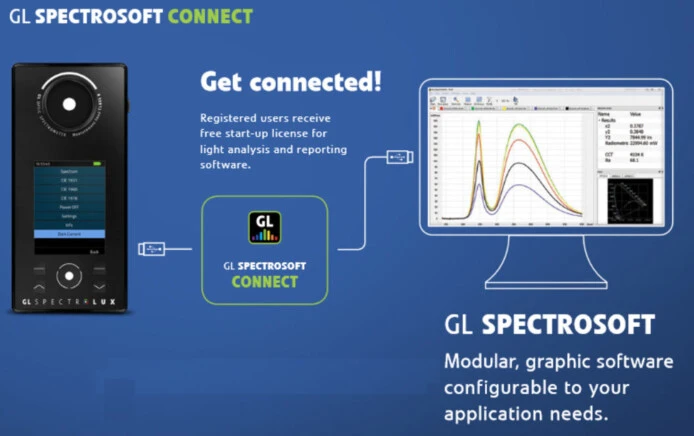

GL  SPECTROSOFT  software  adds  power,  speed and  effciency  to  your  GL  Spectrolux.  Whether analyzing  field  measurements,  comparing lighting  scenarios,  or  supporting  production quality control, this versatile, modular, upgradable software platform provides quick access to useful information. Advanced features include configurable pass/fail criteria and structured reporting  formats  to  simplify  presentation  and sharing of results. Basic version included, other modules optional.
