LIBERO CB

Transportation > Temperature > IATA 100% Compliant

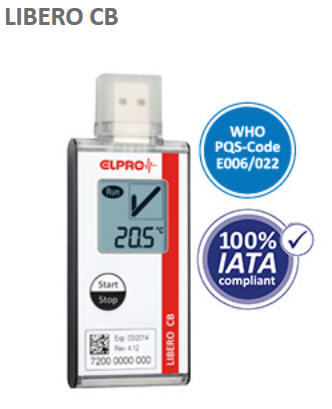

LIBERO CB

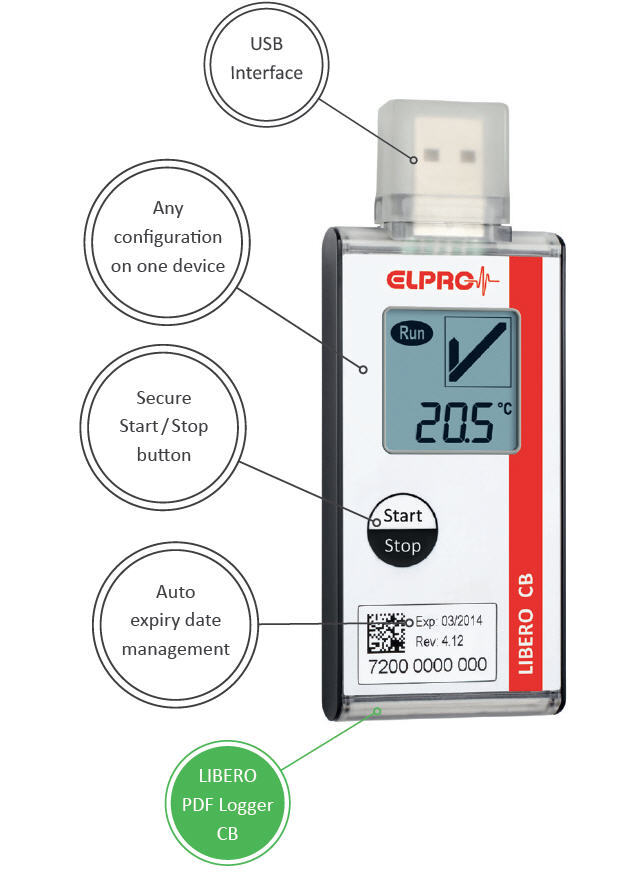

  • PDF Logger, single use
  • Cold Chain Monitoring – applications monitored with strict alarm limits, MKT or time
  • 2 temperature limits, alarm on MKT and logging time
  • Upper / lower alarm plus time and MKT as alarm criteria
  • Auto expiry date management
  • Automatic PDF report with embedded data
  • Memory capacity: 24'200  measurement values per logger

Customer need:
  • No cable and software at destination

Technology:
  • USB
  • Microchip with PDF capability


Measurement parameters :     Temperature
Monitoring tasks :                         Transport Cold Chain Monitoring – applications monitored
                                                                 with strict alarm limits, MKT or time
Application range :                       Cool [+2 °C..+8 °C]
                                                                RT / Ambient [+2 °C..+25 °C]
                                                                 Warm [+37 °C..+70 °C]
Type of probe Internal :             NTC probe
Measurement range :                -20 °C..+70 °C
Resolution :                                     0.1 °
Accuracy :                                        ± 0.3 °C typ. [-10 °C..+25.0 °C]
Alarm :                                               On display
Part no :                                          102-800002
Connectivity :                              USB
Number of channels:              1
Case dimension :                      96 x 37 x 11 mm
Case weight :                             38 g
ABS plastic material
Recording options and mode Single use: Single use: start / stop mode
Measurement interval : 1 to 60 minutes, user programmable
Memory capacity : 8’800 measurement values (equals 60 days run time with 10 min interval)
The memory is expanded from 8'800 measurement points to 24'200 measurement points. To configure this start mode liberoCONFIG version 2018.6.1.0 or newer is required.
Certificate : 12 month certificate with reference to sensor calibration and data logger test results
Start-up delay : 0 minutes to 24 h
Display Multifunction : LCD, size: 23.5 x 23.5 mm, with large OK and ALARM indicator
Display functionality :
- Status: Conf, Start, Run, Stop
- Current temperature measurement
- OK, ALARM or blank
- Configuration profile identification
Traceability : ID number (traceable to component level)


Data logger configuration :
LiberoCONFIG software to create, store and manage individual settings in a logger profile as well as additional analysis software
SmartStart, a liberoCONFIG component allowing a safe and quick application of profiles and shipment information to PDF Logger.
elproVIEWER software to access and export embedded data of PDF report, for data analysis and comprehensive report features.
Both software products downloadable free of charge.

Easy follow up with LiberoMANAGER cold chain database, webbase monitoring system

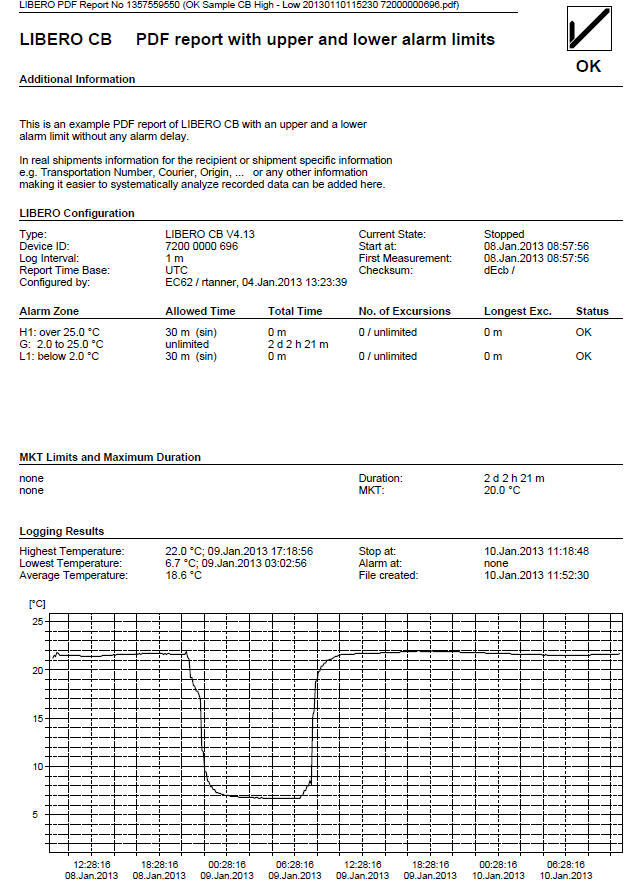

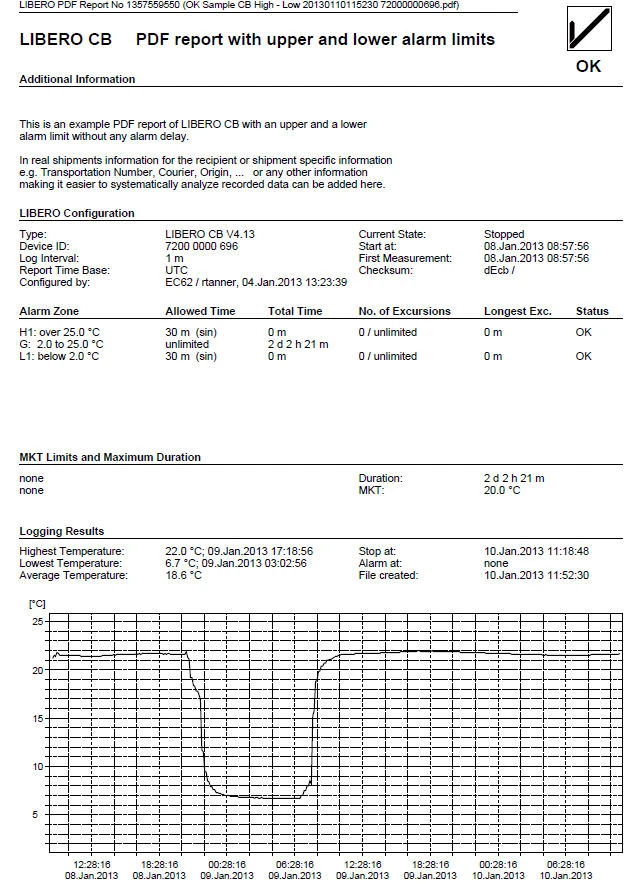

Report Built-in PDF file generator automatically establishes an evaluation report with embedded data upon connection to a USB port.
Complies with the ISO standard 19005-1 Document Management for the longterm preservation of electronic documents (PDF/A) and FDA 21 CFR Part 11.
- Customizable report title and filename
- Text area for additional information (e.g. shipment information, instructions for recipient, etc.)
- Immediate release or quarantine based on alarm status
- Statistics (min/max, average, alarm) and detailed logger information (ID, configuration, etc.)
- Chart visualizing the temperature curve and alarm limits
Type PDF Logger with two alarm thresholds and alarm delay
Application area Cold Chain Monitoring – applications monitored with strict alarm limits, MKT or time
Programmable alarms - 2 temperature thresholds with alarm delay
- Alarm on MKT
- Alarm on duration / run time

Expiry date and battery life - Data logger can be started any time during shelf life of 12 months
- Started data logger runs until memory is full or logger is stopped
- Auto expiry date management: After expiry, display changes status and logger cannot be started anymore
- Long time operating range: -10.0 °C..+50.0 °C for entire shelf life
- Extended operating range: 10 days at -20.0 °C and 10 days at +70.0 °C
- Use beyond the extended operating range can limit the battery


Compatible with liberoMANAGER cold chain database
100 % calibrated sensors and electronics
Fully compliant with industry guidelines
