LIBERO CI

Transportation > Temperature > IATA 100% Compliant

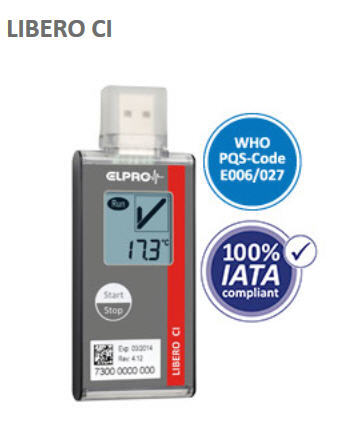

LIBERO CI

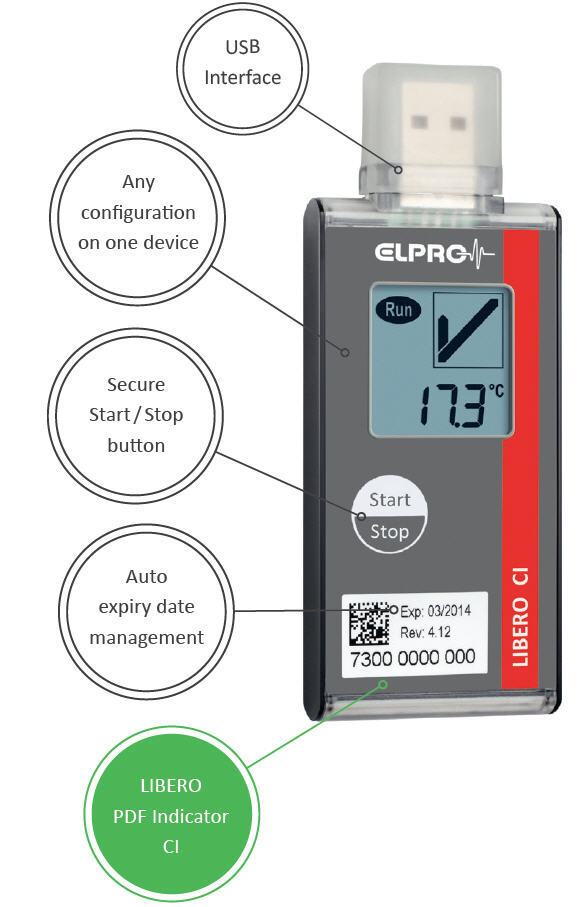

  • PDF Indicator, single use
  • Multi-level-alarm (8 ranges) plus time and MKT as alarm criteria
  • Auto expiry date management
  • Automatic PDF report with embedded data
  • WHO pre-qualified PQS-Code: E006/027

Cold Chain Monitoring – applications without need for temperature graph or tabular data

Customer need:
  • No cable and software at destination

Technology:
  • USB
  • Microchip with PDF capability
Measurement parameters      Temperature
Monitoring tasks                          Transport Cold Chain Monitoring : applications without need for
                                                                temperature graph or tabular data
Application range                        Cool [+2 °C..+8 °C]
                                                              RT / Ambient [+2 °C..+25 °C]
                                                              Warm [+37 °C..+70 °C]
Type of probe Internal            NTC probe
Measurement range               -20 °C..+70 °C
Resolution                                     0.1 °
Accuracy                                         ± 0.3 °C typ. [-10 °C..+25.0 °C]
Alarm                                               On display
Part no                                           102-800002
Connectivity                              USB
Number of channels                1
Case dimension                          96 x 37 x 11 mm
Case weight                                38 g
ABS plastic material
Recording options and mode Single use: start / stop mode
Measurement interval 1 to 60 minutes, user programmable
Certificate 12 month certificate with reference to sensor calibration and data logger test results
Start-up delay 0 minutes to 24 h
Display Multifunction LCD, size: 23.5 x 23.5 mm, with large OK and ALARM indicator
Display functionality - Status: Conf, Start, Run, Stop - Current temperature measurement - OK, ALARM or blank - Configuration profile identification
Traceability ID number (traceable to component level)


Data logger configuration :
LiberoCONFIG software to create, store and manage individual settings in a logger profile as well as
additional analysis software
SmartStart, a liberoCONFIG component allowing a safe and quick application of profiles and shipment
information to PDF Logger.
elproVIEWER software to access and export embedded data of PDF report, for data analysis and comprehensive report features.
Both software products downloadable free of charge.

Easy follow up with LiberoMANAGER cold chain database, webbase monitoring system

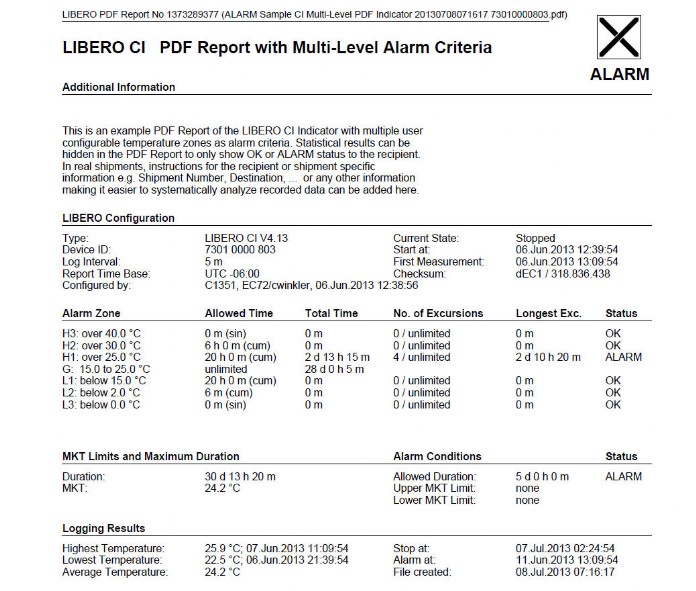

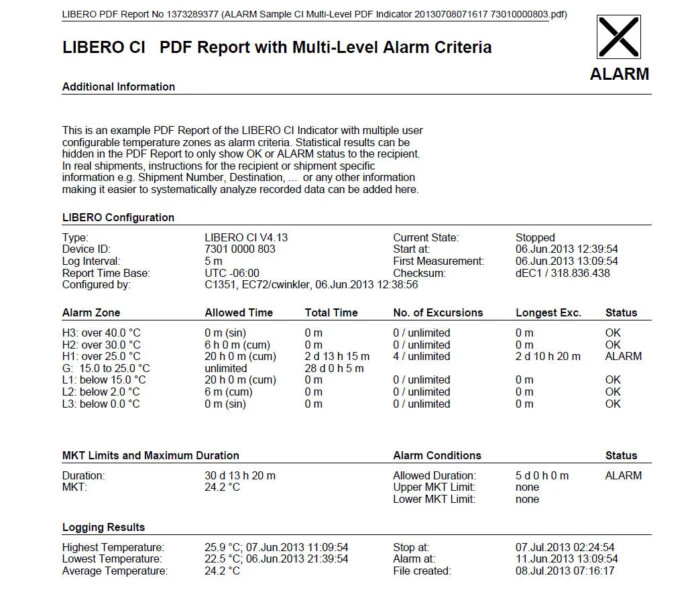

Report Built-in PDF file generator automatically establishes an evaluation report with embedded data upon connection to a USB port.
Complies with the ISO standard 19005-1 Document Management for the longterm preservation of electronic documents (PDF/A) and FDA 21 CFR Part 11.
- Customizable report title and filename
- Text area for additional information (e.g. shipment information, instructions for recipient, etc.)
- Immediate release or quarantine based on alarm status
- Statistics (min/max, average, alarm) and detailed indicator information (ID, configuration, etc.)
- Detailed indicator information (ID, configuration, etc.)
Type PDF Logger with two alarm thresholds and alarm delay
Application area Cold Chain Monitoring – applications monitored with strict alarm limits, MKT or time
Programmable alarms :
- 8 temperature alarm levels with single or cumulative delays
- 2 temperature thresholds with alarm delay
- Alarm on MKT
- Alarm on duration / run time

Expiry date and battery life - Data logger can be started any time during shelf life of 12 months
- Started data logger runs until memory is full or logger is stopped
- Auto expiry date management: After expiry, display changes status and logger cannot be started anymore
- Long time operating range: -10.0 °C..+50.0 °C for entire shelf life
- Extended operating range: 10 days at -20.0 °C and 10 days at +70.0 °C
- Use beyond the extended operating range can limit the battery
