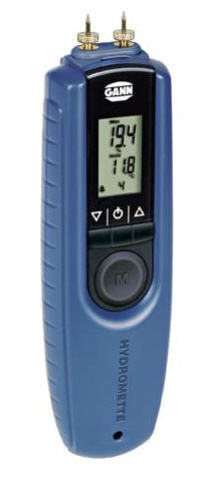

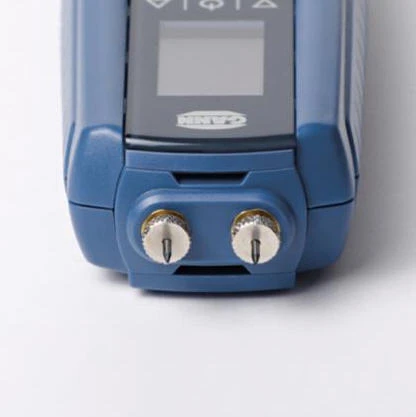

Hydromette BL Compact S

Wood moisture

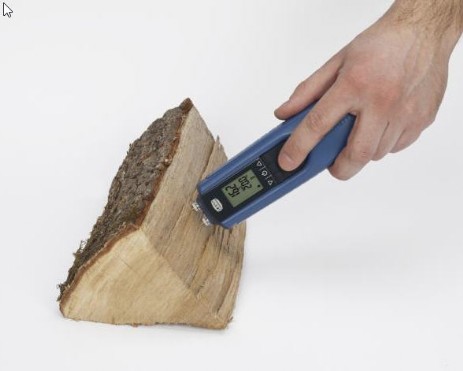

The BL Compact S is an electronic wood moisture meter designed for various wood fuels and suitable for measuring different kinds of hard and soft woods.

It is an ideal and reasonably priced device

   for environmental protection through lower gas emission
   that protects the furnace and the chimney due to improved combustion
   that allows for optimizing combustion processes; wood can be burned within the optimum moisture range

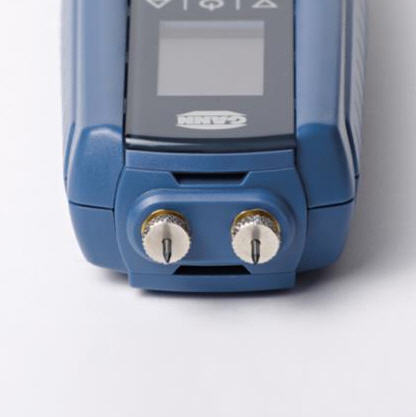

The devive is delivered fully equipped with battery, extra pins, protective cap and plastic box.
Measuring Range

Wood:
  • 10 - 50 % atro (dry mass)
or
  • 10 - 34 % water content

Features

  • Handy pocket-sized high-speed measure meter for fast single and series measurements
  • Direct indication of moisture content in % (atro/dry mass) or content of water in % via a 3-line LCD, resolution: 0.1 %
  • 2-step correction of wood species
  • Min / Max and Hold functions for measured values
  • Indication of the device's temperature/ambient temperature
  • Automatic cut-off of the device

  • Power supply: 9 V dry cell or Ni-Cd accumulator (optional accessory)
  • Size: 175 [L] x 50 [W] x 30 mm [H], weight approx. 160 g
  • Total length: approx. 195 mm (protection cap included)

Suitable Accessory

wood moisture
  • stick-in electrode pins Compact HW 175 (14351)
  • stick-in electrode pins Compact Bi 175 (14352)

general accessory
  • Plastic box II (15058)
  • plastic box (15099)

Suitable Replacement Parts and Additional Accessory
  • pins without insulation, 20 mm (4600)
  • Charger with rechargeable 9 V battery (5100)
  • Spare battery 9 V, rechargeable (5105)
  • 9 V alkaline dry battery (5220)

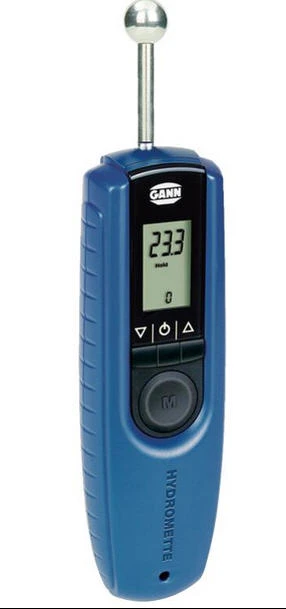

Hydromette BL Compact B 2

Structural moisture
The BL Compact B 2 is an electronic building moisture indicator for a non-destructive measurement of moisture in building materials. The Hydromette uses the dielectric constant measuring / high frequency principle.

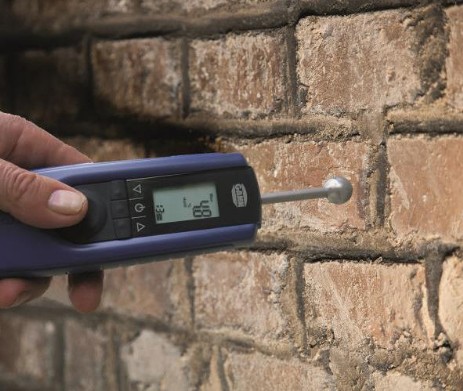

The ball probe can be applied flexibly and is used for the detection of moisture in all kinds of building materials.

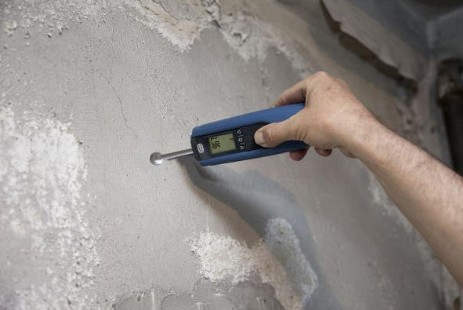

It is also suitable for checking the dispersion of moisture in walls, ceilings and floors.

The Hydromette has an audible alarm, which will resound if the values exceed the limit.
Limits for the building materials can be set individually.
The "hold"-function enablesan easier measurement for locations that are hard to access.

An ideal pretester for use with all "CM" devices.

The device is delivered fully equipped with battery and plastic box.
Measuring Range

Structural materials:
  • 0 - 199,9 digits (scanning range)
  • 0.3 - 6.0 % of dry weight
  • 0.3 - 4.0 % CM

general accessory
  •  Plastic box II (15058)
  •  Combo Case I (15091)
  •  plastic box (15099)

Suitable Replacement Parts and Additional Accessory
  •  Charger with rechargeable 9 V battery (5100)
  •  Spare battery 9 V, rechargeable (5105)
  •  9 V alkaline dry battery (5220)
Features

  • Handy pocket-sized high-speed measure meter for fast single and series measurements
  • Direct Indication of moisture content in % by weight and in %-CM via a 3-line LCD, resolution: 0.1 %
  • Direct readings for 7 types of building materials
  • Min / Max and Hold functions for measured values
  • Acoustic alarm function if user-defined limits are exceeded
  • Automatic calibration during power up of the device
  • Automatic cut-off of the device

  • Power supply: 9 V dry cell or Ni-Cd accumulator (optional accessory)
  • Size: 175 [L] x 50 [W] x 30 mm [H], weight approx. 170 g
  • Total length: approx. 200 mm

Hydromat CM-P Pro

Structural moisture

The Hydromat CM-P Pro is a device for determining the dampness of hardened building materials and various other materials using the calcium carbide method. The use of this measuring technique is recommended by various specialist associations for a range of measurement tasks and has thus been well known for years in practice alongside electrical measurement.

The Hydromat CM-P Pro is easy to use. All measurements can be made directly on the object using the tools contained in the carrying case and enable rapid information to be obtained concerning the current state of dampness.

The case set is more extensively equipped however. Amongst other things it contains the Hydromette Compact B moisture indicator to reduce the number of individual CM measurements necessary, to scan larger surfaces quickly and efficiently and to achieve a significantly higher level of test reliability. The preliminary test unit works non-destructively using a high frequency field.

By means of the useful pestle, the material under test can be crushed and quickly prepared directly in the pressure flask while preserving the dampness.

The decision as to whether a floor or wall surface is ready for covering, for example, can be made immediately.

So the CM-P Pro is particularly suited for parquet reclining or floor tiling contractors, construction companies, architects, or surveyors.

The case set Hydromat CM-P Pro is compliant with DIN 18560-4:2012-06
Measuring Range

Structural Moisture:
  • 0.30 to 7.50 CM-% using gauge readout
  • 0.14 to 22.90 CM-% using conversion table

general accessory
  •  Basis Gauge (3603)
  •  Premium gauge (3604)
  •  Digital Timer (3648)
  •  carrying case P (5086)
  •  stainless steel balls (3615)
  •  pestle (3630)
  •  electronic balance (3642)
  •  test weight M 2-100 (3643)
  •  test weight M 1-20 (3645)

Suitable Replacement Parts and Additional Accessory
  •  5 Lid/Flask Seals (3612)
  •  5 Manometer Seals (flat copper) (3613)
  •  5 Manometer Seals (ABS) (3614)
  •  20 Ampoules of Calcium Carbide CA 7 (3620)
  •  100 Ampoules of Calcium Carbide CA 7 (3621)
  •  10 Ampoules of Test Fluid (3626)
Features

  • Particularly compact pressure cylinder
  • Specially shaped cylinder bottom
  • Variable sealing system
  • Small sample quantity (e.g. 20/50 g)
  • Case size: approx. 500 [L] x 420 [W] x 125 mm [H]
  • Weight of case: complete approx. 8.960 kg

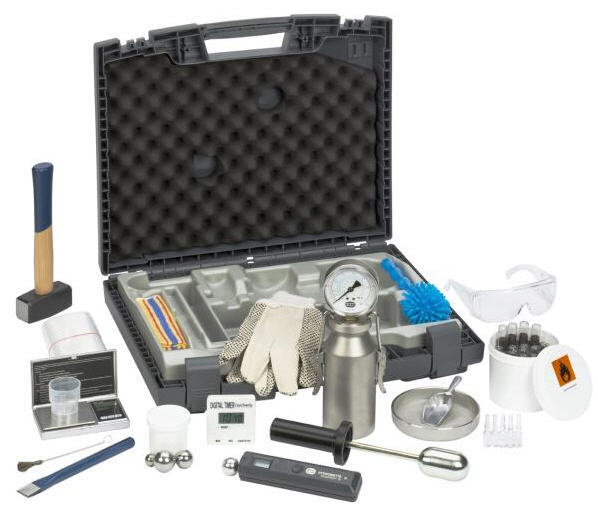

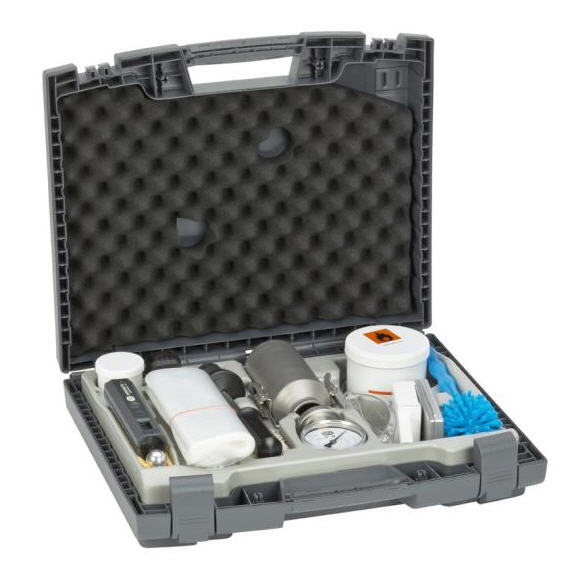

The complete case set includes:

  • Pressure cylinder with lid and PREMIUM gauge
  • Manual pestle
  • 20 calcium carbide vials
  • 5 test water vials
  • Protective gloves
  • Protective glasses
  • Debris tray
  • Digital timer
  • 20 PE bags
  • Flat chisel
  • 1000 g mallet
  • Paint brush
  • Duster
  • Bottle brush
  • Elektronische scale
  • Weighing tray
  • Ball set
  • Sample spade
  • Replacement gaskets
  • Operating insructions
  • Carrying case P and
  • Hydromette Compact B structural moisture pre-tester (order code 2030)
