Graphic & Printing Industry > Visual Color Control Devices

The international standard ISO 3664:2000 has redefined the viewing conditions for the Graphic Arts and Photography Industry.
These strict requirements cannot be met by using generic fluorescent tubes or fixtures.


JUST Normlicht
has not only met the ISO 3664:2000 specification but has exceeded the standard.

JUSTNormlich Daylight 5000 proGraphic fluorescent tubes however comply with all criteria of the standard:
  • Color coordinates, defined as x = 0.3478 and y = 0.3595,tolerance allowed only 0.005°.
  • Color temperature 5000 Kelvin(D50), mandatory for allprepress and press activities.
  • Color rendering value Ra > 90. - CRI - JUSTNormlich Daylight 5000 proGraphic fluorescent tubes CRI = 95,6
  • a luminance level of 2000 Lux (+ / - 250 Lux) on the viewing surface
  • an even distribution of the light and a glare and shadow free viewing environment.
According to ISO 3664:2000, the color rendering value (CRI) is derived from 8 test colors. This being a relatively small sample JUST daylight 5000 proGraphic tubes are further tested from 215 colors. Even here JUST daylight 5000 tubes meet a value of CRI215 = 95.6, which is above any of the values set by common industry standards.
To determine the maximum metameric error, the ISO 3664 : 2000 specifies the metamerism index of a viewing booth for the visible spectrum with a value MI(vis) < 1,0 and for UV the MI(uv) < 4. The next version of the ISO 3664 the value for the MI(uv) is decreased to < 1,5. Just Normlicht products are already achieving this future requirement.

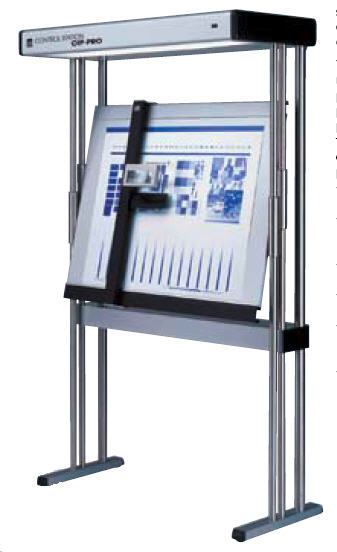

Control Station CtP Pro


The Control Station CtP Pro makes spot checks of CtP- and conventional Offset Plates more efficiently and safely.
Today, quality control becomes
much more important during all digital prepress steps, especially with the process of computer to plate. The printing plate is the last and sometimes the only visible hardcopy that can be checked before starting the printing press.

- Comes with an asymmetrical proof light for even illumination of the plate
- Vertical control panel allows comfortable and easy positioning of plates
- Magnifying glass with comfortable hand rest support
- Magnifying glass moves smoothly in vertical and horizontal directions
- Manual height adjustable plate board for comfortable working in upright position
- Adjustable slanted plate board can be used for color matching of press sheets under standardized lighting conditions.

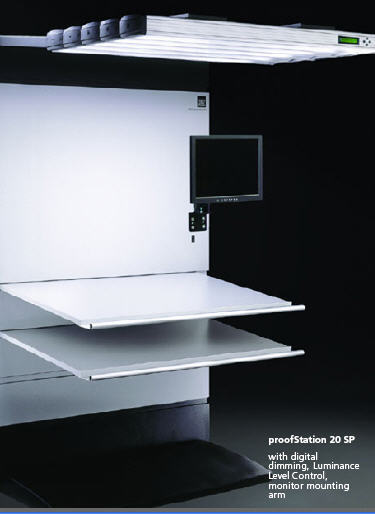

proofStation

JUST Normlicht proofStation is setting new standards in design, functionality and innovative lighting technology

  • with improved values for light distribution and luminance levels

  • with a perfect combination of form and function by offering an ergonomically and aesthetically designed industrial product

  • with a user friendly design, ranging from integrated magnetic surfaces to automatic monitored LED indicators for relamping

  • with modular single lamping units allowing the construction and set up of custom sized proof lights

JUST Normlicht visual color viewing systems for sheet size 70 x 100 cm (28 x 40") are providing superior standardized lighting conditions for the digital work flow.

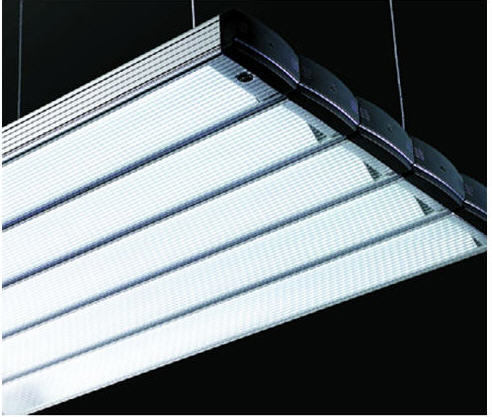

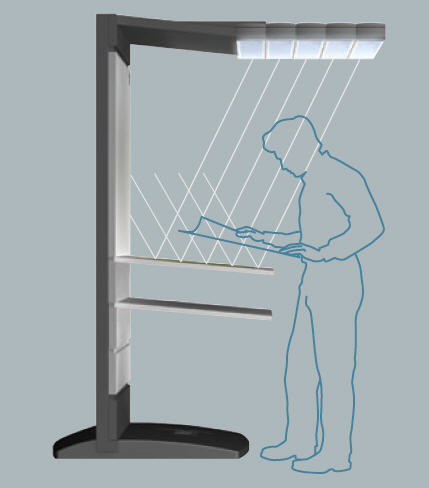

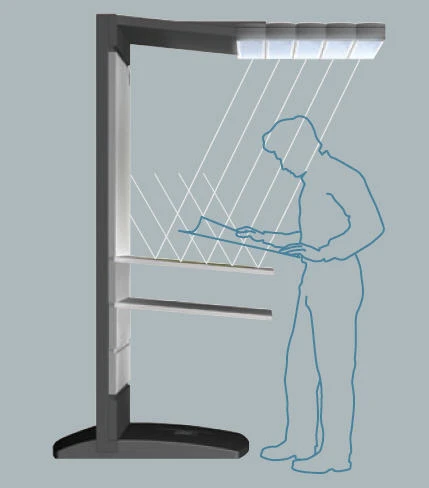

Asymmetrical light reflectors with state of the art prismatic, optical diffusion screen.
TLSI Technology: automatic warning for relamping after 2500 hours of light bulb use.

  • Standardized lighting ISO 3664:2000

  • even illumination (+/- 250 Lux)

  • special fluorescent tubes JUST daylight 5000 proGraphic

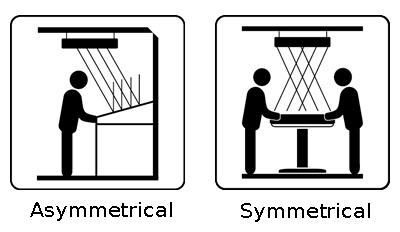

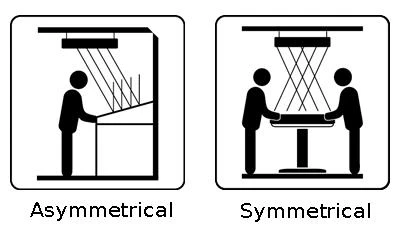

  • asymmetrical light reflectors

  • state of the art prismatic, optical diffusion screen

  • glare- and shadow free

  • color rendering quality CRI 8 = 98 / CRI 215 = 95,6

  • LED-hour counter with TLSI Technology

  • different models available with shelves and  storage drawers

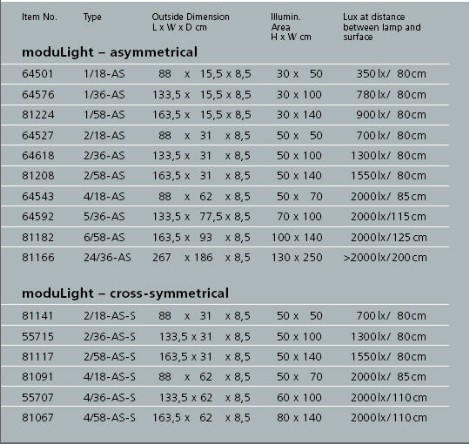

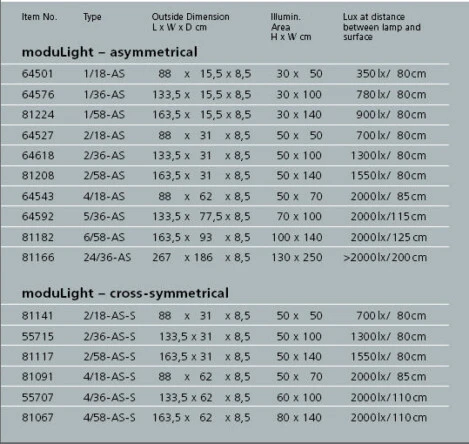

Standardized light for flexible application: JUST moduLight

If you have a small meeting room or a complete print shop the moduLight is flexible enough to fit into every room situation and creates standard lighting conditions where ever they are needed.
