Process & Quality Control

Radio dataloggers

Temperature > rH Monitoring
Back to the TEMPERATURE MENU

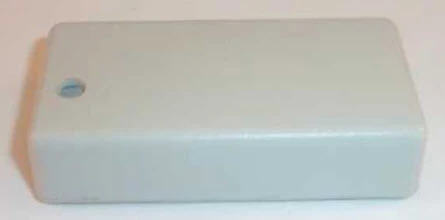

LOG12 – Temperature and Humidity Data logger

For discreet use.
Monitoring of humidity level in fragile product storage area (paper …), climate monitoring in museums
Internal antenna.

Color : Black / White
Humidity Measure Range : 0 … 100 %HR
Temperature measure range : -40°C … +70°C
Humidity Accuracy @ 25°C:  ± 3% RH
Temperature Accuracy @25°C:  ±0.4°C
IP level: IP54
Radio range: Up to 100 meters
Usable in condensing atmosphere: NO
Data transfer: Radio
Sensor: Temperature & humidity, internal to the casing

Compact design, Good level of accuracy, Convenient for indoor use.
Wireless temperature and humidity datalogger            RADIO DATALOGGERS

Newsteo offers a range of radio transmitters and recorders (dataloggers) for measuring temperature, humidity and dew point.

  • Newsteo LOG17 & LOG87: A compact, discreet recorder, suitable for clean rooms, pharmaceutical laboratories or museums
  • Newsteo LGR64: temperature and humidity wireless recorder with sensor flush with the case. Ideal for use in a harsh environment and / or condensing atmosphere.
  • Newsteo LGR32 + probe : recorder and radio transmitter for temperature and humidity. The sensor is placed at the end of a probe, which is itself connected to the housing.


TEMPERATURE & HUMIDITY PROBE FOR WIRELESS MEASUREMENTS
INDUSTRIAL WIRELESS TRANSMITTER
LOG17 – Temperature and Humidity Data logger
  • Compact design, Good level of accuracy, Convenient for indoor use
  • Monitoring of humidity level in fragile product storage area (paper …), climate monitoring in museums

Color: Black/White
Humidity Measure Range: 0 … 100 %HR
Temperature measure range: -40°C … +70°C
Humidity Accuracy @ 25°C: ± 3% RH (0…85%RH) / ± 4% RH (85…95%RH)
Temperature Accuracy @25°C: ±0.2°C (0°C…70°C) / ±0.3°C for other ranges
IP level: IP52
Radio range: Up to 100 meters
Data transfer: Radio
Sensor: Temperature & humidity, internal to the casing

LOG87 – Temperature and Humidity Data logger
Compact design, Good level of accuracy, Convenient for indoor use
Monitoring of humidity level in fragile product storage area (paper …), climate monitoring in museums

Humidity Measure Range : 0 … 100 %HR
Temperature measure range : -40°C … +70°C
Humidity Accuracy @ 25°C: ± 3% RH (0…85%RH) / ± 4% RH (85…95%RH)
Temperature Accuracy @25°C:  ±0.2°C (0°C…70°C) / ±0.3°C for other ranges
IP level: IP52
Radio range: Up to 1 kilometers
Data transfer: Radio
Sensor: Temperature & humidity, internal to the casing
HIGH ACCURACY

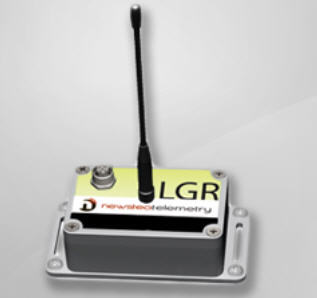

Newsteo Logger LGR64,
datalogger with temperature, humidity and dew point sensors

The Data Logger LGR64 is a logger with a protection level of IP 65 and equipped with an external sensor for temperature and humidity, above the casing.
The Logger whether transmits instantaneously the data to a receiving station (computer, gateway) or stocks them into its onboard memory.







Standalone recorder
3 years battery-life, user replaceable battery

IP65 Dew formation resistant

Radio 868MHz
Automatic measurements transfer to the receiving station

Digital sensor : -40°C … +85°C
                                    0 … 100 %RH
Reference : PFPN-LGR64-001
Operating temperature : -40°C … +85°C
Measurement frequency : Can be set from one measure every seconds to one every 4 hours
Memory Capacity : Up to 32 768 mesures with date and time
Measurement securisation : Acknowledgment process between the transmitter and
                                                                      the receiver to ensure that no data is lost during radio transmission
                                                                     Back-up of the last 32.000 measurements in Logger memory
                                                                     even after transmission to the receiver
Certification: COFRAC certification on order

Temperature Accuracy : ±0.2°C [0…60°C]
Temperature resolution : 0.015 °C
Humidity Measure Range : 0 … 100%RH
                                             dew formation resistant
Humidity Accuracy @23°C : ± 1.8%
                                              (0… 80%HR)
Humidity resolution : 0.03%RH
Dew point temperature : Yes
Battery : AA Lithium Thionyle (3,6V) included, special design with plug to maintain the battery
                   Accessible and user replaceable battery
                   Optional: dual battery pack to double battery life

Autonomy :  Up to 3 years (at 25°C with a frequency measure of 15 minutes)



Radio frequency :  ISM 868 MHz
Radio range :  Up to 900 meters (with supplied antenna)
Antenna : 1/2 wave antenna

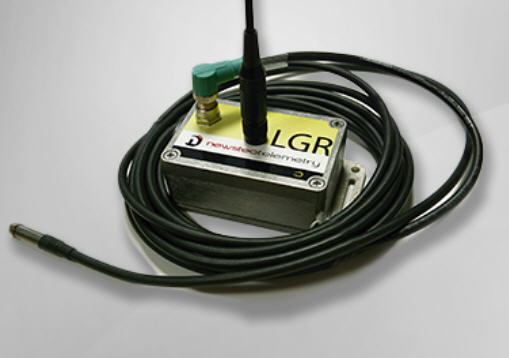

Newsteo Logger LGR32,
with external temperature and humidity probe

The Newsteo temperature and humidity datalogger with probe is a standalone recorder, battery powered, which delivers real-time measurements to a supervisory position. Temperature and humidity sensors are digital sensors, enabling high accuracy (± 0.2 ° C & ± 1.8%) and a use in condensing atmosphere.



Standalone recorder
3 years battery-life, user replaceable battery

External probe    -40°C … +125°C
                                      0 … 100 %RH

Radio 868MHz
Automatic measurements transfer to the receiving station

ip65  Dew formation resistant
Reference    PFPN-LGR32-001
                             PROBE STH54-001

Casing Operating temperature : –40°C to +85°C
Measurement frequency : Can be set from one measure every seconds to one every 4 hours
Memory Capacity : Up to 32 768 mesures with date and time
Measurement securisation : Acknowledgment process between the transmitter and the receiver to ensure that no data is lost during radio transmission
Back-up of the last 32.000 measurements in Logger memory even after transmission to the receiver
Sensor connection :  Through connector available on the top of the logger
Certification :  COFRAC on order

Probe Operating temperature : – 40°C … +125°C (extremity of the cable, where the sensor is)
                                                                     – 25°C … +80°C (cable)
Accuracy : ± 0.2°C [0 … 60 °C]
Temperature resolution : 0.015 °C
Electronic board temperature : Integrated temperature sensor on the LGR32 electronic board
Humidity range of measure :   0 … 100%RH
                                                                 The maximum dew point is brought down to 80°C
                                                                 Dew formation resistant probe
Accuracy Humidity :  ± 1.8%RH @23°C
                                              (0 … 80%RH)
Humidity resolution : 0.03%
Dew point temperature :  Yes
Battery :   AA Lithium Thionyle (3,6V) included, special design with plug to maintain the battery
                        Accessible and user replaceable battery
                        Optional: dual battery pack to double battery life

Battery life : Up to 3 years (at 25°C with a frequency measure of 15 minutes)
                                See Battery life model
Radio frequency :  ISM 868 MHz
Radio range :  Up to 900 meters (with supplied antenna)
Antenna : 1/2 wave antenna

PFPN-STH54-001
Temperature measurement range : – 40 … +125 °C
                                                             accuracy : ±0.2°C from 0 to 60 °C
Humidity measurement range : 0 … 100 % (the maximum dew point is brought down to 80°C)
                                                                        dew formation resistant
                                                                        Accuracy @23°C of ± 1.8% RH from 0 to 80 % RH
In factory calibration
Sensor protected in a stainless steel tip
•Probe + cable length : 5m
Diameter of the stainless steel protection: 10 mm
The Newsteo radio receiver for PC : RF to USB key

This USB device connects to the USB port of a PC and communicates with all Newsteo radio dataloggers.

  • RF-to-USB key is delivered with Windows drivers
  • Once driver first installed, the RF-to-USB key behaves as a plug’n’play standard removable device
  • USB 1.1 high speed (USB 2.0 host compatible)
  • The RF-to-USB key is marketed with the measurement display software: the RF Monitor software
  • Powered by PC (no internal battery)
  • 1/4 wave antenna. The 1/4 wavelength antenna of the key is screwed thanks to a SMA connector. It is very easy to connect other types of antenna to increase range: see Newsteo antennas.
  • Up to 800 m coverage in free space and up to 5 concrete walls with metallic structure penetration

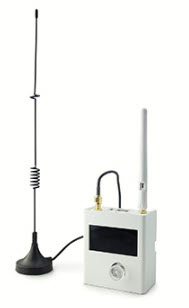

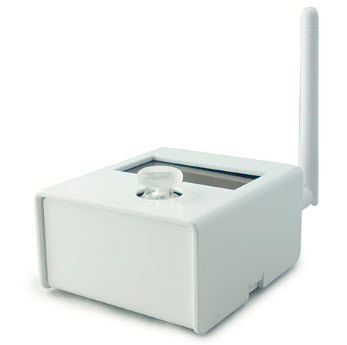

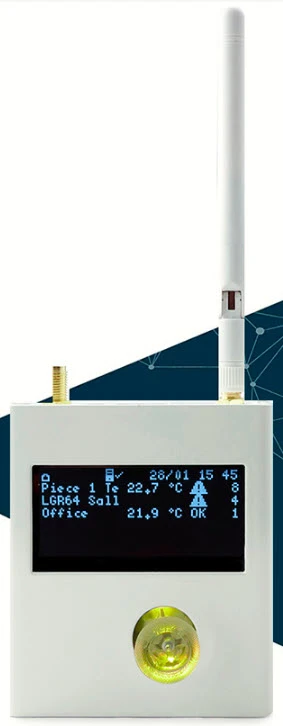

CUB22    ALL-ROUND GATEWAY

PFPN-CUB22-001

Newsteo’s CUB22 gateway can remotely retrieve, via Ethernet (IP), Wi-Fi, or 3G / 4G (GSM network), data from a fleet of Newsteo recorders and store them on a remote and secure server.


ITS ADVANTAGES
All-out and efficient

Multi networks
Ethernet, WiFi, Cellular 3G

Bidirectional (or two-way) transmission
Remote measurement feedback and updates

Webmonitor application
Display of measurements on a web application, real-time alerts sending, generating PDF reports

Newsteo Data Loggers compatible
Allows you to control all Newsteo communicating sensors
NETWORKING
Compact and efficient

The Gateway transmits the measurements by Ethernet or 3G to a centralized database in the Cloud: The Webmonitor web-based application.
Light client solution, just connect to the website www.newsteo-webmonitor.com and authenticate.
A real-time alert can be sent wherever the supervisor is.
The supervisor can access the measurements at any time, via the Internet.
The Gateway includes a screen to display the last measurement received from each sensor.
Supervision can be performed directly on this screen. In addition, the joystick changes color in the event of an alert: red flashing when a measurement is outside the thresholds
Real time alert
Send an email or a SMS as soon as a measurement is outside of normal thresholds
Webmonitor Application
Web application for measurements displaying

Always informed
Cloud computing give you the broader access to your data, this technology enables you a perfect follow-up of your data loggers everywhere, and at every hour over the Internet, by simply using a pc, a smartphone or a tablet.

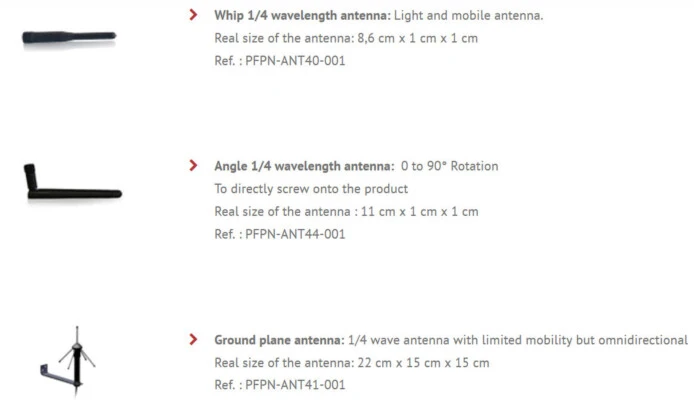

Solutions to increase the system's RF range.

Communication between Newsteo radio products and reception center (PC  with RF-to-USB key) can sometimes be perturbed by obstacle or too high  distance. ach.
To improve the transmission between loggers, pc and webmonitor, we can propose you different solutions :
- repeater : they will be installed mid-way, acting as radio relay for all products out of radio reach ;
- or a  choice of antennas.

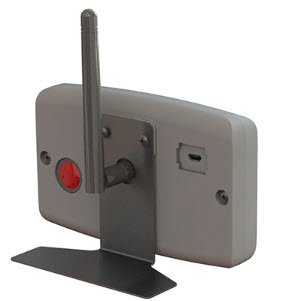

Newsteo DIS, display & sound alarm for Newsteo loggers
The Newsteo DIS provides a simple solution to display measurements of a data logger network: located within radio range of the wireless data loggers, the DIS30 displays the last measurement taken by each of them.
If an alert occurs (temperature over the thresholds, battery end of life…), the alert is automatically shown on the screen and an audible alert sounds.
The user must acknowledge the alarm to stop it.
The DIS30 can be added at any time to an existing installation.
The measurements are still stored in the data loggers or transmitted in real time to the receiving station (RF Monitor, GPRS or Ethernet Gateway …).
Universal Display is available in two versions:

  • DIS30: with AC power, for indoor use

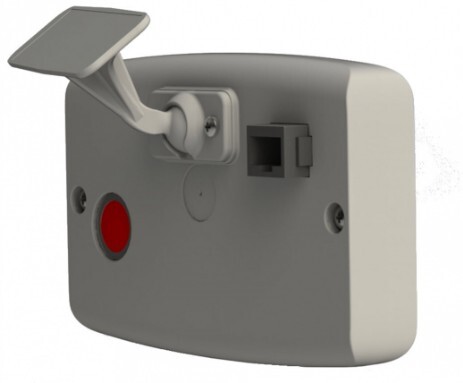

  • DIS31 : with 12 Volt power, for use in a vehicle such as a refrigerated truck
Newsteo Radio Protocol: No Lost Measurement
Your precious data are secured with our Central Monitoring System.

We are aware of the importance of your measurements.
For all the companies we are working with, this is the key need.
Temperature monitoring during blood transportation, humidity in pharmaceutical laboratories, current measurement of an engine ... we ensure in all our products the back-up of your measurements (unlike many competing solutions ... ).

• Each time a radio recorder sends its measurement, it waits for an acknowledgment of the receiver. If it does not receive the acknowledgment, it tries again 2 times to transmit its measurement.
• If the measurement could not be transmitted, the recorder stores it and tries to transmit it one minute later.
• In all cases, whether transmitted or not, the recorder keeps the last 32,000 measurements in its internal memory, thus ensuring a local backup of the data.

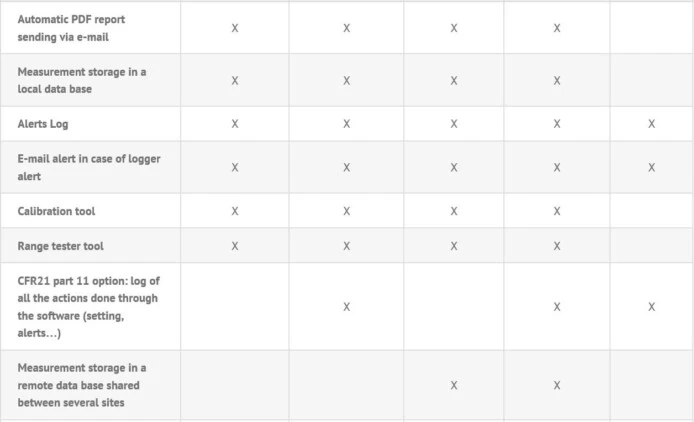

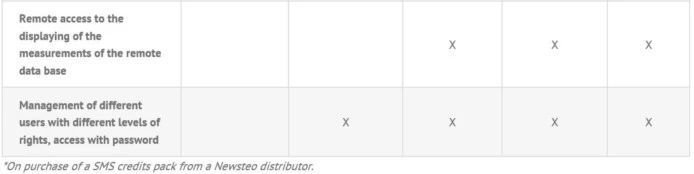

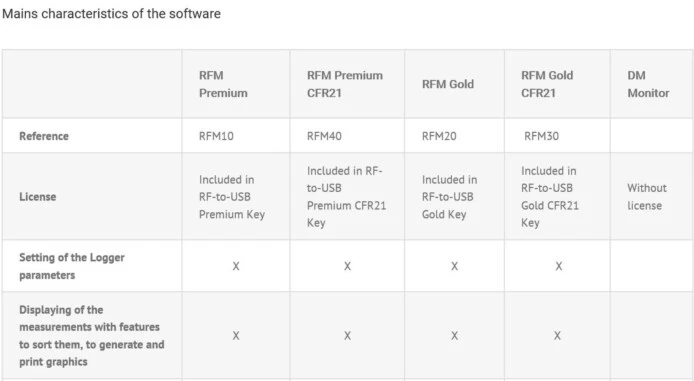

RF Monitor Premium : the convenient powerful MMI tool

The Newsteo RF Monitor gives the opportunity to remotely configure and control the distant wireless Newsteo products.

Software versions:
  • RF Monitor Premium: for single-site installations. The loggers communicate to a PC, the measurements are displayed only on this PC.
  • RF Monitor Gold: for multi-site installations. Several Loggers networks are created. Each system communicates to a PC that transmits the measurement to a central database. From anywhere in the world, it is possible to connect to the database to check the measurements. This consultation is possible with free software DB Monitor.
  • CFR 21 part 11 option: available either on the Premium or Gold version, the CFR option adds a module for a complete tracking of each action done on the software.
Data storage on the Cloud
THE PERFECT CUSTOMER'S SOLUTION

The Newsteo offer of hosting measures in the Cloud allows immediate start up of the solution and also allows you to enjoy exclusive services, such as receiving a database backup each year.

1. The Newsteo Collector send the measurements on the Newsteo platform , where they are stored.
    • For the collector, the equipment is delivered pre-configured, there is no database installation to perform
    • No network skill required
    • 4GB Database
    • Several collectors may send their measurements to a single database. Therefore, only one subscription is necessary
    2. The user accesses when he wants to measurements:
  • Access to measurements can be performed using DB Monitor software provided by Newsteo or by using the web supervision application: Webmonitor, available on the internet.
    • Access 24 hours on 24, 7 days on 7 to the loggers measurements
    • Secured access, ID and password required
  • 3. The platform can send alerts or reports:
    • Using Webmonitor:
      Immediate email alerts when threshold is exceeded on a logger
      Sending of a PDF report each week, including all measures and alerts detected by the logger
    • Using the DB Monitor software: immediate alerts by email when a threshold is exceeded in a logger
    4. Management of the platform by Newsteo:
    • Database backups made by Newsteo
    • Once a year, sending of a DVD including all measurements of the year

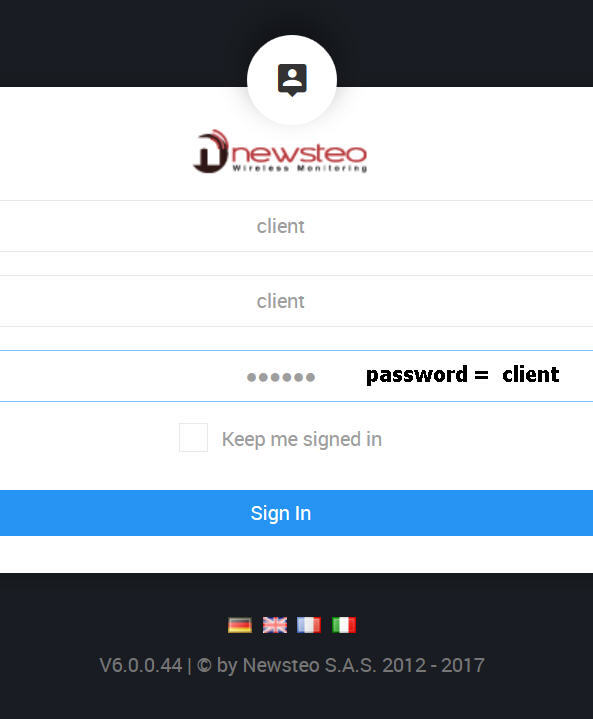

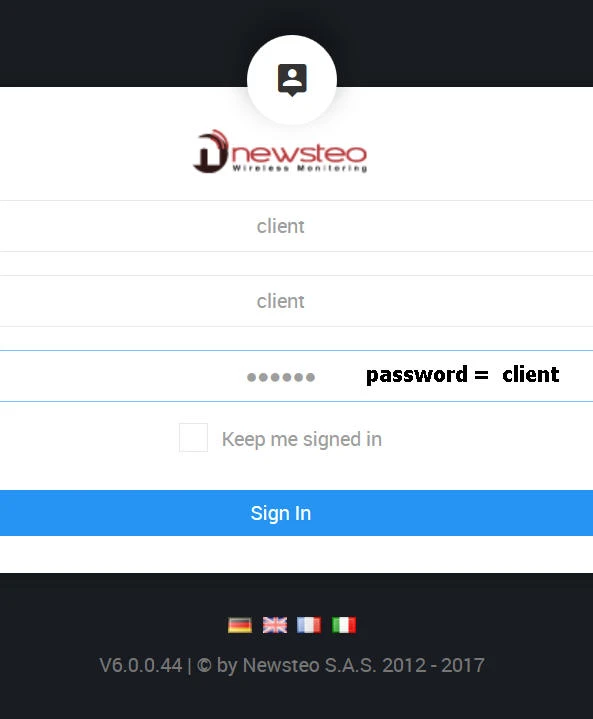

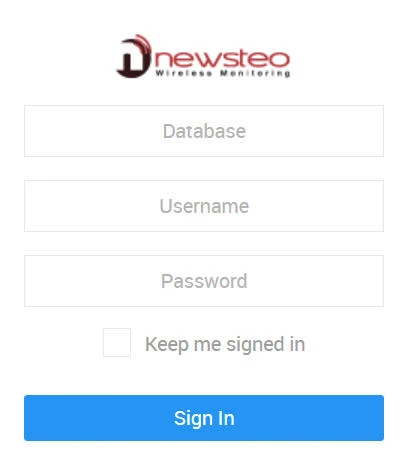

    Test the web monitor application :
    • Connect to the website www.newsteo-webmonitor.com
    • Enter the database : client
    • Enter the password : client
    • That is, measurements of that user’s data loggers are displayed
    Here under display of the webmonitor

    Never again worry when a problem occurs:
    Webmonitor informs you when it occurs and when it is solved!
    Webmonitor example of automatic report
