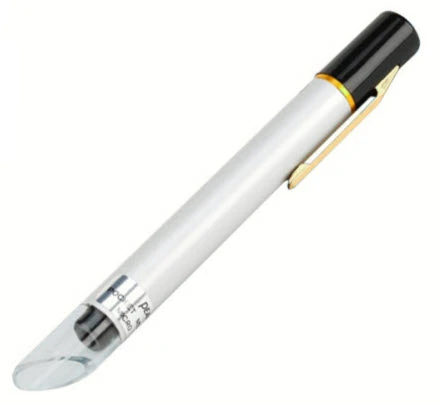

PEAK Pen microscopes series 2036 - 25x and 50x
The PEAK pen microscopes series 2036 are available with 25x and 50x magnification and measuring scale.
The bright optics do not require any further illumination.
The display in the eyepiece is mirror-inverted!

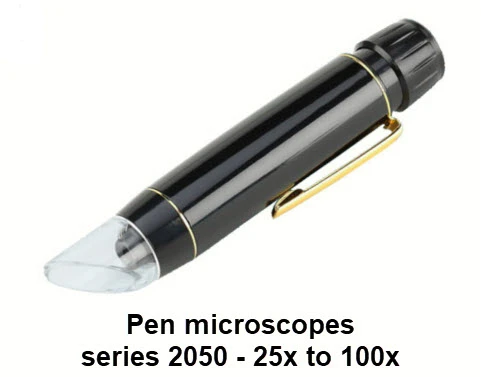

PEAK Pen microscopes series 2050 - 25x to 100x
The PEAK pen microscopes of the 2050 series are available with 25x, 50x, 75x and 100x magnification and a focusable measuring scale.
The bright optics do not require any additional illumination.
The 2050 series of pen microscopes is available with magnification factors of 25x, 50x, 75x and 100x.
The primary difference in comparison to the 2036 series is that the image of the object to be measured is not reversed.
A prismatic system inside the microscope reduces the overall length while simultaneously producing a true image.
The built-in measuring scales offer graduations between 0.05 and 0.005 millimetres. The viewing area ranges from 3.5 5o 0.86 millimetres.
This high quality pen microscope also offers a separate focusing mechanism for the measuring scale as a special feature.
Advantage: The object as well as the scale can be focussed in the same manner as a stand microscope. Supplied with case.

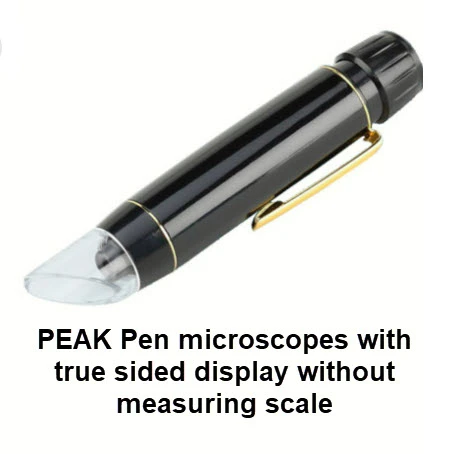

PEAK Pen microscopes with true sided display without measuring scale
PEAK pen microscopes with lateral display without measuring scale with magnification 25x
By popular demand, the 2056 series pen microscopes are available without graduation with 25x magnification.
If the pen microscope is only to be used for visual inspection, a graduation like the one built into the 2050 series can be disturbing in the image.
The main difference compared to the 2001 series is the laterally correct display of the object to be measured.
A prism system inside the microscope saves length and also produces an upright image.
The microscope is supplied with a case.
This model is not available with 75x and 100x magnification.
