Process & Quality Control

pH Meter

Laboratory Product > Water Quality
HI98107 pHep® Waterproof Pocket pH Tester
with 0.1 pH Resolution

The Hanna Instruments HI98107 pHep® pH tester is a rugged and reliable pocket-sized tester for use in the lab or field. This modern looking meter is only 0.7" thick and extremely ergonomic, fitting comfortably in your hand. This tester keeps things simple with a two-button operation; one for ON/OFF, the other for Calibration.
•Large, Easy-to-Read Display
•Simplified Two Button Operation
•Extractable Cloth Junction to Extend pH Electrode Life

The HI98107 tester features a large multi-level LCD which displays both pH and temperature readings simultaneously. The pH readings are displayed with a 0.1 pH resolution and with an accuracy of ±0.1 pH. The pH range of the HI98107 is from 0.0 to 14.0 pH. An exposed temperature sensor allows for rapid automatic temperature compensated pH measurements. Temperature can be set to display in ℃ or ℉. The LCD screen has stability and calibration tag indicators. The battery percent level is displayed at start up alerting the user to the remaining battery power that is available.

The pH electrode uses a unique reference cell design that utilizes an extractable cloth junction. A clogged junction will typically exhibit erratic readings that will not stabilize. Simply extracting a small portion of cloth from the meter will clear any clog by exposing a fresh, clean surface. The ability to clear any clogging will extend the life of the pH electrode.

Calibration is performed by pressing the dedicated calibration button. Once in calibration mode the pH electrode can be calibrated to 1 or 2 points using the pre-programmed standard buffers (pH 4.01, 7.01,10.01). When the standard value is recognized and stability is reached, the meter automatically accepts and stores the calibration value.

Setup options include automatic shut off timing and temperature unit displayed. Automatic shut-off options are to turn the meter off after 8 minutes, 60 minutes, or disabled. To enter the setup mode the user presses a button located in the battery compartment.

Features/Benefits:

Slim, Ergonomic Design
•With rounded edges and a case that is only 17 mm (0.7”) thick, the HI98107 is thin and fits comfortably in the hand or pocket.
Large Multi-level LCD
•The LCD is 29 mm (1.125”) x 20 mm (0.81”) allowing the user to easily read both the pH and temperature simultaneously.
Two-button Operation
•One for ON/OFF, the other for calibration.
Integrated Temperature Sensor
•Built in temperature sensor allows for temperature compensated measurements. Temperature can be displayed in either oC or oF.
Automatic Calibration
•Automatic calibration to one or two points using standard buffers (pH 4.01, 7.01 and 10.01).
Stability Indicator
•A clock tag stability indicator will disappear to alert the user when the reading is stable.
Automatic Shut-off
•User-selectable time until meter shuts off to conserve battery life. Options are 8 min, 60 min or disabled.
Low Battery Indicator
•Low battery indicator that is displayed when less than 10% battery life is remaining.
Battery % Level at Startup
•At start-up, all the LCD segments are displayed for 1 second, then the percent indication of the remaining battery life is displayed.



Specifications

pH Range : 0.0 to 14.0 pH
pH Resolution : 0.1 pH
pH Accuracy : ±0.1 pH
Temperature Range : 0.0 to 50.0°C
Temperature Resolution : 0.1°C / 0.1°F
Temperature Accuracy : ±0.5°C /±1°F
pH Calibration : Automatic, one or two points
Temperature Compensation : automatic from 0 to 50°C
Battery Type/Life : CR2032 3V Li-Ion (1 pc.) / approximately 800 hours of use
Auto-off : after 8 minutes, 60 minutes, disabled
Environment : 0 to 50°C ; RH max 100%
Dimensions : 160 x 40 x 17 mm
Weight : 65 g   without battery
Warranty : 1 year (probe 6 months)

Scope of supply

The HI98107 is supplied with
  • protective cap,
  • pH 4.01 buffer sachet,
  • pH 7.01 buffer sachet (2),
  • electrode cleaning sachet,
  • CR2032 battery,
  • instrument quality certificate
  • and instructional manual.
HI9125  Waterproof Portable pH/mV Meter

The HI9125 is a rugged, waterproof, portable pH and mV meter designed to provide laboratory precision and accuracy under harsh environmental and industrial conditions.
This meter offers many features including automatic calibration, automatic shut off, battery error prevention system, on-screen instructions, and automatic temperature compensation.
The HI9125 has selectable pH and mV modes.
The mV mode is used with an optional ORP electrode for the determination of oxidation or reduction potentials of a solution. Hanna offers a variety of ORP electrodes from glass to PEI plastic body styles.
The HI9125 uses the universal BNC probe input for pH and ORP electrodes.
The universal BNC connector allows the user to select from a wide variety of electrodes based on their particular application.
A separate RCA connector is used for a thermistor temperature probe.
The temperature probe provides for a high ±0.4°C accuracy measurement for precise temperature compensation.
The HI9125 is supplied complete with meter, PEI plastic body, double junction pH electrode, and temperature probe packaged in a durable plastic carrying case.

  • Automatic Two-Point Calibration
  • Automatic Temperature Compensation
  • Waterproof to IP67 Standards



Features at a Glance
One or Two-Point Calibration - Automatic calibration can be performed at 1 or 2 points using the 5 preprogrammed buffers  (pH 4.01, 6.86, 7.01, 9.18, and 10.01).
On-Screen Instructions - Clear and easy to use on-screen instructions take you through all of the steps in performing a calibration and taking measurements.
Durable Plastic Body pH Electrode - The HI9125 is supplied with the HI1230B PEI plastic body, double junction pH electrode that is gel filled. The PEI body offers excellent chemical resistance to many harsh chemicals.  The double junction design helps minimize contamination of the inner reference cell which could cause precipitation of the Ag/AgCl electrolyte resulting in a clogged junction. Since the HI1230B is gel filled it does not require electrolyte solution to maintain.
Temperature Compensation - The HI9125 offers automatic or manual temperature compensation of pH measurements over a wide range from -20.0 to 120.0°C.
mV mode - The HI9125 has a mV mode that can be used with a wide variety of ORP electrodes for monitoring oxidation reduction potentials.
Measurement Recall - The HI9125 has a “MEM” button to store a reading. The reading can be recalled at anytime by pressing the memory recall “MR” button
Automatic Shut-Off - The HI9125 has an adjustable auto-off feature. The meter can be set to turn itself off after 20 minutes to prevent accidental drainage of the batteries or it can be disabled so the user has to turn the meter off with the power button.
Battery Error Prevention System (BEPS) - The Battery Error Prevention System detects when the batteries become too weak to ensure reliable measurements.
Specifications

pH Range :       -2.00 to 16.00 pH
pH Resolution :  0.01 pH
pH Accuracy :    ±0.01 pH
pH Calibration :  automatic, one or two-point with five memorized buffer
                        values (pH 4.01, 6.86, 7.01, 9.18, 10.01)
mV Range :       ±699.9 mV; ±1999 mV
mV Resolution :  0.1 mV; 1 mV
mV Accuracy :    ±0.2 mV; ±1 mV
Temperature Range : -20.0 to 120.0 ºC
Temperature Resolution : 0.1 °C
Temperature Accuracy : ±0.4°C
Temperature Compensation : manual or automatic from -20.0 to 120.0°C
Slope Calibration :  from 80 to 108% / ±1 pH
pH Electrode :        HI1230B PEI body pH electrode with BNC connector
                            and 1 m  cable (included)
Electrode/Probe : HI7662 stainless steel temperature probe with 1 m  cable (included)
Input Impedance : 10¹² Ohms
Battery Type / Life : 1.5V (3) AAA / approximately 200 hours of continuous use
Auto-off :            after 20 minutes of non-use (can be disabled)
Environment :      0 to 50°C  ; RH max 100%
Dimensions :       185 x 72 x 36 mm
Weight :             300 g
Warranty :          2 years (probe 6 months)

Scope of supply :

HI9125 is supplied with :
  • HI1230B pH electrode,
  • HI7662 temperature probe,
  • HI70004 pH 4.01 buffer solution sachet,
  • HI70007 pH 7.01 buffer sachet,
  • 100 mL plastic beaker,
  • 1.5V AAA batteries (3),
  • instructions,
  • and hard carrying case.

Accessories :

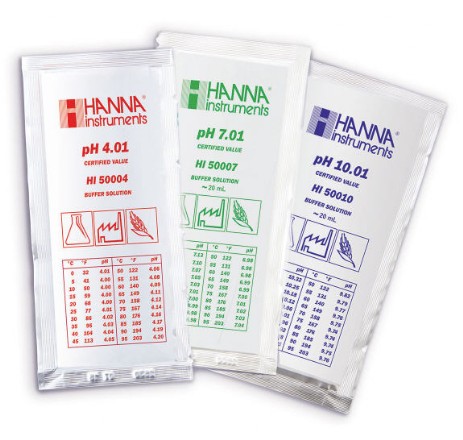

  • pH 4.01 Calibration Buffer Sachets  (25 x 20 mL) with or without certificate
  • pH 6.86 Calibration Buffer Sachets (25 x 20 mL) with or without certificate
  • pH 7.01 Calibration Buffer Sachets (25 x 20 mL) with or without certificate
  • pH 10.01 Calibration Buffer Sachets (25 x 20 mL) with or without certificate
  • Cleaning Solution for Salt Deposits (25 x 20 mL)
  • Electrode Storage Solution (500 mL)


HI1230B  Gel Filled PEI Body pH Electrode with BNC Connector

The HI1230B is a PEI body, double junction pH electrode with a BNC connector.

This electrode has a single ceramic junction in the outer reference cell and the spherical pH sensing portion is made with general purpose glass and is protected by an extension of the durable PEI body.

This design consideration is ideal for field applications as well as general purpose use.
•Durable PEI Body
•Double Junction Reference
•General Purpose (GP) Glass

Standard probe included in the delivery.

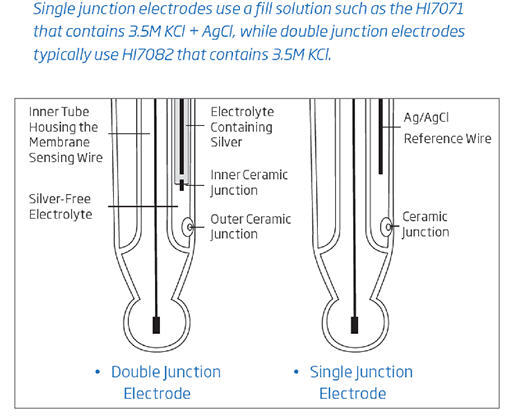

Conventional electrodes are normally single junction.
As depicted by the figure above, these electrodes have only a single junction between the internal refernce wire and the external solution.
Under adverse conditions, such as high pressure, high temperature, highly acidic or alkaline solutions, the positive flow of the electrolyte through the junction is often reversed resulting in the ingress of sample solution into the reference compartment.
If this is left unchecked, the reference electrode can become contaminated, leading to complete electrode failure.
Another potential problem with single junction electrodes is the clogging of the junction due to silver chloride (AgCl) precipitation.
Silver can be easily precipitate in samples that contain Tris buffer, sulfides or heavy metals.
When the electrolyte solution makes contact with the sample, some AgCl will precipitate on the external face of the junction.
The result is drifty readings obtained from the sensor.

Hanna’s double junction system, as the name implies, has two junctions, only one of which is in contact with the sample as shown in the figure.
Under adverse conditions, the same tendency of sample ingress is evident.
However, as the reference electrode system is separated physically from the intermediate electrolyte area, the contamination of the electrode is minimized.
The likelihood of clogging of the junction is also reduced with a double junction electrode since the outer reference cell uses a fill solution that is “silver-free”.
Since there is no silver present, there is no precipitate forming to clog the junction.


Other probes on request.


HI1048B  pH Electrode with Clogging Prevention System (CPS™) and BNC Connector

The HI1048B is a glass body, refillable, sleeve junction pH electrode with a BNC connector. This electrode features a double junction reference, Hanna’s Clogging Prevention System (CPS) technology and spherical glass sensing bulb made with general purpose glass.

This pH electrode is ideal for wine must and juice due to their high solids content that would clog a standard general purpose pH electrode.

  • Clogging Prevention System (CPS™) Technology
  • Refillable Electrode
  • Refillable Electrode


HI1343B   PEI Body pH Electrode with Calomel References with BNC Connector

The HI1343B is a PEI body, single junction pH electrode with a BNC connector.
This electrode has a single ceramic junction in the outer reference cell and the spherical pH sensing portion is made with high temperature glass.

The mercury/mercury (I) chloride (Hg/Hg2Cl2) reference system provides a stable reference potential without the presence of silver. This design consideration is ideal for applications involving Tris buffer.
•Calomel References
•Refillable Electrode
•High Temperature (HT) Glass



HI1131B  Refillable Combination pH Electrode
with BNC Connector

The HI1131B is a glass body, refillable, double junction pH electrode with a BNC connector.
This electrode has a single ceramic junction in the outer reference cell and the spherical pH sensing portion is made with high temperature glass.

This design consideration is ideal for laboratory samples, beer and other liquid samples, as well as general purpose use.
•Refillable Electrode
•Double Junction Design
•High Temperature (HT) Glass


HI1053B  pH Electrode
with Conical Tip and BNC Connector

The HI1053B is a glass body, refillable, double junction pH electrode with a BNC connector.
This electrode has three ceramic junctions in the outer reference cell for an increased flow rate of reference electrolyte and a conical pH sensing tip that is made with low temperature glass.

These design considerations are ideal for emulsions, fats and creams, soil and semi-solid samples, low conductivity solutions, and for measuring samples at cooler temperatures.
•Triple Ceramic Junction
•Double Junction Design
•Refillable Electrode

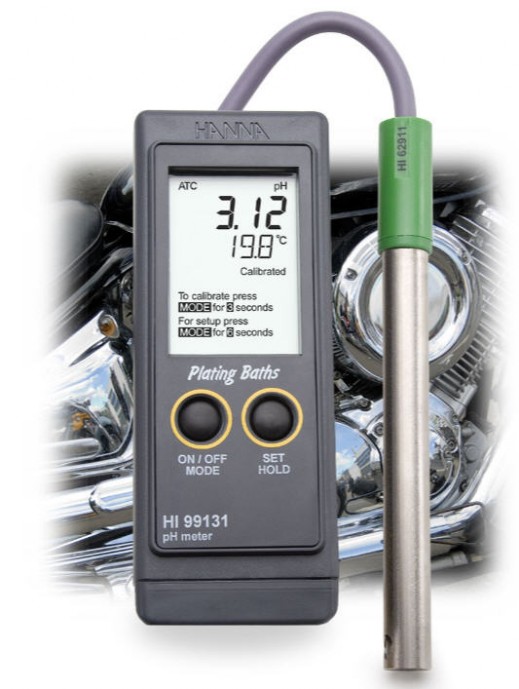

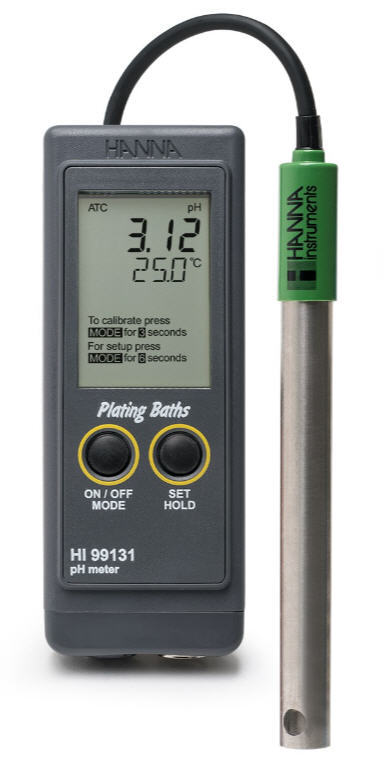

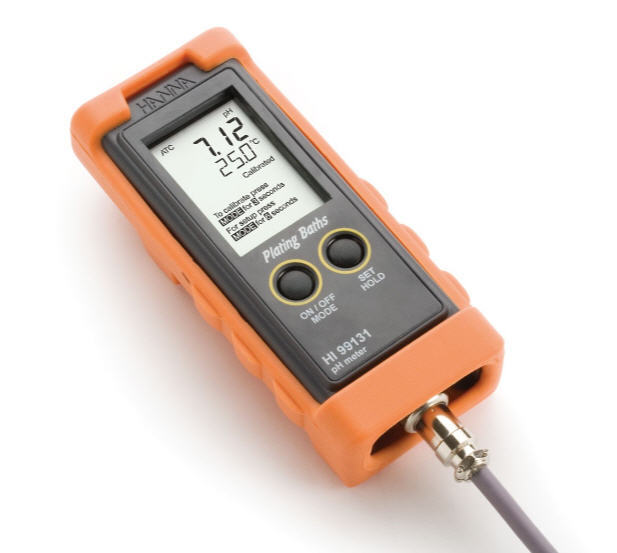

HI99131 Plating pH Portable Meter

The HI99131 is a waterproof, portable pH and temperature meter specifically designed for use in plating baths.

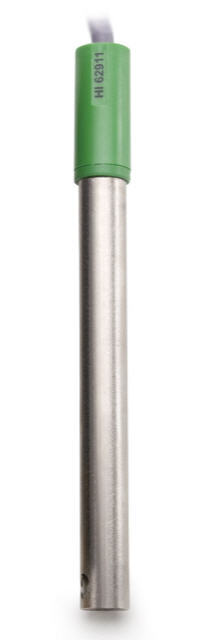

The HI62911D pre-amplified, double junction pH probe features a recessed flat tip that is easy to clean and prevents solids in solutions from collecting on the sensor.
The titanium body of the HI62911D functions as a potential matching pin for increased stability of readings and extended sensor life.
•Automatic Temperature Compensation
•Automatic Two-Point Calibration
•Waterproof



Features at-a-glance
•Automatic Temperature Compensation
•One or two-point automatic calibration
•BEPS - Alerts the user of low battery power that could adversely affect readings
•Compact, heavy-duty, and waterproof
•Battery % displayed on start-up
•HELP feature, displays tutorial messages on LCD

Unbreakable Titanium Body
Titanium construction provides an unbreakable structure and allows the transfer of heat to the internal temperature sensor for rapid temperature compensation.

Maintenance-Free, Gel-Filled Electrode
No fill solution required.
Specifications 1

pH Range : -2.00 to 16.00 pH
pH Resolution : 0.01 pH
pH Accuracy : ±0.02 pH
pH Calibration : automatic, at one or two points with two sets of
                       standard buffers (pH 4.01 / 7.01 / 10.01 or
                       pH 4.01 / 6.86 / 9.18)
Temperature Range : -5.0 to 105.0°C
Temperature Resolution : 0.1°C / 0.1°F
Temperature Accuracy : ±0.5°C (up to 60°C); ±1.0°C (outside)
Temperature Compensation : automatic from -5.0 to 105.0ºC
Electrode/Probe : HI62911D titanium body, pre-amplified pH probe with
                         internal temperature sensor, DIN connector and 1 m cable (included)

Specifications 2

Battery Type/Life : 1.5V (3) AAA / approximately 1200 hours of continuous
                            use; auto-off after 8 minutes of non-use
Environment : 0 to 50°C ; RH max 100%
Dimensions : 152 x 58 x 30 mm
Weight : 205 g
Warranty : 2 years (probe 6 months)

HI99131 is supplied with :
  • HI62911D pH probe,
  • HI70004 pH 4.01 buffer solution sachet (20 mL),
  • HI70007 pH 7.01 buffer solution sachet (20 mL),
  • HI700661 electrode cleaning solution sachets (2 x 20 mL),
  • batteries,
  • instructions,
  • and hard carrying case.

Accessories :

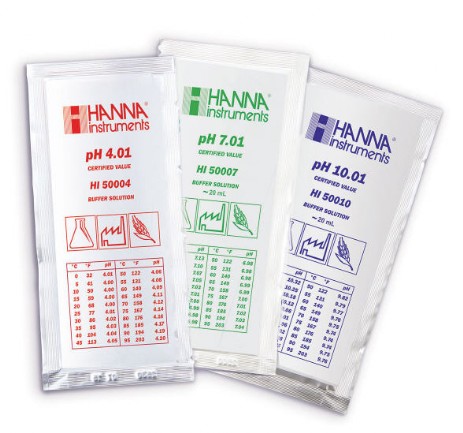

pH 4.01 Calibration Buffer Sachets (25 x 20 mL)
    (25 x 20 mL) with or without certificate
pH 6.86 Calibration Buffer Sachets
    (25 x 20 mL) with or without certificate
pH 7.01 Calibration Buffer Sachets
    (25 x 20 mL) with or without certificate
pH 10.01 Calibration Buffer Sachets
     (25 x 20 mL) with or without certificate
Cleaning Solution for Salt Deposits
    (25 x 20 mL)
Electrode Storage Solution (500 mL)
Shockproof Rubber Boot Blue (HI710007)
Shockproof Rubber Boot Orange (HI710023)

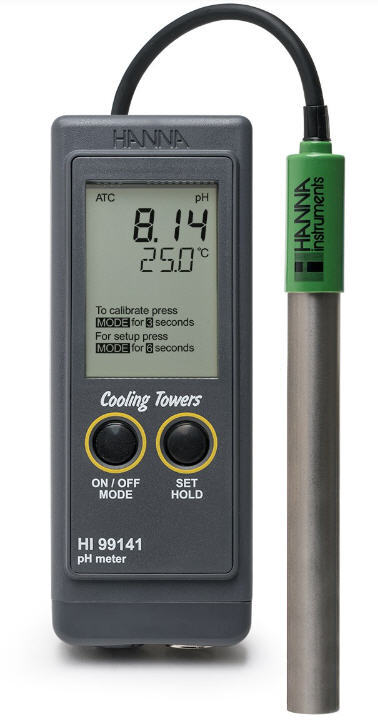

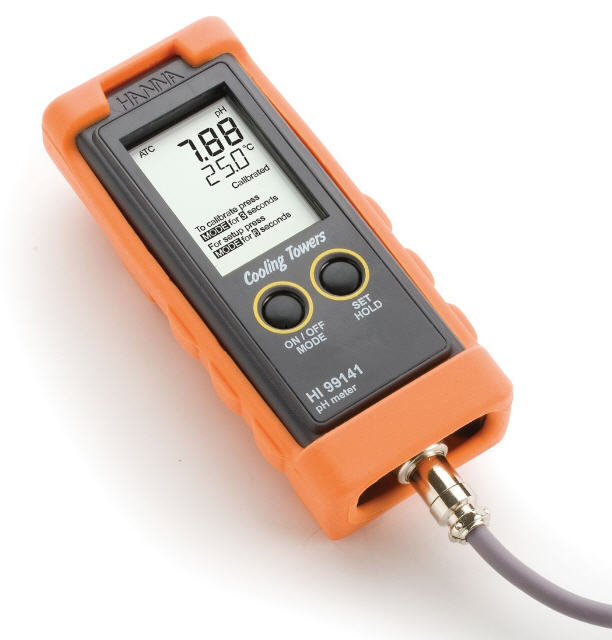

HI99141  Boiler and Cooling Tower pH Portable Meter

Ideal for the water treatment industry

The HI99141 is a waterproof, portable pH and temperature meter specifically designed for boilers and cooling towers. The HI72911D pre-amplified double junction pH probe features a flat tip sensor that is easy to clean and prevents solids in solutions from collecting on the sensor. The titanium body of the HI72911D functions as a potential matching pin for increased stability of readings and extended sensor life.

  • Automatic Temperature Compensation
  • Automatic Two-Point Calibration
  • Waterproof
  • BEPS - Alerts the user of low battery power that could adversely affect readings
  • Compact, heavy-duty, and waterproof
  • Battery % displayed on start-up
  • HELP feature displays tutorial messages on LCD
The HI99141 meter features a large multi level LCD screen which displays both pH and temperature readings simultaneously with 0.01 pH resolution and an accuracy of ±0.05 pH. The LCD screen also has indicators for calibration status and stability, as well as on-screen tutorial messages. The HI99141 has many advanced features that are found in more expensive portable instrumentation including automatic calibration, buffer recognition,and temperature compensation. The battery percent level is displayed at start up alerting the user to the remaining battery power that is available.

The HI99141 is supplied with the amplified titanium body pH/temperature electrode. The titanium body is resistant to many aggressive chemicals and extremely durable.The titanium body acts as a matching pin for the flat tip pH electrode. A matching pin is a differential measurement technique used to eliminate electrical noise in a pH measurement system. The matching pin coupled with a pre-amplifier provides for an increased response time in pH measurement and extends the electrode life.

The HI72911D also features a large annular polytetrafluoroethylene (PTFE) junction. This large junction is resistant to chemicals but has a large surface area allowing for maximum diffusion of ions from the inside of the reference electrode into the sample resulting in a fast, stable reading. The flat tip pH electrode with a PTFE junction in a titanium body make the HI72911D ideal for the water treatment industry.
pH Range :          -2.00 to 16.00 pH
pH Resolution :                  0.01 pH
pH Accuracy :                   ±0.02 pH
pH Calibration : automatic, at one or two points with two sets of standard buffers (pH 4.01 / 7.01 / 10.01 or pH 4.01 / 6.86 / 9.18)
Temperature Range : -5.0 to 105.0°C / 23.0 to 221.0°F
Temperature Resolution : 0.1°C / 0.1°F
Temperature Accuracy :±0.5°C (up to 60°C); ±1.0°C (outside) / ±1°F (up to 140°F); ±2.0°F (outside)
Temperature Compensation :automatic from -5.0 to 105.0ºC (23 to 221ºF)

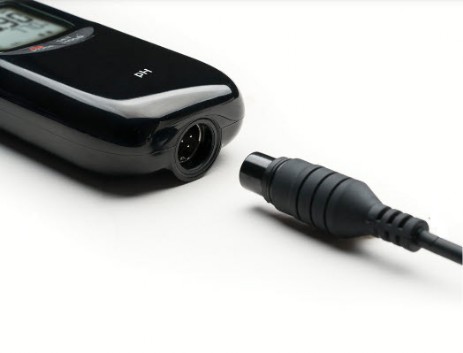

Electrode/Probe :HI72911D titanium body, pre-amplified pH electrode with internal temperature sensor, DIN connector and 1 m (3.3’ cable) (included)
Battery Type/Life :1.5V (3) AAA / approximately 1200 hours of continuous use; auto-off after 8 minutes of non-use
Environment :0 to 50°C (32 to 122°F); RH max 100%
Dimensions : 152 x 58 x 30 mm (6.0 x 2.3 x 1.2”)
Weight : 205 g (7.2 oz.)
Warranty : 2 years (probe 6 months)

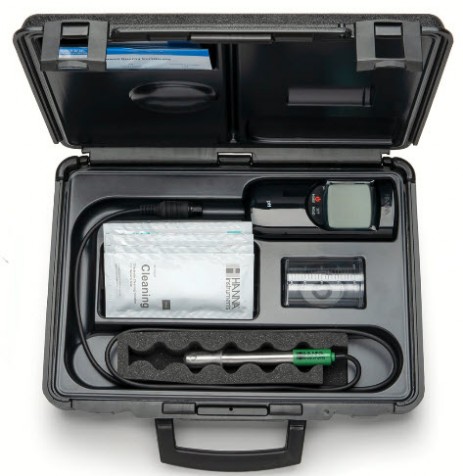

HI99141 is supplied with :
  • HI72911D pH probe,
  • HI70004 pH 4.01 buffer solution sachet (20 mL),
  • HI70007 pH 7.01 buffer solution sachet (20 mL),
  • HI700661 electrode cleaning solution sachets (2 x 20 mL),
  • batteries, instructions,
  • and hard carrying case.

Accessories :
  • pH 4.01 Calibration Buffer Sachets (25 x 20 mL)
     (25 x 20 mL) with or without certificate
  • pH 6.86 Calibration Buffer Sachets
     (25 x 20 mL) with or without certificate
  • pH 7.01 Calibration Buffer Sachets
     (25 x 20 mL) with or without certificate
  • pH 10.01 Calibration Buffer Sachets
      (25 x 20 mL) with or without certificate
  • Cleaning Solution for Salt Deposits
     (25 x 20 mL)
  • Electrode Storage Solution (500 mL)
  • Shockproof Rubber Boot Blue (HI710007)
  • Shockproof Rubber Boot Orange (HI710023)

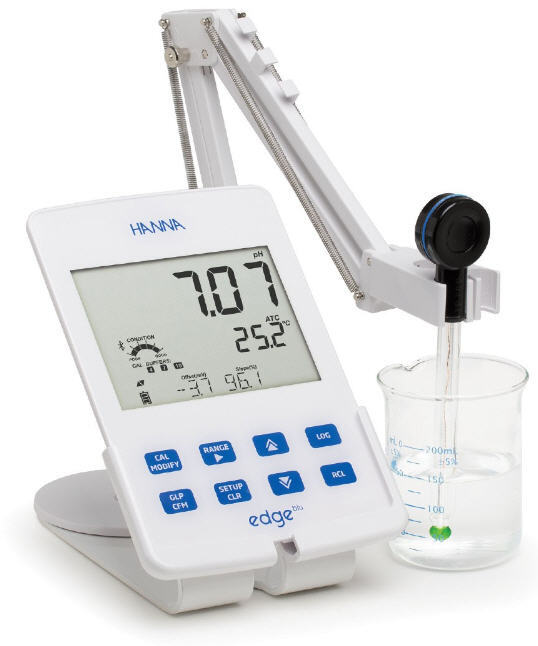

HI2202-01  edge® blu Bluetooth®
Smart pH Electrode and Meter

Free yourself from wires when performing pH measurements. Hanna Instruments is proud to introduce edgeblu, a pH meter that uses pH electrodes with Bluetooth® Smart technology (Bluetooth 4.0).
These pH electrodes connect wirelessly to edgeblu or a compatible Apple or Android® device running the Hanna Lab App.

  • edge blu uses HALO™ Bluetooth pH electrodes with a built-in temperature sensor to send measurement data wirelessly to the meter or a compatible Apple or Android device running the Hanna Lab App.
  • edge blu features advanced pH electrode diagnostics to ensure worry free measurements. Diagnostics include Hanna’s exclusive CAL Check feature that alerts users to potential problems during calibration.
  • edge blu features a capacitive touch keypad that gives a distinctive, modern look. The keypad is sensitive enough to be used with laboratory gloves and has a fast response.

The edge blu is thin and lightweight, measuring just 0.5” thick and weighing less than 9 ounces. edge blu has an incredibly wide viewing angle, 5.5” LCD and a sensitive capacitive touch keypad. edge blu is simple to configure, calibrate, measure, log and transfer data to a computer or a USB drive.
This meter features Hanna’s exclusive CAL Check to warn if the HALO pH electrode being used is not clean or if your buffers are contaminated during calibration. An Indicator is also displayed after calibration showing the overall probe condition that is based on the offset and slope characteristic of the pH electrode.
The versatile design of edge blu makes equally at home in your hand, on a lab bench, or mounted on a wall.

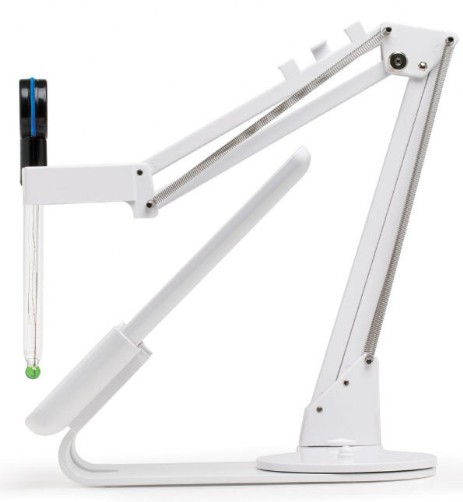

Cradle and Electrode Holder
edge is equipped with a benchtop cradle with an adjustable swivel electrode holder to charge and hold the edge securely in place at the optimum viewing angle.

Wall Mount
Using the wall mount cradle (included), edge can be placed on a wall, leaving zero footprint on the benchtop space. The cradle has a built-in connector to power edge and charge its batteries. edge's zero footprint is designed to save you valuable benchtop space.

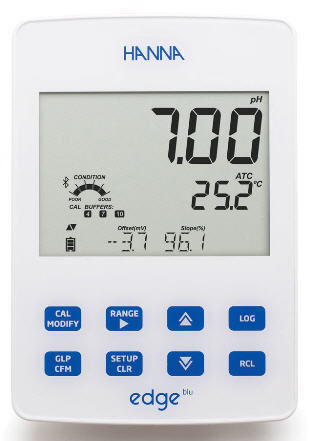

Large, Easy to Read LCD
edge blu features an LCD that measures 5.5” and is clearly viewable from over 5 meters. Add to that a wide viewing angle of 150 degrees and you have one of the clearest LCDs in the industry. In addition to its large LCD, edge also features full text guides displayed on the bottom of the screen. There is no need to decipher scrambled abbreviations.

Capacitive Touch
edge blu features sensitive capacitive touch buttons for accurate keystrokes when navigating edge’s menus and screens. Since they are part of the screen, the buttons can never get clogged with sample residue.

Bluetooth Digital pH Electrodes
edge blu uses HALO Bluetooth digital pH electrodes. Once a probe is connected, all sensor information including sensor operating specifications and calibration information is transferred. pH electrodes are easy to exchange when you want to change from measuring with one type to another without the need for recalibration.

Up to Five-Point pH Calibration
In standard mode, edgeblu can be calibrated automatic up to 5 points with 7 standard buffers (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) and 2 custom buffers.

Good Laboratory Practice (GLP) feature
The GLP data can be review at anytime at a push of a button. GLP data includes, date, time, buffers, offset and slope of the last pH calibration.

CAL Check pH Electrode Monitoring Technology
Hanna’s exclusive CAL Check feature analyzes the pH electrode response in the pH buffers during the calibration process to alert the user of potential problems such as contaminated buffer and clean electrode. After calibration, indicators for probe condition is displayed on the measurement screen. The probe condition is based on offset and slope characteristics of the pH electrode.

Multiple Data Logging Modes
Log-on-demand, log-on-stability, and interval logging modes are all available. Up to 200 data points can be logged on demand and an additional 200 data points for samples logged upon a stable reading. Interval logging is adjustable from 5 seconds to 180 minutes. Up to 600 records can be stored in a maximum of 100 interval lots. Logging modes can be started from the meter or by simply pressing the button on the HALO pH probe.

Dual USB Ports
edge blu can be connected to a computer or USB flash drive for transferring logged data. The micro USB port can also be used to charge the meter.

Rechargeable Battery
edgeblu has a built in rechargeable battery that is charged when the meter is in the plugged in benchtop or wall mount cradle. The battery can also be recharged through the micro USB port with either a USB port from a computer or directly to the power supply.
pH Specifications

pH Range : -2.000 to 16.000 pH (Standard Mode), -2.00 to 16.00 pH (Basic Mode), ±1000 mV
pH Resolution : 0.001 pH, 0.01 pH, 0.1 mV
pH Accuracy (@25ºC/77ºF) : ±0.2 mV, ±0.01 pH, ±0.002 pH
pH Calibration :
5 points (Standard mode) 1.68, 4.01 (3.00†), 6.86, 7.01, 9.18, 10.01, 12.45,
and two custom buffers;  3 points (Basic mode) 4.01; 6.86; 7.01; 9.18; 10.01
pH Temperature Compensation : ATC: -5.0 to 100.0ºC*

Notes
* temperature limits will be reduced to actual probe/sensor limits











Temperature Specifications

Temperature Range : -20.0 to 120.0 ºC,
Temperature Resolution : 0.1 °C, 0.1 °F
Temperature Accuracy : ±0.5 °C, ±0.9 °F
°C/°F : Yes
Additional Specifications

GLP : Yes
Logging : stores up to 1000 records: 200 records (log-on-demand and stability logging)
Connectivity : 1 micro USB port for charging and PC connectivity, 1 USB port for storage
Environment : 0 to 50°C, RH max 95% non-condensing
Power Supply : 5 VDC adapter (included)
Dimensions : 202 x 140 x 12 mm
Weight : 250 grams
Warranty : 2 years (probe 6 months)


Electrode Specifications

Reference : double, Ag/AgCl
Junction / Flow Rate : ceramic
Electrolyte : gel
Tip Shape : spheric
Connection : Bluetooth Smart (Bluetooth 4.0), 10 m range
Recommended Operating Temperature : -5 to 80°C
Temperature Sensor : integrated
Body Material : glass
Hanna Lab App Specification

sRange : -2.000 to 16.000 pH / ±800 mV / -20.0 to 120.0 ºC *
Resolution : 0.1, 0.01, 0.001 pH / 1, 0.1 mV
Accuracy (@25ºC) : ±0.005 pH / ±0.3 mV
Calibration Points : Up to five points with seven standard buffers
Calibration Buffers : 1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45 pH
Temperature Compensation : Automatic from -5.0 to 100.0 ºC
                                          *(will be reduced to actual probe/sensor limits)
Compatibility/System Requirements : Android: Compatible with most devices
                                                    equipped with Bluetooth Smart Technology
                                                     (Bluetooth 4.0) and running Android 4.3 or later.
iOS: Compatible with iPad (3rd generation or newer),
      iPhone (4S or newer), iPod Touch (5th generation or newer)
Download Information : Hanna Lab App is available free from the Play Store or App Store

Notes
* temperature limits will be reduced to actual probe/sensor limits

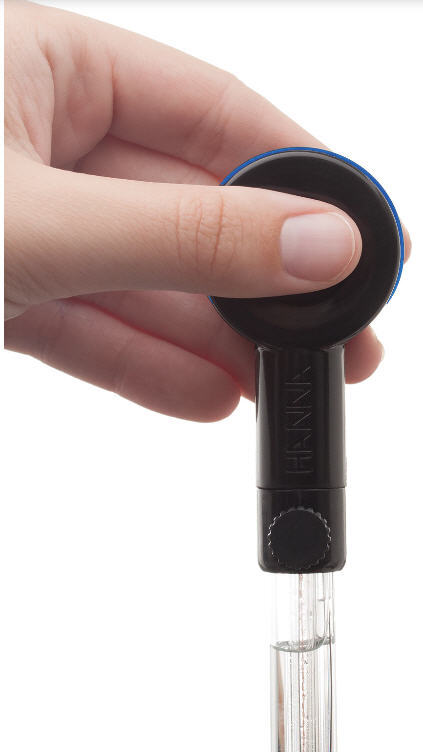

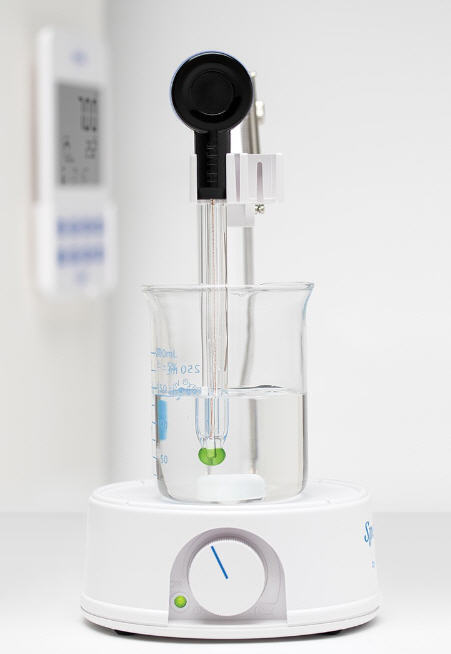

HALO™ pH electrodes with Bluetooth® Smart Technology

Each edgeblu is supplied with a HI11102 HALO™ Bluetooth pH electrode. The Halo uses Bluetooth Smart Technology (Bluetooth 4.0), which is energy efficient and allows the probe to operate on 1 CR2032 battery for approximately 500 hours. The HI11102 HALO pH electrode is a double junction, gel filled, glass body pH electrode with a built-in thermistor temperature sensor. All readings are automatically compensated for temperature variations.

The HI11102 HALO pH electrode transmits measurement data directly to edgeblu or a compatible Apple or Android device. All HALO pH electrodes are auto-detected providing pH sensor type, calibration data and serial number when connected. The HALO pH electrode also features a blue LED ring that changes flashing frequency based on whether it is in discovery mode or when it is connected to the edgeblu or compatible device. The button located on the HALO™ pH probe is used to place it in discovery mode or to log data directly to the edgeblu or compatible Apple or Android device.

Bluetooth Smart Technology
HI11102 HALO pH electrode uses Bluetooth Smart Technology (Bluetooth 4.0). This technology offers low power consumption allowing for a long, 500-hour battery life. The range of the Bluetooth connection is 10 meters (33’) between the probe and receiving device.

Auto-Detection
At a push of the button on the HI11102 HALO pH electrode places the probe in discovery mode and will be detected by edgeblu or compatible device running the Hanna Lab App. Once connected the serial number, calibration information including date, time and buffers used, and the electrode specifications will be loaded into the meter. Having this information stored in the electrode allows for hot swapping to other pH electrodes without recalibrating. The details of the electrode and calibration information are stored with any logged readings.







pH Electrode Design
The HI11102 HALO pH electrode is a glass body, gel filled, double junction pH electrode that has an indicating probe made with general purpose glass. The glass body is resistant to many chemicals and easy to clean. Being gel filled reduces maintenance since there are no fill solutions to add. The double junction design is suitable for a variety of solutions that can contain substances such as heavy metals or Tris buffer that will cause the silver chloride (AgCl) found in a single junction probe to precipitate and clog the junction. The general purpose glass indicating probe has a temperature range of use from -5.0 to 80.0°C (23.0 to 176.0°F) and for samples that have a 0 to 12 pH.

Built-In Temperature Sensor
The HI11102 HALO pH electrode features a built-in thermistor temperature sensor that is in the tip of the indicating pH electrode. A thermistor temperature sensor provides for a high accuracy temperature reading and should be as close as possible to the indicating pH electrode in order to compensate for the effect that temperature has on the change in resistance of the glass. By having an accurate reading it is possible to provide a temperature compensated reading.

iOS and Android Compatibility

The HI11102 HALO pH electrode is compatible with Apple or Android devices running the Hanna Lab App, available for download at no charge.

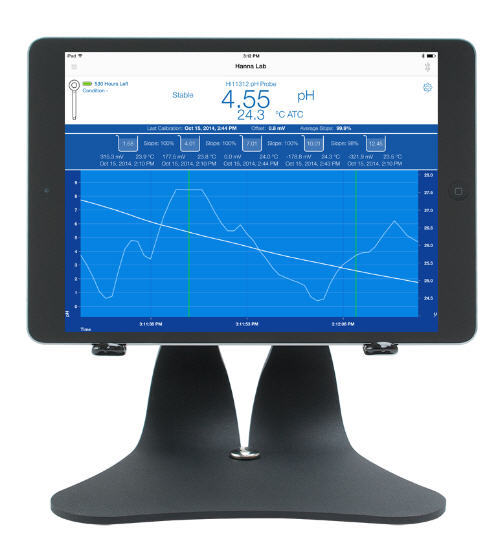

The Hanna Lab App turns any compatible Apple or Android device into a full-featured pH meter. Functions include calibration, measurement, data logging, graphing and data sharing. Measurement and logging of pH and temperature at one-second intervals start as soon as the probe is connected. Measurements can be displayed alone on the display, with tabulated data, or as a graph. The graph can be panned and zoomed with pinch-to-zoom technology for enhanced viewing. Any readings that exceed user-defined alarm threshold are highlighted in yellow on the measurement screen, graph, and table. Readings that exceed the pH probe specifications are highlighted in red.

Readings are automatically saved to a history file every hour, limited only by the available memory on the device. Readings in specific time intervals can also be saved. Saved log files may be annotated with measurement specific information and also shared via email in CSV (comma-separated values) format.

*iPad and stand not included.
Scope of supply :

HI2202 edge® blu includes :
  • benchtop docking station with electrode holder,
  • wall mount cradle,
  • USB cable,
  • HI11102 glass body, gel filled pH electrode with temperature sensor,
  • pH 4 buffer solution sachets,
  • pH 7 buffer solution sachets,
  • pH 10 buffer solution sachets,
  • electrode cleaning solution sachets,
  • 5 VDC power adapter,
  • instruction manual
  • and instrument quality certificate.

Accessories :

    • pH 4.01 Calibration Buffer Sachets
        (25 x 20 mL) with or without certificate
    • pH 6.86 Calibration Buffer Sachets
        (25 x 20 mL) with or without certificate
    • pH 7.01 Calibration Buffer Sachets
         (25 x 20 mL) with or without certificate
    • pH 10.01 Calibration Buffer Sachets
         (25 x 20 mL) with or without certificate
    • Cleaning Solution for Salt Deposits
         (25 x 20 mL)
    • Electrode Storage Solution (500 mL)
    • HALO® Wireless Foodcare pH Meter
    • HALO® Wireless Field pH Meter
    • HALO® Wir. General Use pH Meter

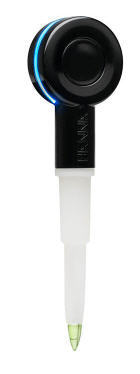

            FC2022   HALO® Wireless Foodcare pH Meter

            Our HALO® Wireless Foodcare pH Meter has a PVDF body, conical tip, and open junction design that resists clogging making it ideal for pH measurements in food products including dairy, dough, ground meats and other semi-solid food samples. All readings are transmitted directly to your Apple or Android device or the edge®blu.
            • Take laboratory grade pH and temperature measurements using your smart phone or tablet.
            • Easily connect to the Hanna Lab App at the press of a button via Bluetooth wireless technology.
            • Group your data by time or notation. Email it for storage or share it with friends or colleagues.

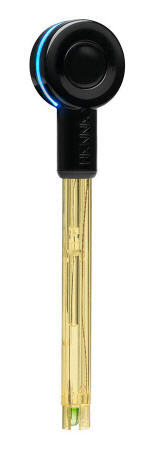

            HI12302  HALO® Wireless Field pH Meter

            Our HALO® Wireless Field pH Meter has a durable PEI body and spherical sensing bulb. All readings are transmitted directly to your Apple or Android device or the edge®blu.
            • Take laboratory grade pH and temperature measurements using your smart phone or tablet.
            • Easily connect to the Hanna Lab App at the press of a button via Bluetooth wireless technology.
            • Group your data by time or notation. Email it for storage or share it with friends or colleagues.

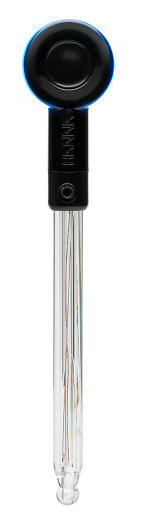

            HI11312   HALO® Wireless General Use pH Meter

            Our HALO Wireless General Use pH Meter has a refillable glass body and spherical glass sensing bulb made for everyday laboratory use. All readings are transmitted directly to your Apple or Android device or the edge®blu.
            • Take laboratory grade pH and temperature measurements using your smart phone or tablet.
            • Easily connect to the Hanna Lab App at the press of a button via Bluetooth wireless technology.
            • Group your data by time or notation. Email it for storage or share it with friends or colleagues.

            What is pH?

            A pH (potential of Hydrogen) measurement reveals if a solution is acidic or alkaline (also base or basic).
            If the solution has an equal amount of acidic and alkaline molecules, the pH is considered neutral.
            Very soft water is commonly acidic, while very hard water is commonly alkaline, though unusual circumstances can result in exceptions.
            The pH scale is logarithmic and runs from 0.0 to 14.0 with 7.0 being neutral. Readings less than 7.0 indicate acidic solutions, while higher readings indicate alkaline or base solutions.
            Some extreme substances can score lower than 0 or greater than 14, but most fall within the scale.

            What is automatic temperature compensation (ATC)?
            When measuring pH using a pH electrode the temperature error from the electrode varies based on the Nernst Equation as 0.03pH/10C/unit of pH away from pH7.
            The error due to temperature is a function of both temperature and the pH being measured.
            Temperature compensation can be achieved manually or automatically.
            Manual temperature compensation is usually achieved by entering the temperature of the fluid being measured into the instruments menu and then the instrument will display a "Temperature Compensated" pH reading.
            Automatic temperature compensation requires input from a temperature sensor and constantly sends a compensated pH signal to the display.
            Automatic temperature compensation is useful for measuring pH in systems with wide variations in temperature.

            Back to content
