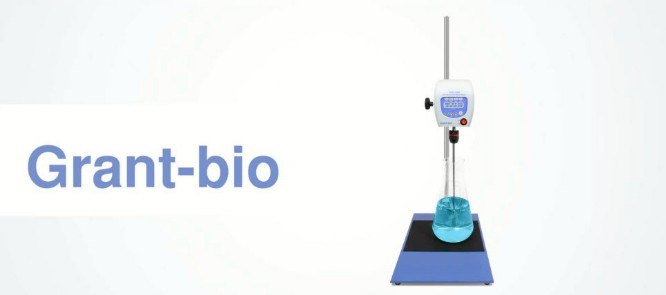

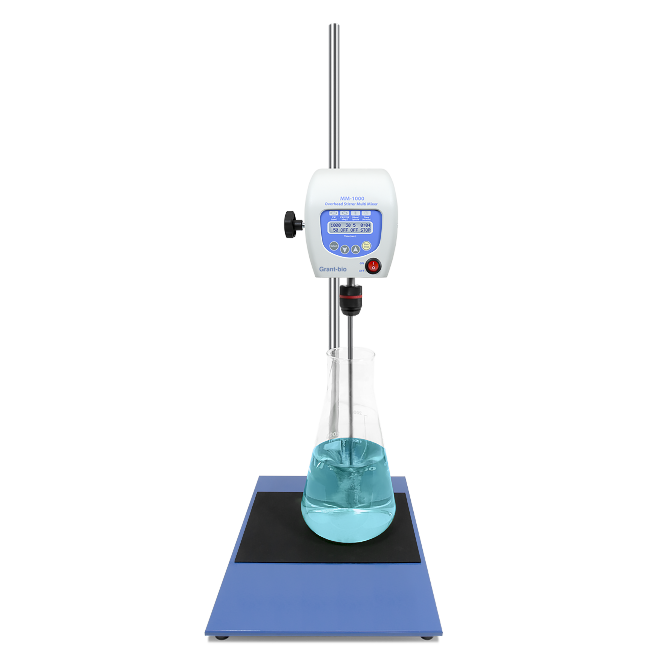

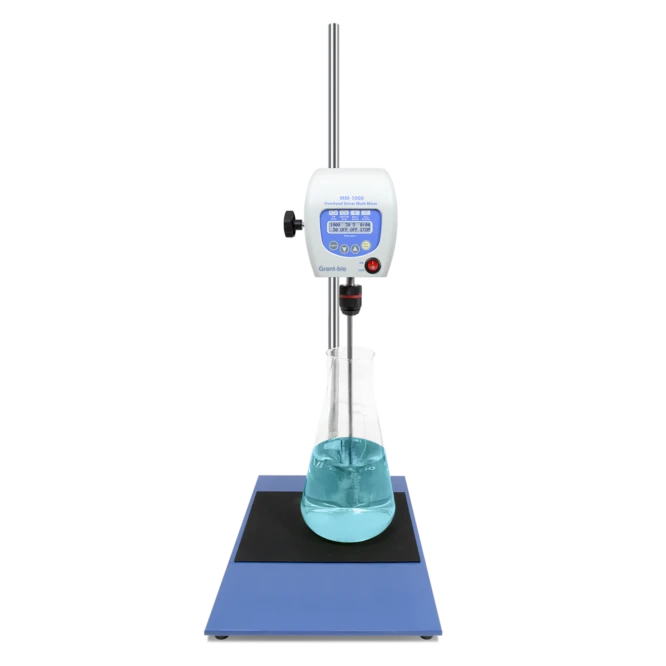

MM-1000 Overhead Stirrer Multi Mixer

• MM-1000, Overhead Stirrer Multi Mixer at a glance

•  Designed for stirring liquids up to 20L

•  Range of paddles and stirrers available

•  Continuous mixing for up to 7 days

 3 types of motion
•  Rotational
•  Reciprocal
•  Vibration

•  Speed, angle and time of operation is under microprocessor control

•  Can be used for medium viscosity ranges 1,000 to 10,000 mP.a.s


Targeting and application


• Mixing, stirring and shearing in
• Biotechnology
• Organic synthesis
• Analytical laboratories
• Sample preparation
Specifications

Rotation - Speed control range :                                                         40-1000 rpm
Rotation - Time :                                                                                                        0-250 s
Reciprocal motion - Turning angle :                             0-360° (increment 30°)
Rotation motion - Turning angle :                                         0°-5° (increment 1°)
Rotation motion - Time                                                                                                 0-5 s
Timer Sound Signal                                                                                                              yes
Stirring volume up to (water)                                                                                       20 L
Digital time setting :                          1 min-96hrs/non-stop (increment 1 min)
Overall dimensions (WxDxH) :                                                    140x135x250 mm
Weight :                                                                                                                                  2,4 kg
Input current/power consumption :                                     12 V, 700 mA / 8,4 W
External power supply : Input AC 100-240 V ; 50/60 Hz ; Output DC 12 V
Product Code :                                                                                                 113MM-1000
Warranty :                                                                                                                          2 years

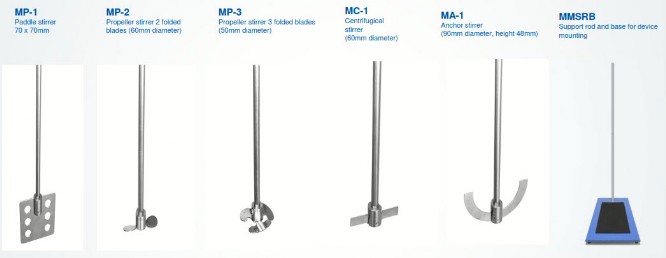

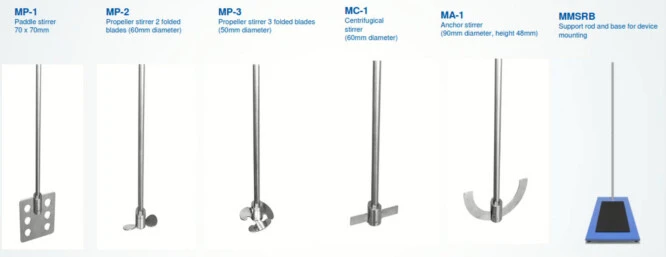

Accessories

  • MP-1
Paddle stirrer  70 x 70mm
  • MP-2
Propeller stirrer 2 folded blades (60mm diameter)
  • MP-3
Propeller stirrer 3 folded blades (50mm diameter)
  • MC-1
Centrifugical stirrer (60mm diameter)
  • MA-1
Anchor stirrer (90mm diameter, height 48mm)
  • MMSRB
Support rod and base for device mounting
