Laboratory Product > Microscopes

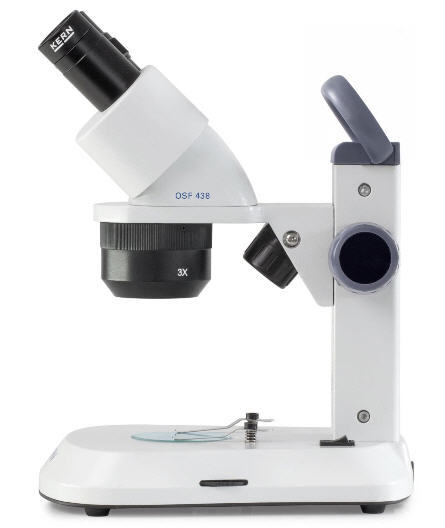

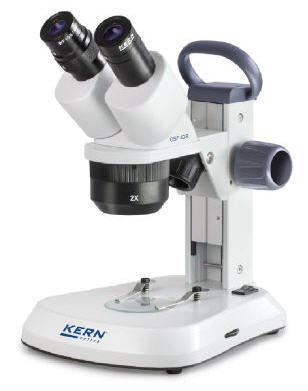

OSF-4G The robust and practical product for schools, training centres, the workshop and laboratory

  • The KERN OSF-4G is an extremely practical stereo microscope which is easy to use
  • With its built-in handle, you can move this microscope safely and easily with one hand
  • Due to its mechanical stand it is particularly stable
  • As well as very good optical characteristics, its  ergonomically-designed working surface means that it offers the highest  level of convenience in this class
  • These models are ideally suited for schools, training centres and training companies
  • A powerful LED reflected and transmitted lighting unit ensures that you always have the necessary light
  • The range of lens combinations and eyepieces will cover every possible requirement
  • The eyepieces are fixed in the lens barrel, to stop them getting damages or lost

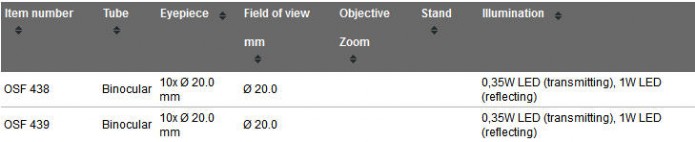

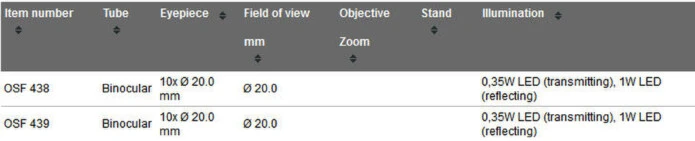

Technical data
· Optical system: Greenough
· Brightness adjustable
· Tube: 45° inclined
· Interpupillary distance: 55 – 75 mm
· Diopter adjustment (one-sided)
· Packing dimensions WxDxH 290x225x340 mm
· Net weight approx. 2,5 kg

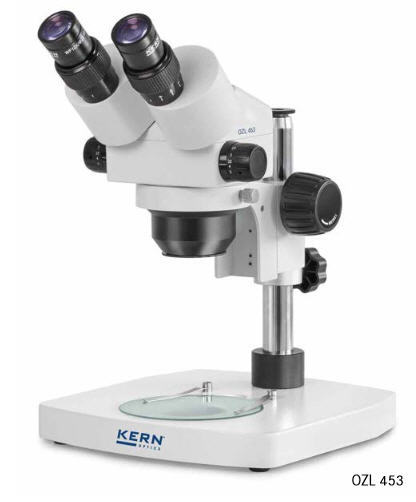

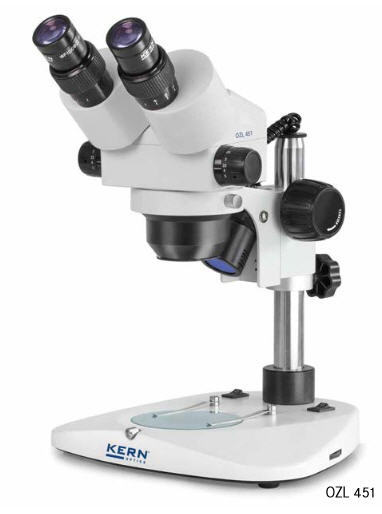

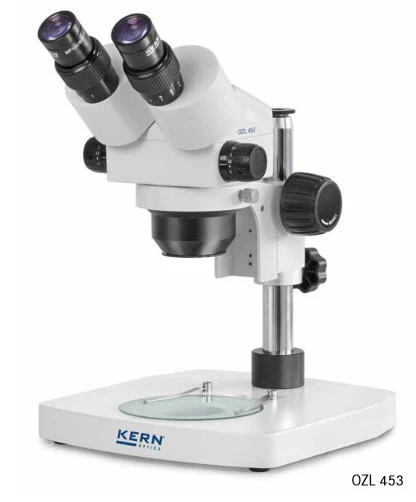

OZL-45 The smart product for laboratories, training centres, quality control and agriculture

  • The KERN OZL-451 and OZL-453 models are extremely robust stereo microscopes which have a large zoom range and are easy to use
  • Due to its nature, column supports, as well as the optional  integrated luminous halogen light unit with reflected and transmitted  light, these models are particularly flexible
  • These models are ideally suited for use in workplaces with  harsh environmental conditions, such as training companies, workshops as  well as assembly and repair workstations in the electronics industry
  • These models are also suitable for use in production facilities as well as for quality control
  • As well as very good optical characteristics, its large working  surface means that it offers the highest level of convenience in this  class

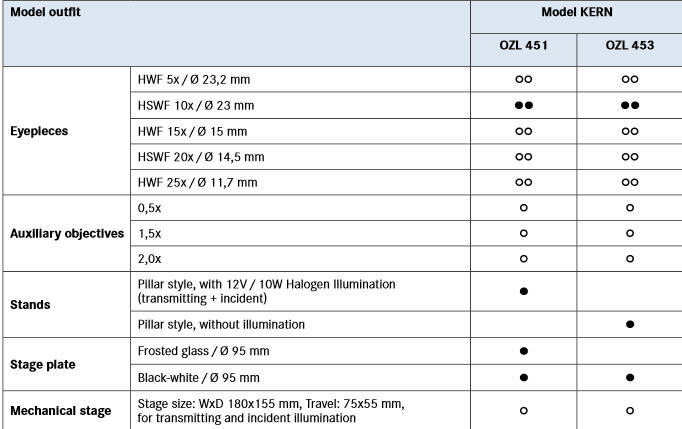

  • The range of optional conversion lenses, eyepieces and further  accessories mean that it can be used in all common applications in  stereomicroscopy
  • A central feature of this adaptable, robust microscope range is  the stable mechanism which can be adjusted precisely. This is  emphasized by the functional and ergonomic design

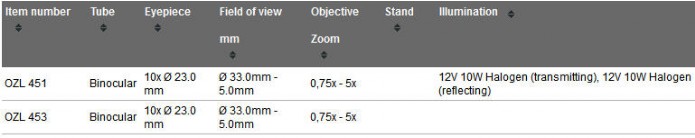

Technical data
· Optical system: Greenough
· Brightness adjustable
· Magnification ratio: 6,7:1
· Tube: 45° inclined
· Interpupillary distance: 55 – 75 mm
· Diopter adjustment (both-sided)
· Packing dimensions WxDxH 345x320x470 mm

OZL 451  · Net weight approx. 3,5 kg
OZL 453  · Net weight approx. 5 kg
OZP-5 The high-quality product for flexible and professional users

  • The KERN OZP-5 models are extremely robust stereo microscopes which are easy to use with zoom function which can be operated from both sides
  • Due to its nature, column supports, as well as the integrated dimmable LED with reflected and transmitted light, these models are particularly flexible
  • All variants have adjustment options for dioptres on both lens barrels

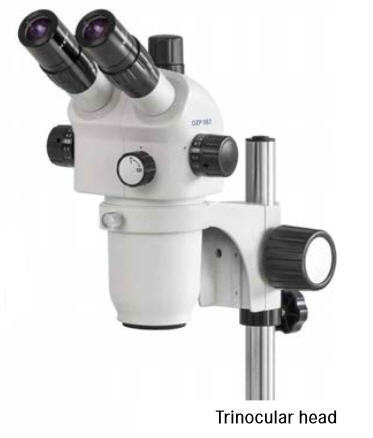

  • In addition there is a trinocular model available, so that you can connect a camera
  • These models are ideally suited for use in the quality control department, assembly and repair workstations in the electronics and semiconductor industries as well as in biological laboratories and in research
  • But these models are also ideal for use in workplaces with harsh environmental conditions, such as training companies, workshops and in production facilities
  • The design of the optical system allows a greater depth of focus, meaning that subsequent refocussing when magnifying the zoom is only necessary in very few cases
  • Furthermore it offers precise resolution, high-contrast images, extra large visual field and is completely colour true
  • Due to the extra large working distance, these models offer the highest level of comfort through their large work surfaces
  • The range of optional conversion lenses, eyepieces, universal stands and further accessories means that you can use this product in all common applications in stereomicroscopy
  • A central feature of this adaptable, robust microscope range is the stable mechanism which can be adjusted precisely. This is emphasized by the functional and ergonomic design
Technical data
· Optical system: Greenough
· Brightness adjustable
· Magnification ratio: 9,2:1
· Tube: 35° inclined
· Interpupillary distance: 52 – 76 mm
· Diopter adjustment ( both-sided)
· Packing dimensions WxDxH 370x330x385 mm

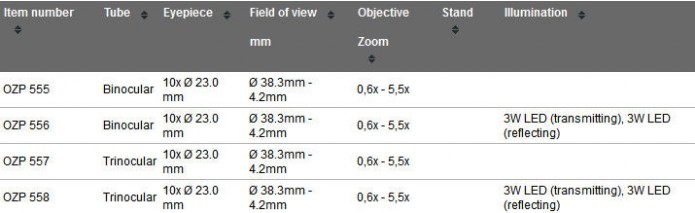

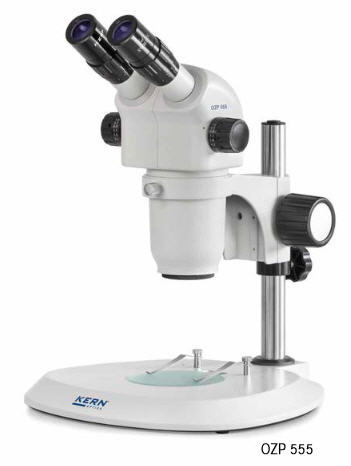

OZP 555 / OZP 557
· Net weight approx. 5,1 kg

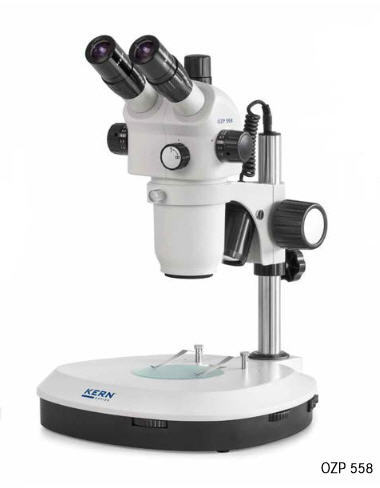

OZP 556 / OZP 558
· Net weight approx. 6,1 kg
OZS-5 The high-zoom product for the professional user

The KERN OZS-5 models are highly professional, extremely robust stereo  microscopes which are easy to use with zoom function which can be  operated from both sides
Due to its nature, column supports, as well as the integrated  dimmable LED with reflected and transmitted light, these models are  particularly flexible
All variants have dioptre setting on both lens barrels and are delivered with an adapter so that you can connect a camera
The parallel optical system stops your eyes getting tired and offers  a large depth of field. Refocussing is also only necessary in very few  cases when magnifying the zoom
Furthermore it offers precise resolution, extra large visual field and is completely colour true
These models are ideally suited for use in the quality control  department, assembly and repair workstations in the electronics and  semiconductor industries as well as in biological laboratories and in  research
But these models are also ideal for use in workplaces with harsh  environmental conditions, such as training companies, workshops and in  production facilities
Due to the extra large working distance, these models offer the highest level of comfort through their large work surfaces
The range of optional conversion lenses, eyepieces, universal stands  and further accessories means that you can use this product in all  common and professional applications in stereomicroscopy
A central feature of this adaptable, robust microscope range is the  stable mechanism which can be adjusted precisely. This is emphasized by  the functional and ergonomic design

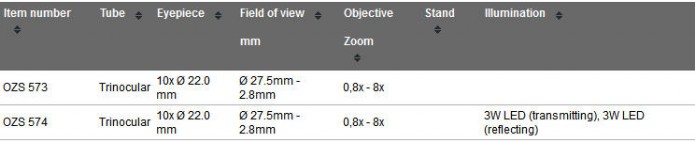

Technical data
· Optical system: Parallel
· Brightness adjustable
· Magnification ratio: 10:1
· Tube: 45° inclined
· Interpupillary distance: 52 – 76 mm
· Diopter adjustment (both-sided)
· Packing dimensions WxDxH 370x330x385 mm

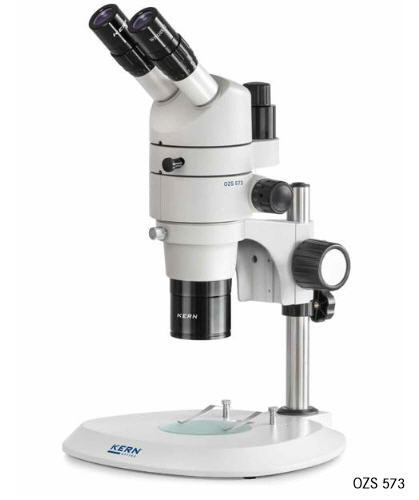

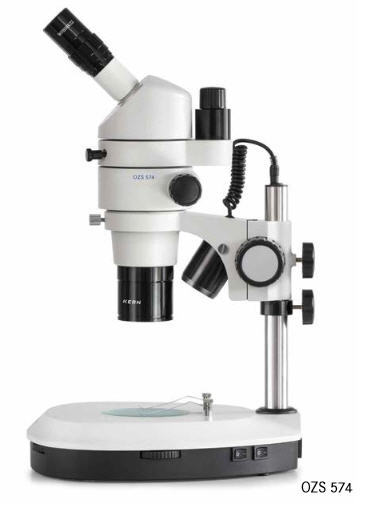

OZS 573
· Net weight approx. 6,1 kg

OZS 574
· Net weight approx. 7,1 kg

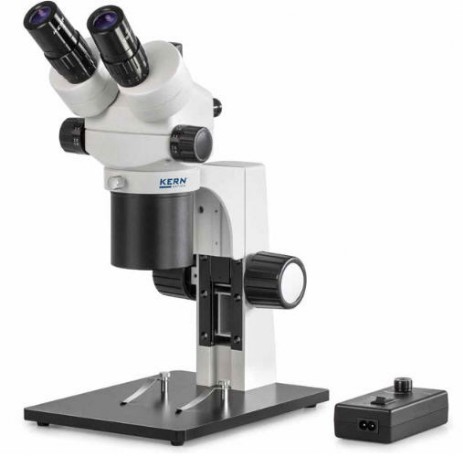

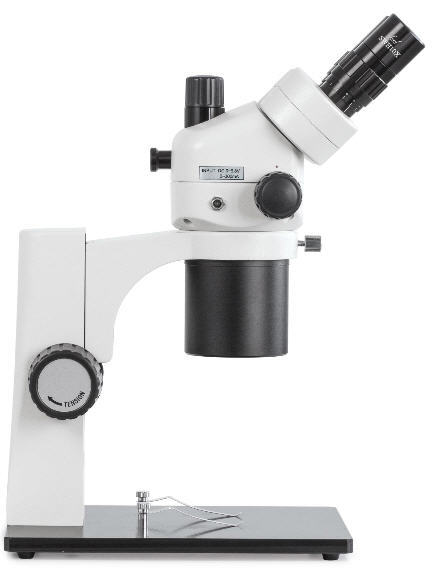

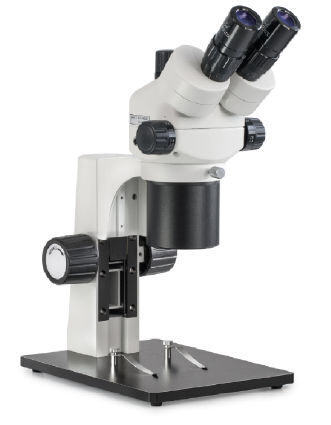

OZC-5 The coaxial product for LCD / LED electronics and semiconductor workplace

  • The KERN OZC-5  models are extremely robust trinocular stereo microscopes which are  easy to use and can be operated from both sides Zoom range and coaxial  lighting for images with above average high-contrast and depth of focus
  • The stand base is solid which makes it extremely stable
  • The ideal field of application is workstations for monitoring,  control and measuring within the semiconductor, LCD and LED industries,  where coaxial lighting is necessary
  • The parallel optical system stops your eyes getting tired and  offers a large depth of field. Refocussing is also only necessary in  very few cases when magnifying the zoom
  • Furthermore it offers precise resolution, extra large visual field and is completely colour true
  • Due to the extra large working distance, these models offer the highest level of comfort through their large work surfaces
  • The range of optional conversion lenses, eyepieces, universal  stands and further accessories means that you can use this product in  all common and professional applications in stereomicroscopy


A central feature of this adaptable, robust microscope range  is the stable mechanism which can be adjusted precisely. This is  emphasized by the functional and ergonomic design


Technical data
· Optical system: Parallel
· Brightness adjustable
· Magnification ratio: 3,6:1
· Tube: 45° inclined
· Interpupillary distance: 52 – 76 mm
· Diopter adjustment (both-sided)
· Packing dimensions WxDxH 370x330x385 mm
· Net weight approx. 7,1 kg
