PR140  Pressure Data Logger

Pressure data logger for high temperatures.
Includes NIST traceable calibration certificate.

The PR140 is a pressure data logger designed for use in autoclave validation and mapping.
This rugged data logger can withstand temperatures up to +140 °C (+284 °F) and is completely submersible (IP68).
The PR140 is built with a precision stainless steel pressure gauge. The data logger has an accuracy of ±0.03 Bar (±0.435 PSI), which can be achieved over a wide temperature range, from +20 °C to +140 °C (+68 °F to +284 °F).
The PR140 can be programmed to take readings as often as once per second (1 Hz), and has non-volatile memory that can store up to 32,700 measurements.

The PR140 data logger is easy to use. Simply place it in the IFC400 docking station, connect to a computer, and the device can be started, stopped or downloaded using the MadgeTech software.

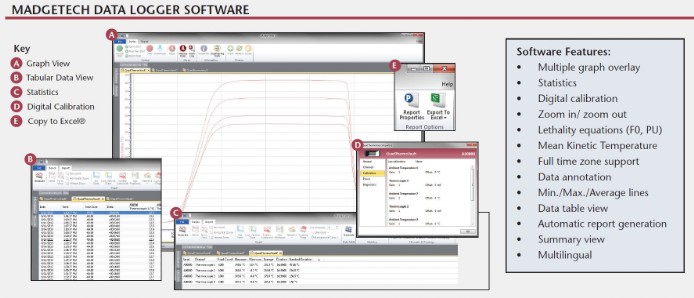

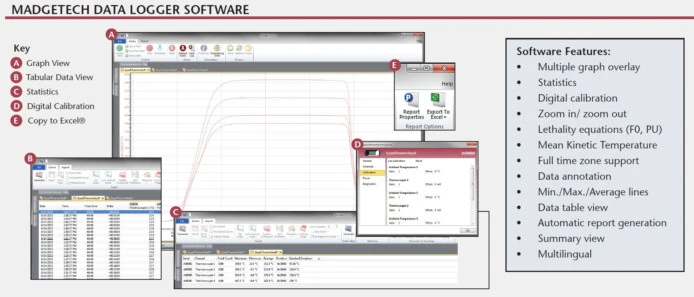

Graphical, tabular and summary data is provided for analysis and can be viewed in PSIA, mmHg, bar, Torr and kPa.
The data can also be automatically exported to Excel® for further calculations.

The logger PR140 is an absolute pressure logger that will only record pressure.
It will not record temperature.
There is no Temperature Channel.
PRESSURE
Pressure Sensor                      Semiconductor Strain Gauge
Pressure Range                        0 to 5 Bar
Pressure Resolution              0.1 mBar
Pressure Calibrated Accuracy    ±0.03 Bar  +20 °C to +140 °C

GENERAL
Memory                               32,700 readings; software configurable memory wrap
Reading Rate                    1 second to once every 24 hours, selectable in software
Baud Rate                          125,000
Battery Life                       2 years typical (1 minute reading rate at 25 °C
Material                              Stainless Steel
Dimensions                       58.2 mm x 25.4 mm dia.
IP Rating                             IP68
Submersible                      Yes
Operating Environment        -20 °C to +140 °C , 0 %RH to 100 %RH
Note: The PR140 may be used above +60 °C for up to 8 hours, per 24 hour period.
Approvals                           CE
IFC400 Data Logger Interface
Interface Cable Package for the HiTemp140 and PR140 Data Loggers. USB Connection with Docking Station Cradle.

MadgeTech 4 Secure Validation Software Package
IQ/OQ/PQ Secure Software Validation Workbook and Software Package.

ER1425S-HT Lithium Battery
150 °C 3.6V Lithium Battery, ½ AA Pressure Contact.

MagMount-1
Magnetic Holder for use with the PR140, HiTemp140 Series and 1000 Series Data Loggers.

LUER-FITTING-F
316 stainless steel, 1/8 in NPT to Female luer lock adapter.

IFC406 Multiplexer Data Logger Interface
IFC406 Multiplexer Data Logger Interface, allowing for multiple data loggers to be connected into one interface.
PRTemp140 Data Logger

High temperature and pressure data logger. Includes NIST traceable calibration certificate.

The PRTemp140 is a pressure and high temperature data logger all in one, created specifically for use in autoclave validation, mapping studies and pressurized processes.
Featuring the familiar body style of the 140 series of data loggers and made of rugged stainless steel, this dual purpose device is less than 2.5 inches in length, allowing it to fit discretely inside small spaces.

The PRTemp140 data logger downloads temperature and pressure data simultaneously and displays the combined results in a single graph, simplifying data collection and analysis and eliminating unnecessary steps for the user.

This data logger is able to measure and record temperatures from -20 °C to 140 °C, and absolute pressure from 0 bar to 5 bar, accommodating a wide range of applications even in the harshest conditions  and is completely submersible  (IP68).
The data logger has an accuracy of ±0.03 Bar (±0.435 PSI), which  can be achieved over a wide temperature range, from +20 °C to +140 °C.
The PR140 can be programmed to take readings as  often as once per second (1 Hz).

The memory capacity on the PRTemp140 stores up to 32,700 time and date stamped readings and will retain data even if the battery becomes discharged.

The PRTemp140 utilizes the latest MadgeTech data logger software, making the entire process from starting the device to analyzing data, efficient and easy for the user.
Downloaded data can be viewed in various formats including graphic and tabular and can also be exported to Excel® for further analysis and calculations.

Simply place it in the IFC400 docking station, connect to a  computer, and the device can be started, stopped or downloaded using the  MadgeTech software.
Graphical, tabular and summary data is provided for  analysis and can be viewed in PSIA, mmHg, bar, Torr and kPa.

The logger PR140 is an absolute pressure logger that will record pressure and temperature.

TEMPERATURE
Temperature Sensor                                  Resistance Temperature Detector (RTD)
Temperature Range                                   -20 °C to +140 °C (-4 °F to +284 °F)
Temperature Resolution                           0.01 °C (0.018 °F)
Temperature Calibrated Accuracy      ±0.1 °C

PRESSURE
Pressure Sensor                                         Semiconductor Strain Gauge
Pressure Range                                           0 to 5 Bar (0 to 72.5 PSIA)
Pressure Resolution                                  0.0001 bar
Pressure Calibrated Accuracy             ±0.03 Bar (±0.435 PSI)

GENERAL
Memory                                                     32,767 readings; software configurable memory wrap
Reading Rate                                           1 second to once every 24 hours, selectable in software
Baud Rate                                                  125,000
Battery Life                                                 2 years typical (1 minute reading rate)
Material                                                       316 Stainless Steel
Dimensions
Flush Top:  50.2 mm x 24.6 mm x 24.6 mm
NPT Top:    58.2 mm x 24.6 mm x 24.6 mm
IP Rating                                                      IP68
Submersible                                               Yes
Operating Environment                      -20 °C to +140 °C, 0 %RH to 100 %RH
Approvals                                                             CE
Weight                                                          85 grams
 ER1425S-HT Lithium Battery   150 °C 3.6V Lithium Battery, ½ AA Pressure Contact.

MagMount-1: Magnetic Holder for use with the PR140, HiTemp140 Series and 1000 Series Data Loggers.


LUER-FITTING-F  316 stainless steel, 1/8 in NPT to Female luer lock adapter.
The LUER-FITTING-F is a 1/8 in NPT to female luer lock adapter. It can be used with the PR140 data logger with NPT Port.
The LUER-FITTING-F can easily be screwed into the 1/8 in NPT female port on the data logger.
This rugged adapter is made of 316 stainless steel construction and can withstand harsh environments, such as steam sterilization cycles.

MultiMount-Z Data Logger Stand
Versatile mount or stand for use with the HiTemp140 series of data loggers.
The MultiMount-Z is a versatile mount or stand for use with the HiTemp140 series of data loggers and other various loggers of the same body style. It can be used to stabilize a logger inside an autoclave, or screwed to a flat surface to create an anchored base. Made of 316 Stainless Steel, the MultiMount-Z is able to withstand temperatures up to 150 °C making it ideal for use in autoclave sterilization processes.
Dimensions: 1.75 in x 1.5 in x 1.5 in (44.5 mm x 38 mm x 38 mm)
Compatible with the following MadgeTech data loggers:
  • Hi Temp140 Series (all models)
  • RHTemp1000, RHTemp1000IS
  • PR140, PRTemp140
  • Temp1000IS
Features
• Operates up to 140 °C
• Submersible (IP68)
• User Replaceable Battery
• Rugged
• Programmable Start Time
• Engraved Label
• CE Compliant
• Software Battery Life Indicator
• 1/8 inch NPT Pressure Port
• Wrench Flats
Benefits
• Simple Setup and Installation
• Compatible with 1/8 inch NPT
• Adaptors and Fittings
PRTemp1000D Data Logger

Differential Pressure and Temperature Data Logger with a 1/4 in NPT differential fitting.
Includes NIST traceable calibration certificate.

The PRTemp1000D is a rugged pressure and temperature data logger designed to accurately monitor and record pressure and temperature at user programmable reading intervals.
The rugged stainless steel design allows for the device to be placed in harsh environments, which makes it well suited for use with air conditioning systems, chilled water, hot water, air, gas, oil and steam pressure systems.


The internal temperature sensor provides accurate temperature measurements without the need for a separate temperature data logger.
The logger can be started to take measurements as often as every two seconds, up to one reading every twelve hours.
It will store up to 16,383 readings in its non-volatile memory.
The PRTemp1000D uses a rugged stainless steel pressure strain gauge to accurately measure the pressure.
The device comes standard with a 1/4 in NPT differential fitting.
There are many different pressure ranges available to fit most any application.

TEMPERATURE
Temperature Sensor                                 Semiconductor
Temperature Range                                  -20 °C to +80 °C
Temperature Resolution                        0.1 °C
Temperature Calibrated Accuracy  ±0.5 °C

PRESSURE
Pressure Sensor                                            Semiconductor,  Strain Gauge
Pressure Range                                             0 to 30, 100, 300, or 500 PSID
Pressure Resolution                                   0 to 30: 0.002,
                                                                               0 to 100: 0.005,
                                                                               0 to 300: 0.02
                                                                               0 to 500: 0.05
Pressure Calibrated Accuracy            ±0.25 %FSR, 0.1 % at 25 °C typical

GENERAL
Memory                                                            16,383/channel
Reading Rate                                                  1 reading every 2 seconds up to 1 reading every 12 hours
Baud Rate                                                         2,400
Battery Life                                                     1 year
Material                                                            303 stainless steel
Dimensions                                                     25 mm in H x 533 mm in L x 85 mm in W
Submersible                                                    Yes
Operating Environment                           -20 °C to +80 °C, 0 %RH to 100 %RH
Required Interface Package                 IFC110 or IFC200
Weight                                                              439.44 gr.
PRTemp1000 Data Logger

Rugged Pressure and Temperature Data Logger with ¼” NPT Fitting and Stainless Steel Enclosure.
Includes NIST traceable calibration certificate.

The PRTemp1000 is a rugged pressure data logger designed to accurately monitor and record pressure and temperature parameters at user programmable reading intervals.
The rugged stainless steel design allows for the device to be placed in harsh environments, which makes it well suited for use with air conditioning systems, chilled water, hot water, air, gas, oil and steam pressure systems.

The internal temperature sensor provides accurate temperature measurements without the need for a separate temperature recorder.
The logger can be started to take measurements as often as every two seconds, up to one reading every twelve hours.
It will store up to 16,383 readings in its non-volatile memory.

The PRTemp1000 uses a rugged stainless steel pressure strain gauge to accurately measure the pressure.
The device comes standard with a ¼ in NPT fitting, which allows the logger to be connected to almost any pressure adapter.

There are many different pressure ranges available to fit most any application.
The standard pressure ranges are 30 PSIA (G), 100 PSIA (G), 300 PSIA (G), 500 PSIA (G), 1000 PSIA and 5000 PSIA. Other ranges may also be available upon request.
PRTemp1000IS Data Logger

Intrinsically Safe, Rugged, Pressure and Temperature Data Logger with ¼ in NPT Fitting and Stainless Steel Enclosure.
Includes NIST traceable calibration certificate.

The PRTemp1000IS is a rugged pressure and temperature data logger.
It measure and records temperature and pressure data at user defined intervals.
The PRTemp1000IS has been Factory Mutual certified as intrinsically safe for Class I, Division 1, groups A, B, C and D and non-incendive for Class I, Division 2, groups A, B, C and D.
This certification makes the device ideal for uses in hostile environment applications such as air conditioning systems, chilled water, hot water, air, gas, oil and steam pressure systems.

The internal temperature sensor provides accurate temperature measurements without the need of a separate temperature data logger.
The logger can be started to take measurements as often as every two seconds, up to one reading every twelve hours.
It will store up to 16,383 readings in its non-volatile memory.
The PRTemp1000IS uses a rugged stainless steel pressure strain gauge to accurately measure the pressure.
The device comes standard with a common 1/4 in NPT fitting, which allows the logger to be adapted to almost any pressure fitting.
There are many different pressure ranges available to suit most any application.
The standard pressure ranges are 30 PSIA (G), 100 PSIA (G), 300 PSIA (G), 500 PSIA (G), 1000 PSIA and 5000 PSIA.


Short Description
Rugged Pressure and Temperature Data Logger with ¼” NPT Fitting and Stainless Steel Enclosure. Includes NIST traceable calibration certificate.
Intrinsically Safe, Rugged, Pressure and Temperature Data Logger with ¼ in NPT Fitting and Stainless Steel Enclosure. Includes NIST traceable calibration certificate.
Product Memory
16,383/channel
16,383/channel
Baud Rate
2,400
2,400
Battery Life
1 year
1 year
Dimensions
163 mm x 32 mm diam
163 mm x 32 mm diam
Operating Environment
-40 °C to +80 °C, 0 %RH to 100 %RH
-40 °C to +80 °C, 0 %RH to 100 %RH
Wireless Requirements
IFC110 or IFC200
IFC110 or IFC200
Approvals
CE
CE, IS rated
PRTrans1000 Data Logger

Rugged, Submersible Transient Pressure Data Logger with ¼ in NPT Fitting and Stainless Steel Enclosure. Includes NIST traceable calibration certificate.

The PRTrans1000 is rugged, submersible transient pressure data logger that records time and date stamped transient pressure event data at user-defined intervals and threshold triggers.
Its stainless steel enclosure is designed for use in harsh, industrial environments.
Features a ¼ in NPT fitting for easy connection to gas, water, steam and hydraulic pressure lines.

Data is sampled continuously at 100 Hz, but is recorded only when a user-programmed threshold is met.
The device can record up to 255 events and take as many as 262,143 pressure samples.
Perfect for capturing high-speed, erratic pressure data over long periods of time.
Available in several pressure ranges, Absolute (A) and Gauge (G).
PRTrans1000IS Data Logger

Intrinsically Safe, Transient Pressure Data Logger with 1/4 in NPT fitting and Stainless Steel Enclosure.
Includes NIST traceable calibration certificate.

The PRTrans1000IS is an intrinsically safe, rugged, transient pressure data logger that records time and date stamped transient pressure event data at user-defined intervals and threshold triggers. The PRTrans1000IS has been Factory Mutual certified as intrinsically safe for Class I, Division 1, groups A, B, C and D and non-incendive for Class I, Division 2, groups A, B, C and D.
This certification makes the device ideal for uses in hostile environment applications.

Its stainless steel enclosure is designed for use in harsh, industrial environments.
Features a ¼ in NPT fitting for easy connection to gas, water, steam and hydraulic pressure lines.
Data is sampled continuously at 100Hz, but is recorded only when a user-programmed threshold is met.
The device can record up to 255 events and take as many as 262,143 pressure samples.
Perfect for capturing high-speed, erratic pressure data over long periods of time.
Available in several pressure ranges, Absolute (A) and Gauge (G).
Intrinsically Safe (IS) versions.


Short Description
Rugged, Submersible Transient Pressure Data Logger with ¼ in NPT Fitting and Stainless Steel Enclosure. Includes NIST traceable calibration certificate.
Intrinsically Safe, Transient Pressure Data Logger with 1/4 in NPT fitting and Stainless Steel Enclosure. Includes NIST traceable calibration certificate.
Product Memory
Up to 262,143 samples
Up to 262,143 samples
Baud Rate
115,200
115,200
Battery Life
3 days @10 milliseconds/sample
3 days @10 milliseconds/sample
Dimensions
163 mm x 32 mm diam
163 mm x 32 mm diam
Operating Environment
-40 °C to +80 °C, 0 %RH to 100 %RH
-40 °C to +80 °C, 0 %RH to 100 %RH
Wireless Requirements
IFC200
IFC200
Approvals
CE
CE, IS rated
Back to content
