Moffel Ovens

Laboratory Product > Heating
Moffel-Chamber ovens

  • universal ovens for laboratory applications
  • fast warm-up time, low energy consumption
  • favorable price / quality ratio

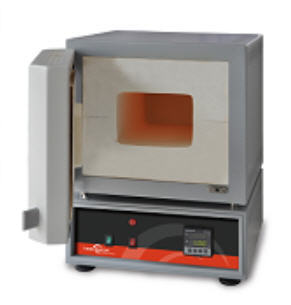

KL 03/11 - KL 15/12
Mild furnaces T. max. 1100 and 1200 ° C

  • compact housing, takes up little space
  • Stainless steel housing with long service life
  • hardened phase module as inner chamber, highly mechanically loadable
  • fast warm-up time, low energy consumption
  • high-quality heating wire, long lifespan
  • heating wire incorporated in ceramic plates
  • control over semiconductor, low noise and wear-free
  • drain pipe in back wall
KLS 03/10
Compact muffle furnace T. max. 1000 ° C volume 3 ltr

  • favorable price / quality ratio
  • hardened phase module as inner chamber, highly mechanically loadable
  • fast warm-up time, low energy consumption
  • heating wire wrapped around ceramic muffle
  • control over semiconductor, low noise and wear-free
  • drain hole back wall

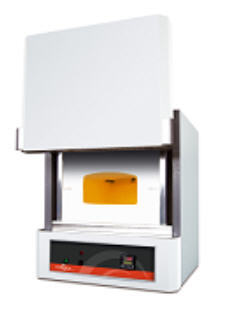

KLS 05/11 - KLS 45/13
Laboratory ovens T.max. 1100, 1200 and 1300 ° C

  • volume 6 - 45 liters
  • very high temperature uniformity in oven chamber
  • double oven housing with ventilation for lower outer wall temp.
  • parallel guided door that opens upwards, no heat radiation to the user
  • oven insulation from high quality phaser
  • door collar from strong insulating stone
  • delivery incl. ceramic base plate
  • Spirals placed on supporting tubes in front of the oven side walls, good heat radiation
  • control over semiconductor, low noise and wear-free
  • drain pipe in back wall
KL 07 / 11M - KL 05 / 11M
Laboratory ovens with ceramic muffle T.max. 1150 and 1300 ° C

  • volume 5 and 7 liters
  • Integrated strong ceramic inner shell, heated on both sides
  • suitable for processes where harmful vapors or gases are released
  • parallel guided door that opens upwards, no heat radiates
  • very high temperature uniformity in oven chamber
  • double oven housing with ventilation for lower outer wall temp.
  • parallel guided door that opens upwards, no heat radiation to the user
  • Spirals sent over solid state relays for very accurate temperature control, wear-free and silent

Model      T.max   Useful size    Volume Outside dimension   Voltage
               (°C)       wxdxh (mm)     (L)           wxdxh (mm)                 (V)

KL 03/11    1100     180x140x10       3l           380x415x400                230V 1/N
KL 05/11    1100     230x170x130     5l           430x445x425                230V 1/N
KL 09/11    1100     230x240x170     9l           430x515x465                230V 1/N
KL 15/11    1100     250x340x170     15l         450x615x465                230V 1/N
KL 03/12    1100     180x140x100     3l           380x415x400                230V 1/N
KL 05/12    1100     230x240x170     5l           430x445x425                230V 1/N
KL 09/12    1100     250x340x170     9l           430x515x465                230V 1/N
KL 15/12    1100     250x340x170     15l         450x615x465                230V 1/N

KLS 03/10  1000      140x200x100     3l           320x350x410               230V 1/N

KLS 05/11   1100      210x200x150    5l           550x580x650               230V 1/N
KLS 10/11   1100      200x250x200    10l         560x670x720               230V 1/N
KLS 15/11   1100      220x300x230    15l         560x670x720               400V 2/N
KLS 30/11   1100      280x380x280    30l         590x700x790               400V 2/N
KLS 45/11   1100      300x500x300    45l         660x720x770               400V 2/N

KLS 05/12   1200      180x200x140      5l         550x580x650               230V 1/N
KLS 10/12   1200      200x250x200     10l        560x670x720               400V 2/N
KLS 15/12   1200      220x300x230     15l        560x670x720               400V 2/N
KLS 30/12   1200      280x350x280     30l        590x700x790               400V 2/N
KLS 45/12   1200      300x500x300     45l        660x720x770               400V 2/N

KLS 05/13   1300      200x250x140       5l        550x580x650               230V 1/N
KLS 10/13   1300      200x250x180      10l       560x670x720               400V 2/N
KLS 15/13   1300      230x300x230      15l       560x670x720               400V 2/N
KLS 30/13   1300      270x350x270      30l       590x700x790               400V 2/N
KLS 45/13   1300      300x500x300      45l       660x720x770               400V 2/N

KLS 07/11/M  1150   210x280x110       7l        550x580x650               230V 1/N
KLS 05/11/M  1300   200x250x90         5l        800x800x1450             400V 3/N
