TEMP1000IS
INTRINSICALLY SAFE TEMPERATURE DATA LOGGER

Temp1000IS Data Logger

Rugged, temperature data logger.
Enclosed in an intrinsically safe stainless steel enclosure.
Includes  ISO17025 accredited calibration certificate.

The Temp1000IS temperature data logger is a rugged, battery powered,  stand alone device which can be used to automatically record  temperatures between -40 °C and 80 °C.
This all in  one compact, portable, easy to use device is able to measure and record  data for up to 32,767 temperature readings.

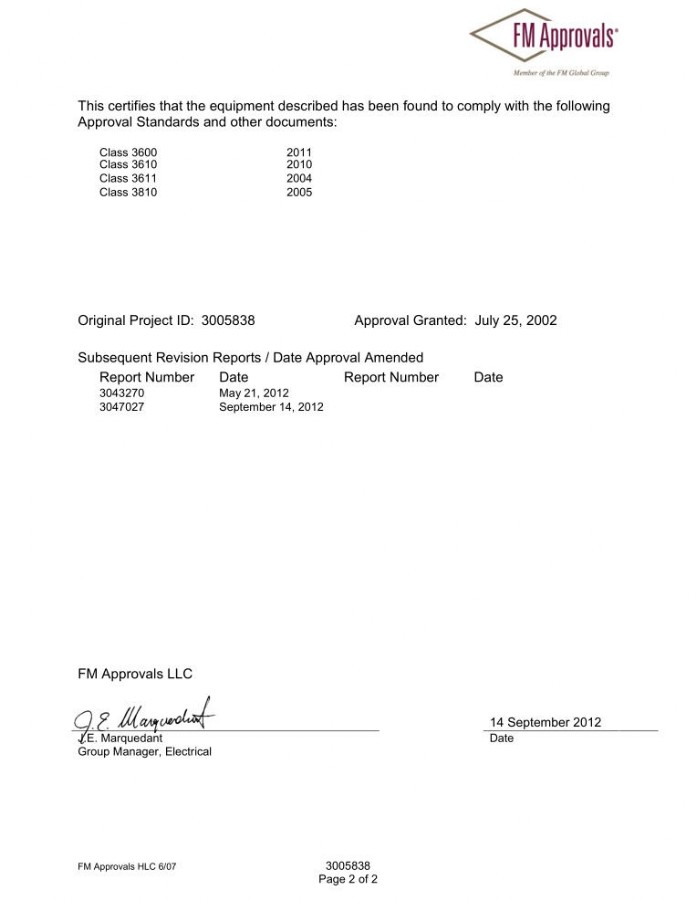

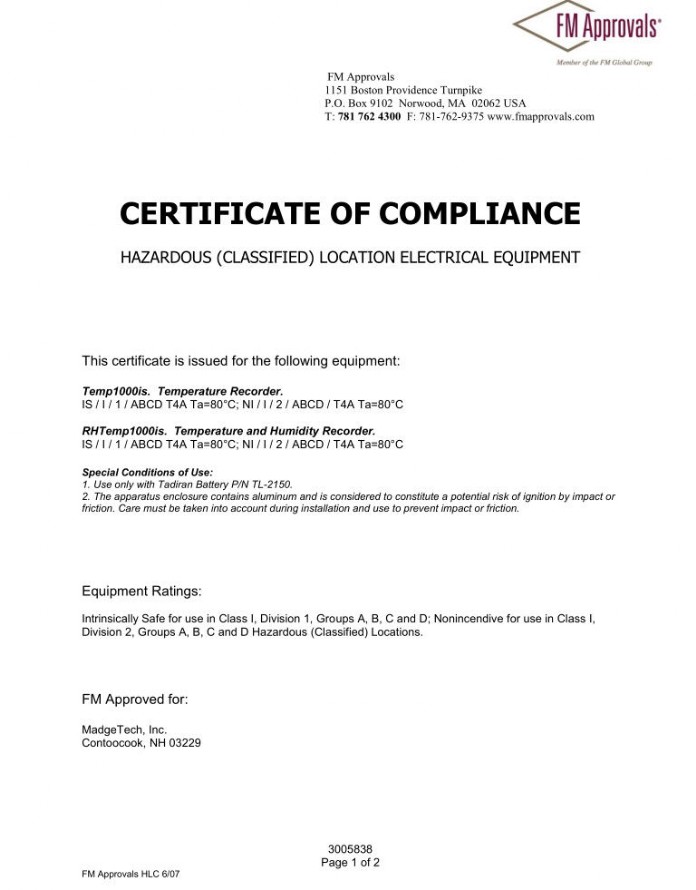

The Temp1000IS has  been Factory Mutual certified as intrinsically safe for Class I,  Division 1, groups A, B, C and D
and non-incendive for Class I, Division  2 groups A, B, C and D hazardous environments.
This certification makes  the device ideal for uses such as EtO sterilization, environmental  studies and numerous other hostile environment applications.

Its  Real time clock ensures that all the data is time and date stamped.
The  storage medium is non-volatile solid state memory, providing maximum  data security even if the battery becomes discharged.
The device can be  started and stopped directly from your computer and its small size  allows it to fit almost anywhere.
The Temp1000IS makes data retrieval  quick and easy. Simply plug the device into an empty COM and USB port  and our user-friendly software does the rest.
TEMPERATURE
Temperature Sensor : Semiconductor
Temperature Range  : -40 °C to +80 °C
Temperature Resolution : 0.01 °C
Temperature Calibrated Accuracy : ±0.5 °C
GENERAL
Memory : 32,767
Reading Rate : 1 reading every 2 seconds to 1 reading every 12 hours
Battery Life : 2 year typical at 15 minute reading rate
Battery Type: 3.6V lithium battery included, user replaceable
Material : 316 Stainless Steel
Dimensions : 67.3 mm x 24.6 mm dia.
Weight : 85 gr.
IP Rating (Not Rated) Caution :  Do not submerge this product to retain IS rating.
Operating Environment : -40 °C to +80 °C, 0 %RH to 100 %RH (case properly sealed)
Required Interface Package : IFC400 or IFC406
Approvals : CE, IS rated
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Lethality Equations:  Sterilization Units and Pasteurization
                             Units are available in software with the click of a button.

MODELS
2 models are available :

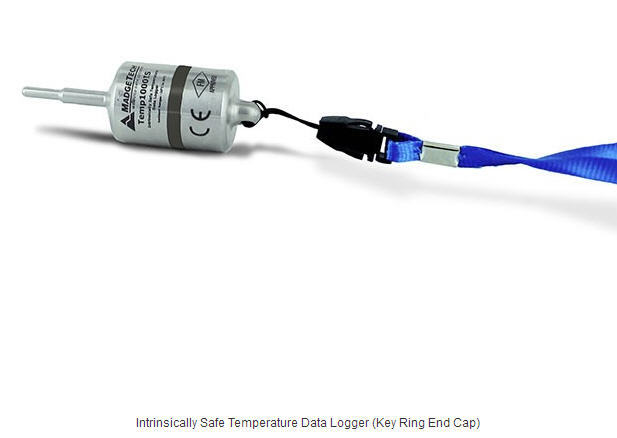

Temp1000IS-KR    Rugged, Submersible, Temperature   Recorder Intrinsically Safe, aluminum enclosure and key ring end cap
Temp1000IS-SS    Rugged, Submersible, Temperature   Recorder Intrinsically Safe, stainless steel enclosure

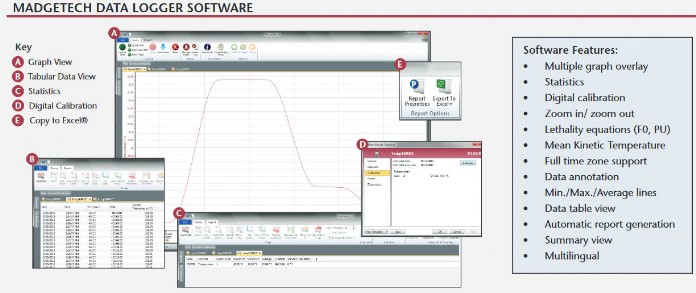

  • MadgeTech 4 Secure Validation Software Package
    IQ/OQ/PQ Secure Software Validation Workbook and Software Package.

  • IFC400 Data Logger Interface
    Interface Cable Package for the HiTemp140 and  PR140 Data Loggers. USB Connection with Docking Station Cradle.

  • TL-2150/S Lithium Battery
    3.6V Lithium Battery, 1/2 AA, Pressure Contact, -40 °C to +80 °C.

    Please note: Shipments containing lithium batteries are subject  to a minimum 45 € UPS Hazardous Handling Fee if shipped via any method  other than UPS ground.
     Once the order has been placed, Senze Instruments will  contact you to obtain authorization for the      additional UPS charge.  Orders will not ship until authorization has been received.

  • IFC406 Multiplexer Data Logger Interface
    IFC406 Multiplexer Data Logger Interface,  allowing for multiple data loggers to be connected into one interface.

Applications

EtO Sterilization
Implement HACCP Programs
Food Preparation and Processing
Environmental Studies
Well Monitoring
Dishwasher Testing
Hazardous and Hostile Environment Monitoring
Medical and Pharmaceutical
