ASB P
Scales > For Retail

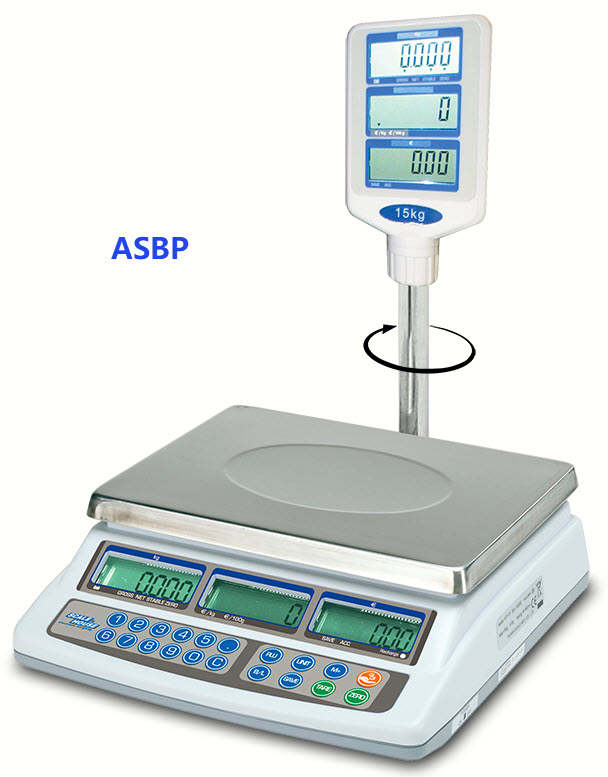

ASBP SERIES PRICE COMPUTING "RETAIL" SCALE
Dual range price computing scales with column, for commercial use.
Connectable to the printer, for amount totalisation function.
10 PLU memory.
![](images/ASBP-2.jpg)
![](images/CE-M.jpg)
TECHNICAL FEATURES
- 3 backlit LCD displays on keypad on operator side and 3 backlit LCD displays on revolving column on customer side, with digits 20 mm high, for simultaneous indication of weight, price and amount.
- Membrane waterproof numeric and functional keypad with 20 keys and acoustic feedback.
- Stainless steel plate, 230 x 300mm size.
- Level and adjustable feet.
- Built-in rechargeable battery (about 70 h battery life) and 230 Vac power adapter.
- RS232/C port for connection to printer.
- Overall height from ground with indicator and column: 530mm.
- Packaging: 550 x 380 x 235mm size - approximate weight of 6kg.
- Master Pack: 2 x (550 x 380 x 235) mm size - 2 x approximate weight of 6 kg.
- Upon request:
- ACCREDIA calibration with issuing of relative certificate;
- 3000e + 3000e dual range CE-M approval.
FUNCTIONS
- Price computing:
- change of unit price: €/kg - €/100g;
- entry of unit price;
- amount totalisation (with optional printer);
- calculation of the change;
- 10 PLU memories; - zeroing;
- Zero tracking;
- Semi-automatic tare;
- Digital calibration;
- Auto switch-off;
- Backlight command;
- Low battery warning.
![](images/ASBP-1.jpg)
Available versions
Code Max d ![](images/M.jpg)
(kg) (g) 2R (g)*
![](images/M.jpg)
(kg) (g) 2R (g)*
345-ASBP6 3/6 1/2 1/2
345-ASBP15 6/15 2/5 2/5
345-ASBP30 15/30 5/10 5/10
(*) CE-M divisions are obtainable only with the relative options.
NOTE: ACCREDIA calibration certificate available upon request.
Options only available at time of scale's order
Code Description
ECEM2 CE-M single platform legal for trade multi range approval.
BTPRSHABS thermal printer for Scale House products (to be combined with specific cable for each scale).
58 mm paper width; 50 mm roll diameter;
power supply through built-in 110-240 Vac power adapter.335.00
