Temp101A Data Logger
Temperature Data Logger with a 10 year battery life

The Temp101A is second to none in the compact, portable and low cost  data logger class. This device can measure and record ambient  temperature from -40 °C to 80 °C and is approximately the size of a  matchbox which allows for easy placement even in tight spaces.

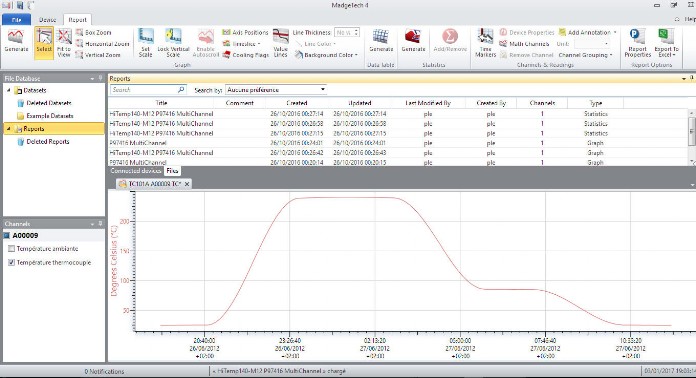

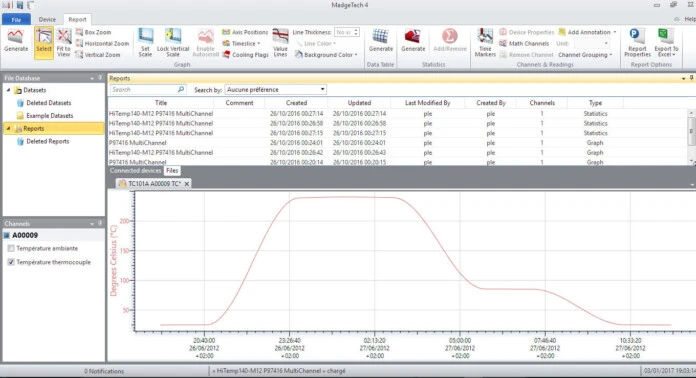

The Temp101A features a pushbutton start/stop on the device or can be  configured to start and stop using the MadgeTech Data Logger Software,  with the ability to schedule a delayed start up to eighteen months in  advance. These features combined with the ability to store up to  2,000,000 readings makes the Temp101A the ideal solution for long term  temperature deployment and monitoring cycles.

Some common applications for the Temp101A include but are not limited  to cold chain and shipping applications, warehouse and facility  mapping, HVAC or refrigerator and freezer monitoring.


TEMPERATURE
Temperature Sensor Precision : RTD Element
Temperature Range : -40 °C to +80 °C
Temperature Resolution :  0.01 °C
Temperature Calibrated Accuracy :  ±0.5 °C

GENERAL
Memory : 1,000,000 readings; software configurable memory wrap 330,000 readings in multiple start/stop mode
Reading Rate : 1 reading every second up to 1 reading every 24 hours
Alarm : Yes
Baud Rate : 115,200
LED Indicators : Red & Green
Push-Button Start : Yes
Single/Multi-Use : Multi-use
Battery Life : 10 years typical at a 15 minute reading rate
Material : ABS plastic
Dimensions : 36 mm x 56 mm x 16 mm
Operating Environment : -40 °C to +80 °C, 0 %RH to 95 %RH non-condensing
Required Interface Package : IFC200
Approvals : CE
  • IFC200 Data Logger Interface
       USB Interface Cable Package for Standard Series Data Loggers.

  • LTC-7PN Lithium Battery
       3.6 Volt, Lithium Battery, 750 mAH. Note: These  batteries are only equipped with two leads and the leads have been cut  for use with MadgeTech data loggers. For additional configurations,  please contact MadgeTech Sales.

  • MadgeTech 4 Secure Validation Software Package
         IQ/OQ/PQ Secure Software Validation Workbook and Software Package.

  •  LTC-7PN-PK Lithium Battery
         3.6 Volt, Lithium Battery, 750 mAH (pack of  14). Note: These batteries are only equipped with two leads and the  leads have been cut for use with MadgeTech data loggers. For additional  configurations, please contact MadgeTech Sales.
  • Applications
    • Cold Chain
    • Refrigerator and Freezer Monitoring
    • Vaccine Monitoring
    • Warehouse Mapping
    • HVAC
    • General Purpose Temperature Recording
    Options
    • Calibration Certificate
    • Extended Warranty
    ORDERING INFORMATION
    MODEL                      DESCRIPTION
    TEMP101A                 Temperature Data Logger
    IFC200                      Software, manual and USB interface cable
    Calibration Certificate  Calibration Certificate available for data logger
    LTC-7PN                    Replacement battery for Temp101A
    TEMP101A SPECIFICATIONS*
    Temperature Sensor: Precision RTD Element
    Temperature Range: -40 °C to +80 °C (
    Temperature Resolution: 0.01 °C
    Calibrated Accuracy: ±0.5 °C
    Reading Rate: 1 reading every second up to 1 reading every 24 hours
    Memory:
    • 2,000,000 readings; software configurable memory wrap
    • 660,000 readings in multiple start/stop mode
    Wrap Around: Yes
    Start Modes:
    • Immediate start
    • Delay start up to 18 months
    • Multiple pushbutton start/stop
    Stop Modes:
    • Manual through software
    • Timed (specific date and time)
    Multiple Start/Stop Mode: Start and stop the device multiple times without having to download data or communicate with a PC
    Multiple Start/Stop Mode Activation:
    To start the device:
    Press and hold the pushbutton for 5 seconds, the green LED will flash during this time. The device has started logging.
    To stop the device:
    Press and hold the pushbutton for 5 seconds, the red LED will flash during this time. The device has stopped logging.
    Real Time Recording: The device may be used with PC to monitor and record data in real time
    Alarm: Programmable high and low limits; alarm is activated when temperature reaches or exceeds set limits
    LED Functionality:
    Green LED blinks:
    • 10 second rate to indicate logging
    • 15 second rate to indicate delay start mode
    Red LED blinks:
    • 10 second rate to indicate low battery and/or full memory
    • 1 second rate to indicate an alarm condition
    Password Protection: An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password.
    Calibration: Digital calibration through software
    Calibration Date: Automatically recorded within device
    Battery Type: 3.6V lithium battery included; user replaceable
    Battery Life: 10 years typical at a 15 minute reading rate
    Data Format: Date and time stamped ºC, ºF, K, ºR
    Time Accuracy: ±1 minute/month (at 20 ºC, stand alone data logging)
    Computer Interface: USB (interface cable required); 115,200 baud
    Software: Version 2.06.3 or higher/XP SP3/Vista/Windows 7/Windows 8
    Operating Environment: -40 ºC to +80 ºC, 0 %RH to 95 %RH non-condensing
    Dimensions: 36 mm x 56 mm x 16 mm
    Weight: 24 g
    Materials: ABS Plastic
    Approvals: CE
