Cupping & Deep Drawing Cup

Coatings & Industry > Mechanical properties > Flexibility and toughness

Cupping & Deep Drawing Cup Test

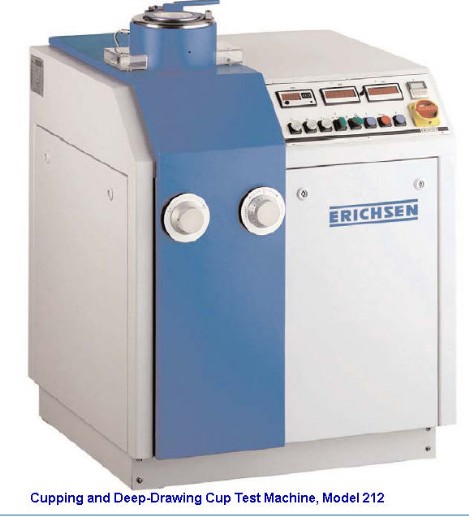

Machine Model 212
Model 212 is a fully automatic cupping and deep-drawing cup test machine for testing the ductility of coated, ferrous and non-ferrous metals (eg. stamping paints, lacquered, plastic coated or electroplated materials).

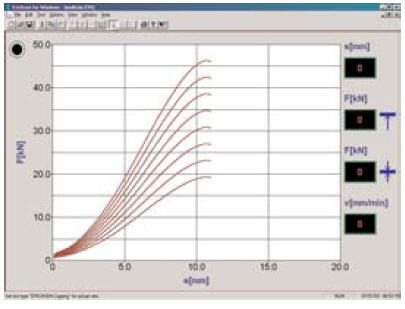

The testing machine is provided with an electro-hydraulic drive with a maximum drawing force of 100 kN as well as digital displays indicating the drawing force, the blank holding force and the drawing punch displacement.


When manufacturing deep-drawn products the ingoing material is deformed in all three co-ordinating planes.
The surface coating should not become defective to avoid subsequent corrosion.
For the standard controls and proofs required for the purposes of quality assurance, Model 212 is particularly suitable to conduct cupping and deep-drawing cup tests within the sheet metal thickness range of 0.1 mm to 3.0 mm.
To intensify the tests by further special investigations, it is possible to easily carry out a redraw (a second deep-drawing operation conducted on the standard cup using a smaller drawing die and drawing punch).


Technical Data 1

Dimensions and Weight
Width: approx. 900 mm
Depth: approx. 800 mm
Height: approx. 1100 mm
Net weight: approx. 470 kg

Hydraulic Drive
Motor performance, max. 2.2 kW / 1500 min-1
Pump delivery, pump circuit 1 5.4 l/min
Pump delivery, pump circuit 2 5.4 l/min

Technical Data 2

Test Cylinder
Drawing force, max. 120 kN / 175 bar
Drawing punch stroke, max. 65 mm
Drawing punch stroke display Resolution: 0.1 mm
Drawing speed, max. 900 mm/min
Sheet holder force, max. 45 kN / 40 bar
Blanking force 200 kN / 175 bar

Noise Level
The continuous noise level from the machine is < 70 dB(A).
The quantity required of hydraulic oil (50 l), type HLP 32 in accordance with DIN 51 524-P2, must be provided by the user.

Hydraulic oil: HLP 32 ISO
Volume of oil container: approx. 45 l
Operating temperatur: max. 50 °C


The following reasons are important for using the Cupping and Deep-drawing Cup Test Machine, Model 212, for quality assurance, research and development:

  • Lowering of the reject rate by concerted monitoring of the coating quality during production or in the process department.
  • Immediate sorting out of lower quality arriving at the goods inwards department by means of the ERICHSEN cupping test or the deep-drawing cup test. Without special test preparations it is possible to establish, if the material supplied corresponds to the prescribed properties.
  • The sturdy construction and hydraulic operation ensure a wear-resistant functioning of the machine so that high accuracy of the test results at low maintenance and working expenses is guaranteed


Cupping & Deep Drawing Cup Test Machine

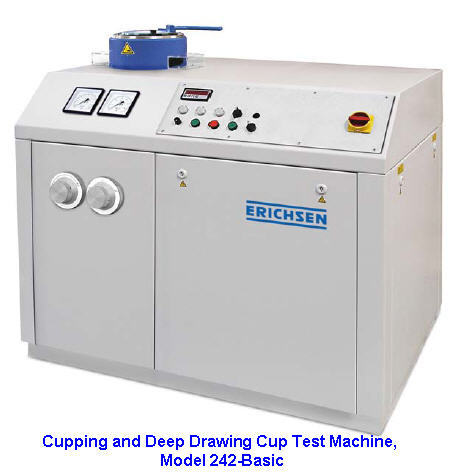

Model 242

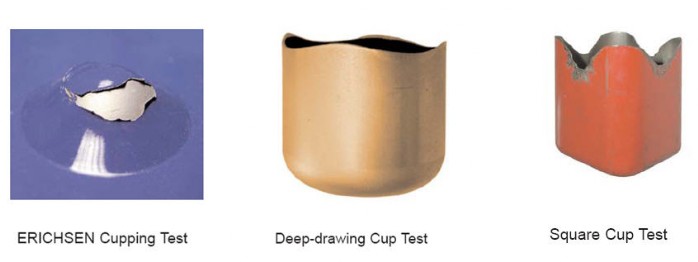

Especially intended for the coil coatings, this machine is suitable for the Erichsen Cupping Test as well as for the Deep Drawing Cup Test producing cylindrical and square cups.
Model 242 is a fully automatic cupping and deep-drawing cup test machine for testing the ductility of coated ferrous and non-ferrous metals (eg. stamping paints, lacquered, plastic coated or electroplated materials).

The testing machine is provided with an electro-hydraulic drive, programmable logic control, automatic test sequence and has a maximum drawing force of 200 kN. A digital display indicates the drawing force, the blank holding force and the drawing punch displacement.

Blanking, drawing and ejection of the cup is carried out in one operation.

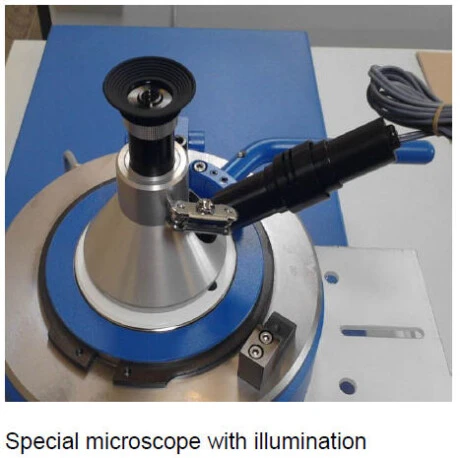

Accessories (optional)
- In addition to various cylindrical test tools for deformation and redraw, test tools for e.g. the square cup test are also available.
Technical Data 1

Drawing force, max. 200 kN
Blank holding force, max. 40 kN
Drawing punch stroke, approx. 80 mm
Blank holder stroke, approx. 38 mm
Blanking force, max. 260 kN
Opening for sheet insert, max. width 125 mm
Drawing speed approx. 500 mm/min
Technical Data 2

Power supply 230/400 V, 3 ~, 50/60 Hz
Power required approx. 3.0 kW
Dimensions, approx. Height 1250 mm
Width 1250 mm
Depth 960 mm
Weight net, approx. 600 kg
