Sphere

Coatings & Industry > Color > Benchtop

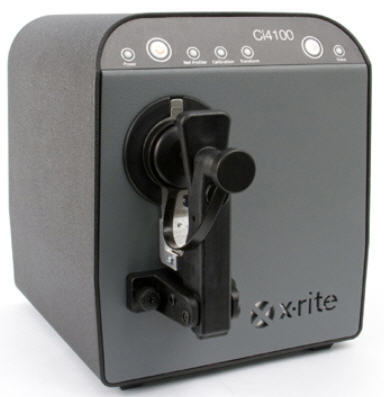

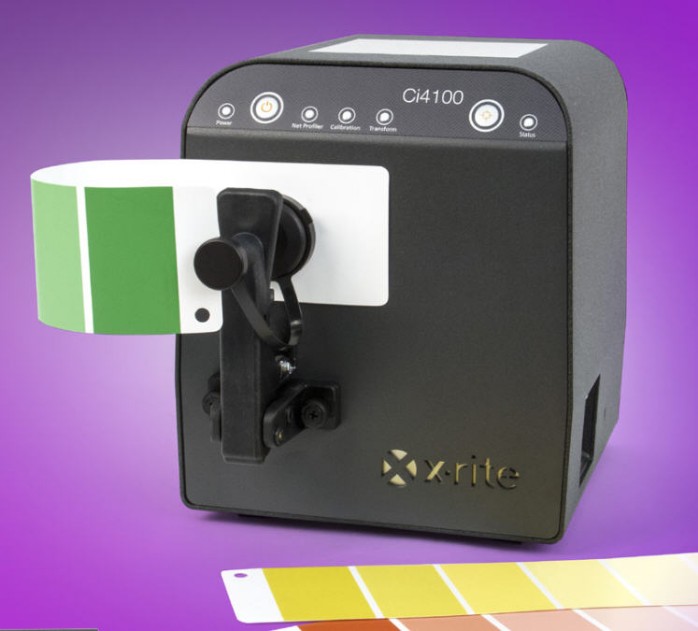

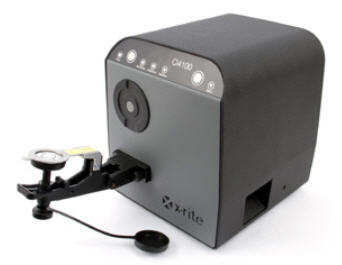

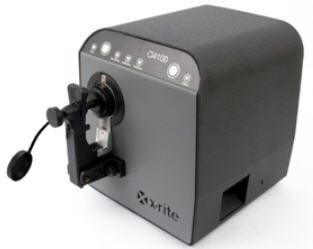

Ci4100 Compact Benchtop Spectrophotometer

The Ci4100 sets the new standard for performance and features in an easy to use compact sphere counter top solution for retail paint matching to implement a higher degree of formulation accuracy.

A reliable and accurate counter top spectrophotometer that serves as the foundation for operations, the Ci4100 improves speed and accuracy of paint formulation, provides easy sample targeting and stands up to the harsh retail environment.

Features/benefits
  • Data compatibility X-Rite sphere handhelds
  • Correlated 60º gloss value
  • Embedded transform enabled
  • LED membrane provides status and operation feedback with remote trigger
  • Sample targeting / viewing via sample arm
  • Built in white cal standard
  • Embedded NetProfiler enables users to monitor the performance of their population of instruments, optimizing measurement agreement and remote certification of performance


X-Rite Ci4100 Specifications
Measuring Geometrics :  d/8°, DRS spectral engine, SPIN
Optical Aperture : 4mm measurement area  / 14mm target window
Light Source :   Gas-filled tungsten lamp
Receiver : Blue-enhanced silicon photodiodes
Spectral Range : 400 – 700nm
Spectral Interval : 10nm – measured  / 10nm – output
Measurement Range : 0 to 200% reflectance
Inter-Instrument Agreement : CIE L*a*b*:
Avg. 0.30 ΔE*ab based on avg. of 12 BCRA Series II tiles (specular component included)
Max. 0.50 ΔE*ab on any tile (specular component included
Short-Term Repeatability : .10ΔE*ab on white ceramic
Measuring Time : Approx. 2 seconds
Transform Support : Embedded
Lamp Life : Approx. 500,000 measurements
Power Supply : AC Adapter Requirements 90 –130VAC or 100 – 240VAC, 50 – 60Hz, 15W max
Data Interface : USB
Operating Temperature Range : 10° to 40°C / 85% relative humidity maximum (non-condensing)
Storage Temperature Range : -20° to 50°C
Weight : 5.2 kg
Dimensions : H 22.0 cm x W 19.0 cm x L 26.4 cm
Accessories Provided : Captive white calibration standard, Operations manual, AC adapter, USB cable
X-Rite Ci4200/Ci4200UV Compact Benchtop Spectrophotometer
Features/benefits
  • Embedded NetProfiler enables users to monitor the performance of their population of instruments, optimizing measurement agreement and remote certification of performance
  • Data compatibility X-Rite sphere handhelds
  • Available calibrated UV (Ci4200UV)
  • Correlated 60º gloss value
  • Embedded transform enabled
  • LED membrane provides status and operation feedback with remote trigger
  • Sample targeting / viewing via sample arm
  • Simultaneous SCI/SCE measurement 2 seconds (Ci4200)
  • Vertical and horizontal positioning


Measuring Geometrics :  d/8°, DRS spectral engine,
Simultaneous SPIN / SPEX
Optical Aperture :            8mm measurement area
14mm target window
Light Source :                 Gas-filled tungsten lamp
UVLEDs (Ci4200UV)
Receiver :                       Blue-enhanced silicon photodiodes
Spectral Range :              400 – 700nm
Spectral Interval :            10nm – measured  / 10nm – output
Measurement Range :       0 to 200% reflectance
Inter-Instrument Agreement : CIE L*a*b*: Avg. 0.20 ΔE*ab based on avg. of 12 BCRA Series II tiles (specular component included)
Max. 0.40 ΔE*ab on any tile (specular component included)
Short-Term Repeatability : .05ΔE*ab on white ceramic
Measuring Time :              Approx. 2 seconds
Transform Support :          Embedded
Lamp Life :                       Approx. 500,000 measurements
Power Supply :                  AC Adapter Requirements 90 –130VAC or 100 – 240VAC, 50 – 60Hz, 15W max
Data Interface :                 USB
Operating Temperature Range : 50° to 104°F (10° to 40°C) 85% relative humidity maximum (non-condensing)
Storage Temperature Range : -4° to 122°F (-20° to 50°C)
Weight : 11.5 lbs. (5.2 kg)
Dimensions :                       H 22.0 cm x W 19.0 cm x L 26.4 cm
Accessories Provided :         Calibration standards: Black trap, White & green standards, UV Calibration standard (Ci4200UV), Operations manual, AC adapter, USB cable

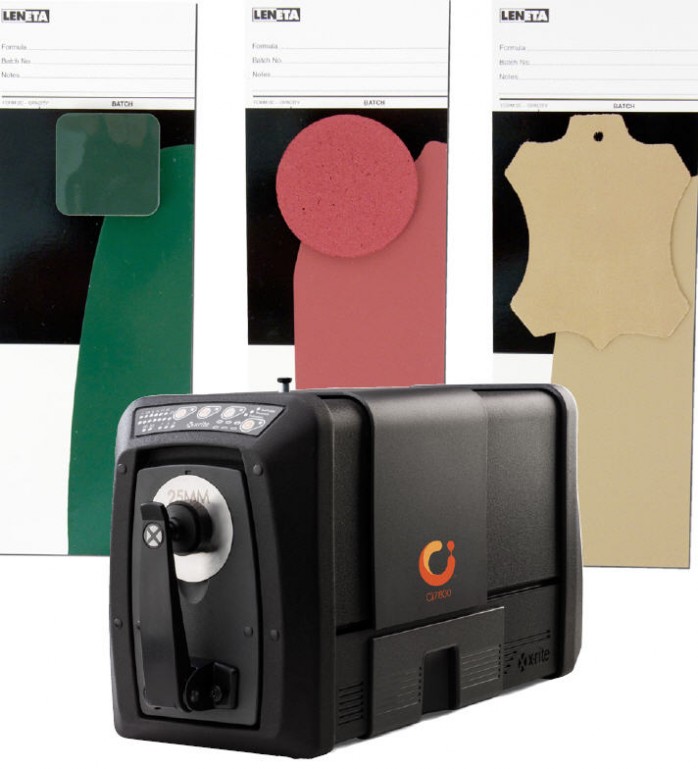

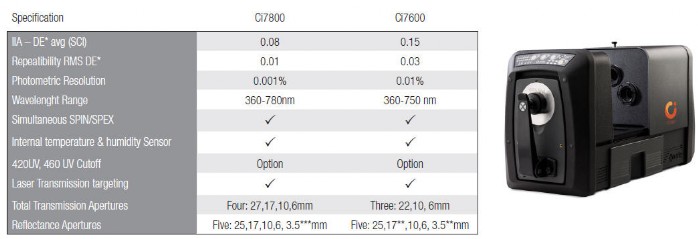

X-Rite Ci7600/7800

Benchtop Spectrophotometer for the Paint and Coatings Industry

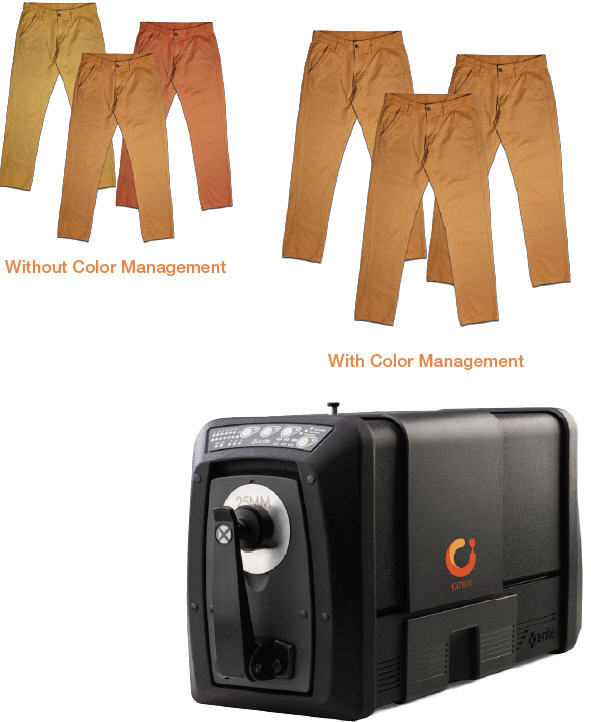

Benchtop Spectrophotometer for the Textile and Apparel Industries

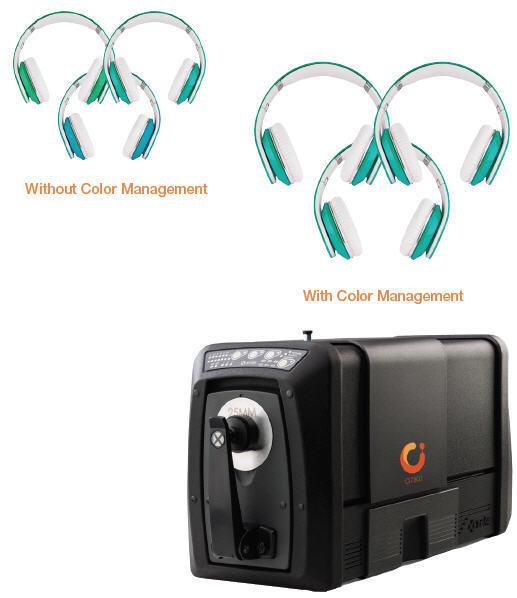

Benchtop Spectrophotometer for the Plastics Industry

Process Control for Perfect Color
From concept through the final product, color fidelity across the entire supply chain is the optimal goal for all industry.
Using Ci7800/Ci7600 Benchtop Spectrophotometer color measurement instruments will ensure that specifications and tolerances are met.
Right the first time. Right all the time.
Precise, Consistent Sample Measurement
Older benchtop spectrophotometers can be complicated and time consuming to configure for proper performance.
It is also critical that databases used to determine recipes in retail and other remote locations are accurate to minimize wasted time and customer dissatisfaction. Use the next-generation X-Rite benchtop spectrophotometer Ci7800, a master instrument, and the Ci7600, the cost effective compatible version.
Use in combination with X-Rite NetProfiler and/or Color iMatch software for:
• Fast, simultaneous SPIN/SPEX measurements to determine gloss level of the sample, and over light or over dark measurements to better control opacity.
• Automated, software-driven set-up delivering consistent configuration across all locations.
• An audit trail that includes device condition, sample image and parameters at the time of measurement.
• Multi-aperture design to accommodate measurement ofcomplicated samples.

The Ultimate in Flexibility
Your new Ci7800 and Ci7600 comes with up to five apertures and three UV filters for the utmost in measurement flexibility. Even better: The measurement lens zooms automatically when the aperture is changed.
Software Options for Improved Productivity, Reliability
By adding selected software solutions to support your X-Rite Ci7600/Ci7800, you can improve productivity and reduce errors and rework.
• Cloud-based NetProfiler to verify, optimize and certify theperformance of your color measurement devices—across theplant or around the globe.
• Color iMatch for accurate color formulation to meetcustomer-provided standards.
• Color iQC to remove the guesswork from evaluating colors during the production process.
Confidently Migrate Legacy Colors
Over the years, you have likely compiled a significant amount of data used in the specification, measurement and management of color. When you upgrade to an X-Rite Ci7800 or Ci7600 from an X-Rite CE7000A, Color i5 or Color i7 benchtop spectrophotometer, as well as selected competitive instruments, be assured that your legacy data will remain valid, protecting that important asset. X-Rite’s Ci7600/Ci7800 fits seamlessly into your existing data environment.

Standards Compliance
The X-Rite Ci7800 and Ci7600 benchtop spectrophotometers are compliant with the following standards: CIE No. 15, ASTM D1003, ASTM E1164, DIN 5033 Teil 7, JIS Z 8722, ISO 7724/1.
