Grant Squirrel range of data loggers


The Grant Instruments Squirrel range of data loggers are easy to use, hand held, battery powered data loggers which can also be powered via a standard power socket (110-250 volts).
They set the standard for portable data loggers, with their simplicity of operation, very high accuracy of measurement, universal data inputs which can accept virtually any type of sensor signal and their excellent reliability.
The complete Squirrel range offers from 4 to 32 analogue sensor inputs channels, full Wi-Fi, USB and Ethernet connectivity and come complete with the sophisticated SquirrelView configuration and analysis software.
Data logging is now truly possible - "out-of-the-box".
NA = not available

X : standard
Entry LevelStandardHigh Speed &
Wi-Fi version
High Performance &
Wi-Fi Versions
Extended High Performance
including
Wi-Fi version
SQ2010
SQ2020-1F8
SQ2020-2F8
SQ2040-2F16
SQ2040-4F16
Analogue input channels
4 to 88 to 168 to 1616 to 32
16 to 32
High Voltage channelsNA2222
Digital channels
88888
Counter channels24444
Input types


- current
X
X
X
X
X
- voltage
X
X
X
X
X
-resistance
2- wire
2- wire
2, 3, or 4- wire
2 - wire
2, 3, or 4- wire
- 3 or 4 wire
Pt100/Pt1000
NA
NA
4
NA
8
- temperature
X
X
X
X
X
Max no. readings per second
10
 (on 1 channel)
20
 (on 1 channel)
100
 (on 2 channels)
100
 (on 2 channels)
100
 (on 4 channels)
Accuracy
0.10%
0.05%
0.05%
0.05%
0.05%
Display
128 x 64 dot matrix LCD
128 x 64 dot matrix LCD
128 x 64 dot matrix LCD
128 x 64 dot matrix LCD
128 x 64 dot matrix LCD
Memory capacity
14 million readings
14 million readings
14 million readings
14 million readings
14 million readings
External memory (MMC/SD card)
NA
X
X
X
X
RS232 communications
X
X
X
X
X
USB communications
X
X
X
X
X
Ethernet**
NA*
NA*
X
X
X
Wi-Fi option**
NA*
NA*
X
X
X
Alarm outputs
24444
Sensor power output
regulated 5VDC@50 mA and external supply voltage up to 28V on 2010 and 18V on all others @100mA
Set-up/analysis software
SquirelView/SquirrelView Plus
Environment
- 30 to 65°C RH up to 95% (non-condensing)
   * Can use RS232 to Ethernet converter and RS232 to Wi-Fi converter, see section for accessories
** for Ethernet or Wi-Fi networks external power pack is required
A powerful portable data logger for everyday use

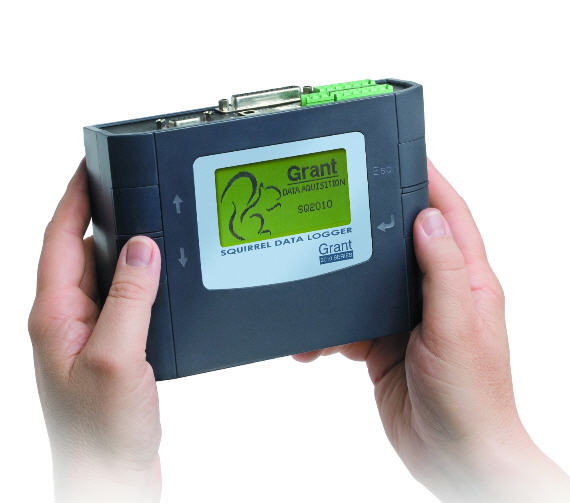

The Squirrel 2010 is a versatile, general purpose logger, with 4 to 8 analogue input channels to measure current, voltage, resistance and temperature, plus 8 digital channels. All can be logged or used as triggers to automatically start or stop logging.

It is a compact, portable logger which is also suitable for bench based and fixed installations. Easily programmed via the four integral push buttons and large graphical display and with a basic accuracy of 0.1%, the Squirrel 2010 is able to fulfil many routine data logging needs, including more demanding applications requiring up to 10 readings per second on one channel.

  • Flexible
  • Very easy to use
  • Economical
  • Handheld, ergonomic design
  • USB connectivity with PC
  • Ethernet or RS232 communications options available
  • Extended battery life for unattended logging
Key Features

  • Compact, portable data logger
  • Powered from internal cells, external PSU or via USB connection
  • 4 to 8 universal analogue inputs (current, voltage, resistance, temperature) plus 8 digital inputs
  • 16 derived/calculated channels
  • 2 alarm outputs
  • 2 pulse counter inputs (1 at up to 64kHz, 1 at up to 100Hz)
  • Configured via large easy-to-read graphical display
  • 0.1% accuracy, 24-bit A to D conversion
  • Up to 14 million readings
  • Supplied with SquirrelView set-up/download and export software
  • Up to 10 readings per second on 1 channel
Analogue inputs supported

  • Thermistors
  • Thermocouples
  • Voltage
  • Current
  • Resistance

Key Capabilities

  • Create complex schedules of logging rates, triggers and alarm outputs
  • Scale and view readings in real time on the integral display or on a PC running SquirrelView or Excel
  • Display readings in preferred engineering units e.g. Hz, Bar, Pascals, Nm etc.
  • Select logging rates up to 10 Hz. Single channel only
  • Derive up to 16 calculated (virtual) channels from real input channels using mathematical functions
  • Concurrently sample channels at different sample speeds
The Squirrel 2010 series comprises of two versions

SQ2010
Includes the following;

  • Fitted Foam Lined Case
  • SquirrelView Software
  • Getting Started Guide including Certificate of Conformity
  • USB connection cable
  • Full set of Connection Plugs complete with Cable Ties
  • Pack of 4 Precision Resistors for 4-20mA connection
  • Set of C type Batteries
  • Small Electrical Screwdriver

SQ2010 Kit
Includes all of the above, plus the following items;

  • SquirrelView Plus Software
  • Universal Mains Power Adaptor (110-240 Vac)
Squirrel SQ2020 Series Data Logger


Squirrel 2020 series offers high  performance universal data loggers packed with powerful features to  provide great flexibility to handle a wide range of routine and  demanding applications.

Hand-held and lightweight, the Squirrel 2020 models are easy, fast  and convenient to use - either as stand-alone loggers or as PC-linked  data acquisition systems in industrial and scientific research and  quality assurance applications.

Twin processors, multiple 24-bit analogue-to-digital converters, up  to 16 universal channels and a choice of communications methods ensure  that the Squirrel 2020 series provides state-of-the-art data logging and  communication capability for sophisticated applications needs.
  • Up to 16 universal inputs
  • High precision (0.05%)
  • Advanced data management to MMC/SD card or PC
  • Flexible communications (USB, Ethernet, RS232)
  • High speed option (100Hz)
  • Various Remote connection options e.g. via Ethernet or dial up modem
Key Features
  • Standalone data logger or link to a PC
  • Compact and portable
  • 8 to 16 universal analogue plus 8 digital inputs
  • Up to 16 derived /calculated channels
  • 4 alarm outputs
  • 4 pulse rate / counter inputs (2 at up to 64kHz, 2 at up to 100Hz)
  • Configured via integral interface or via PC
  • 0.05% basic accuracy
  • Up to 14 million readings
  • Removable MMC / SD card
  • In-built Ethernet networking capability (SQ2020-2F8 only)
  • USB and RS232 connectivity
Analogue inputs supported
Thermistors
Thermocouples
Pt100/Pt1000 (maximum of four 3 or 4-wire Pt100/1000 sensors)
Voltage
Current
Resistance

Key Capabilities
Create complex schedules of logging rates, triggers and alarm outputs
Scale and view readings in real time on the integral display or on a PC running SquirrelView or Excel
Display readings in preferred engineering units e.g. Hz, Bar, Pascals, Nm etc.
Select logging rates up to 100 readings per second on up to 2 channels (20Hz maximum on Squirrel model 2020-1F8)
Derive up to 16 calculated (virtual) channels from real input channels using mathematical functions
Concurrently sample channels at different sample speeds
The Squirrel 2020 series comprises two models:

Squirrel 2020-1F8
Up to 20 readings per second on 1 channel

Squirrel 2020-2F8 (high speed model)
Up to 100 readings per second on 2 channels
In-built Ethernet connectivity
Up to four 3 or 4 wire Pt 100/1000 sensor inputs
