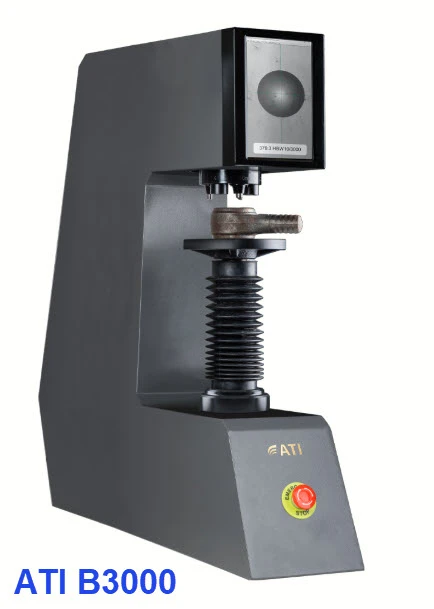

ATI B3000
ATI B3000 is an automatic Brinell hardness tester, fully performant and easy to use, making it the best choice for efficience and to mesure any surface on large or small products.
Automatic Brinell test cycle directly in production line and in laboratory
ATI B3000 is automatic Brinell hardness tester for Brinell hardness testing.
Simply select the desired hardness scale and press the START button.
The tester automatically positions the test piece against the indenter, initiating the loading cycle with no manual effort required.
The integrated turret efficiently manages indenter and objective switching, ensuring seamless operation.

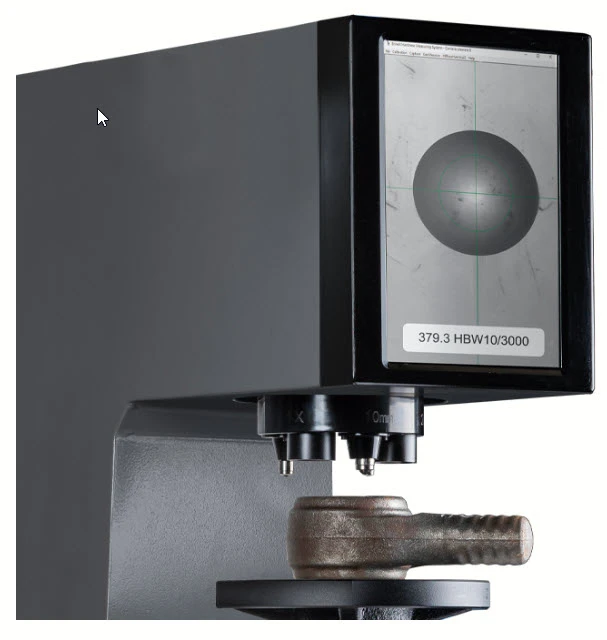

By touching the indentation image, you can instantly view the results on the large graphic display.
Once the measurement is complete, the ATI B3000 is ready for the next test, enhancing your productivity.
With its combination of performance and user-friendliness, the ATI B3000 hardness tester is the ideal solution for accurately measuring hardness on various surfaces, whether for large or small products.
Choose the ATI B3000 for reliable and efficient Brinell hardness testing.
Model: ATI B3000
Brinell hardness scales: HBW 2.5/62.5 , HBW 2.5/187.5 , HBW 5/62.5 , HBW 5/250 ,
HBW 5/750 , HBW 10/100 , HBW 10/500 , HBW 10/1500 , HBW 10/3000
Test force (kgf): 62.5 Kgf (612.9N), 100 Kgf (980.7N), 125 Kgf (1226N), 187.5 Kgf (1839N),
250 Kgf (2452N), 500 Kgf (4903N), 750 Kgf (4905n), 1000 Kgf (7905n),
1500 Kgf (14710N), 3000 Kgf (29420N)
Loading system: Electronic control of load cells in “Closed-Loop”
Auto turret standard: 2 steps (1indenter / 1 optical len 20X)

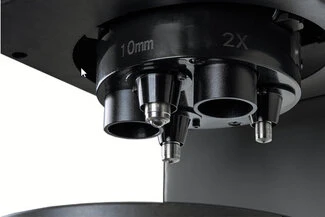

Auto turret as option: 5 steps (3 indenters / 2optic lens 20X 40X)
Auto turret rotation: Horizontally 360° (2 steps or 5 steps)
Compliance standards: ISO 6506, ASTM E10 and equivalents
Accuracy: Accuracy better than 1% (62.5 – 3000 Kgf);
Accuracy better than 0.5% (500 – 3000 Kgf)
Measuring device resolution: 0.1 μm
Dwell time: 0-99 seconds
Height capacity: 310 mm
Depth capacity: 250 mm
Measuring range: 15.9-650 HBW (ASTM E10 (Recommended effective hardness value)
Camera resolution: 1,2 MPixel
Measurement methods: Manual and automatic
Data store: The measured values are stored in EXCEL format on a USB flash disk
Power supply: 220 V – 50/60 Hz single phase
Total dimensions: 120 x 120 x 160 cm– Weight: 160/200 kg

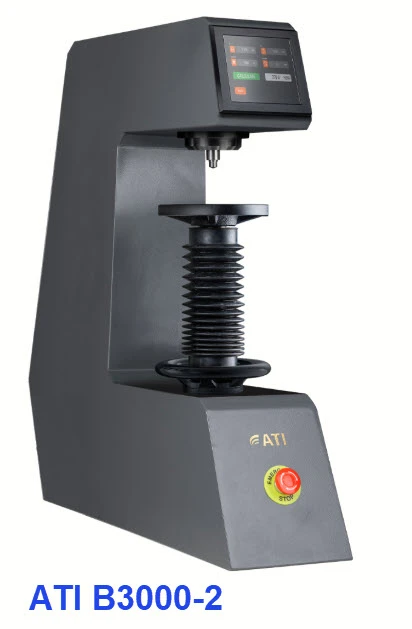

ATI B3000-2
ATI B3000-2ATI B3000-2 is a Brinell hardness tester that is fully compliant with ASTM E10-23 and ISO 6506 standards, making it an ideal solution for accurate and reliable hardness testing.

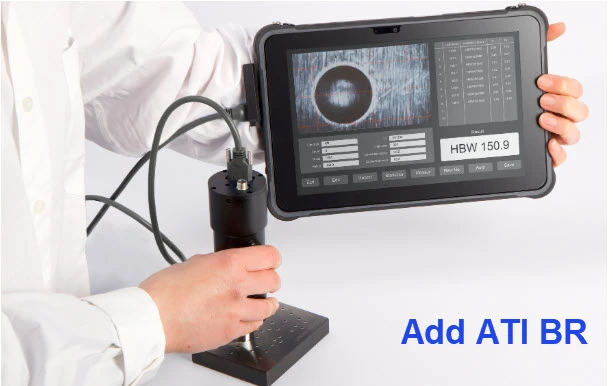

Add ATI BR
ATI BR is a digital and portable microscope for Brinell and Vickers indentation reading.
The system complies with ISO 6506, ISO 6507, ASTM E10, and ASTM E92 standards. Brinell and Vickers hardness tests can be performed directly on the production line, eliminating the need to move the components. Suitable for parts of any shape or size.

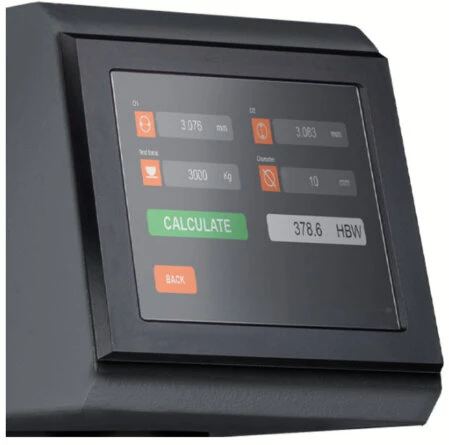

Software
The software is designed to guide the user through the Brinell hardness testing process. First, all relevant test parameters must be entered, including load, dwell time, and indenter specifications.
Once these parameters are set, the user clicks the ‘CALCULATE’ button, and the software automatically processes the data to provide the final hardness test result.
Set the hardness test scales, set the standard test method, conversion scales, manage the instrument tools and check if the installed instrument is correct and compliant with the selected hardness test method.
Model: ATI B3000-2
Brinell hardness scales: HBW 2.5/62.5 , HBW 2.5/187.5 , HBW 5/62.5 , HBW 5/250 ,
HBW 5/750 , HBW 10/100 , HBW 10/500 , HBW 10/1500 , HBW 10/3000
Test force (kgf): 62.5 Kgf (612.9N), 100 Kgf (980.7N), 125 Kgf (1226N), 187.5 Kgf (1839N),
250 Kgf (2452N), 500 Kgf (4903N), 750 Kgf (4905n), 1000 Kgf (7905n),
1500 Kgf (14710N), 3000 Kgf (29420N)
Loading system: Electronic control of load cells in “Closed-Loop”
Turret: 1 ball Brinell indenter
Compliance standards: ISO 6506, ASTM E10 and equivalents
Accuracy: Accuracy better than 1% (62.5 – 3000 Kgf);
Accuracy better than 0.5% (500 – 3000 Kgf)
Measuring device resolution: 0.1 μm
Dwell time: 0-99 seconds
Height capacity: 290 mm
Depth capacity: 210 mm
Measuring range: 15.9-650 HBW (ASTM E10 (Recommended effective hardness value)
Measurement methods: Manual
Power supply: 220 V – 50/60 Hz single phase
Total dimensions: 450 x 200 x 700 cm – Weight: 160/200 kg
