Vickers ATI
Metal Testing > Hardness Testers > ATI Benchtop

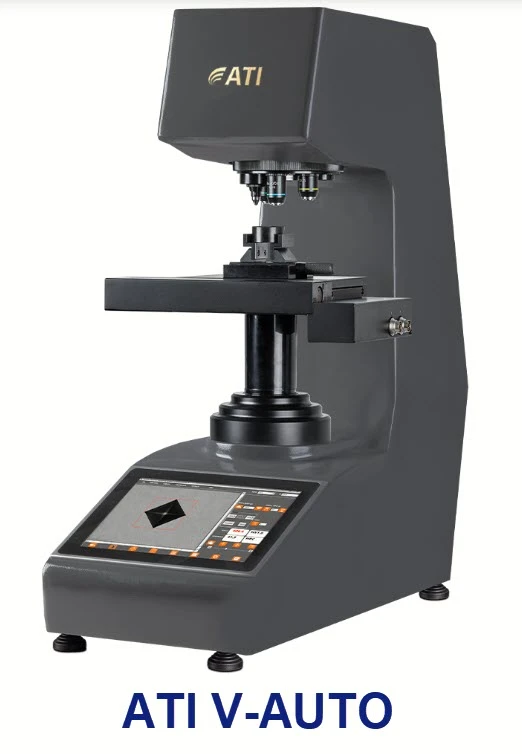

ATI V-AUTO
Wireless and compact hardness tester for Vickers and micro Vickers tests with built-in image viewing.
Fully automatic hardness tester in CNC system.
ATI V-AUTO is an
Automatic Vickers, micro Vickers and Knoop Hardness Tester
, engineered to meet the rigorous standards set forth by ASTM E92 and E384. This advanced testing instrument employs a high-precision load cell and Closed-Loop electronic control with a 1 KHz sampling rate, ensuring optimal accuracy and reliability.
One START button
to get start the entire test cycle with display of the results. Fully automatic test cycle with automatic succession of each phase without interruption. Direct image of indentation with manual or automatic measuring on-board. Turret at 5 positions with automatic selection of indenters and objective lens, depending on the selected scale. ATI V-AUTO is equipped with a motorized X-Y-Z table and auto-focus for multi indentation cycle.
MEAN FEATURES
- One START button to get start the entire test cycle with display of the result without operator intervention.
- Fully automatic test cycle with automatic succession of each phase without interruption.
- Load forces controlled electronically in “Closed-Loop” .

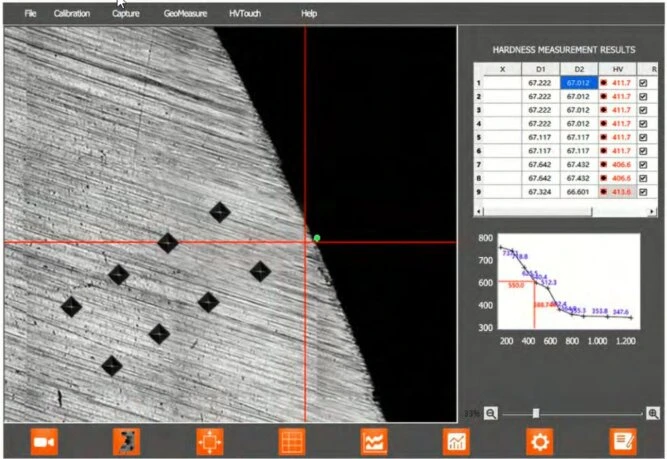

- Direct image of indentation with manual or automatic measuring on-board.

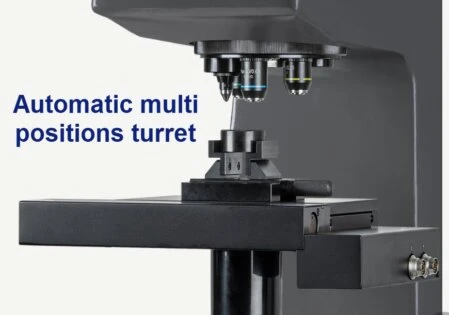

- Turret at 5 positions with automatic selection of lens-indenters depending on the selected scale.
- Interactive magnification from x15 to x800 for each lens.
- Memory for data and image storage.
Creation of statistical graphs and technical reports. - 11.5” ultra HD display with touch screen and digital keyboard.
- 1,3 Mp camers SHD.
- Software with interface Windows and 10.2 GM of memory.
- Ethernet and USB connection for data export and remote control.
- Remote control for self-diagnosis and software update service.
Suitable for all laboratory and production environments.

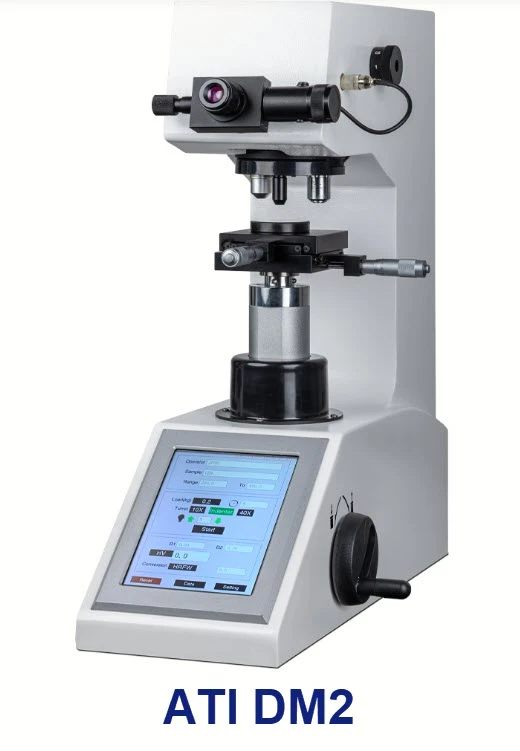

ATI DM2

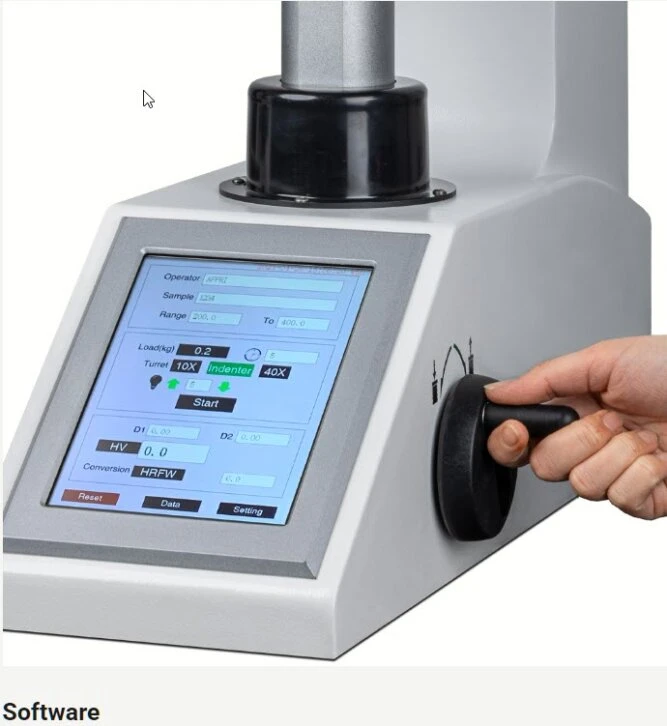

Micro hardness tester for Vickers and micro Vickers tests with automatic turret, automatic test cycle and digital direct measurement.
Compact and Automatic Vickers Hardness Tester

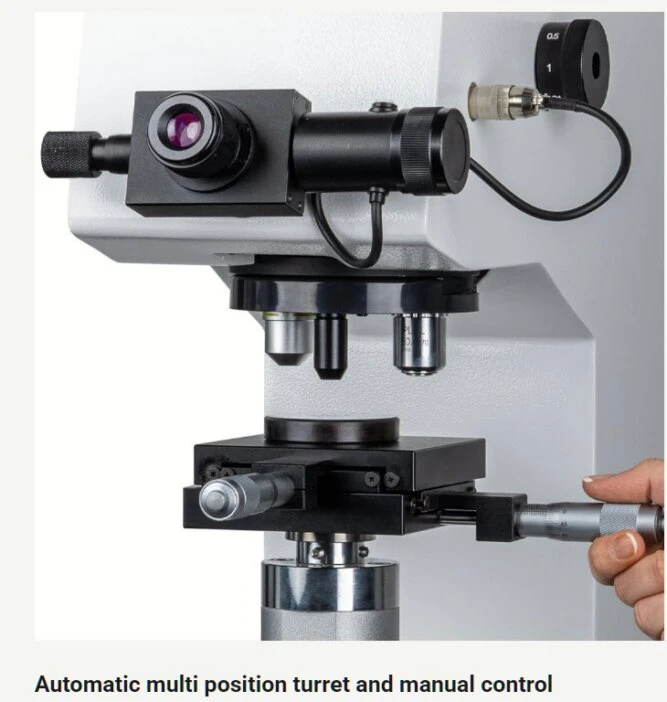

- Automatic 3-position turret (1 indenter and 2 objectives) with automatic selection of the objective-indenter combination. (Possibility of having a 4-position turret: 2 penetrators and 2 objectives)
- The eyepiece has a wide field of view which allows for rapid and precise identification of the fingerprint with a definition of 0.0001mm.
- The manual XY table allows the customer to check the correspondence between specimen and indenter. The measurement definition is of 0.01mm.
- The manual knob allows you to move the elevation screw along the Z axis with extreme precision, to obtain precise focus.

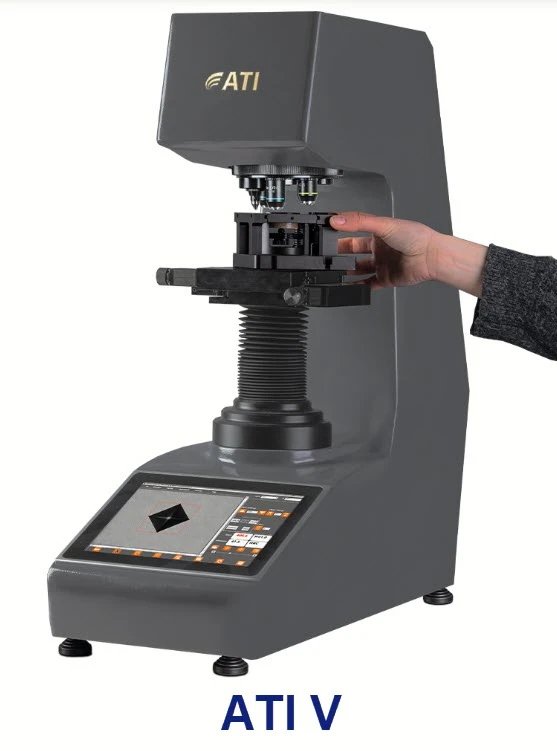

ATI V
Automatic Vickers hardness tester for Vickers and micro Vickers tests with built-in image viewing.
Compact and fully automatic hardness tester in CNC system.
The Compact and Automatic Vickers Hardness Tester offers a fully automated testing process with a single START button, ensuring seamless operation without operator intervention.

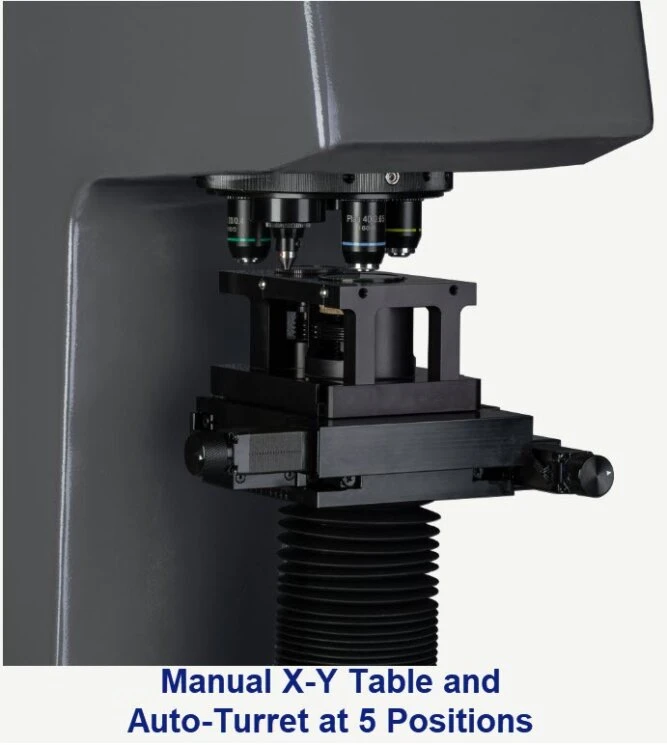

It features electronically controlled load forces, direct indentation imaging with both manual and automatic measurement, and a turret with 5 positions for automatic lens selection.
The tester provides interactive magnification from x15 to x800, data and image storage, and the ability to generate statistical graphs and technical reports.
Its 11.5” ultra HD touchscreen display, 1.3 Mp camera, and Ethernet/USB connectivity support remote control, data export, and software updates, making it ideal for laboratory and production environments.
