SERIE LD - BRINELL TESTING SOLUTIONS
Digital hardness testers for Brinell and Vickers test method in compliance with ASTM, ISO and JIS hardness standards.
Load range from 10 to 3000 kgf. LD 3000 hardness testers are low cost bench hardness testers with high accuracy standards.
Really simple to use, just one single button for the entire test. Load forces are applied through load cells and controlled in "Closed Loop" with a frequency of 1 khz, assuring perfect linearity in every range.
Hardness tests on all metals: iron, steel, tempered steel, cast iron, brass, aluminum, copper and metal alloys.
TECHNICAL FEATURES | LD 3000 |
Standards | EN-ISO 6506-1 / EN-ISO 6507 / EN-ISO 6508-2 / ASTM E-10 / ASTM E-18 / ASTM E-384 / ASTM E-92 |

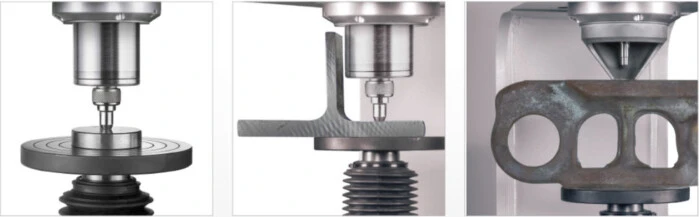

Indenter and clamping-hood stroke | 30 mm |
Elevating screw stroke | 150 mm. Removing the elevating screw, the vertical capacity increase till 300 mm for large samples. |
Depth capacity | 190 mm |
Test loads | Brinell: 98.07 - 147.1 - 294.2 - 306.5 - 612.9 - 1839 - 2452 - 4903 - 7355 - 9807 - 29421 N (10 - 15 - 30 - 31.2 - 62.5 - 187.5 - 250 - 500 - 750 - 1000 - 3000 kgf) Rockwell (On request): 588.4 - 980.7 - 1471 N (60 - 100 - 150 kgf) Vickers (On request): 98.07 - 147.1 -294.2 - 490.3 - 980.7 N (10 - 15 - 30 - 50 - 100 kgf) |

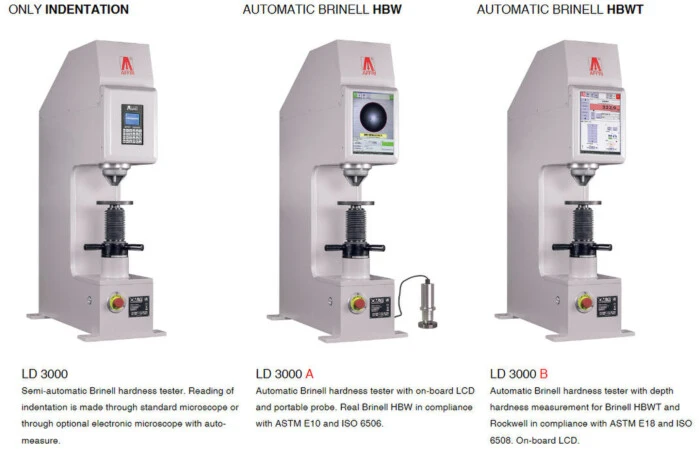

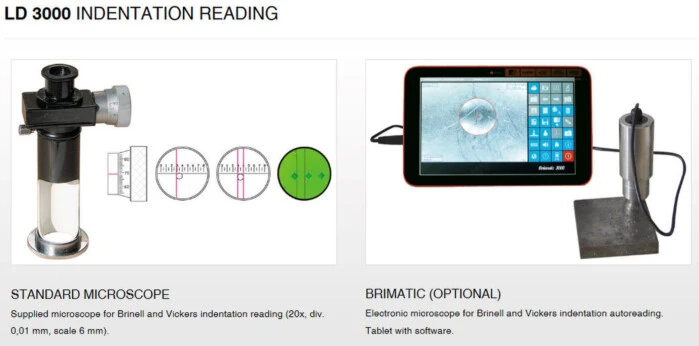

Feasible tests | LD 3000: Only indentation LD 3000 A: Automatic indentation reading with onboard LCD and portable probe Brinell HBW 1/10 - 1/30 - 2.5/62.5 - 2.5/187.5 - 5/25 - 5/62,5 - 5/125 - 5/250 - 5/750 - 10/100 - 10/250 - 10/500 - 10/1000 - 10/1500 - 10/3000 Vickers HV 3 - HV 5 - HV 10 - HV 20 - HV 30 - HV 50 - HV 100 (Only indentation) LD 3000 B: Automatic Brinell HBWT and Rockwell measurements Brinell HBWT 2.5/62.5 - 2.5/187.5 - 5/125 - 5/250 - 5/750 - 10/500 - 10/1000 - 10/1500 - 10/3000 Rockwell HRA - HRB - HRC - HRD - HRF - HRG - HRL - HRM - HRR Vickers HV 3 - HV 5 - HV 10 - HV 20 - HV 30 - HV 50 - HV 100 (Only indentation) |
Accuracy | Better than 0.5 % |
MRS JET 3000

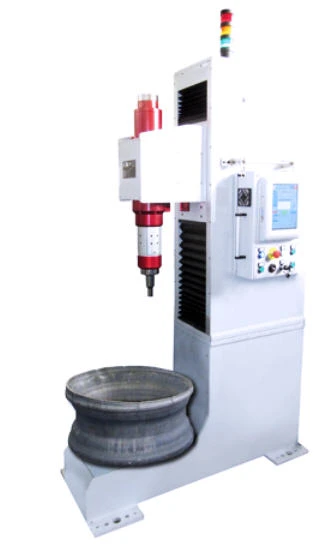

Automatic hardness tester studied to be inserted in production lines for high speed Brinell HBWT hardness measurements in compliance with ASTM, ISO and JIS. MRS JET 3000 has been studied to be used on conveyors and robotized lines with PLC remote control.
The motorized measuring head has a long vertical stroke and moves automatically down to make contact with the sample's surface (AFFRI system).
MRS JET 3000 is supplied with a wide touchscreen for a easy management of the software and testing cycles in production lines.
Load forces are applied through load cells and electronically controlled in Closed Loop (Pat. Affri).
Exact hardness result on the first test, absolute accuracy (better than 0.5 %) in every condition.
Hardness tests on all metals in accordance with Brinell test method: iron, steel, tempered steel, cast iron, brass, aluminum, copper and metal alloys.
Test loads: from 5 to 3000 kgf (From 49,03 to 29421 N))
TECHNICAL FEATURES | MRS-JET 3000 |
Standards | EN-ISO 6506 / ASTM E18 / ASTM E103 |
Vertical head stroke | Programmable distance with automatic contact |
Indenter and clamping-hood stroke | 300 mm (More on request) |
X/Y table | 400 x 400 mm |
Depth capacity | 240 mm |
Force range | Brinell: 49.03 - 61.29 - 98.07 - 153.2 - 245.2 - 294.2 - 306.5 - 612.9 - 1226 - 1839 - 2452 - 4903 - 7355 - 9807 - 29421 N (5 - 6.25 - 10 - 15.6 - 25 - 30 - 31.2 - 62.5 - 125 - 187.5 - 250 - 500 - 750 - 1000 - 3000 kgf) |
Feasible tests | Brinell: HBWT |
Accuracy | Better than 0.5 % |
BK30 BRINELL SCOPE
AFFRI, Brinell, Portable

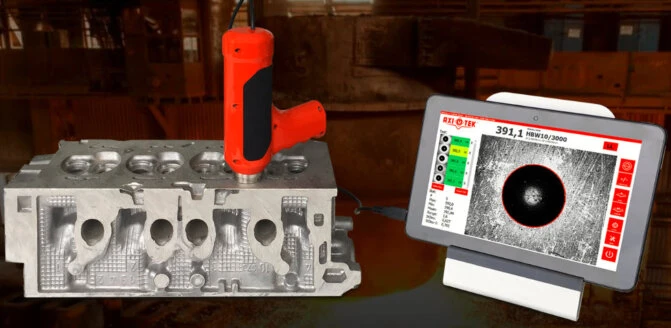

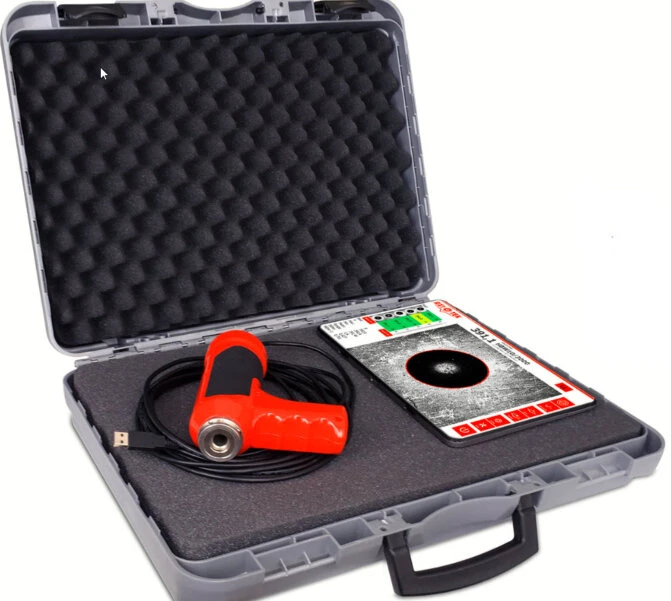

Portable digital microscope for automatic Brinell measurement indent reading conforms to ASTM E10/ISO 6506 international standards.

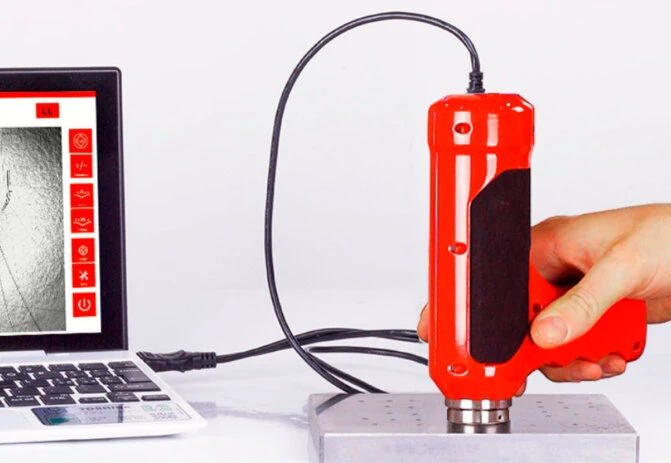

Portable Brinell microscope for automatic ball indentation measurement Ø 2.5 or 5 or 10 mm
- User friendly and compact
- Automatic light adjustment
- Accuracy and repeatability of measurement +/- 1%
- It run on Windows®
- Export data and images as jpg, bmp, PDF, Excel, txt, csv
- Create and print reports with results and statistics
- Internet connection for remote data network, calibration, service and software updates
BRINELL HBWT ISO 6506 – ASTM E10
- HBW 2.5/15.62 HBW 2.5/31.25 HBW 2.5/15.6 HBW 2.5/187.5 HBW 5/25 HBW 5/62.5 HBW 5/125 HBW 5/250
- HBW 5/750 HBW 10/100 HBW 10/250 HBW 10/500 HBW 10/1000 HBW 10/1500 HBW 10/3000
THE SOFTWARE
- The software controls the whole measurement avoiding setting errors or operators mistakes:
- Setup the hardness test scales, the properties of the camera, the test method standards, and the conversion scales.
- Export results as a TXT file or use the USB/WI-FI/Bluetooth outputs to connect the tablet to printers.

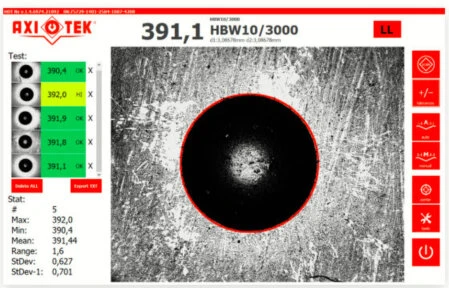

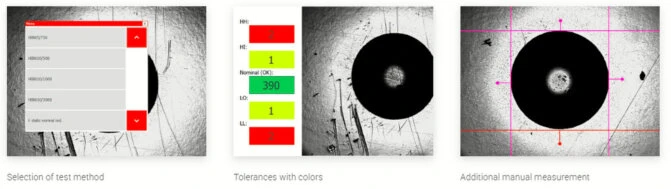

- Lists all of the readings done and their associated image. Chart the results and statistics highlighted according to their tolerance values (LOW, OK, HIGH).
