Freeze/Thaw Climate Chamber
Coatings & Industry > CORROSION > Climatic Chamber

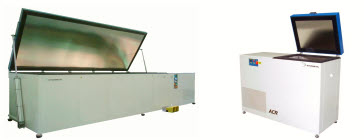

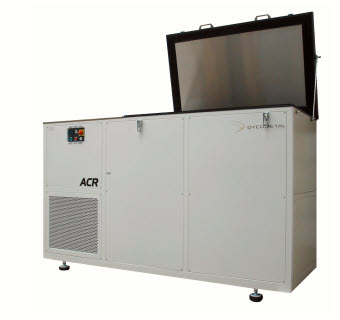

ACR
Forced Air
Freezer Chest
The freezer chest with forced air circulation have their specific field of application in the pre-thermostatisation of
some Systems of Finish, Fast Freezing of Liquid Substances and Studies of Thermal Stress in the fields of Building Materials, Plastics and Rubbers.
Their main advantage in front of the Freezers with Static Evaporation is, besides their design of the Air Circulation, the
fast velocity of cooling and temperature recovering.
Capacity from 150 liters to 5000 liters and range of temperature from ambiance to -70ºC.
• Different volumes
• High temperature rate of change
• Easy to install and easy to use
• Reliable construction
• Long life
Construction
The construction is extremely strong and suitable for the function they must do, in order to ensure a long life of the Equipment.
• Inside in AISI 304 stainless steel. Outside in painted steel, according to RAL-9010.
Painted door, according to RAL 7011.
• Depending on the model, the opening of the door can be done by pneumatic cylinders or pneumatic springs.
• 4 multidirectional castor wheels, multidirectional, to facilitate the mobility.
• Electrical panel located on the side of the freezer, properly insulated and protected.
Options
• Digital paperless recorder.
• Acoustic alarm of end of process.
• RS-232 port for connection to PC, programming Software and data acquisition in Windows environ- ment.
• Output to terminals 4/20mA or 0/10V.
• Port made of Teflon with watertight bin (different diameters).
Standards
•DIN 40046, page 3, test A
• IEC 68-2-1, test A
•BS 2011, part 2, test A
•VG 95332, page 3 y 22
•MIL-STD 810D, method 502.2
•MIL-E 5272, test 4.2

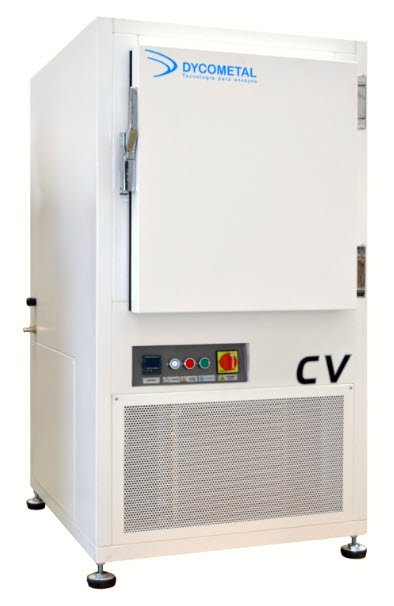

CV
Vertical Freezer
• Forced Air circulation
• Volumes from 81 to 2000 liters
• Temperature range from -40ºC or -70ºC
• Higher ergonomic
• 2 Shelves
• Special designs
The vertical freezers have the same technical characteristics of the ACR, but with the particularity of their design that make the introduction and the extraction of samples easier.
They occupy less surface than the horizontal ones, this is a big advantage when the space of the Laboratories is not enough.
Possibility to make the doors with a small observation window and glass-doors with metallic doorcase. Its is possible to make a freezer with a double compartment with independent regulation.
Their vertical design allows the use of lots of sample cradle.
Construction
•Capacity of Freezer from 81 liters to 2000 liters and range of temperature
from ambiance to -70ºC.
• Inside in AISI 304 stainless steel. Outside in painted steel, according to RAL-
9010. Painted door, according to RAL-9010.
• 4 multidirectional castor wheels, multidirectional, to facilitate the mobility.
• Digital display of temperature (PID).
Special Constructions, under request, for Chambers that are adapted to :
- Vibration Unities,
- Dynamometers,
- Volumetrical Expansion,
- Step Pressure,
- Stress,
- Hardnesss,
- Elasticity Limit,
- Torsion-Deformation...
Conform to standards :
• DIN 40046, page 3, test A• IEC 68-2-1, test A• BS 2011, part 2, test A • VG 95332, page 3 y 22• MIL-STD 810D, method 502.2• MIL-E 5272, test 4.2

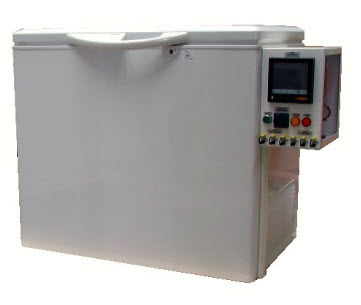

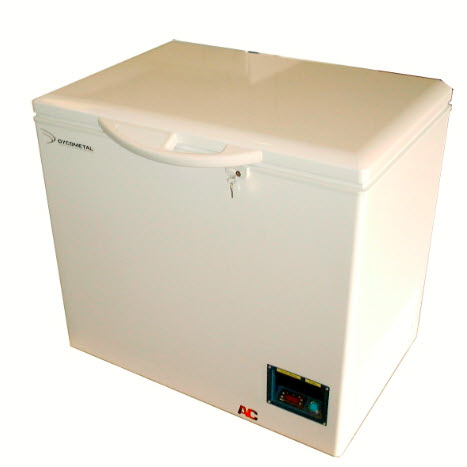

AC
Static Freezer Chest
• 6 models
• Static evaporation system
• Control Panel, in an ergonomic position
• Temperature control by electronic digital regulator
• Exterior Manufacturing, stainless sheet
Construction
Freezer's capacity from 200 liters to 500 liters and tem- perature range from ambiance to -80ºC. Agile opening of the access door because of its reduced weight.
• Outside made in veneer of zincates' steel and lacquered in white.
• Inside made in covered aluminum.
• Superior cover with compensate hinges, and handle for the opening.
• The control and regulation systems are together inside a control panel, in ergonomic position, in order to make their use and observation easier.
• Temperature Regulation by a digital-electronic regulator with display of the real working value.
• Measure of temperature by means of a thermocouple PTC.
Options
• Digital paperless recorder.
• Temperature recorder unit, with one channel and con- tinued line.
Programmed speed of paper advance.
Temperature indicator (ºC), analogical display with high visibility line.
• Recorder unit in round paper.
• Port made in Teflon.
• Chamber with interior light.
• Alarms of end of process or for safety area.
Standards
•DIN 40046, page 3, test A
• IEC 68-2-1, test A
•BS 2011, part 2, test A
•VG 95332, page 3 y 22
•MIL-STD 810D, method 502.2
•MIL-E 5272, test 4.2
